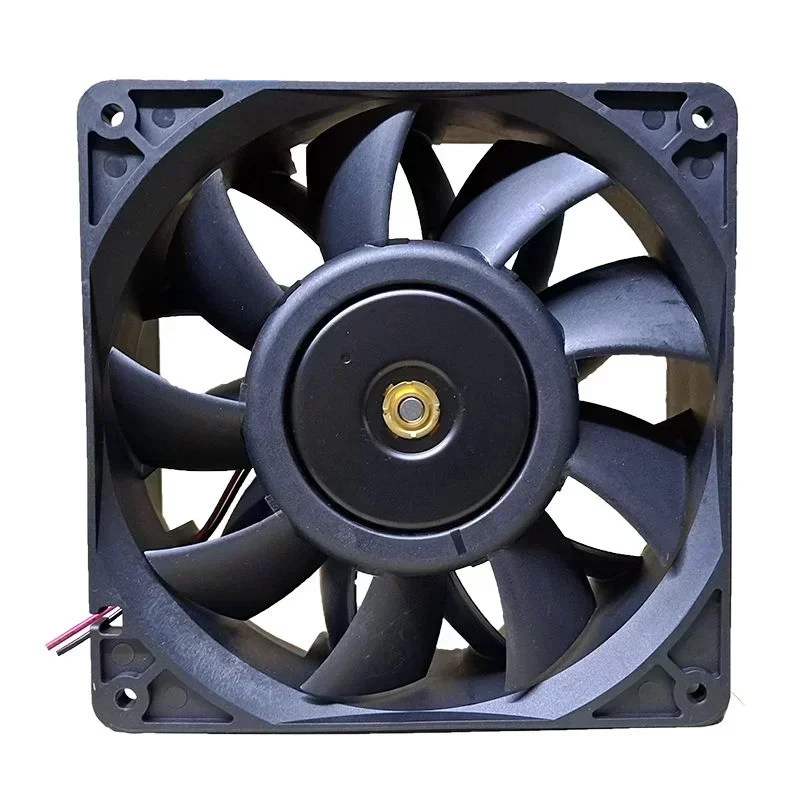

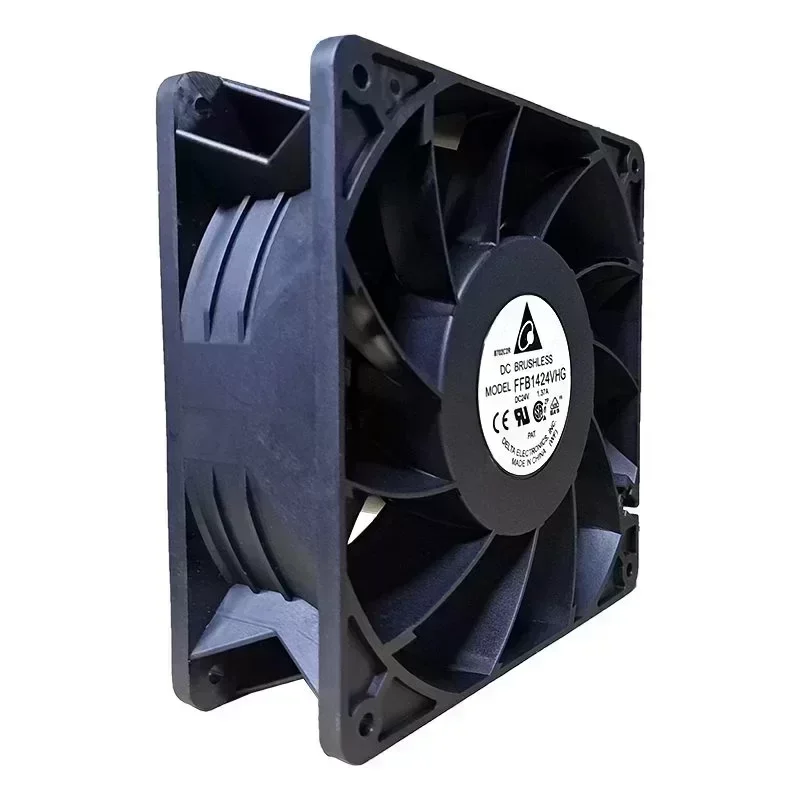

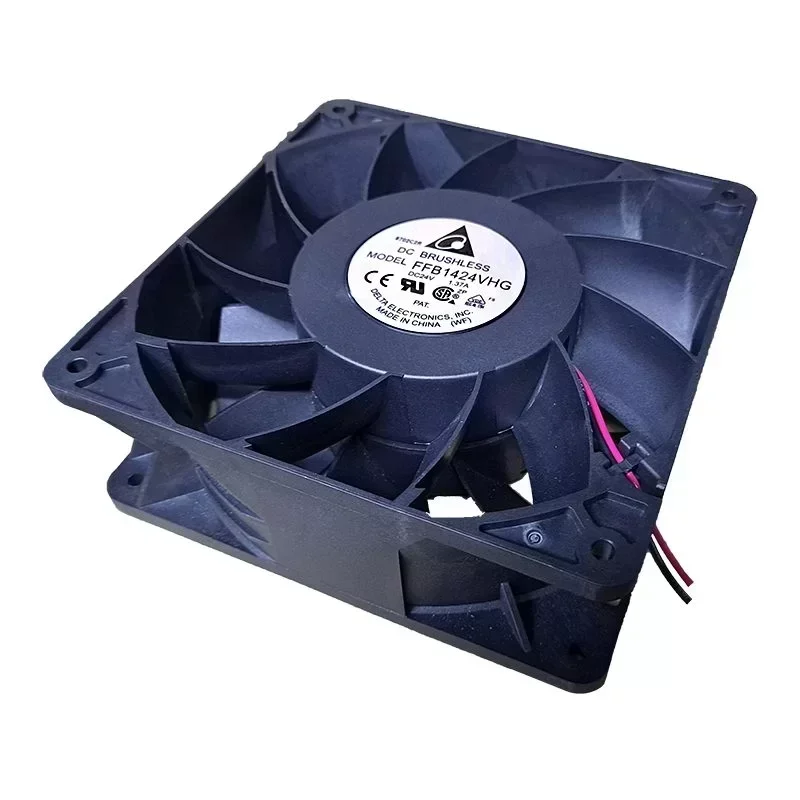

Delta FFB1424VHG 24V DC 1.37A Ball Bearing 140x140x50.8mm 3200RPM 252.11CFM Plastic Blade Exhaust Fan

Delta FFB1424VHG 24V DC 1.37A Ball Bearing 140x140x50.8mm 3200RPM 252.11CFM Plastic Blade Exhaust Fan

Name: Delta FFB1424VHG 24V DC 1.37A Ball Bearing 140x140x50.8mm 3200RPM 252.11CFM Plastic Blade Exhaust Fan
Brand: Delta
SKU: 1601558328066
Availability: InStock
Rating: 5 (4 reviews)

$48.89

SKU: 1601558328066 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics FFB1424VHG is a high-performance DC axial fan engineered for critical thermal management in industrial environments requiring substantial airflow and static pressure capabilities. Belonging to the FFB series, this unit utilizes a precision dual ball bearing system to ensure operational longevity and stability under continuous high-speed rotation. The 140mm form factor combined with a 50.8mm depth accommodates an optimized impeller geometry, delivering a massive 252.11 CFM output. This specific configuration is designed to overcome high system impedance, making it suitable for forced convection in densely packed electronic enclosures and power conversion equipment.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: FFB1424VHG
Series: FFB
Component Type: DC Axial Fan
Rated Voltage: 24 VDC
Operating Voltage Range: 14.0 VDC to 26.4 VDC
Rated Current: 1.37 A
Input Power: 32.88 W
Nominal Speed: 3200 RPM
Maximum Airflow: 252.11 CFM (7.14 m³/min)
Acoustic Noise: 58.5 dB(A)
Bearing System: Dual Ball Bearing
Dimensions: 140mm x 140mm x 50.8mm
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Weight: 670 g
Termination: Wire Leads
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours (at 40°C)

Industrial Application:
The FFB1424VHG is specifically calibrated for applications where heat dissipation is critical to preventing hardware failure. It is widely deployed in server racks, telecommunications base stations, and industrial automation control panels found in the energy and mining sectors. The fan’s high static pressure curve allows it to effectively push air through restrictive filters and heatsinks. We provide Original Engineering components to ensure system reliability. Please inquire regarding current Lead Time and Technical Compatibility to ensure this unit meets the specific ventilation requirements of your machinery.

Key Attributes
Voltage: 24 V
Material: Plastic
Speed: 3200RPM
Mounting type: Free Standing
Type: Axial flow fan
Warranty: 1 year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball bearing
Customized support: ODM, OEM
After-sales service provided: Online support
Place of origin: China
Brand name: Delta
Model number: FFB1424VHG
Core Components: Motor, PLC, Bearing, Engine
Applicable Industries: Printing Shops, Construction works , Energy & Mining
Noise: 58.5dBA
Specification: 140*140*50.8mm
Weight: 670g

Packaging and Delivery
Selling Units: Single item

Delta FFB1424VHG 24V DC 1.37A Ball Bearing 140x140x50.8mm 3200RPM 252.11CFM Plastic Blade Exhaust Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
