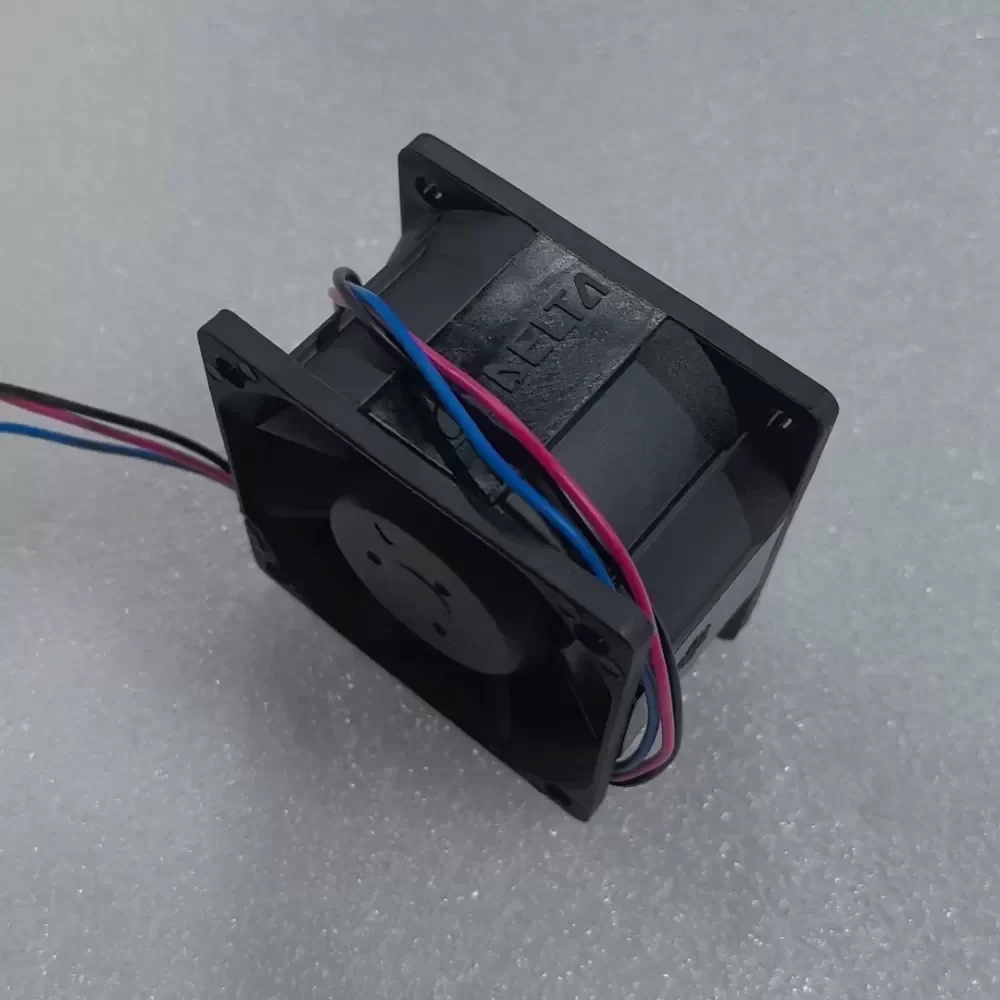

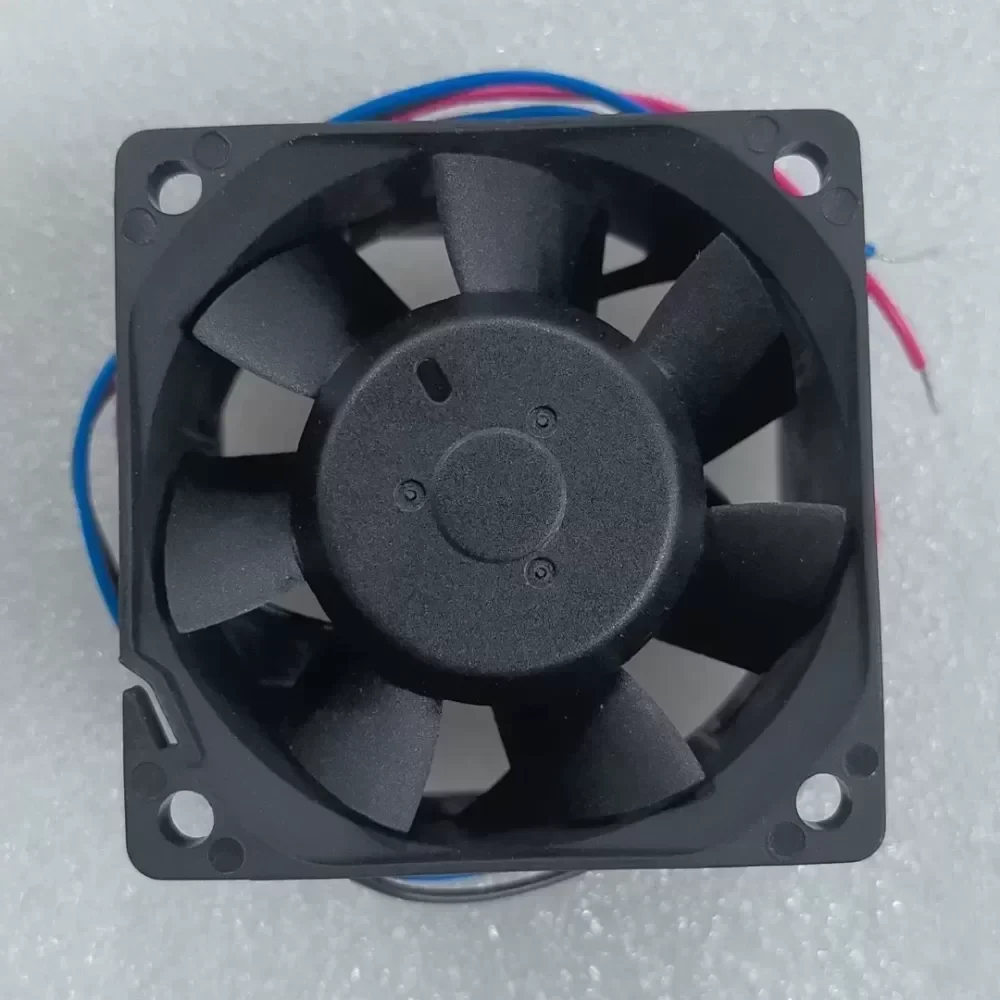

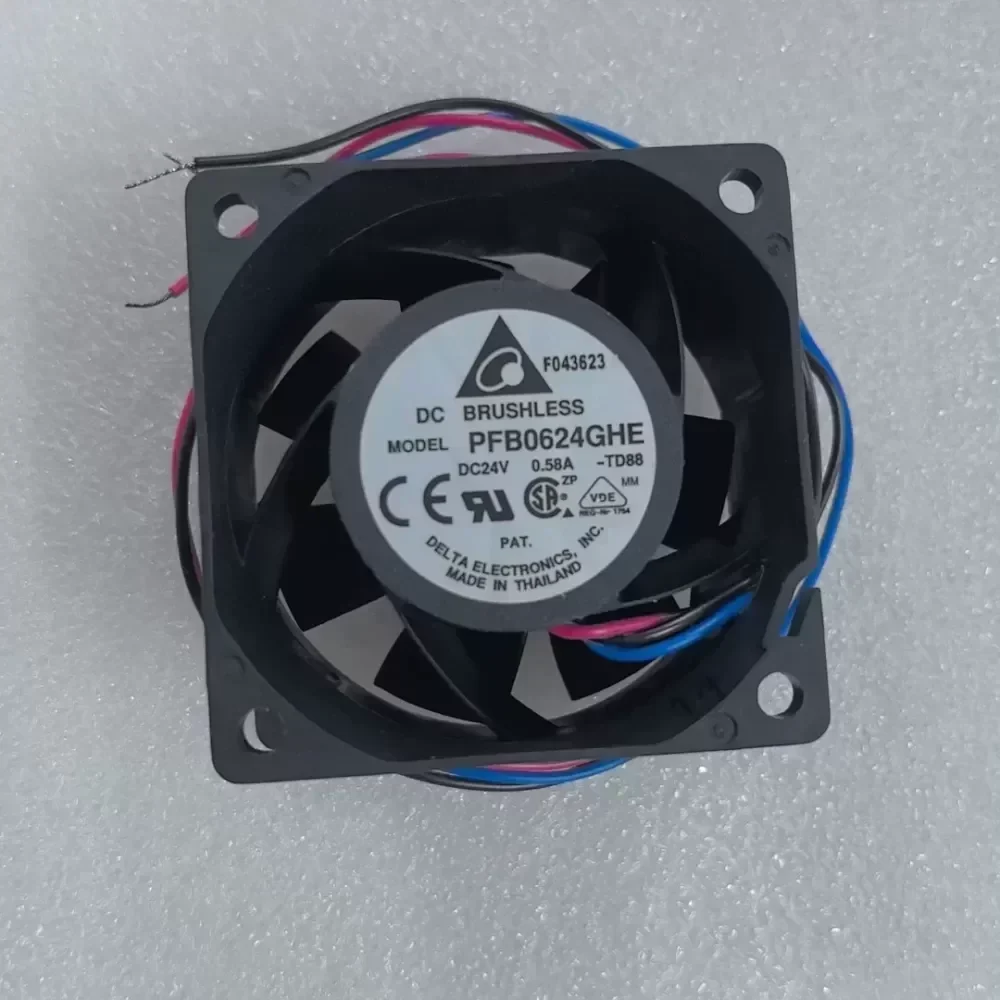

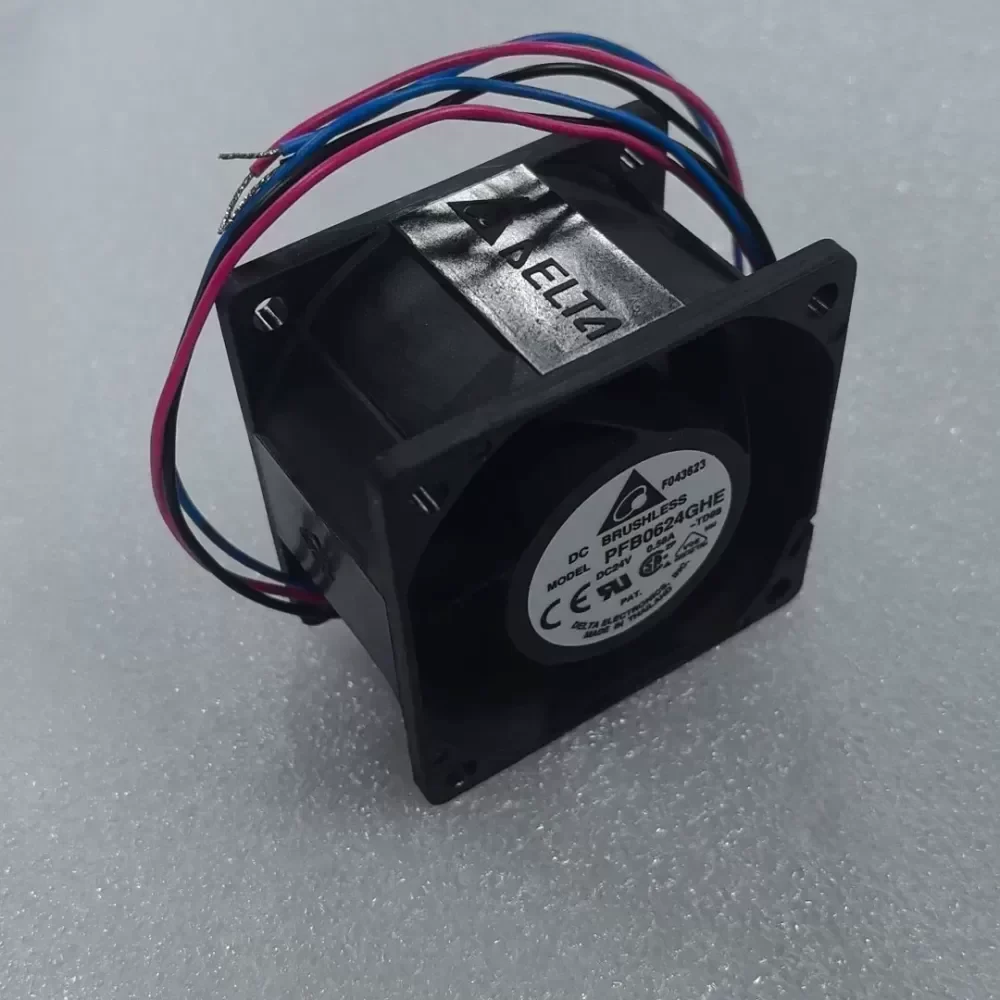

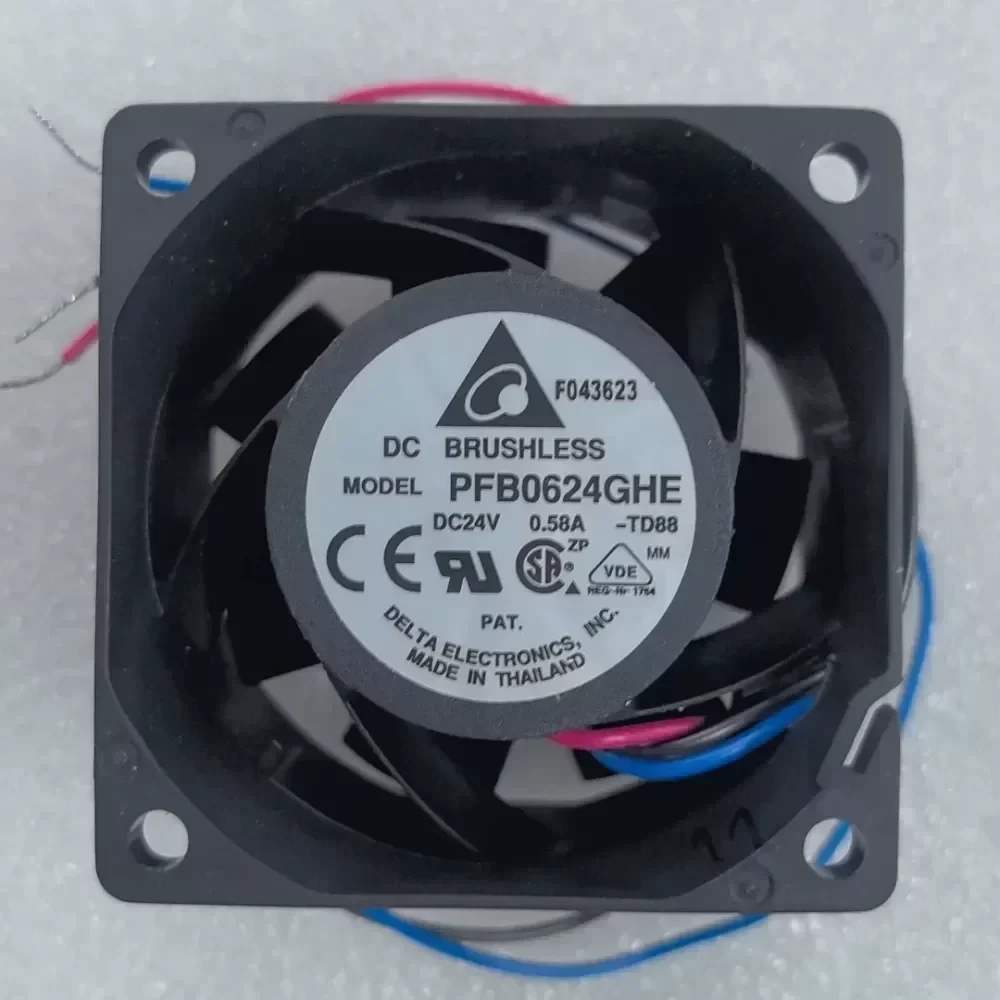

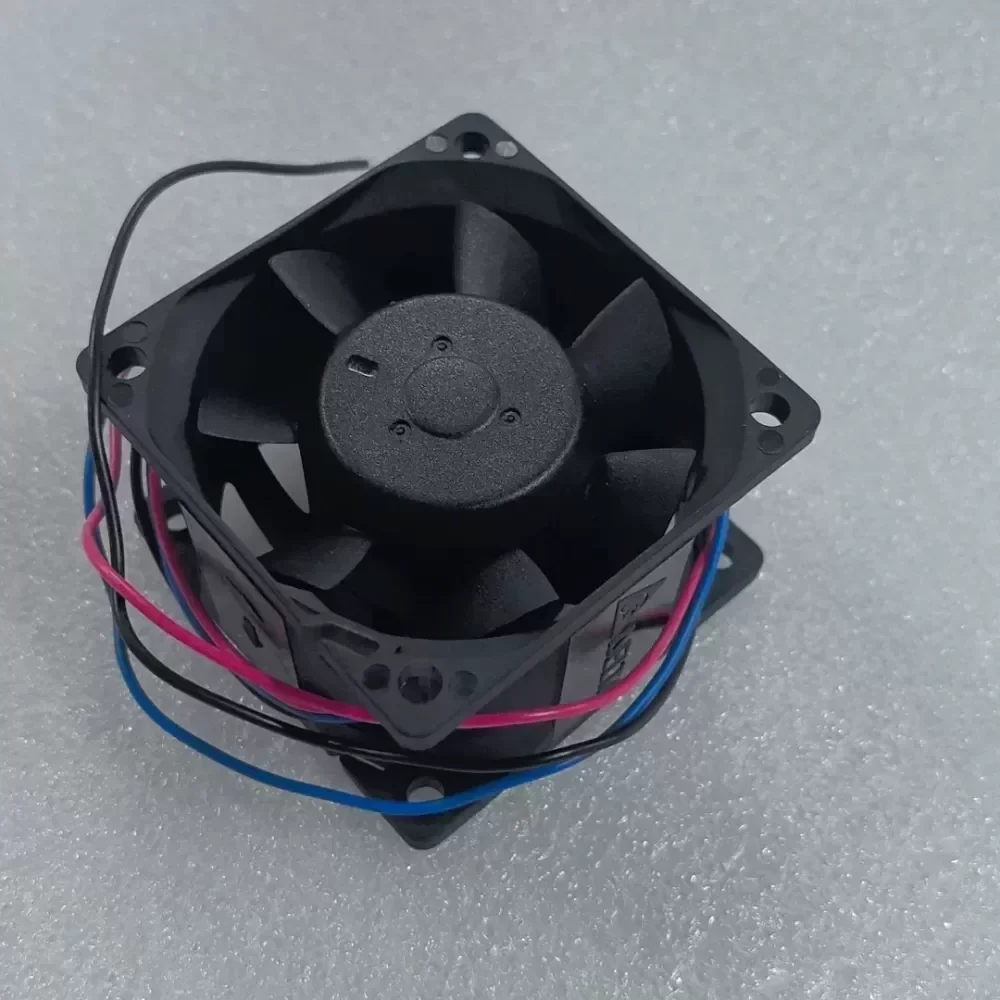

Delta PFB0624GHE Fan 24V 0.58A

Name: Delta PFB0624GHE Fan 24V 0.58A
Brand: Delta
SKU: 914869567354
Availability: InStock
Rating: 5 (4 reviews)

$5.71

SKU: 914869567354 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics PFB0624GHE is a high-performance axial cooling fan engineered specifically for high-impedance industrial applications. This unit features Original Engineering designed to maintain thermal stability in Variable Frequency Drives (VFDs) and high-density power inverters. The 6038 form factor utilizes a dual ball bearing system to ensure longevity under continuous operation. This specific configuration includes a 3-wire interface providing a locked rotor alarm signal, ensuring immediate fault detection in critical systems. Technical Compatibility is guaranteed for equipment requiring high static pressure air delivery to overcome resistance in dense heatsink arrays. Contact us for current Lead Time and volume availability.

TECHNICAL SPECIFICATIONS:
Manufacturer: Delta Electronics
Model Number: PFB0624GHE
Series: PFB
Component Type: DC Axial Fan
Frame Dimensions: 60mm x 60mm x 38mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.58 A
Input Power: 13.92 W
Nominal Speed: 10500 RPM
Maximum Airflow: 1.63 m³/min (57.6 CFM)
Maximum Static Pressure: 39.8 mmH2O (1.57 inH2O)
Noise Level: 54.0 dB-A
Bearing System: Maintenance-Free Dual Ball Bearing
Housing Material: Glass Fiber Reinforced PBT (UL 94V-0)
Impeller Material: Glass Fiber Reinforced PBT (UL 94V-0)
Termination: 3-Wire Leads
Signal Output: Alarm Signal (Locked Rotor/R00)
Operating Temperature: -10°C to +60°C
Life Expectancy: 70000 hours at 40°C
Weight: 115 g
Safety Approvals: UL, CSA, TUV, CE

INDUSTRIAL APPLICATION:
This unit is specifically calibrated for forced convection in industrial inverters and servo drive systems where back-pressure is significant. The high static pressure profile of the PFB0624GHE allows it to effectively force air through tightly finned aluminum heatsinks found in 24V control cabinets and power conversion modules, preventing thermal shutdown and extending the lifecycle of sensitive IGBT components.

Delta PFB0624GHE Fan 24V 0.58A

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
