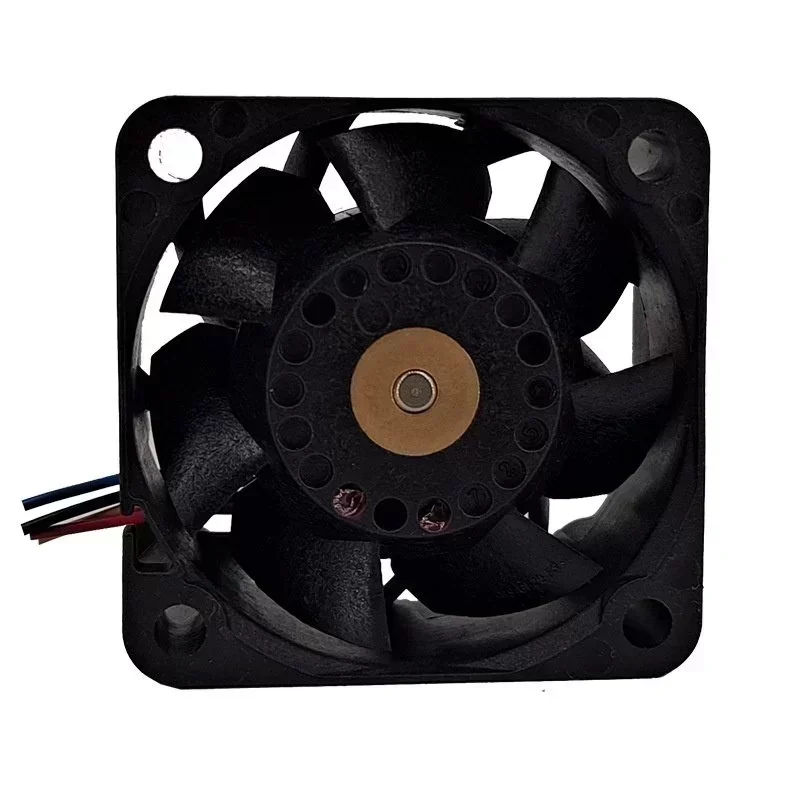

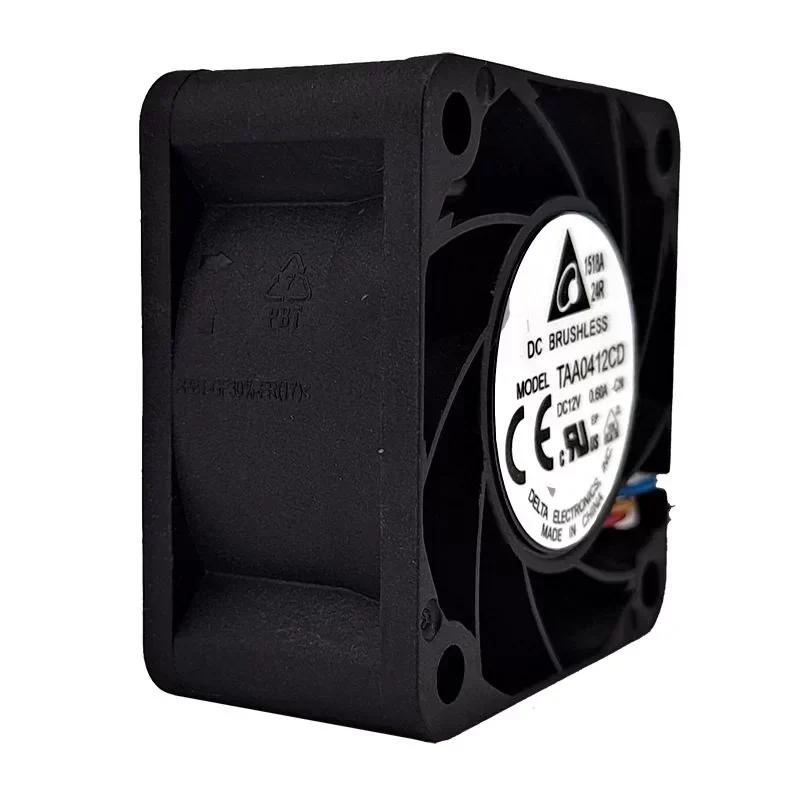

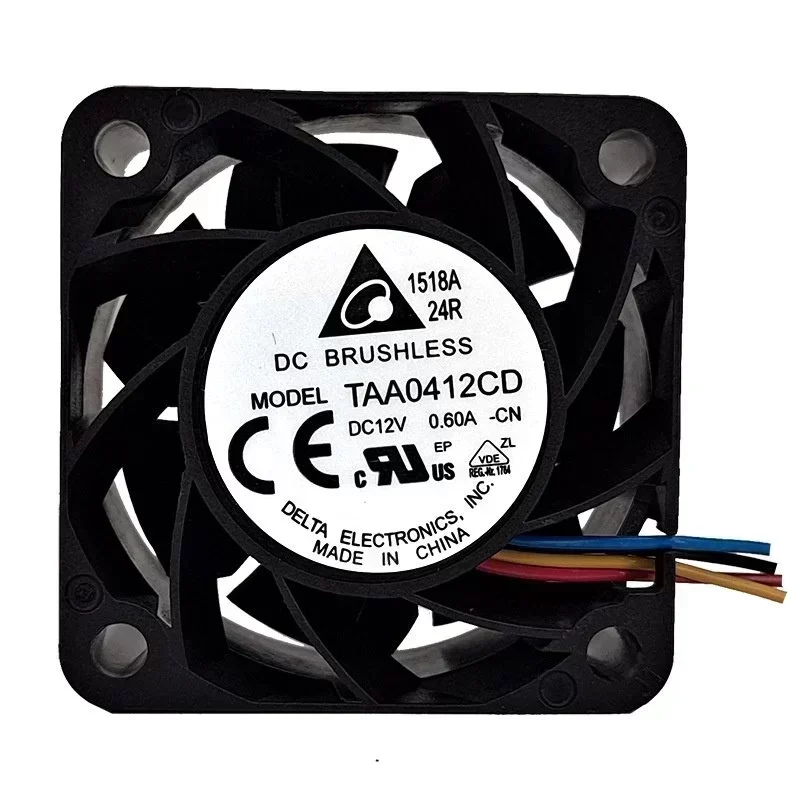

Delta TAA0412CD-CN Axial Fan 12V DC 0.6A 40x40x20mm 15600RPM 20.56CFM High Airflow Ball Bearing Plastic

Delta TAA0412CD-CN Axial Fan 12V DC 0.6A 40x40x20mm 15600RPM 20.56CFM High Airflow Ball Bearing Plastic

Name: Delta TAA0412CD-CN Axial Fan 12V DC 0.6A 40x40x20mm 15600RPM 20.56CFM High Airflow Ball Bearing Plastic
Brand: Delta
SKU: 1601518171175
Availability: InStock
Rating: 5 (4 reviews)

$5.56

SKU: 1601518171175 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics TAA0412CD-CN is a high-performance industrial axial fan engineered specifically for high-static pressure applications within space-constrained enclosures. This unit represents Original Engineering designed to mitigate thermal throttling in dense electronic assemblies. Operating at a nominal 12V DC, this 40mm form factor component utilizes a precision dual ball bearing architecture to sustain a rotational speed of 15,600 RPM, delivering a substantial airflow of 20.56 CFM relative to its physical footprint. The impeller and frame are constructed from reinforced PBT plastic, optimized for structural integrity under high centrifugal forces and vibration. This specific model is critical for ensuring Technical Compatibility within 1U rackmount server chassis, redundant power supplies, and high-performance telecommunications switches where system impedance and back-pressure are significant. The fan provides rapid heat dissipation for FPGA modules and CPU heatsinks where passive cooling is insufficient. Procurement managers concerned with lifecycle management should note the extended MTBF inherent to the ball bearing design. Contact us directly to confirm current Lead Time and volume logistics.

Technical Specifications:
Manufacturer: Delta Electronics
Model Number: TAA0412CD-CN
Component Type: High-Speed DC Axial Fan
Rated Voltage: 12 VDC
Rated Current: 0.60 A
Input Power: 7.20 W
Rotational Speed: 15600 RPM
Maximum Airflow: 20.56 CFM (0.58 m³/min)
Acoustic Noise: 66.5 dBA
Bearing System: Dual Ball Bearing
Dimensions: 40mm x 40mm x 20mm
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Weight: 25 g
Termination: Wire Leads
Application Class: Server/Telecom/Industrial Automation

Key Attributes
Voltage: 12 V
Material: Plastic
Speed: 15600RPM
Mounting type: Free Standing
Type: Axial flow fan
Warranty: 1 years
Power Source: Electric
Blade material: Plastic
Bearing type: Ball bearing
Customized support: ODM, OEM
After-sales service provided: Online support
Place of origin: China
Brand name: Delta
Model number: TAA0412CD-CN
Application: Industrial Equipment
Core Components: Motor, PLC, Bearing, Engine
Noise: 66.5dBA
Specification: 40*40*20mm
Weight: 25g

Packaging and Delivery
Selling Units: Single item
Single package size: 27X15X18 cm
Single gross weight: 1.000 kg

Delta TAA0412CD-CN Axial Fan 12V DC 0.6A 40x40x20mm 15600RPM 20.56CFM High Airflow Ball Bearing Plastic

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
