Description

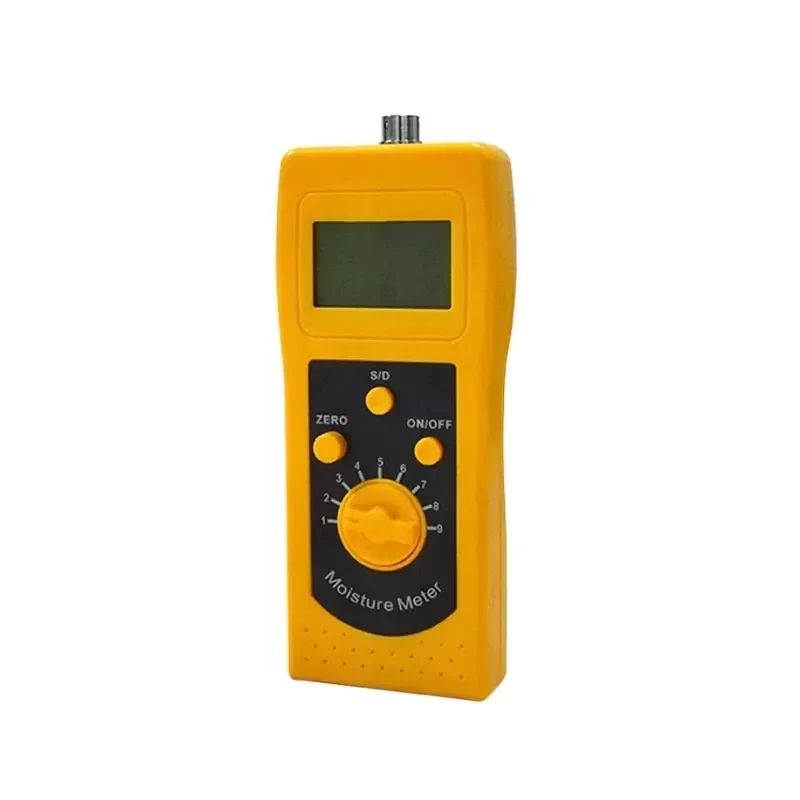

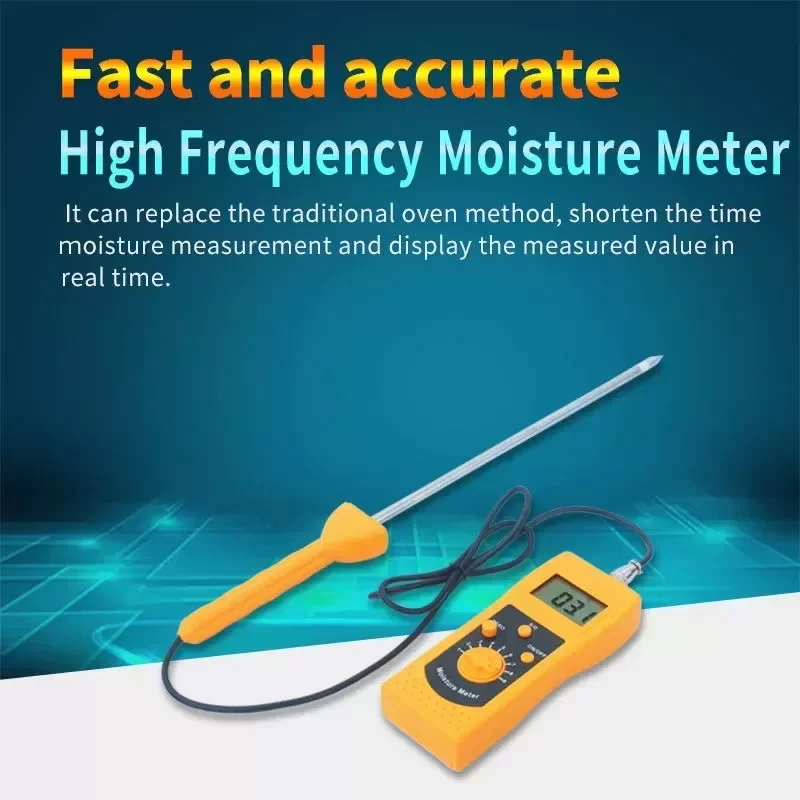

The TONY DM400 Digital High-Frequency Moisture Meter is a precision instrument engineered for the rigorous analysis of moisture content in granular, powder, and fine-particle materials. Utilizing high-frequency electromagnetic wave technology, this device penetrates deep into substrates to provide instantaneous readings without altering the material state. The unit is distinguished by its 280mm extended probe, specifically designed to reach the core of bulk materials such as coal powder, silver sand, chemical combinations, and soil, ensuring Original Engineering standards in quality control are met. The DM400 features a dual-range measurement system, offering high-resolution detection for low-moisture applications (0-2%) and a broad spectrum for general analysis (0-90%), making it a versatile tool for industrial processing and raw material verification.
Technical Specifications:
Manufacturer: TONY
Model Reference: DM400
Measurement Principle: High Frequency Electromagnetic Wave
Display Interface: 4-Digit LCD
Probe Length: 280 mm
Measurement Range (Precision): 0.00% to 2.00%
Measurement Range (Standard): 0.0% to 90.0%
Resolution: 0.1 or 0.01 (Selectable)
Accuracy: ± 0.5(1+n)%
Operating Temperature: 0°C to 60°C
Operating Humidity: 5% to 90% RH
Power Supply: 9V Battery (6F22)
Main Unit Dimensions: 172 mm x 66 mm x 28 mm
Package Dimensions: 530 mm x 130 mm x 90 mm
Gross Weight: 2.00 kg
Housing Material: Industrial ABS Plastic
Calibration: Adjustable Dial Codes
Industrial Application:
This device is critical for the chemical manufacturing and solid fuel industries where moisture content directly impacts combustion efficiency and flowability. In the context of coal powder processing, the DM400 allows operators to insert the 280mm probe directly into storage silos or super sacks to detect moisture gradients that could lead to clogging or inefficient burning. By enabling in-situ measurement without the need for laboratory sample extraction, this meter significantly reduces Lead Time for batch approval. The unit ensures Technical Compatibility with standard hygroscopic material handling protocols, preventing production downtime caused by excessive moisture in raw ingredients.
Key Attributes
Type: Digital
Place of origin: Guangdong, China
Model number: DM400
Brand name: TONY
Customized support: OEM, ODM
Warranty: 1 years
Product name: DM400 moisture meter
Display: 4 digital LCD
Measuring range: 0-2%&0-90%
Operating Temperature: 0-60°C
Humidity: 5%-90%
Resolusion: 0.1 or 0.01
Accuracy: ± 0.5(1+n)%
Probe: 280mm
Dimensions: 172*66*28(mm)
Power supply: 9V battery
Packaging and Delivery
Selling Units: Single item
Single package size: 53X13X9 cm
Single gross weight: 2.000 kg
