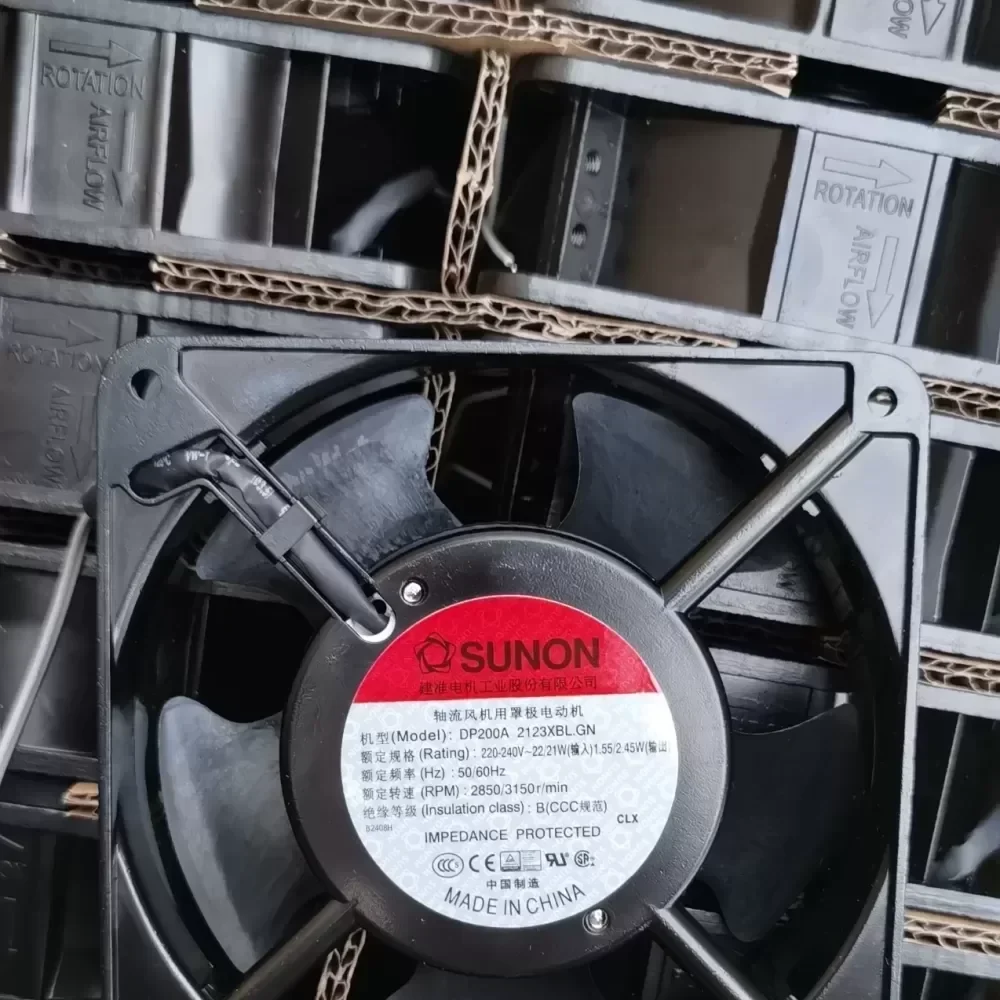

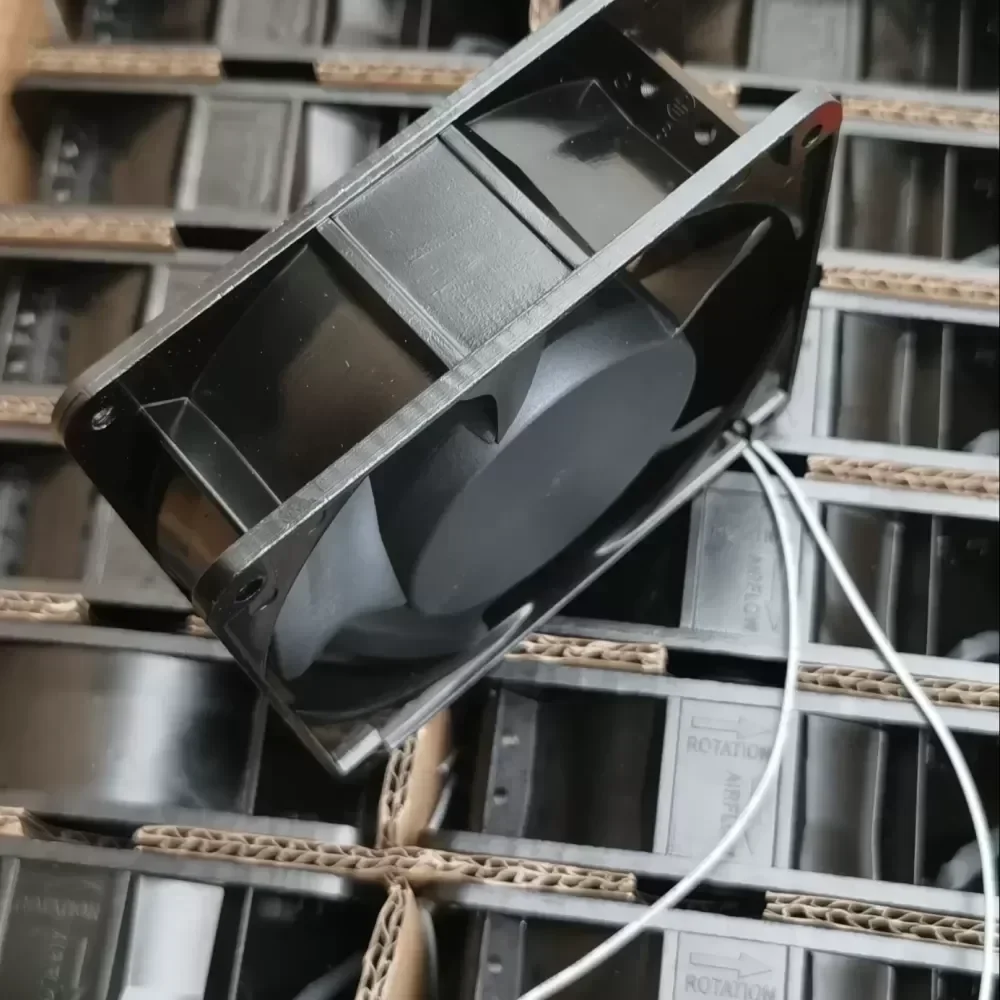

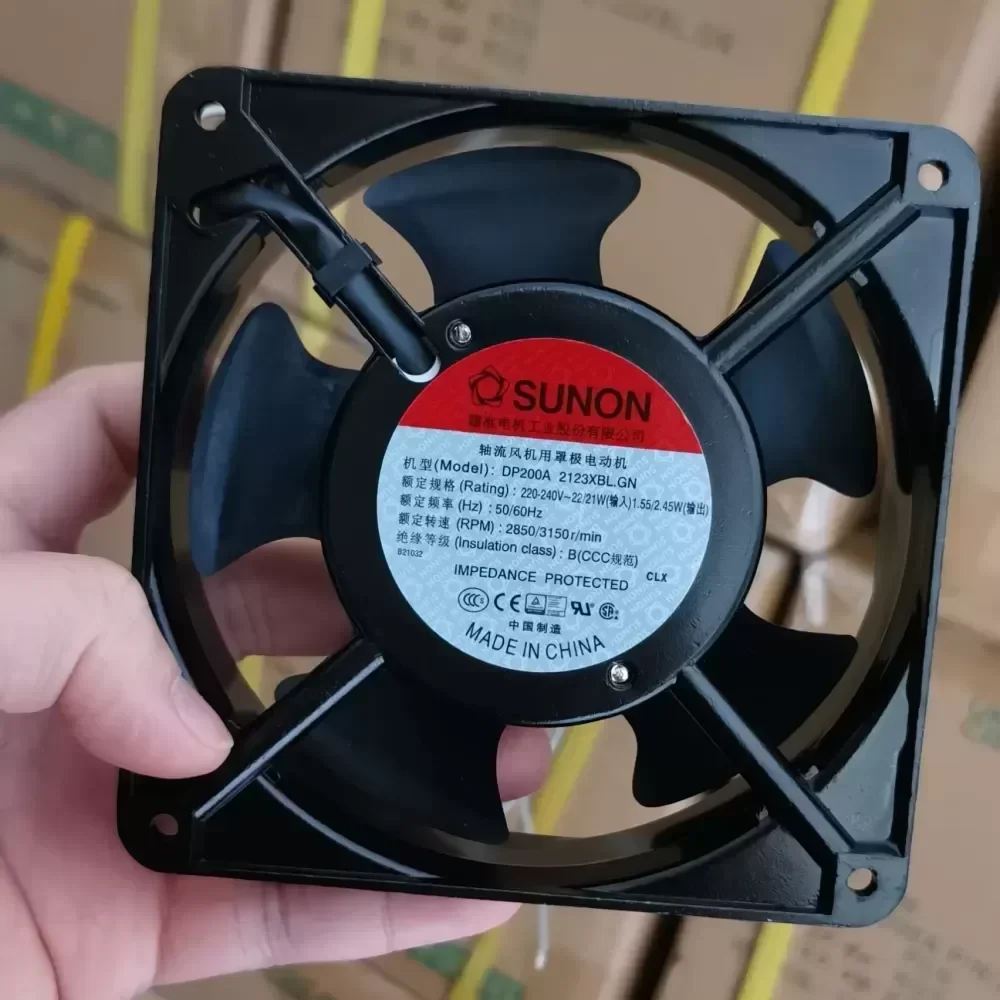

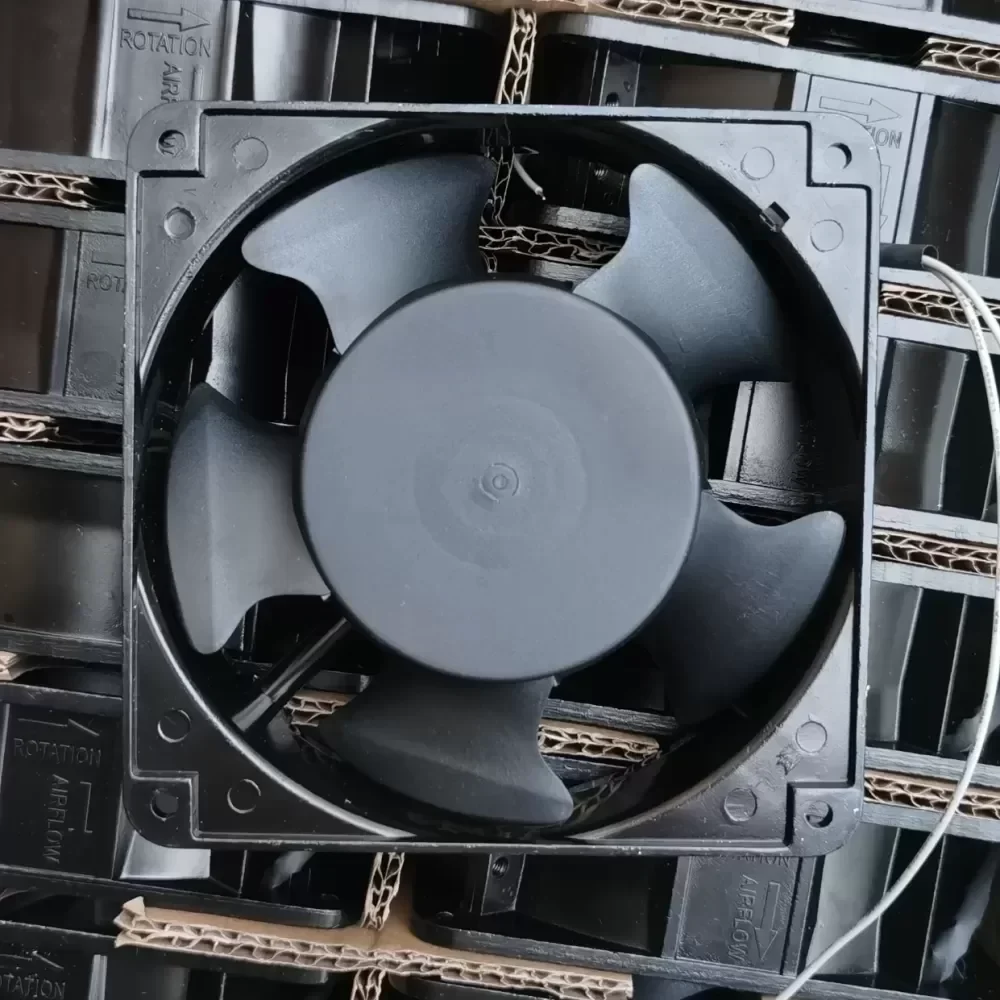

DP200A 2123xBL.GN New SUNON fan

Name: DP200A 2123xBL.GN New SUNON fan
Brand: SUNON
SKU: 677011619162
Availability: InStock
Rating: 5 (4 reviews)

$5.43

SKU: 677011619162 Brand: SUNON

Description
Reviews (0)

Description

The Sunon DP200A 2123XBL.GN is a high-performance AC axial fan engineered for rigorous thermal management in industrial enclosures and server environments. Manufactured by Sunonwealth Electric Machine Industry, this 120mm unit features a robust aluminum die-cast frame and a precision ball bearing system designed to sustain continuous operation under high thermal loads. The specific 2123XBL.GN configuration denotes a 220-240V AC input, lead wire termination, and RoHS-compliant construction. This component adheres to Original Engineering standards, ensuring optimal airflow efficiency and structural integrity for critical cooling infrastructure.

Technical Specifications:
Manufacturer: Sunon
Model: DP200A 2123XBL.GN
Product Type: AC Axial Fan
Frame Dimensions: 120 mm x 120 mm x 38 mm
Rated Voltage: 220-240 VAC
Frequency: 50/60 Hz
Bearing System: Ball Bearing
Connection Type: Lead Wire (2-Wire)
Airflow: 97 / 117 CFM
Static Pressure: 0.34 / 0.39 Inch-H2O
Rated Current: 0.14 / 0.12 A
Power Consumption: 22 / 21 W
Speed: 2700 / 3100 RPM
Noise Level: 44 / 49 dB(A)
Frame Material: Aluminum Alloy
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Weight: 550 g
Safety Approvals: UL, CUR, TUV, CE
Compliance: RoHS

Industrial Application:
This unit is specifically optimized for high-impedance applications such as CNC control cabinets, telecommunications racks, and power supply units where consistent static pressure is required to overcome airflow resistance. The aluminum alloy frame provides superior heat dissipation and mechanical rigidity against vibration common in heavy machinery environments. Its direct 220V AC compatibility simplifies integration into mains-powered automation panels, ensuring Technical Compatibility without the need for auxiliary DC power supplies. We maintain strict inventory controls to offer a competitive Lead Time for maintenance and OEM requirements.

DP200A 2123xBL.GN New SUNON fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
