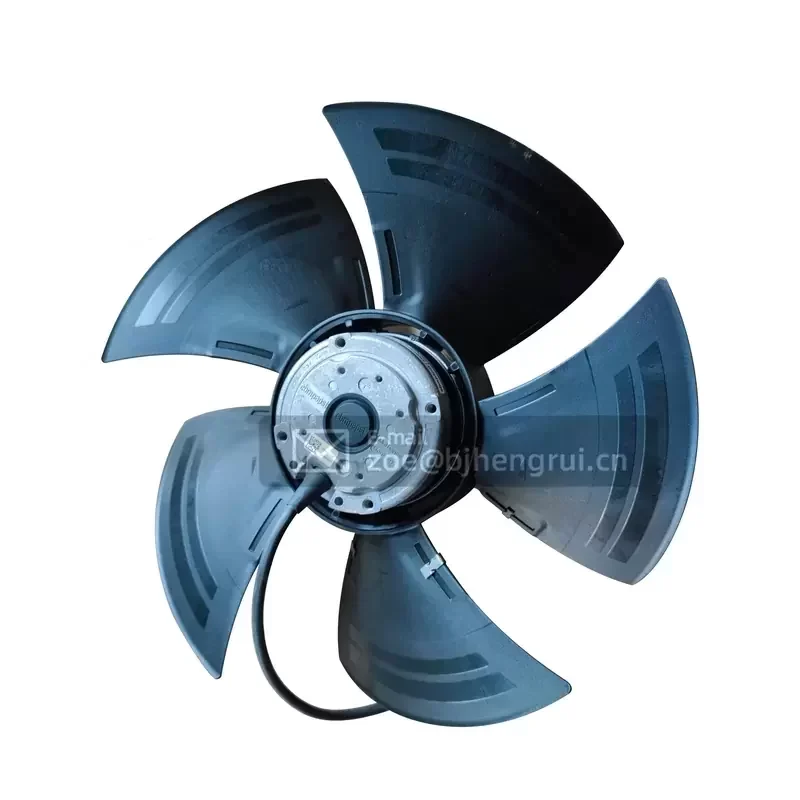

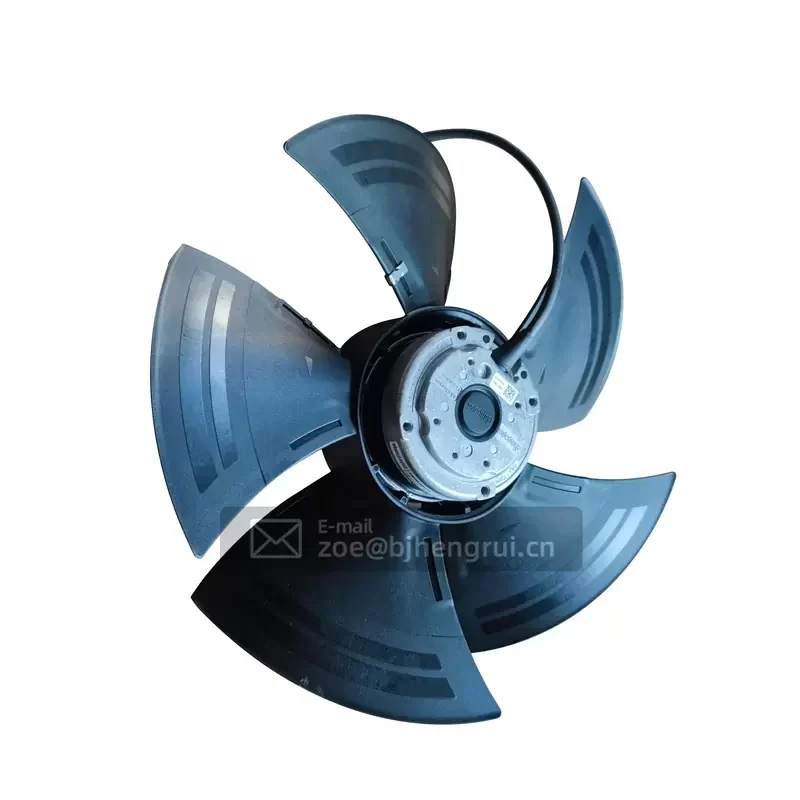

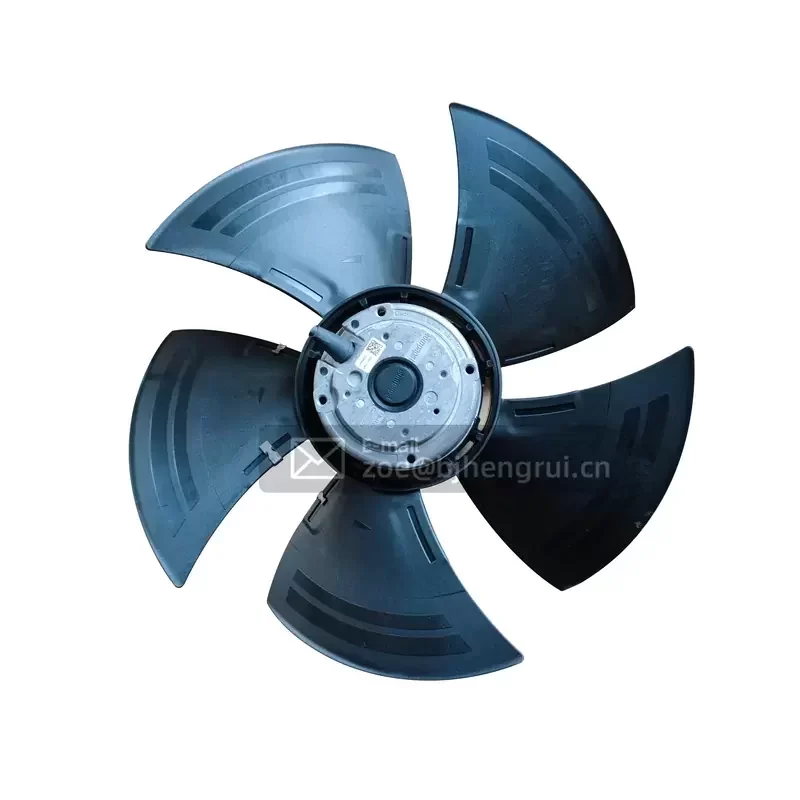

ebm-papst A4E350-AN02-02 AC Axial Fan 350mm 230V 165W 1340RPM

ebm-papst A4E350-AN02-02 AC Axial Fan 350mm 230V 165W 1340RPM

Name: ebm-papst A4E350-AN02-02 AC Axial Fan 350mm 230V 165W 1340RPM
Brand: ebmpapst
SKU: 1600234391615
Availability: InStock
Rating: 5 (4 reviews)

$315.00

SKU: 1600234391615 Brand: ebmpapst

Description
Reviews (0)

Description

The ebm-papst A4E350-AN02-02 is a high-performance 350mm axial fan assembly engineered for demanding HVACR applications, specifically within heat exchangers, air-cooled condensers, and commercial refrigeration systems. Utilizing an advanced external rotor motor design, this unit integrates the motor directly into the impeller hub, resulting in a compact depth profile and superior thermal management of the drive components. The fan is constructed with maintenance-free ball bearings, ensuring operational stability and longevity even under continuous duty cycles and varying ambient temperatures. This model is designed for 230V single-phase operation and provides the necessary static pressure to overcome resistance in dense fin-packs found in industrial chillers.

Technical Specifications:
Brand: ebm-papst
Model Number: A4E350-AN02-02
Product Type: AC Axial Fan (External Rotor)
Nominal Voltage: 230 VAC
Frequency: 50 – 60 Hz
Power Consumption: 165 W
Current Draw: 1.4 A
Nominal Speed: 1340 RPM
Impeller Diameter: 350 mm
Bearing Type: Ball Bearing
Mounting Position: Any
Weight: 3.5 kg

Installation & Application:
This component serves as a direct replacement for cooling fans in commercial condensing units and ventilation modules. Its sickle-shaped blade geometry is optimized for low noise generation while maintaining high aerodynamic efficiency. Technicians should verify capacitor values and mounting bolt patterns during installation to ensure full compatibility with existing fan grids and wall rings.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Ac axial fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: A4E350-AN02-02
Phase: 1~
Nominal voltage: 230VAC
Current draw: 1.4A

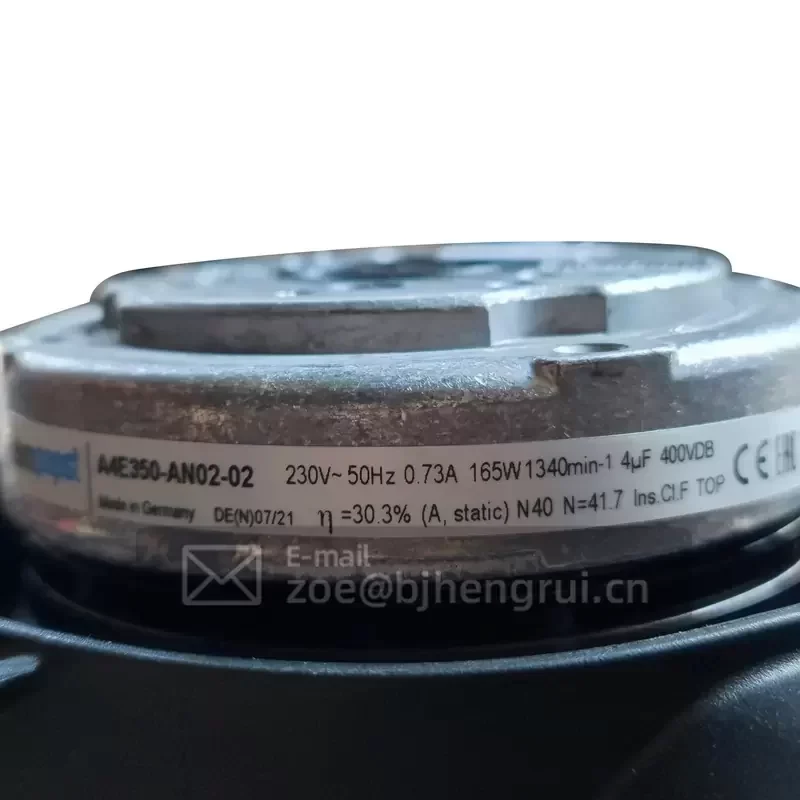

Capacitor voltage: 400VDB
Mass: 3.53 kg
Size: 350 mm
Material of blades: PP plastic
Number of blades: 5
Type of protection: IP 44
Motor protection: Thermal overload protector (TOP) wired internally

Packaging and Delivery
Selling Units: Single item
Single package size: 47X47X35 cm
Single gross weight: 70.000 kg

ebm-papst A4E350-AN02-02 AC Axial Fan 350mm 230V 165W 1340RPM

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
