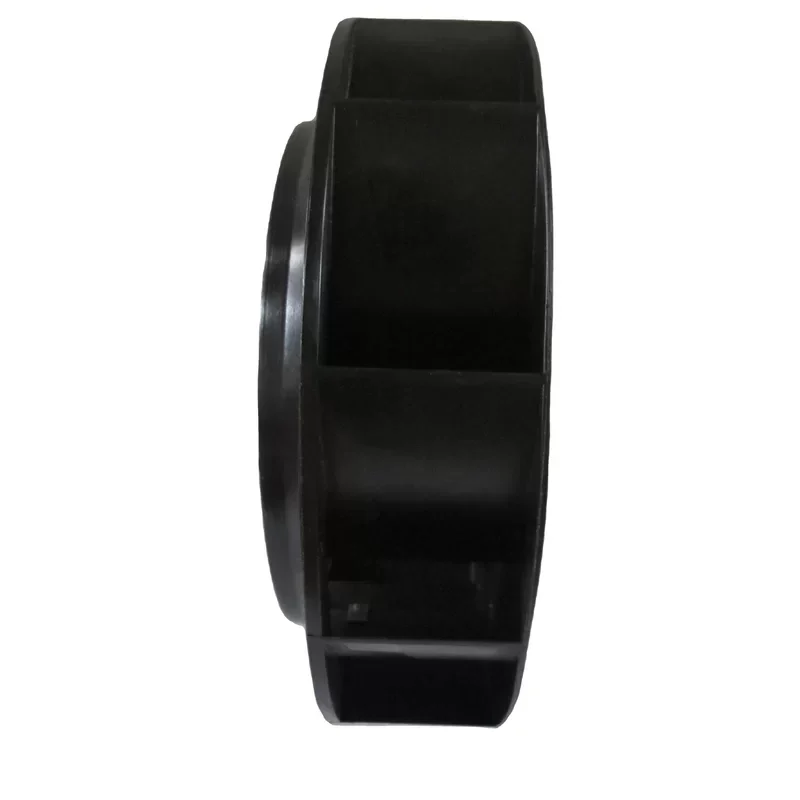

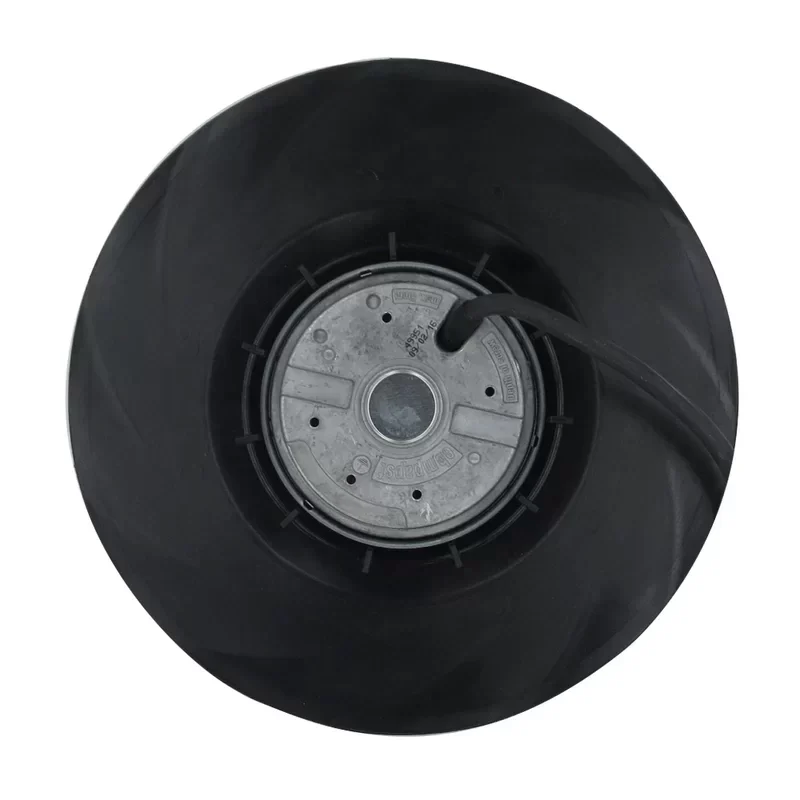

ebm-papst R2E220-AD19-11 415VAC 225mm Centrifugal Cooling Fan

ebm-papst R2E220-AD19-11 415VAC 225mm Centrifugal Cooling Fan

Name: ebm-papst R2E220-AD19-11 415VAC 225mm Centrifugal Cooling Fan
Brand: ebmpapst
SKU: 62026469122
Availability: InStock
Rating: 5 (4 reviews)

$191.20

SKU: 62026469122 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst R2E220-AD19-11 is a high-performance backward-curved centrifugal fan engineered for precision thermal management in industrial environments. This unit utilizes Original Engineering from Germany, ensuring high aerodynamic efficiency and low noise emissions. Technical Compatibility is optimized for high-voltage inverter cabinets and control panels where high back-pressure and reliable airflow are critical for component longevity.

Technical Specifications:
Manufacturer: ebmpapst
Model Number: R2E220-AD19-11
Motor Type: M2E068-DF
Nominal Voltage: 415 VAC
Frequency: 50/60 Hz
Speed: 2570 RPM
Power Consumption: 88 W
Current Draw: 0.22 A
Impeller Diameter: 220 mm
Width: 71 mm
Airflow Volume: 860 m³/h
Number of Blades: 11
Blade Material: PA6 plastic, glass-fiber reinforced
Direction of Rotation: Clockwise, viewed toward rotor
Degree of Protection: IP44
Insulation Class: F
Bearing Type: Maintenance-free ball bearings
Ambient Temperature Range: -25 °C to +55 °C
Weight: 1.6 kg
Electrical Connection: Lead wires
Capacitor Requirement: 1.5 µF / 700 VDB
Certification: CE, VDE
Lead Time: Standard industrial fulfillment applies

Application Scenario:
The R2E220-AD19-11 is specifically designed for the cooling of power electronics within high-density inverter cabinets. Its backward-curved impeller design allows it to maintain high airflow rates even when facing significant static pressure from air filters or internal obstructions. This ensures that VFDs and power modules operate within specified thermal limits, preventing derating or catastrophic failure in 24/7 manufacturing cycles.

Key Attributes
Mounting: Free Standing
Voltage: 415v
Blade Material: PA6 plastic
Customized support: OEM
Warranty: 1 Year
After-sales Service Provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Electric power consumption: 88w
Power consumption: 0.22A
Ambient temperature: -25-55C
Blade diameter: 220 mm
Speed: 2570RPM
Type: Ebmpapst
Voltage: 415V
Weight: 1.6kg
Number of blades: 11
Insulation class: F

Packaging and Delivery
Selling Units: Single item

ebm-papst R2E220-AD19-11 415VAC 225mm Centrifugal Cooling Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
