ebm-papst W2D160-EA22-19 400VAC 160mm Axial Fan for Siemens 1PH7 Motors

ebm-papst W2D160-EA22-19 400VAC 160mm Axial Fan for Siemens 1PH7 Motors

Name: ebm-papst W2D160-EA22-19 400VAC 160mm Axial Fan for Siemens 1PH7 Motors
Brand: ebmpapst
SKU: 62169403356
Availability: InStock
Rating: 5 (4 reviews)

$827.00

SKU: 62169403356 Brand: ebmpapst

Description
Reviews (0)

Description

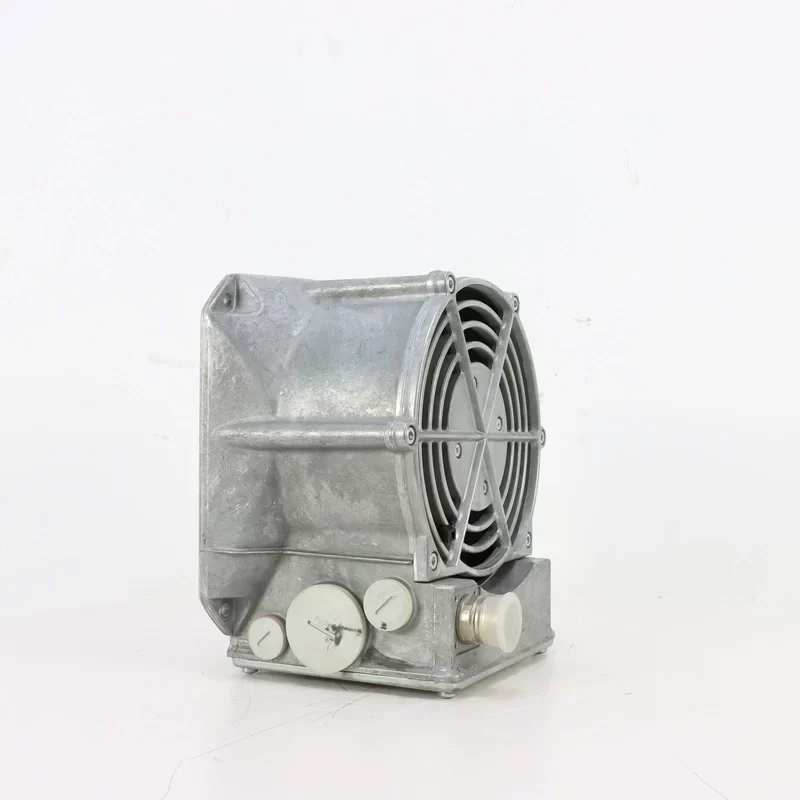

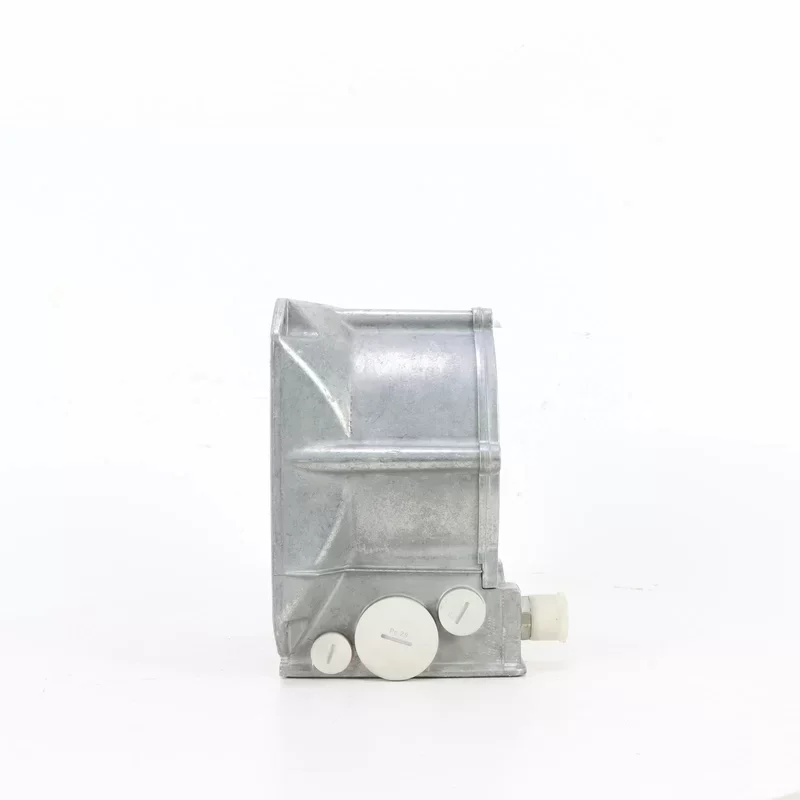

The ebm-papst W2D160-EA22-19 is a specialized axial fan assembly engineered exclusively for the forced ventilation of Siemens 1PH7 compact induction motors. This external cooling unit is critical for maintaining thermal stability in main spindle drives and servo applications, particularly during low-speed operation where standard shaft-mounted fans provide insufficient airflow. The assembly features a robust die-cast aluminum housing and a 160mm impeller optimized for the high back-pressure environments found in industrial motor cooling cowlings.

Manufacturer: ebm-papst
Model Reference: W2D160-EA22-19
Target Application: Siemens 1PH7 Asynchronous Motors
Nominal Voltage: 400 VAC
Frequency: 50 – 60 Hz
Power Consumption: 44 – 58 W
Nominal Current: 0.15 A
Rated Speed: 2700 RPM
Impeller Diameter: Ø 160 mm
Construction: Die-cast Aluminum
Bearing System: Maintenance-free Ball Bearings

This component serves as a direct OEM replacement for cooling units on Siemens drive systems, ensuring correct mounting dimensions and electrical characteristics. It is widely utilized in CNC machining centers, printing presses, and heavy automation lines to prevent thermal derating of the primary motor during continuous duty cycles.

Key Attributes
Voltage: 400V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Cast Iron
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: W2D160-EA22-19
Brand: Ebmpapst
Product name: W2D160-EB22-12
POwer: 44/58W
Voltage: 400V
Current: 0.15A
Blade diameter: 160mm
Speed: 2700RPM

Packaging and Delivery
Selling Units: Single item

ebm-papst W2D160-EA22-19 400VAC 160mm Axial Fan for Siemens 1PH7 Motors

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
