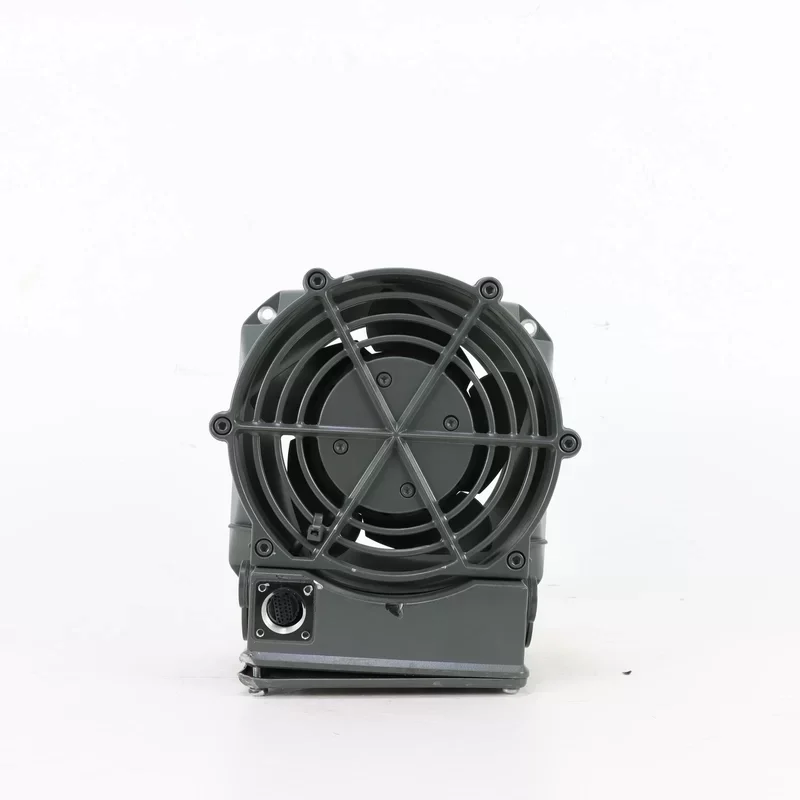

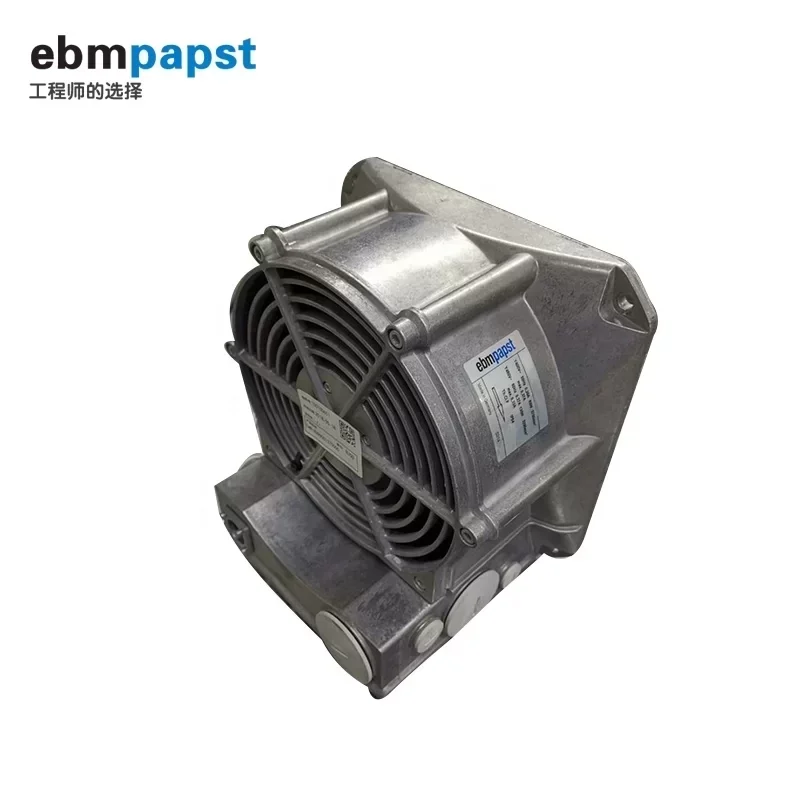

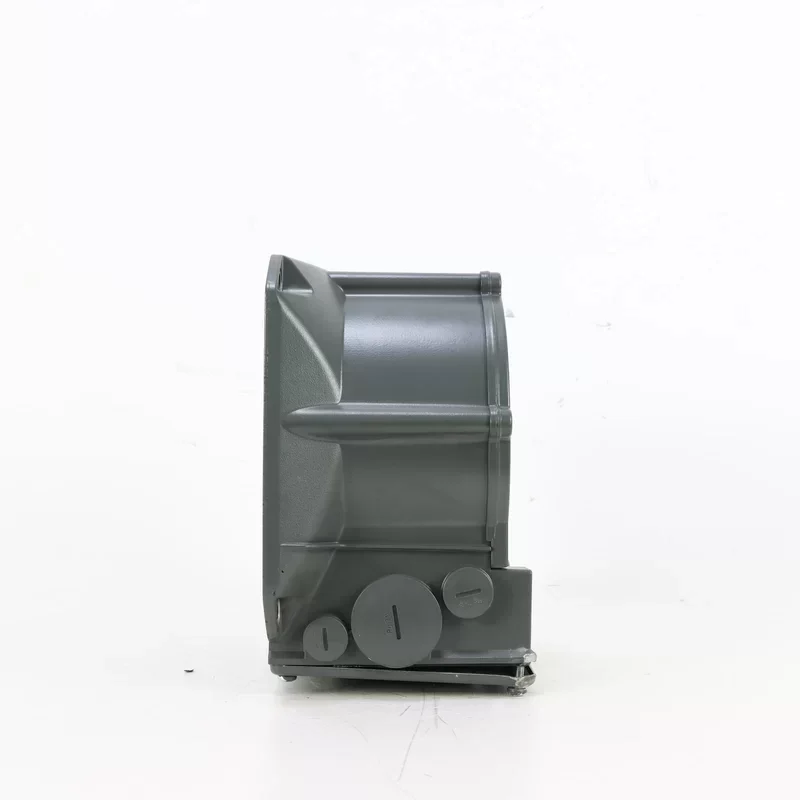

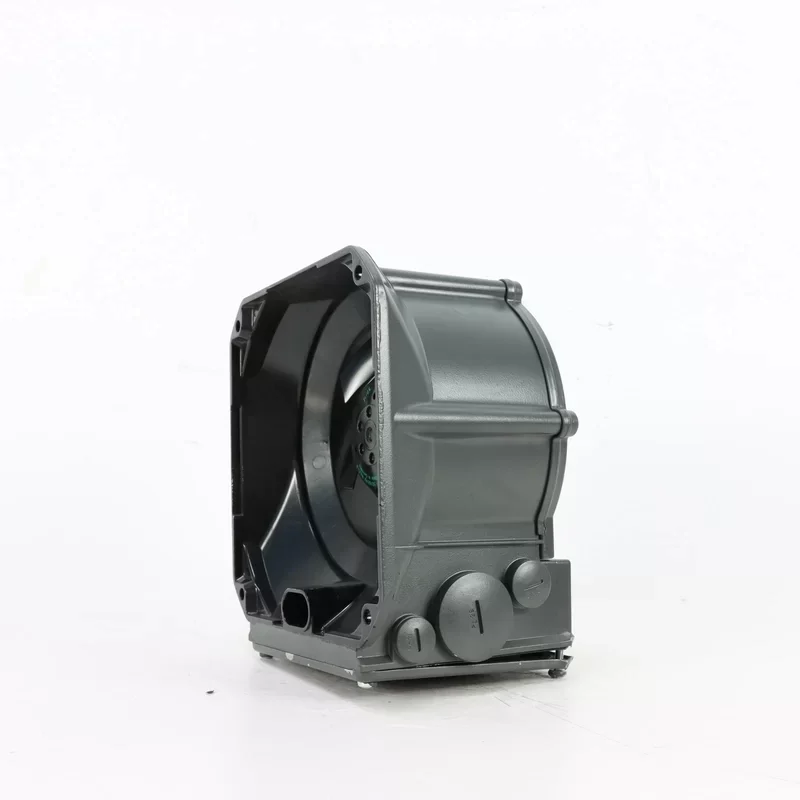

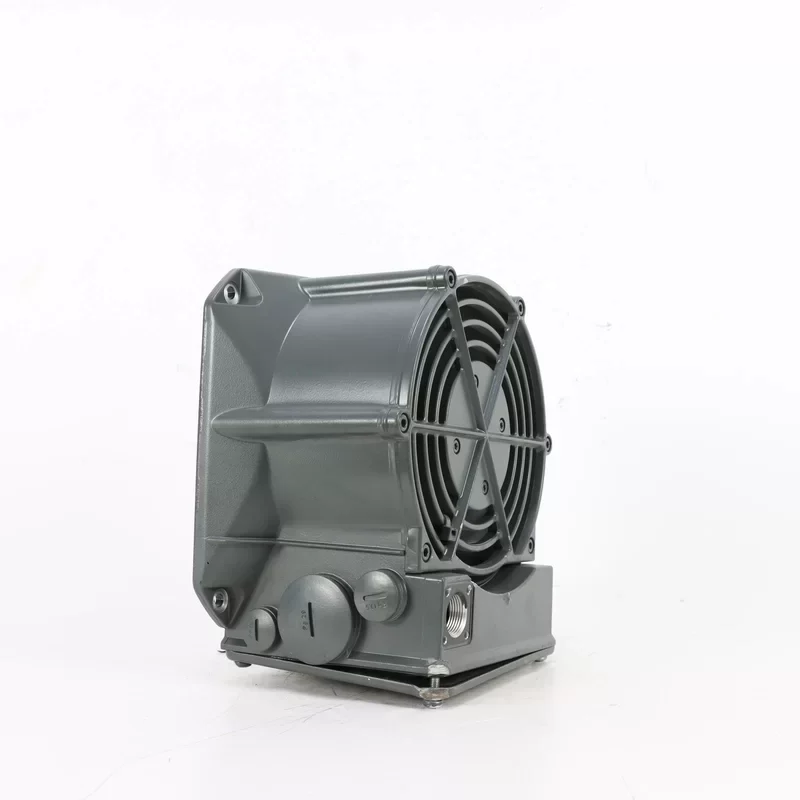

ebm-papst W2D160-EB22-13 400VAC 160mm Cooling Fan

ebm-papst W2D160-EB22-13 400VAC 160mm Cooling Fan

Name: ebm-papst W2D160-EB22-13 400VAC 160mm Cooling Fan
Brand: ebmpapst
SKU: 1600062407024
Availability: InStock
Rating: 5 (4 reviews)

$785.00

SKU: 1600062407024 Brand: ebmpapst

Description
Reviews (0)

Description

The ebm-papst W2D160-EB22-13 is a precision-engineered AC axial fan designed specifically for high-demand thermal management within industrial power electronics, particularly Siemens inverter servo spindle motors and variable frequency drives. This unit utilizes a robust 3-phase external rotor motor architecture, providing the high torque and rotational stability required for continuous duty cycles in harsh manufacturing environments. The 2-pole motor design achieves high rotational speeds to maximize static pressure, ensuring effective heat dissipation across dense heat sinks found in drive cabinets. Constructed with a die-cast aluminum housing and sheet steel impeller, the assembly is balanced to minimize vibration and noise while maintaining structural integrity under thermal stress. This component ensures Original Engineering performance standards are met for critical cooling circuits.

TECHNICAL SPECIFICATIONS
Manufacturer: ebm-papst
Model Number: W2D160-EB22-13
Product Type: AC Axial Fan
Motor Type: M2D068-CF
Phase: 3-Phase
Nominal Voltage: 400 V AC (Y Connection)
Frequency: 50 Hz
Nominal Speed: 2800 RPM
Power Consumption: 44 W
Nominal Current: 0.15 A
Impeller Diameter: 160 mm
Blade Material: Sheet Steel (Coated Black)
Housing Material: Die-Cast Aluminum
Bearing System: Maintenance-Free Ball Bearings
Direction of Rotation: Counter-clockwise (viewed on rotor)
Airflow Direction: Intake over struts
Insulation Class: B
Motor Protection: Thermal Overload Protector (TOP)
Degree of Protection: IP44
Max Ambient Temperature: +70°C
Min Ambient Temperature: -25°C
Electrical Connection: Terminal Block
Mounting: Free Standing / Flange Mount
Weight: 6.00 kg (Gross)
Origin: Germany

INDUSTRIAL APPLICATION
This cooling unit is the designated thermal solution for specific Siemens Simodrive and Sinamics power modules. It solves the critical problem of thermal throttling in servo spindle motors by delivering consistent, high-velocity airflow directly to the power stage components. The W2D160-EB22-13 guarantees Technical Compatibility with the OEM chassis, ensuring a drop-in replacement that restores factory cooling curves without modification. Facilities managers can leverage our competitive Lead Time to minimize costly downtime associated with drive overheating and subsequent line stoppages.

Key Attributes
Voltage: 400v
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Sheet steel, painted black
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: W2D160-EB22-13
Product name: AC Fans AC Axial Fan
Size: 160 mm
Nominal voltage / VAC: 400v
Frequency / Hz: 50
Speed (rpm) / min-1: 2800 rpm
Power consumption / W: 44W
Degree of protection: Ip44
Type: Axial Flow Fan

Packaging and Delivery
Selling Units: Single item
Single package size: 32X32X25 cm
Single gross weight: 6.000 kg

ebm-papst W2D160-EB22-13 400VAC 160mm Cooling Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
