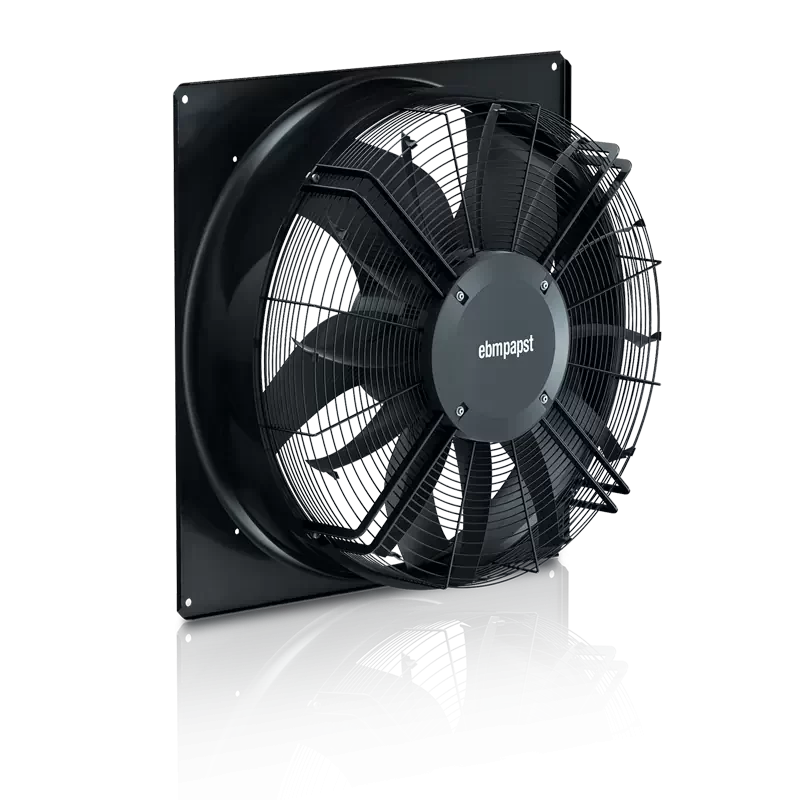

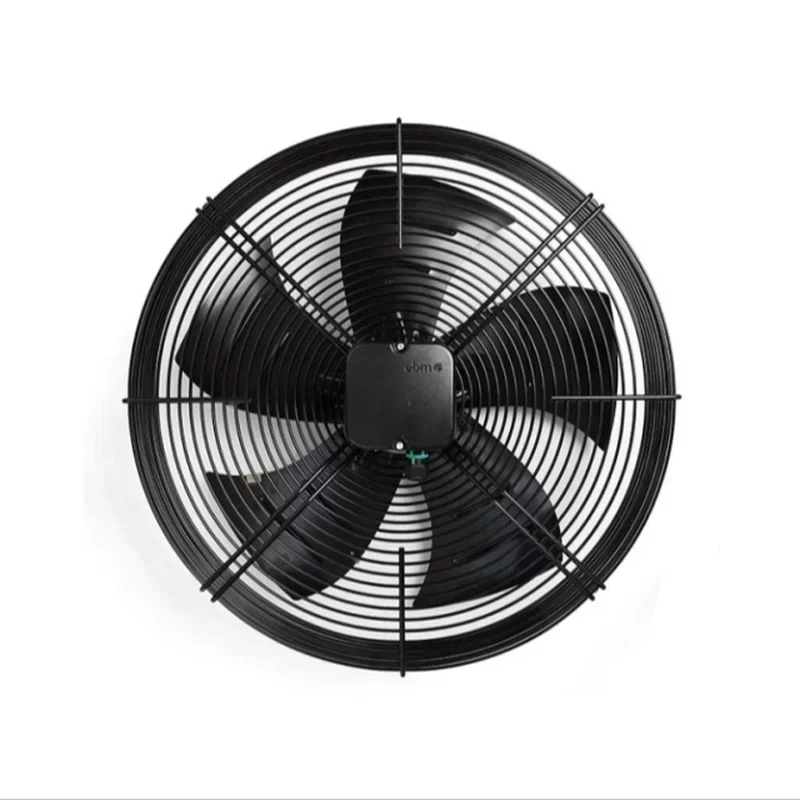

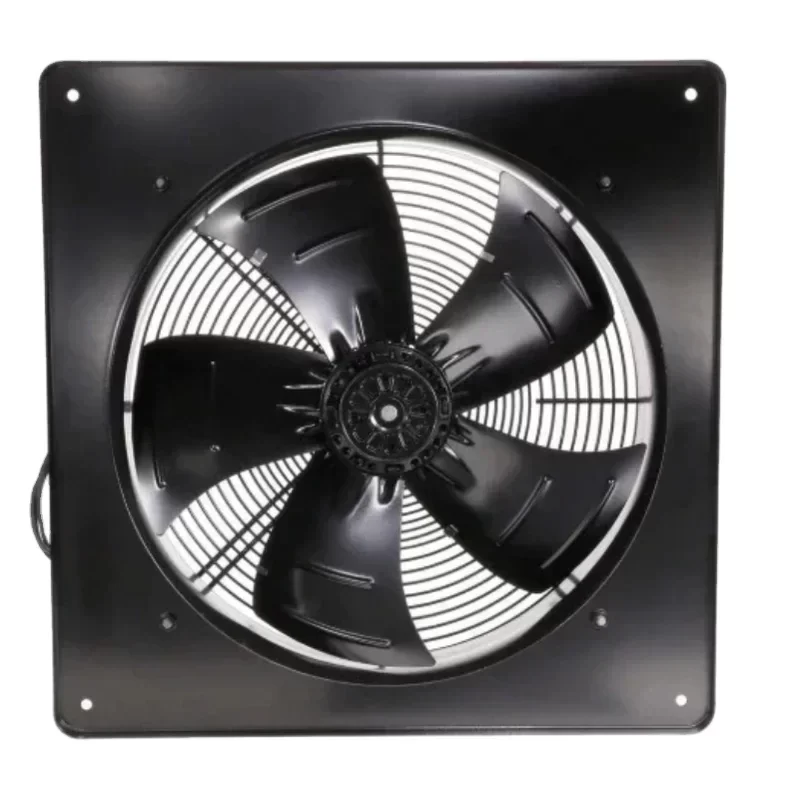

ebm-papst W3G800-DT21-35 400V EC Axial Fan 1850W 925RPM IP55

ebm-papst W3G800-DT21-35 400V EC Axial Fan 1850W 925RPM IP55

Name: ebm-papst W3G800-DT21-35 400V EC Axial Fan 1850W 925RPM IP55
Brand: ebmpapst
SKU: 1600838154096
Availability: InStock
Rating: 5 (4 reviews)

$2,019.00

SKU: 1600838154096 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst W3G800-DT21-35 is a high-performance EC axial fan engineered for demanding industrial HVAC and refrigeration applications. Utilizing GreenTech EC technology, this unit provides superior energy efficiency and integrated control logic. The system architecture supports seamless Technical Compatibility with modern building management systems via 0-10V or PWM signals.

Technical Specifications:
Manufacturer: ebmpapst
Model Number: W3G800-DT21-35
Motor Technology: EC (Electronically Commutated)
Nominal Voltage: 400 VAC
Phase: 3-phase
Frequency: 50/60 Hz
Power Consumption: 1850 W
Current Draw: 2.85 A
Speed: 925 RPM
Impeller Diameter: 800 mm
Number of Blades: 5
Blade Material: PP plastic with sheet aluminum insert
Type of Protection: IP55
Insulation Class: F
Bearing Type: Maintenance-free ball bearings
Weight: 41.1 kg
Operating Temperature Range: -25 °C to +60 °C
Control Input: 0-10 VDC / PWM
Original Engineering: Germany

Application:
This axial fan is optimized for large-scale condenser units, industrial heat exchangers, and data center cooling infrastructure. The IP55 environmental rating ensures durability in outdoor installations and high-moisture refrigeration environments. The W3G800-DT21-35 addresses critical thermal management requirements by offering high-density airflow with minimal power consumption, significantly reducing the lifecycle cost of industrial cooling systems. Contact for Lead Time and technical integration support.

Key Attributes
Voltage: 400v
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Sheet aluminum insert, with PP plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: W3G800-DT21-35
Type: Axial Fan
Nominal voltage: 400V
Power consumption: 1850W
Speed: 925RPM
Current: 2.85A
Frequency: 50~60Hz
Size: 800mm
Type of protection: IP55
Weight: 41.1kg
Number of blades: 5

Packaging and Delivery
Selling Units: Single item

ebm-papst W3G800-DT21-35 400V EC Axial Fan 1850W 925RPM IP55

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
