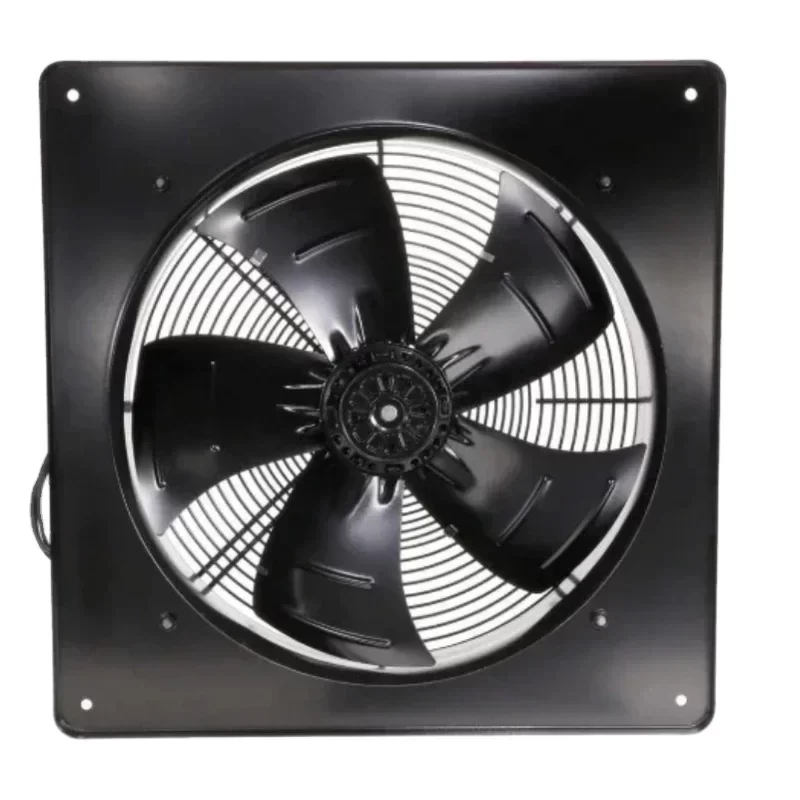

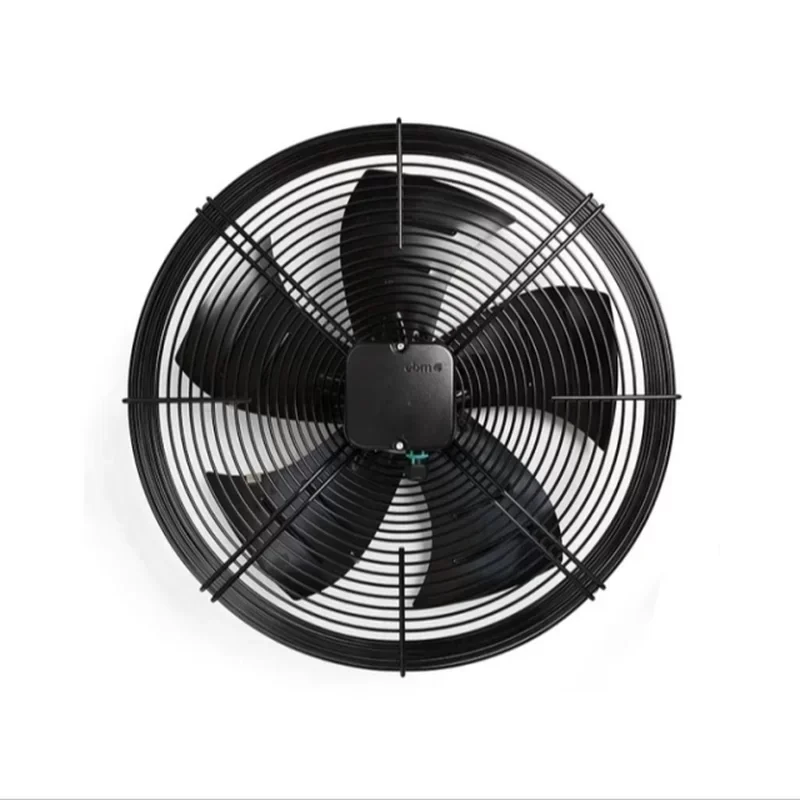

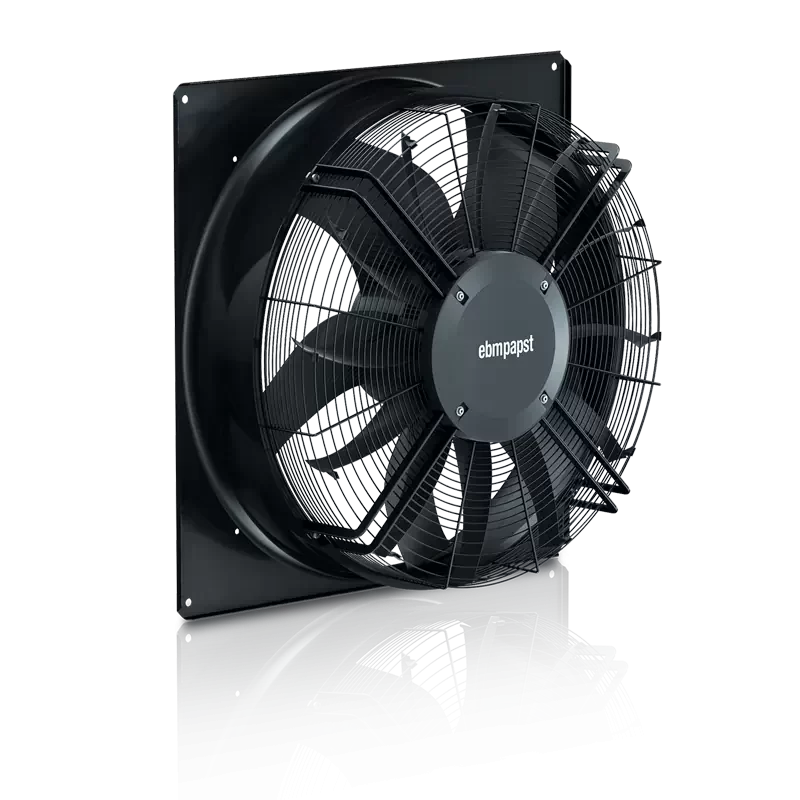

ebm-papst W4D560-GM03-01 560mm Axial Fan 400VAC 870RPM 1160W IP54

ebm-papst W4D560-GM03-01 560mm Axial Fan 400VAC 870RPM 1160W IP54

Name: ebm-papst W4D560-GM03-01 560mm Axial Fan 400VAC 870RPM 1160W IP54
Brand: ebmpapst
SKU: 1600837584822
Availability: InStock
Rating: 5 (4 reviews)

$465.00

SKU: 1600837584822 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst W4D560-GM03-01 is a high-performance axial fan engineered for industrial refrigeration and HVAC condenser applications. This unit incorporates Original Engineering from Germany, utilizing the HyBlade series design to optimize aerodynamic efficiency and noise reduction. Technical Compatibility is guaranteed for large-scale outdoor heat exchangers requiring high-volume airflow under consistent static pressure.

Technical Specifications:
Manufacturer: ebmpapst
Model Number: W4D560-GM03-01
Motor: M4D110-GF
Phase: 3~
Nominal Voltage: 400 VAC
Frequency: 50/60 Hz
Input Power: 1160 W
Current Draw: 1.45 A
Speed: 870 RPM
Airflow Direction: V (Exhaust over struts)
Blade Material: Aluminium sheet insert, sprayed with PP plastic
Number of Blades: 5
Bearing Type: Maintenance-free ball bearings
Degree of Protection: IP54
Insulation Class: F
Mounting Type: Free Standing / Wall Ring
Motor Protection: Thermal overload protector (TOP) brought out
Surface Treatment: Coated in black
Weight: 22.1 kg
Size: 560 mm (Blade Diameter)
Operating Temperature Range: -40 °C to +65 °C
Compliance: EN 60335-1, CE, UKCA, VDE

Application Scenario:
This axial fan is specifically designed for outdoor condenser units in commercial refrigeration systems and industrial chillers. The IP54 rating and F-class insulation allow for continuous operation in environments exposed to particulate matter and moisture ingress. Its 560mm diameter and 870 RPM speed profile provide the necessary thermal exchange for high-capacity cooling systems while maintaining low acoustic signatures. Please contact technical sales for specific Lead Time and integration support.

Key Attributes
Voltage: 400V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Aluminium sheet insert, sprayed with PP plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: W4D560-GM03-01
Voltage: 400V
Frequency: 50/60Hz
Power: 1160W
Current: 1.45A
Speed: 870RPM
IP rating: IP54
Airflow direction: V
Insulation class: F
Size: 450mm
Weight: 22.1Kg

Packaging and Delivery
Selling Units: Single item

ebm-papst W4D560-GM03-01 560mm Axial Fan 400VAC 870RPM 1160W IP54

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
