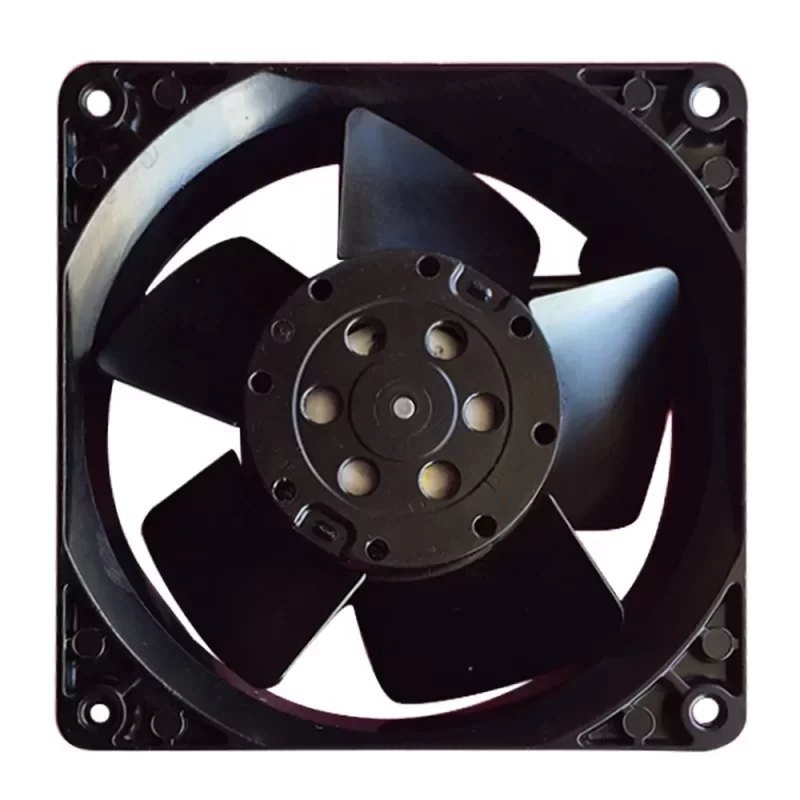

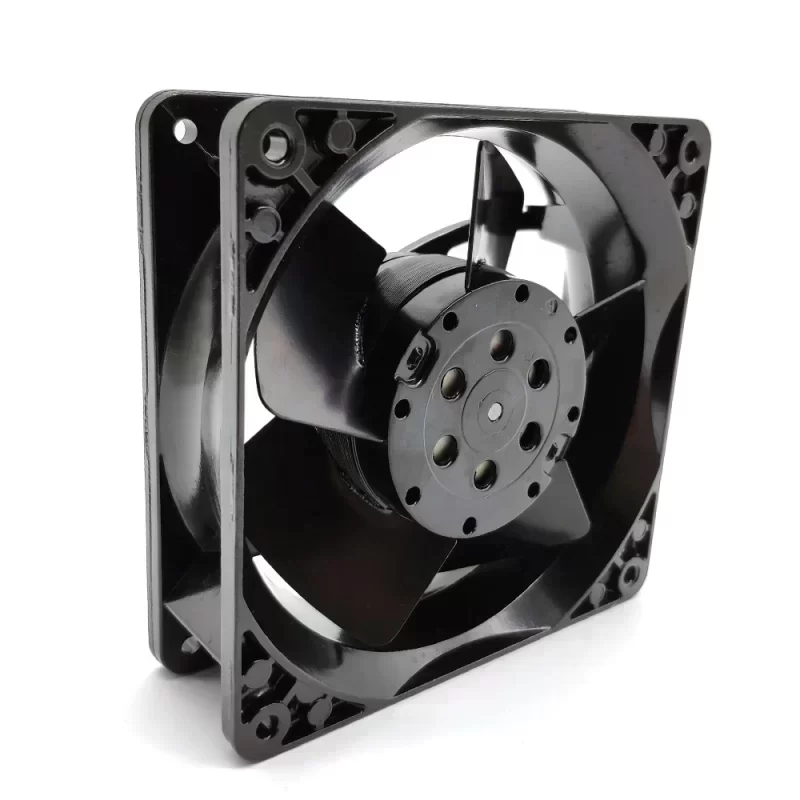

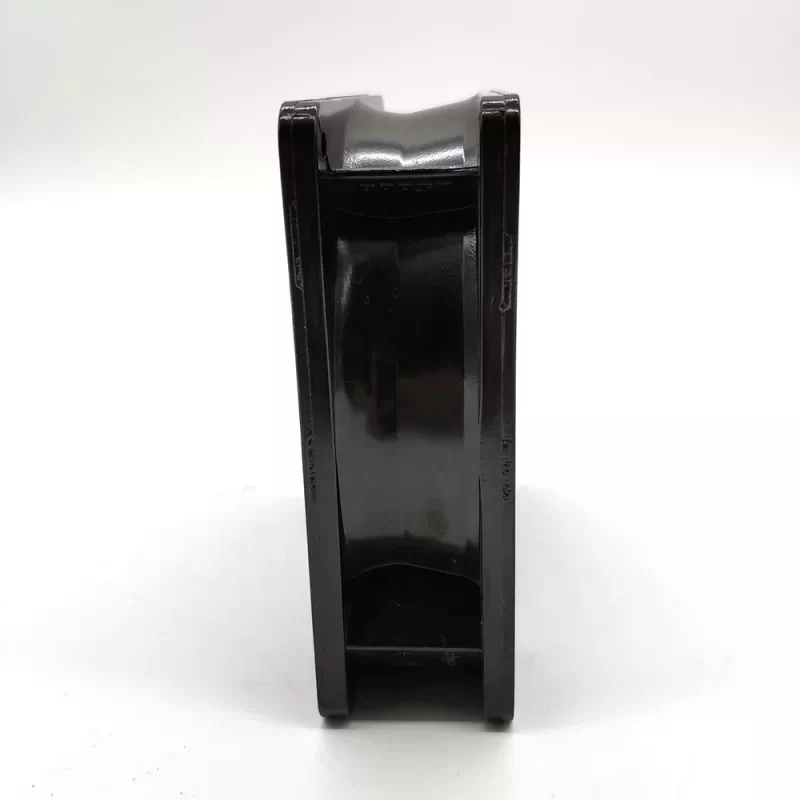

ebmpapst 4600X 120x120x38mm 115V AC Cabinet Axial Fan

ebmpapst 4600X 120x120x38mm 115V AC Cabinet Axial Fan

Name: ebmpapst 4600X 120x120x38mm 115V AC Cabinet Axial Fan
Brand: ebmpapst
SKU: 1601105921898
Availability: InStock
Rating: 5 (4 reviews)

$17.00

SKU: 1601105921898 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst 4600X is a high-performance AC axial fan engineered for industrial-grade thermal management and electronic cooling. This unit features a robust die-cast aluminum housing and a sheet steel impeller, ensuring structural integrity and Technical Compatibility with demanding environments where plastic alternatives fail. Utilizing Original Engineering, the 4600X delivers a maximum free-air flow of 180 m³/h at a nominal speed of 3100 RPM. Its impedance-protected motor and specialized sleeve bearing system provide a reliable, low-vibration solution for continuous duty cycles in control cabinets and server enclosures. This model is optimized for 115V AC power grids, offering a balance of high airflow density and acoustic efficiency.

Technical Specifications:
Manufacturer: ebmpapst
Model: 4600X
Product Category: AC Axial Fan
Nominal Voltage: 115 VAC
Frequency: 60 Hz
Power Consumption: 18.0 W
Airflow: 180 m³/h
Airflow: 106 CFM
Rotational Speed: 3100 RPM
Noise Level: 45 dB(A)
Bearing Type: Sleeve Bearing (Sintec)
Housing Material: Die-cast aluminum
Impeller Material: Sheet steel, painted black
Dimensions: 120 x 120 x 38 mm
Weight: 0.55 kg
Operating Temperature Range: -10 °C to +50 °C
Electrical Connection: 2 flat plugs 2.8 x 0.5 mm
Motor Protection: Impedance protected against overloading
Direction of Rotation: Clockwise, viewed toward rotor
Direction of Airflow: Exhaust over struts
Service Life L10 at 40 °C: 37500 h
Certifications: VDE, CSA, UL, CE

Industrial Application:
The 4600X is specifically utilized in high-density server racks, industrial control panels, and telecommunications infrastructure where consistent heat dissipation is critical to prevent component degradation. Its metal construction makes it suitable for environments with higher ambient temperatures or where electromagnetic shielding is required. This model ensures minimal Lead Time for maintenance cycles due to its standardized 12038 form factor and global industrial availability.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Metal
Bearing type: Sleeve Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: 4600X
Model number: 4600X
Fan type: Aixal Fan
Nominal voltage: 115 VAC
Frequency: 50~60Hz
Power consumption: 18 W
Speed: 3100 r/min
Max. free-air flow: 180 m3/h
Weight: 0.55kg
Product size: 120 x 120 x 38 mm
Noise: 45DBA

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X11 cm
Single gross weight: 0.800 kg

ebmpapst 4600X 120x120x38mm 115V AC Cabinet Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
