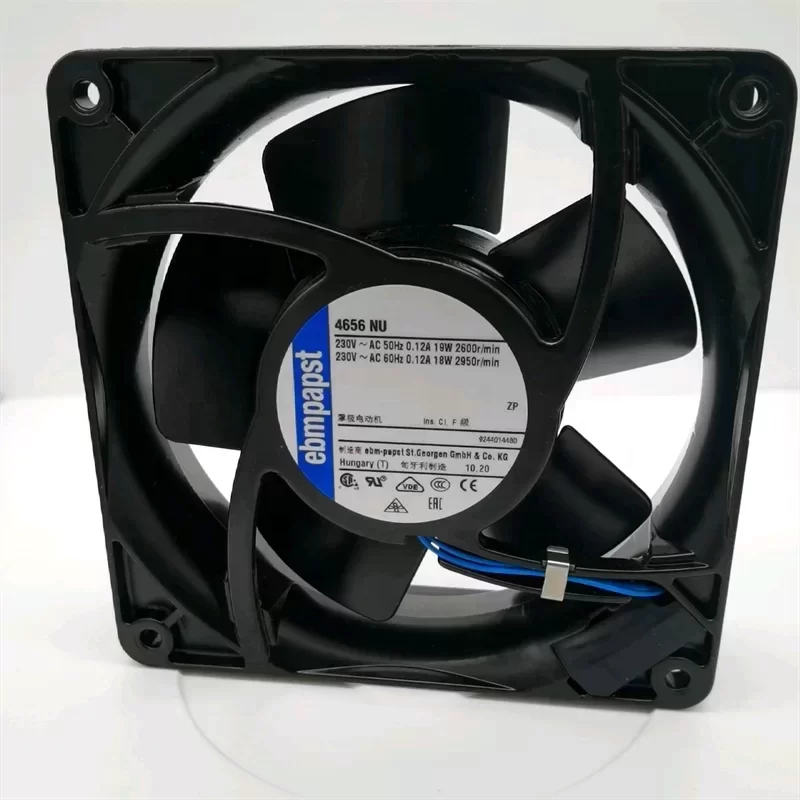

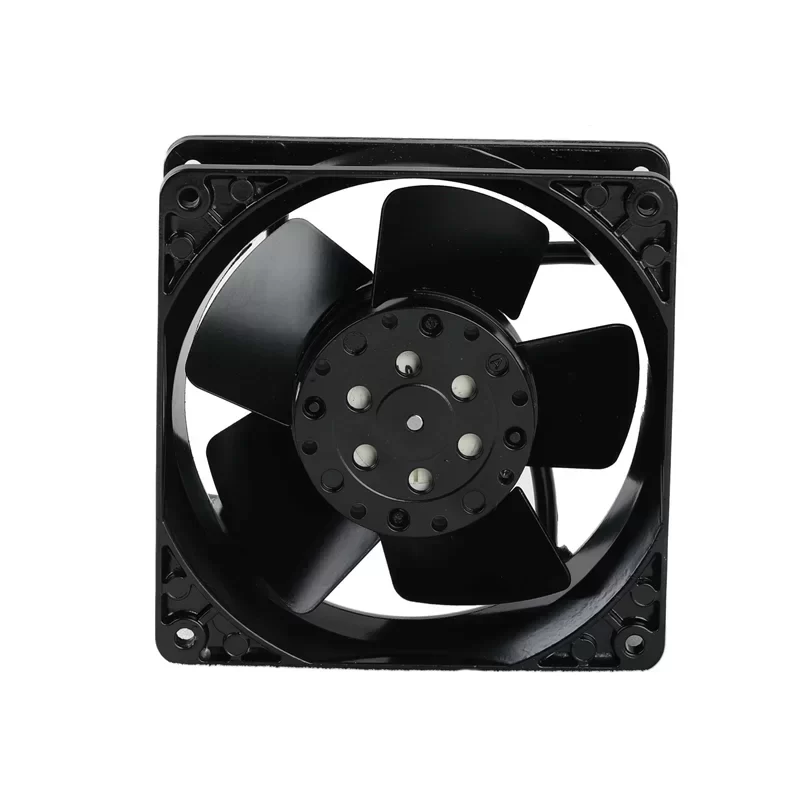

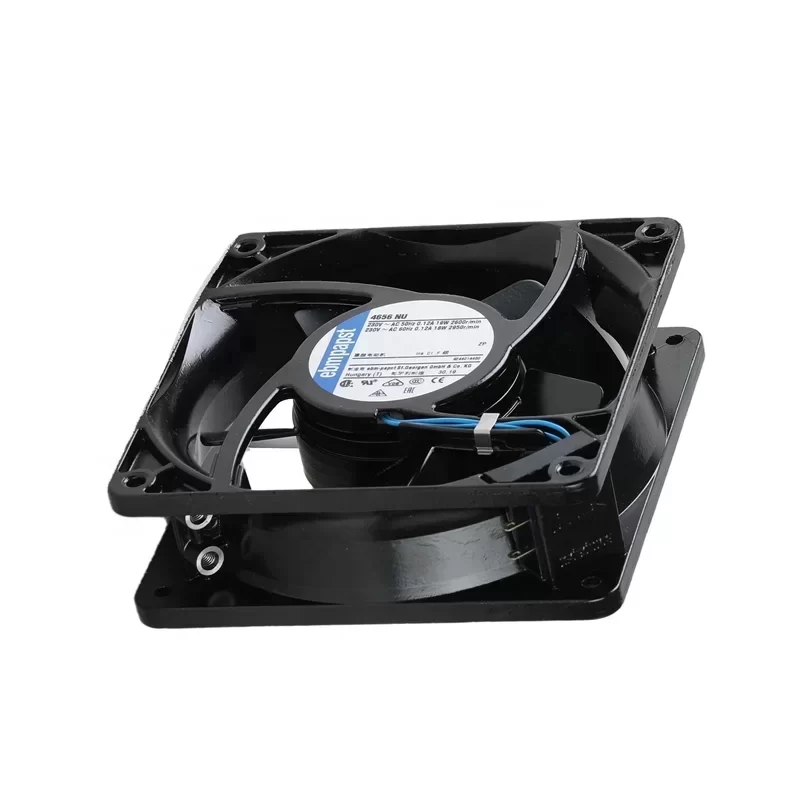

Ebmpapst 4656NU 12038 120x120x38mm 230VAC Cabinet Axial Fan

Ebmpapst 4656NU 12038 120x120x38mm 230VAC Cabinet Axial Fan

Name: Ebmpapst 4656NU 12038 120x120x38mm 230VAC Cabinet Axial Fan
Brand: ebmpapst
SKU: 1600379686545
Availability: InStock
Rating: 5 (4 reviews)

$60.00

SKU: 1600379686545 Brand: ebmpapst

Description
Reviews (0)

Description

The Ebmpapst 4656NU represents the pinnacle of Original Engineering in compact thermal management solutions. This 230VAC axial fan is engineered for high-density electronic enclosures where Technical Compatibility and long-term reliability are non-negotiable. Featuring a robust die-cast aluminum housing and mineral-reinforced plastic impeller, the 4656NU is designed for continuous duty cycles in demanding environments.

Technical Specifications:
Manufacturer: Ebmpapst
Model Number: 4656NU
Series: 4600 N
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Air Flow: 160 m³/h (94.2 CFM)
Speed: 2650 RPM
Power Consumption: 19.0 W
Sound Pressure Level: 47 dB(A)
Bearing Type: Ball Bearing
Housing Material: Die-cast aluminum
Impeller Material: Mineral-reinforced PA plastic
Dimensions: 119 x 119 x 38 mm
Weight: 0.540 kg
Direction of Airflow: Exhaust over struts
Direction of Rotation: Clockwise (looking at rotor)
Termination: 2 flat plugs 2.8 x 0.5 mm
Motor Protection: Impedance protected
Operating Temperature Range: -40 °C to +85 °C
Service Life L10 at 40 °C: 37500 h
Service Life L10 at Max Temperature: 15000 h
Certifications: VDE, CSA, UL, CE
Country of Origin: Germany

Industrial Application:
The 4656NU is specifically utilized in industrial control cabinets and telecommunication racks where heat dissipation is critical to prevent component failure. Its high static pressure capability allows it to push air through dense filter media or tightly packed circuit boards. For procurement teams, this model offers predictable Lead Time and serves as a direct replacement for legacy AC cooling systems, ensuring minimal downtime during maintenance cycles.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Axial Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: 4656NU
Size: 120x120x38mm
Voltage: 230VAC
Air flow: 94.2 CFM
Speed: 2650RPM
Power: 19W
Bearing type: Ball Bearing
Housing Material: Aluminum
Termination Style: Quick Connect Terminal
Frequncy: 50/60HZ
Noise: 47dBA

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X12 cm
Single gross weight: 1.000 kg

Ebmpapst 4656NU 12038 120x120x38mm 230VAC Cabinet Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
