Ebmpapst 5958W 127x127x38mm 230V AC W2K121-AA01-01 Axial Fan

Ebmpapst 5958W 127x127x38mm 230V AC W2K121-AA01-01 Axial Fan

Name: Ebmpapst 5958W 127x127x38mm 230V AC W2K121-AA01-01 Axial Fan
Brand: ebmpapst
SKU: 1600175736768
Availability: InStock
Rating: 5 (4 reviews)

$38.60

SKU: 1600175736768 Brand: ebmpapst

Description
Reviews (0)

Description

Brand: Ebmpapst
Model Number: 5958W
Manufacturer Part Number: W2K121-AA01-01
Motor Designation: M2K052-CA
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Speed: 2750 min⁻¹
Power Consumption: 17 W
Current Draw: 0.105 A
Max Airflow: 180 m³/h
Max Static Pressure: 65 Pa
Dimensions: 127 x 127 x 38 mm
Weight: 0.570 kg
Bearing System: Maintenance-free ball bearings
Blade Material: PA plastic, fiberglass-reinforced
Housing Material: Die-cast aluminum
Direction of Rotation: Clockwise, viewed toward rotor
Direction of Airflow: Exhaust over struts
Electrical Connection: 2 flat plugs 2.8 x 0.5 mm
Motor Protection: Impedance protected
Approval: VDE, CSA, UL, CE
Operating Temperature Range: -20 °C to +70 °C
Service Life L10 at 40 °C: 40,000 h
Service Life L10 at Max Temp: 20,000 h

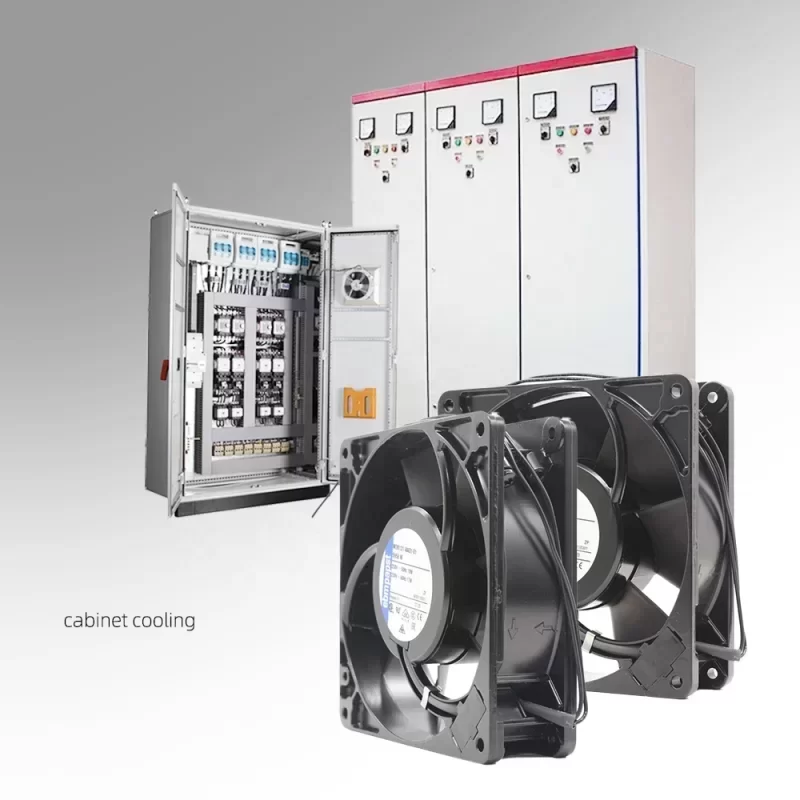

Industrial Application: The Ebmpapst 5958W (W2K121-AA01-01) represents Original Engineering designed for high-performance thermal management in industrial control cabinets and server enclosures. Its compact 127mm profile ensures Technical Compatibility with standard rack-mount systems where space is constrained but high static pressure is required to overcome internal resistance. This unit is critical for maintaining stable operating temperatures in power supplies and frequency converters, reducing downtime and extending component lifecycle. Contact for Lead Time and bulk procurement specifications.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: 5958W
Type: Axial fan
Nominal voltage: 230 V
Bearing Type: Ball Bearing
Power consumption: 17 W
Speed Control: 2750 r/min
Current: 0.105 (A)
Frequency: 50~60Hz
Weight: 0.570kg
Max. static pressure: 65 pa
Air flow: 180m3/h

Packaging and Delivery
Selling Units: Single item
Single package size: 23X23X12 cm
Single gross weight: 1.500 kg

Ebmpapst 5958W 127x127x38mm 230V AC W2K121-AA01-01 Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
