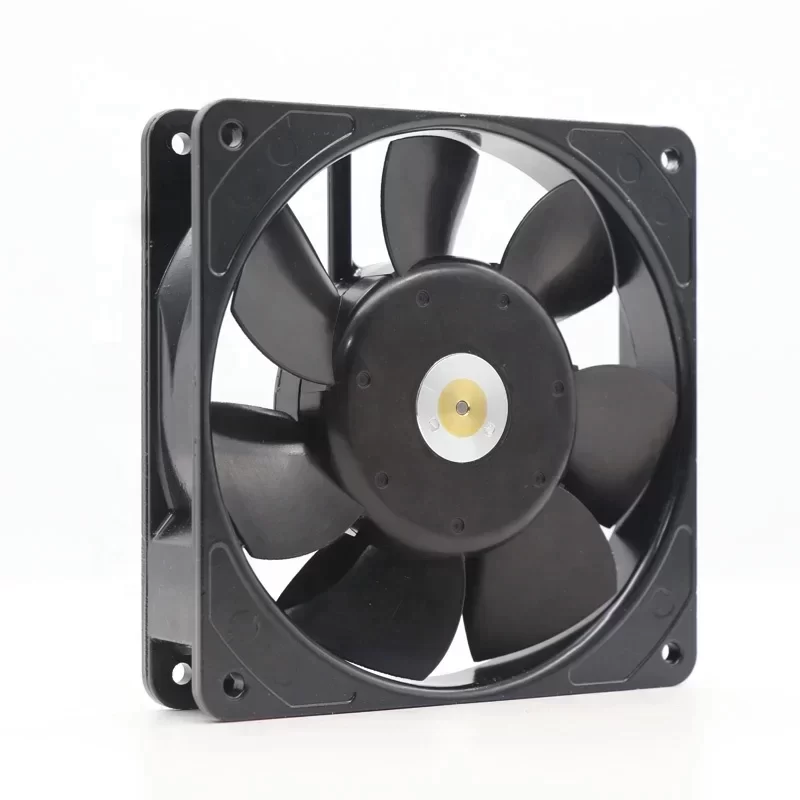

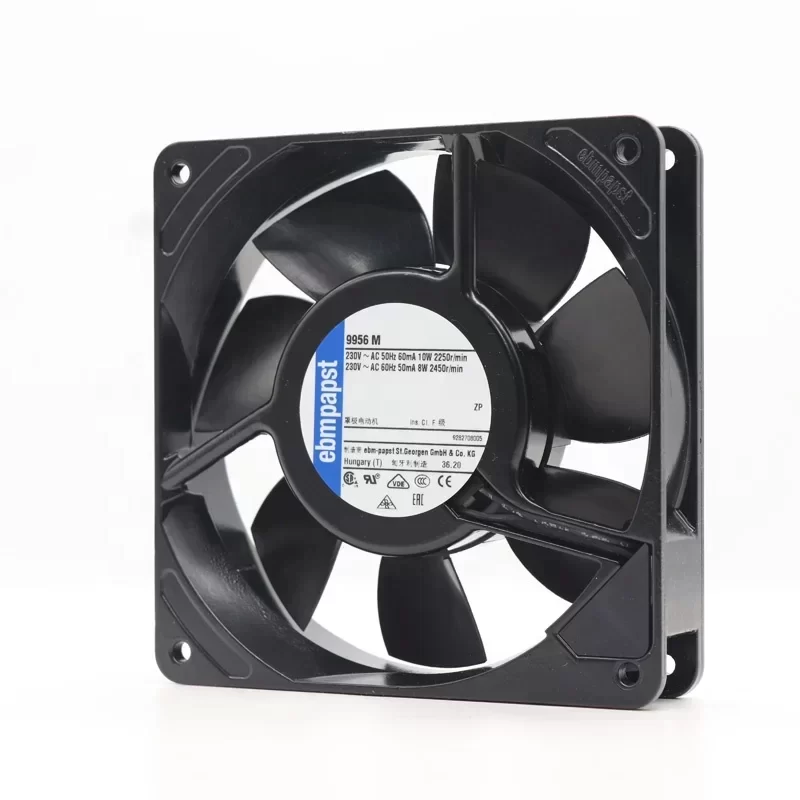

Name: Ebmpapst 9956M 230V AC 120x120x25mm IP20 Axial Fan
Brand: ebmpapst
SKU: 1600356864793
Availability: InStock
Rating: 5 (4 reviews)

$33.80

SKU: 1600356864793 Brand: ebmpapst

Description
Reviews (0)

Description

The Ebmpapst 9956M represents the pinnacle of Original Engineering in compact thermal management. This 120mm axial fan is engineered for continuous operation in demanding industrial environments where reliability is non-negotiable. Utilizing a robust die-cast aluminum housing and a mineral-reinforced plastic impeller, the unit ensures structural integrity and aerodynamic efficiency under thermal stress. Technical Compatibility is guaranteed for standard 119mm mounting patterns, making it an ideal drop-in replacement for high-density cabinet cooling systems.

Technical Specifications:
Brand: Ebmpapst
Model: 9956M
Dimensions: 119 x 119 x 25 mm
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Power Input: 10.0 W
Air Flow: 104 m³/h (61.2 CFM)
Rotational Speed: 2250 RPM
Sound Pressure Level: 32 dB(A)
Bearing System: Dual Ball Bearing
Housing Material: Die-cast Aluminum
Impeller Material: Fiberglass-reinforced PA Plastic
Ingress Protection: IP20
Motor Type: Shaded pole motor
Current Consumption: 45 mA
Weight: 0.32 kg
Operating Temperature Range: -20 °C to +70 °C
Service Life L10: 52500 hours at 40 °C
Termination Style: 2 Flat Plugs 2.8 x 0.5 mm
Approvals: VDE, CSA, UL, CE

Industrial Application:
The 9956M is specifically utilized in electrical distribution boards, telecommunication enclosures, and server rack assemblies. Its low-profile 25mm depth solves the critical problem of restricted airflow paths in shallow cabinets, ensuring that sensitive power electronics maintain optimal operating temperatures to prevent premature failure. For procurement planning and logistics, please contact our sales department regarding current Lead Time and bulk availability.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: 9956M
Size: 120*120*25mm
Voltage: 230VAC
Power: 10W
Air flow: 61.2 CFM
Speed: 2250 RPM
IP Rating: IP20
Bearing type: Ball Bearing
Housing Material: Aluminum
Termination Style: Quick Connect Terminal
Current: 4.7A

Packaging and Delivery
Selling Units: Single item

Ebmpapst 9956M 230V AC 120x120x25mm IP20 Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
