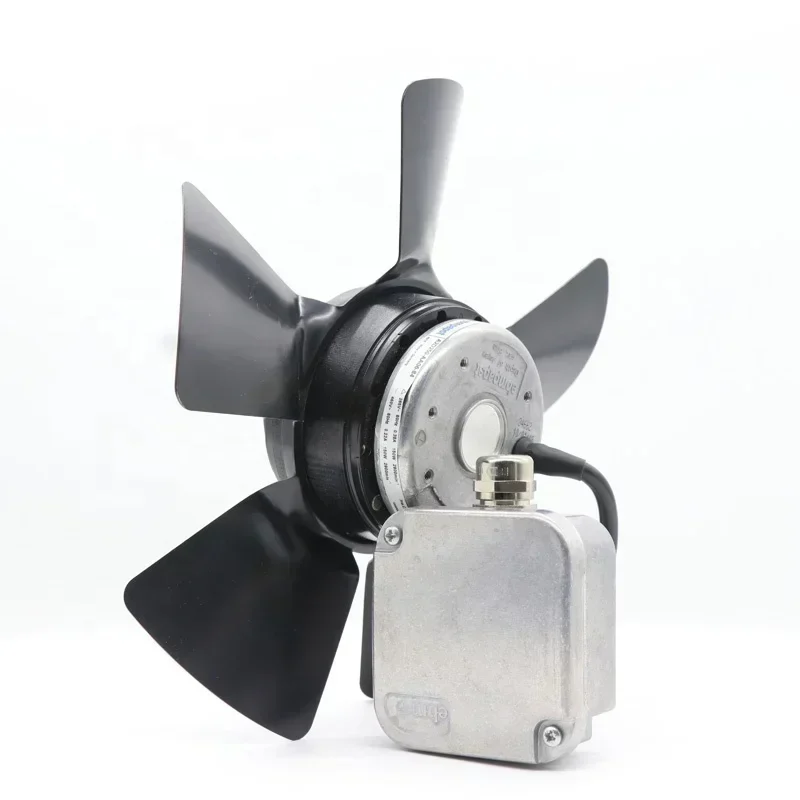

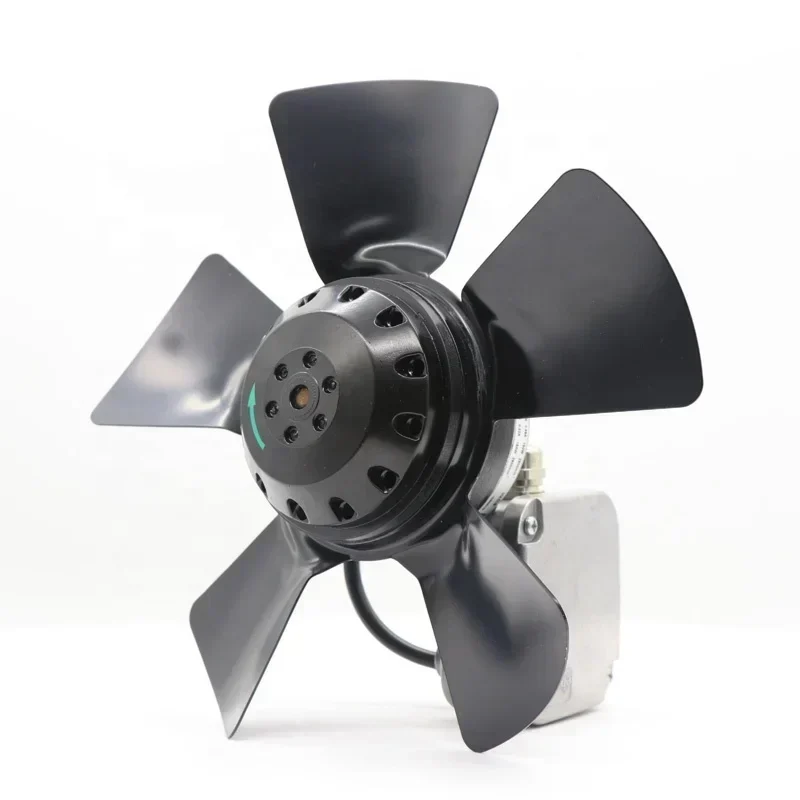

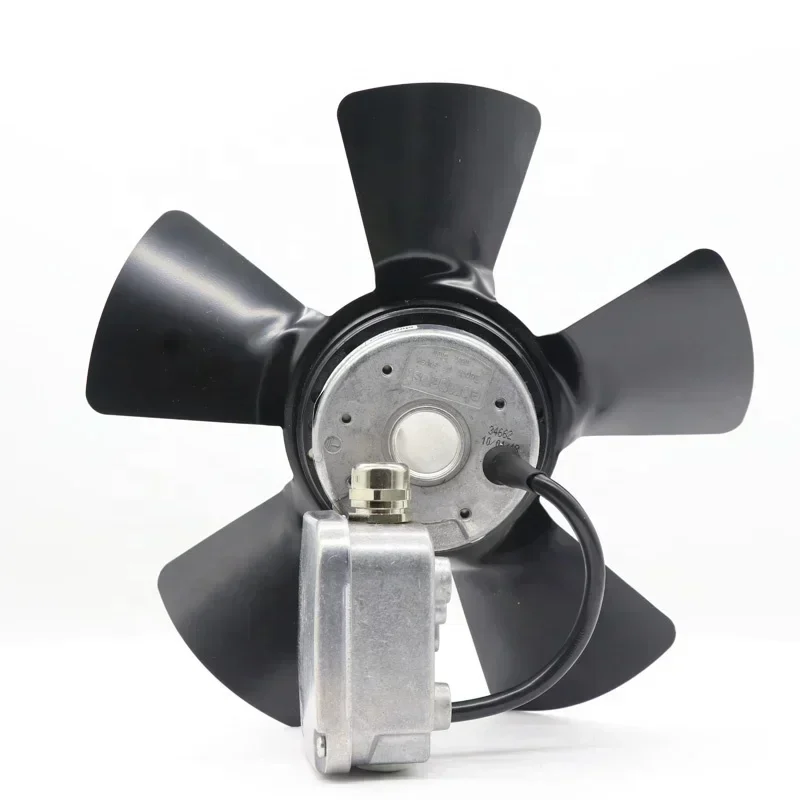

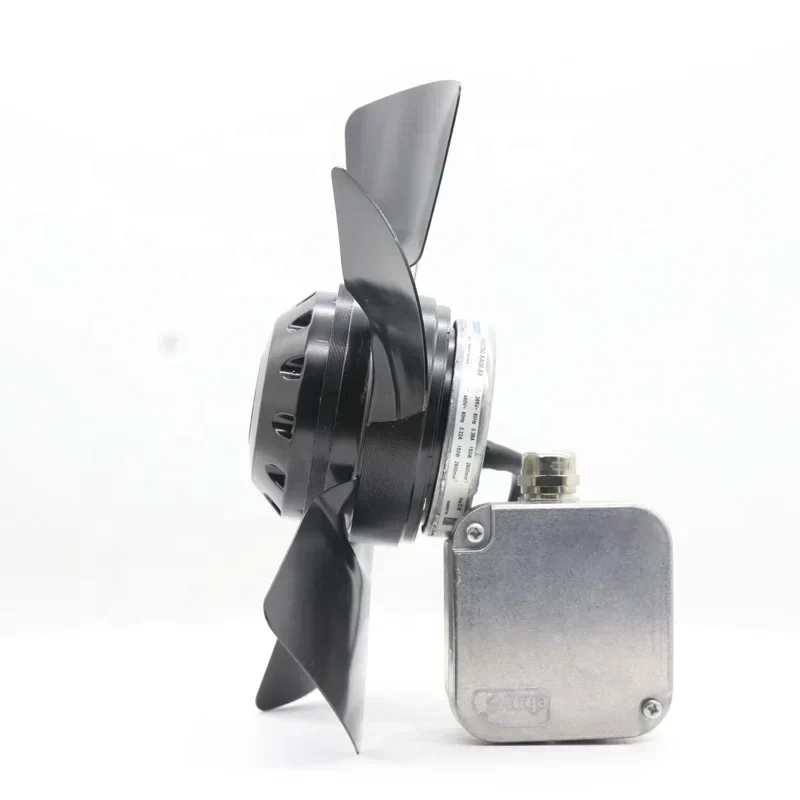

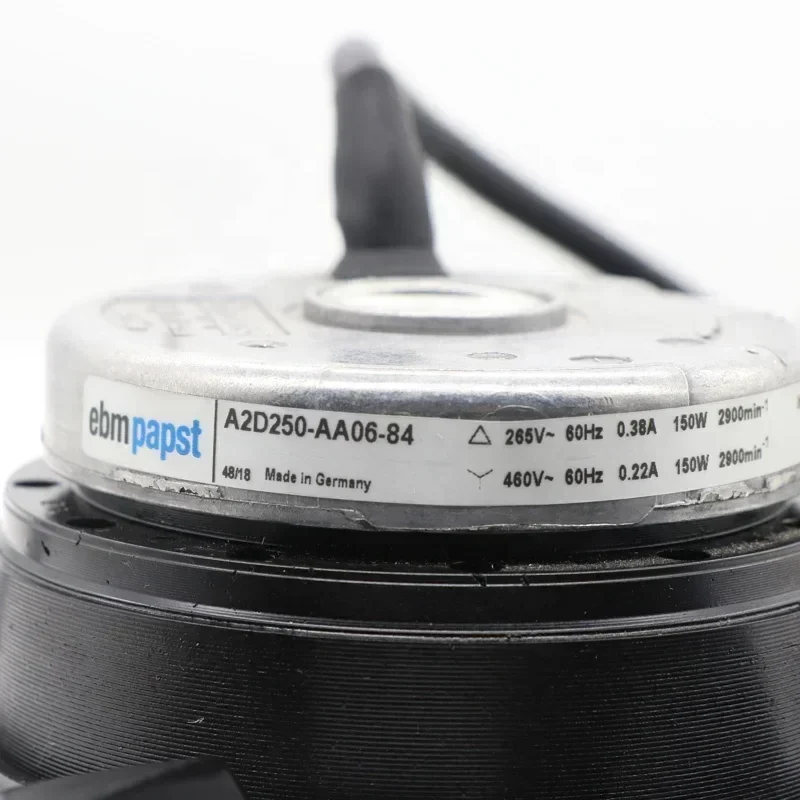

ebmpapst A2D250-AA06-84 230V AC 150W 0.38A 250mm 2900RPM Outer Rotor Spindle Motor Axial Fan

ebmpapst A2D250-AA06-84 230V AC 150W 0.38A 250mm 2900RPM Outer Rotor Spindle Motor Axial Fan

Name: ebmpapst A2D250-AA06-84 230V AC 150W 0.38A 250mm 2900RPM Outer Rotor Spindle Motor Axial Fan
Brand: ebmpapst
SKU: 62045887640
Availability: InStock
Rating: 5 (4 reviews)

$317.50

SKU: 62045887640 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst A2D250-AA06-84 is a high-efficiency AC axial fan engineered for critical thermal management in industrial machinery and power electronics. Utilizing an external rotor motor design, this unit integrates the motor directly into the impeller hub, resulting in a compact axial depth ideal for space-constrained enclosures. The 2-pole motor configuration delivers high rotational speeds of 2900 RPM, generating significant airflow required for forced convection in high-density applications such as inverter spindle cooling and heat exchanger ventilation. Constructed with robust stainless steel blades and a maintenance-free ball bearing system, this fan is rated for continuous duty cycles and offers superior resistance to thermal stress and mechanical vibration. The unit operates on a nominal 230V supply, ensuring broad compatibility with standard industrial power grids.

Technical Specifications:
Manufacturer: ebmpapst
Model Reference: A2D250-AA06-84
Product Type: AC Axial Fan / External Rotor Motor
Nominal Voltage: 230 V
Frequency: 50/60 Hz
Power Consumption: 150 W
Current Draw: 0.38 A
Nominal Speed: 2900 RPM
Impeller Diameter: 250 mm
Blade Material: Stainless Steel
Bearing System: Ball Bearing
Motor Poles: 2
Net Weight: 2.5 kg
Origin: Germany

Industrial Application:
This model is specifically calibrated for applications requiring high air performance in restricted spaces, such as cooling variable frequency drives (VFDs), CNC spindle motors, and transformer cabinets. Its aerodynamic profile minimizes noise generation while maximizing air throughput, making it suitable for sensitive manufacturing environments. The external rotor architecture aids in self-cooling of the motor windings, significantly extending the Mean Time Between Failures (MTBF).

Procurement & Lifecycle:
We provide components adhering strictly to Original Engineering standards to ensure safety and system integrity. Technical Compatibility should be verified against your existing mounting footprint and airflow requirements. Contact our engineering team for current Lead Time, bulk pricing, and warranty details.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Stainless Steel
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: A2D250-AA06-84
Nominal voltage: 230V
Bearing Type: Ball Bearing
Power consumption: 150W
Current: 0.38 A
Frequency: 50~60Hz
Fan Size: 250 mm
Speed Control: 2900 (r/min)
Weight: 2.5kg

Packaging and Delivery
Selling Units: Single item
Single package size: 37X37X22 cm
Single gross weight: 68.000 kg

ebmpapst A2D250-AA06-84 230V AC 150W 0.38A 250mm 2900RPM Outer Rotor Spindle Motor Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
