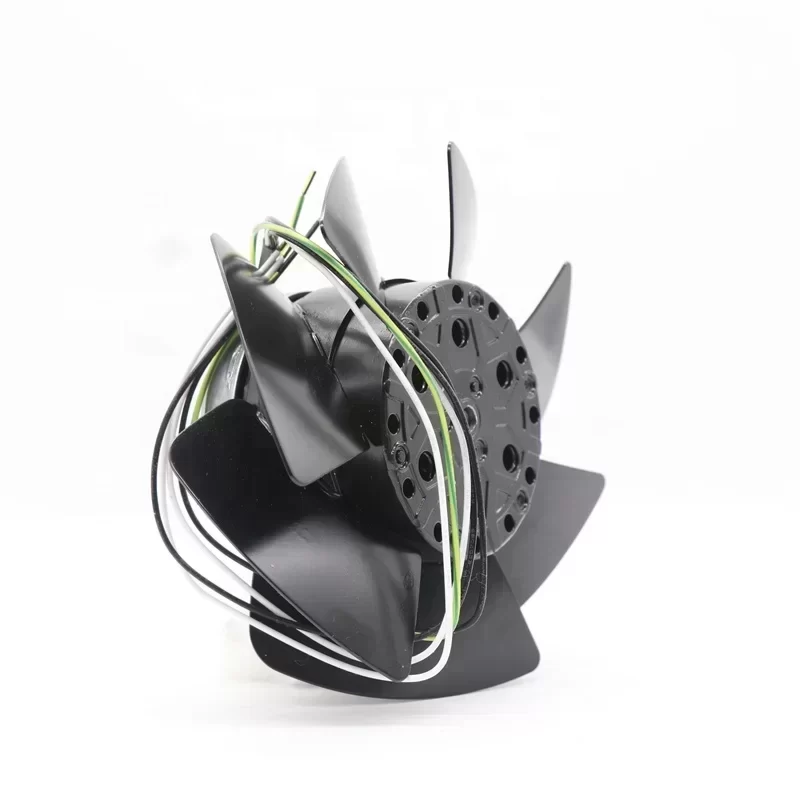

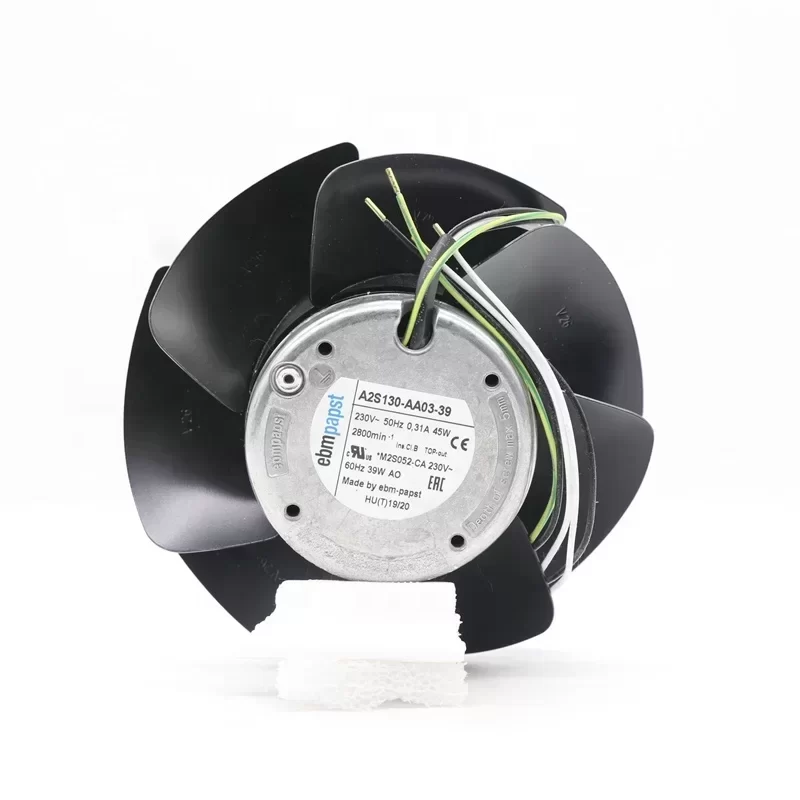

ebmpapst A2S130-AA03-39 230V AC CNC Cabinet Axial Fan

ebmpapst A2S130-AA03-39 230V AC CNC Cabinet Axial Fan

Name: ebmpapst A2S130-AA03-39 230V AC CNC Cabinet Axial Fan
Brand: ebmpapst
SKU: 62042918476
Availability: InStock
Rating: 5 (4 reviews)

$100.00

SKU: 62042918476 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst A2S130-AA03-39 is a high-performance AC axial fan engineered for precision thermal management in demanding industrial environments. Utilizing an external rotor motor design, this unit provides a compact and robust solution for CNC machining center cabinets and electronic enclosures where Technical Compatibility and long-term reliability are paramount. This Original Engineering component ensures optimal airflow to prevent thermal throttling of sensitive control logic.

Technical Specifications:
Brand: ebmpapst
Model Number: A2S130-AA03-39
Motor Type: M2S052-CA
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Speed: 2800 RPM (50 Hz) / 3250 RPM (60 Hz)
Power Consumption: 39 W (50 Hz) / 45 W (60 Hz)
Current Draw: 0.31 A (50 Hz) / 0.25 A (60 Hz)
Air Flow Rate: 340 m³/h (50 Hz) / 390 m³/h (60 Hz)
Impeller Material: Sheet steel, painted black
Housing Material: Die-cast aluminum
Bearing Type: Maintenance-free ball bearings
Direction of Rotation: Counter-clockwise, viewed toward rotor
Degree of Protection: IP20
Insulation Class: B
Motor Protection: Thermal overload protector (TOP) wired internally
Operating Temperature Range: -25 °C to +70 °C
Weight: 1.1 kg
Diameter: 130 mm
Mounting Position: Any
Approvals: CE, VDE, UL, CSA

Industrial Application:
In CNC machining centers, the A2S130-AA03-39 is critical for maintaining the internal temperature of control cabinets. High-speed processing generates significant heat within the drive and logic sections; this fan provides the necessary static pressure and volume flow to ensure continuous operation without downtime. Its die-cast aluminum construction and ball bearing system are designed for high-duty cycles, reducing Lead Time on maintenance by extending the service life of the cooling system.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Cast Iron
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: A2S130-AA03-39
Nominal voltage: 230V
Bearing Type: Ball Bearing
Power consumption: 39W
Current: 0.31 A
Frequency: 50~60Hz
Fan Size: 130MM
Speed Control: 2800 RPM
Air flow rate: 340m3/h-390m3/h
Type: Axial Flow Fan
Applicable Industries: Cabinet cooling fan,CNC machining center dedicated fan

Packaging and Delivery
Selling Units: Single item

ebmpapst A2S130-AA03-39 230V AC CNC Cabinet Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
