Name: ebmpapst DV4650-470 12038 120x120x38mm 12cm 230V AC 17.7W Rittal Axial Fan
Brand: ebmpapst
SKU: 60870787228
Availability: InStock
Rating: 5 (4 reviews)

$37.00

SKU: 60870787228 Brand: ebmpapst, Rittal

Description
Reviews (0)

Description

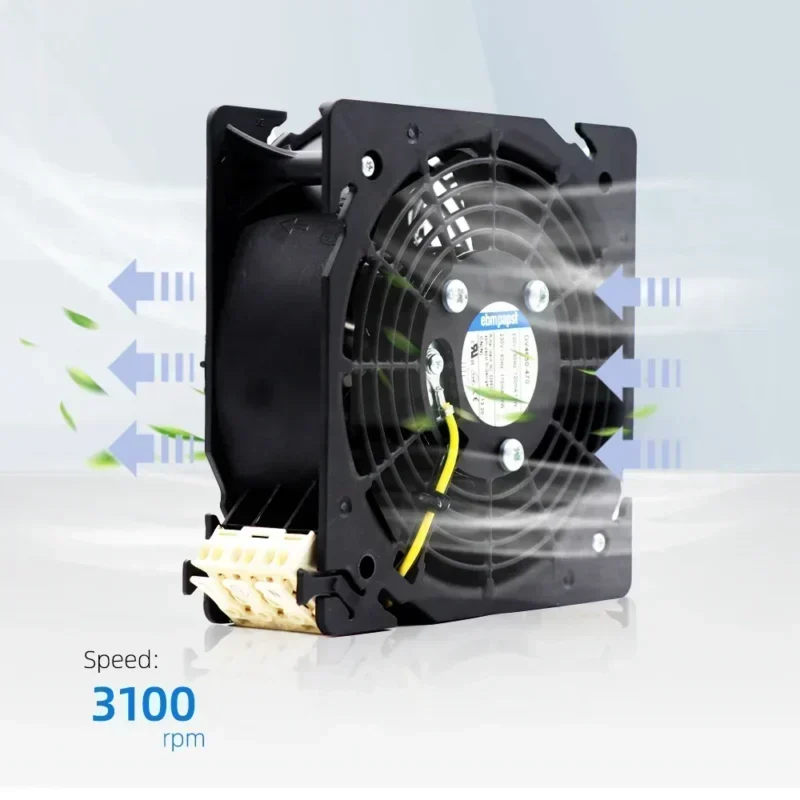

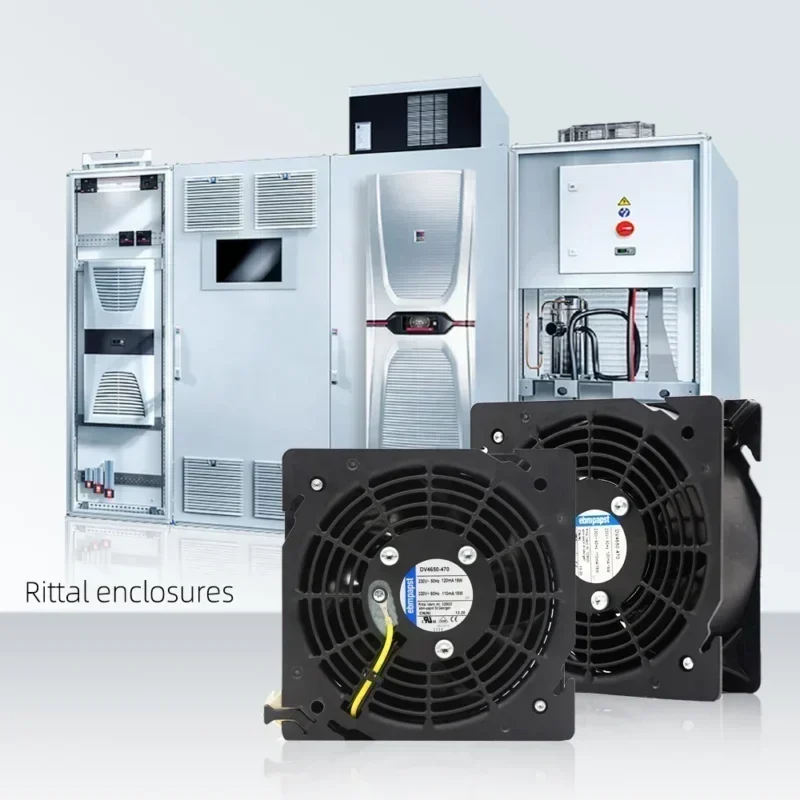

The ebm-papst DV4650-470 is a robust AC axial compact fan engineered for critical thermal management in industrial enclosures and IT infrastructure. Designed with Original Engineering precision, this unit features an external rotor shaded-pole motor integrated into a durable die-cast aluminum housing. The DV4650-470 is specifically calibrated for continuous operation in high-impedance environments, making it a direct technical replacement for specific Rittal cabinet cooling systems and variable frequency drive (VFD) ventilation units. Its aerodynamic metal impeller delivers consistent airflow with optimized acoustic performance, ensuring reliable heat dissipation for sensitive electronic components. Ensure Technical Compatibility by verifying the voltage and dimensional specifications against your current system architecture. We provide transparent Lead Time estimates to support urgent maintenance and repair operations.

Manufacturer: ebm-papst
Model Number: DV4650-470
Product Type: AC Axial Compact Fan
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Air Flow: 160 m³/h (94.2 CFM)
Nominal Speed: 2600 RPM
Power Consumption: 17.7 W
Current Draw: 0.12 A

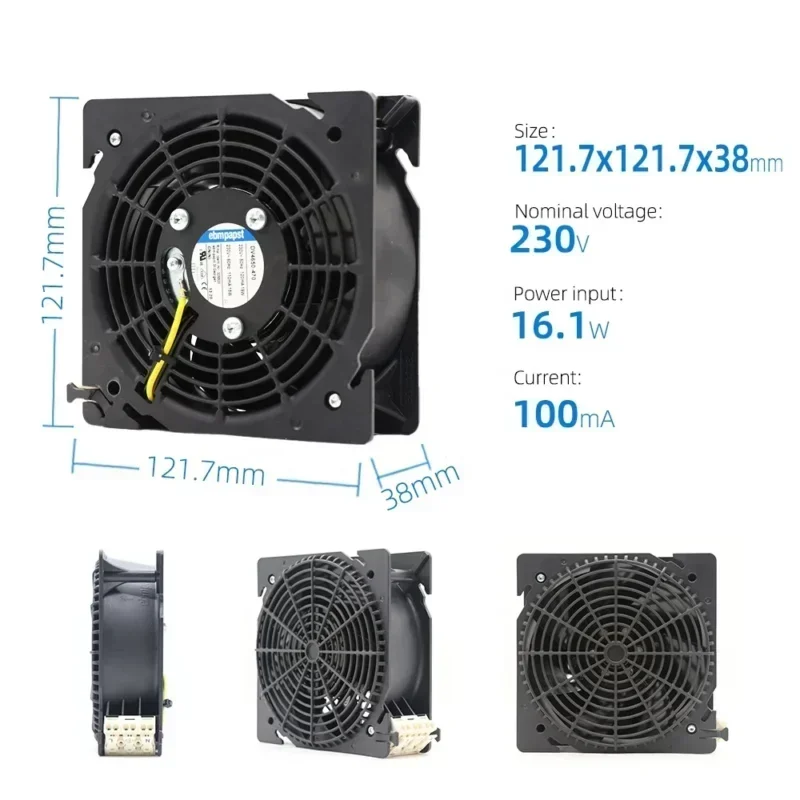

Housing Dimensions: 119 x 119 x 38 mm
Mounting Centers: 104.8 x 104.8 mm
Bearing System: Maintenance-Free Ball Bearings
Housing Material: Die-Cast Aluminum
Impeller Material: Sheet Steel (Welded to Rotor)
Motor Protection: Impedance Protected against Overload
Electrical Connection: 2 Flat Plugs 2.8 x 0.5 mm
Operating Temperature Range: -20°C to +75°C
Sound Pressure Level: 46 dB(A)
Service Life L10 at 40°C: 40,000 hours
Direction of Rotation: Clockwise (viewed toward rotor)
Direction of Air Flow: Intake over struts
Net Weight: 0.550 kg
Certifications: VDE, UL, CSA, CE

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Ac axial fan
Warranty: 1 Year
Power Source: Electric
Blade material: Cast Iron
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: China
Brand name: Ebmpapst
Model number: DV4650-470
Model Number: DV4650-470
Type: Axial Inverter Fan
Nominal voltage: 230V
Bearing Type: Ball Bearing
Power consumption: 16.1-17.7W
Size: 120*120*38mm
Frequency: 50~60Hz
Air volume: 94.2CFM
Speed: 2600RPM
Core Components: Motor

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X12 cm
Single gross weight: 0.800 kg

ebmpapst DV4650-470 12038 120x120x38mm 12cm 230V AC 17.7W Rittal Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
