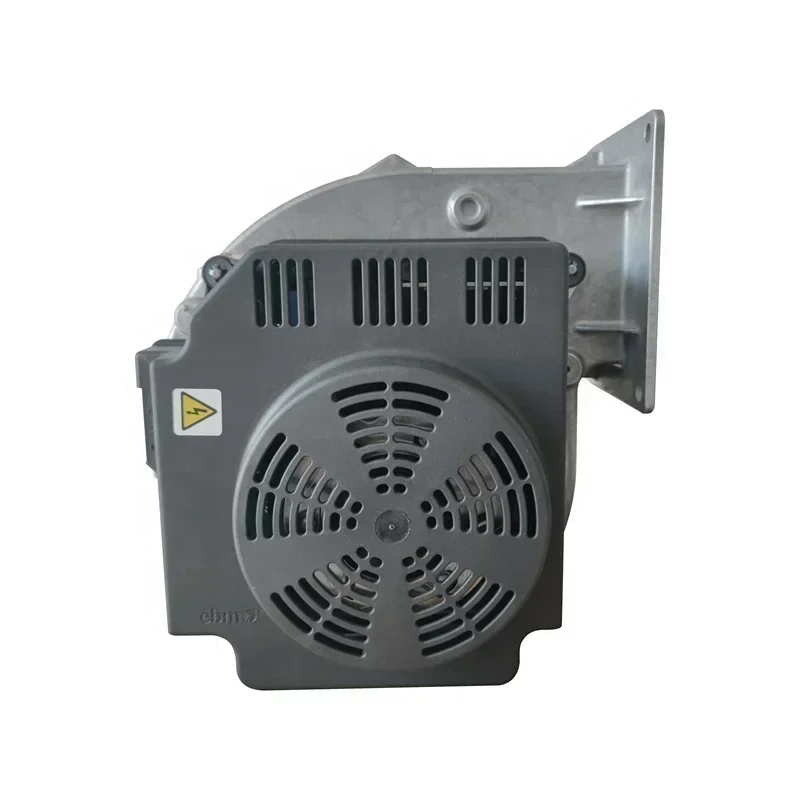

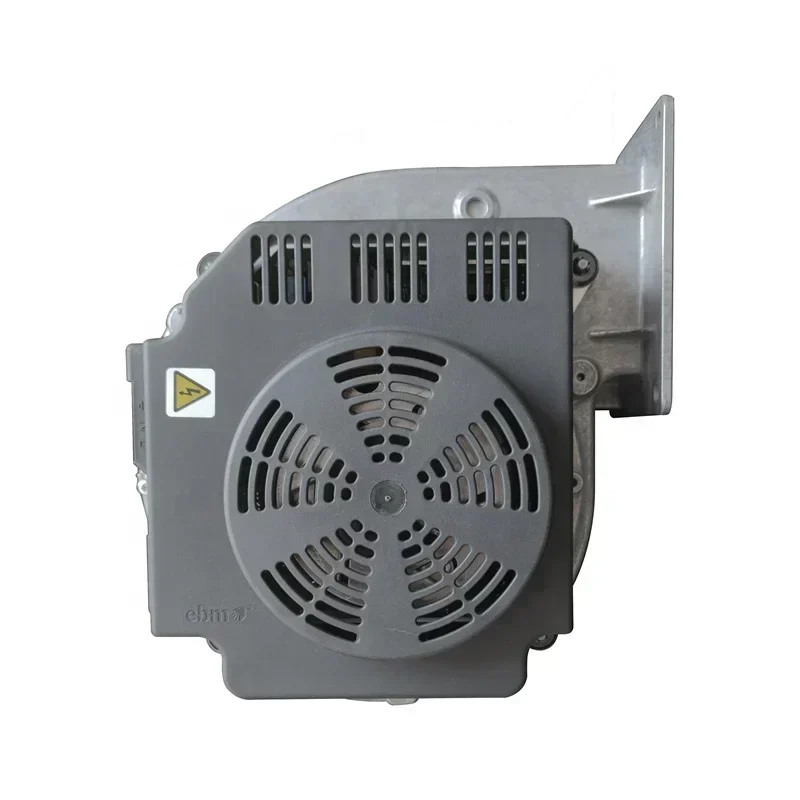

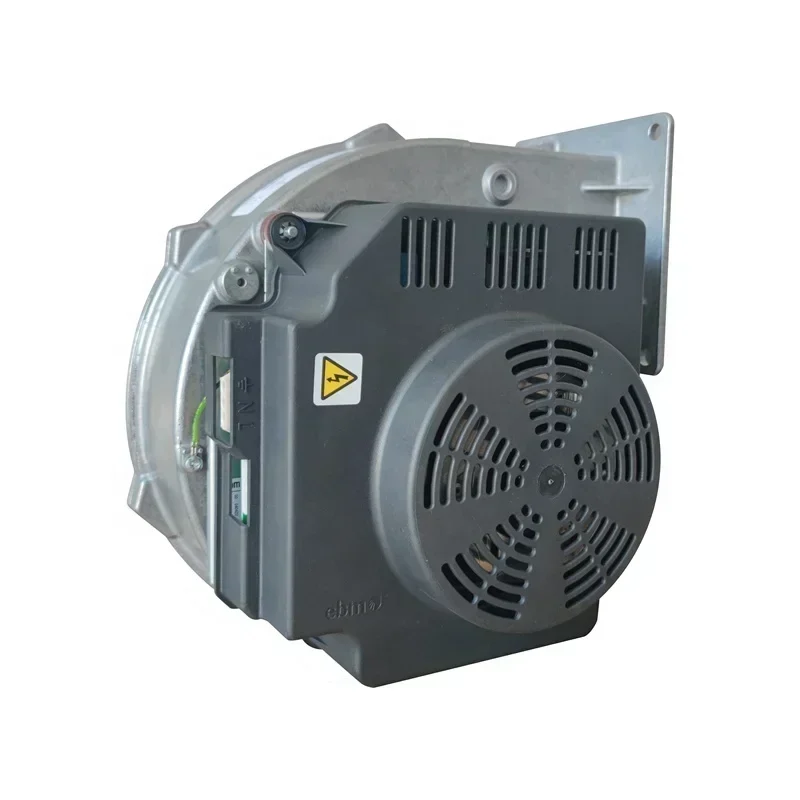

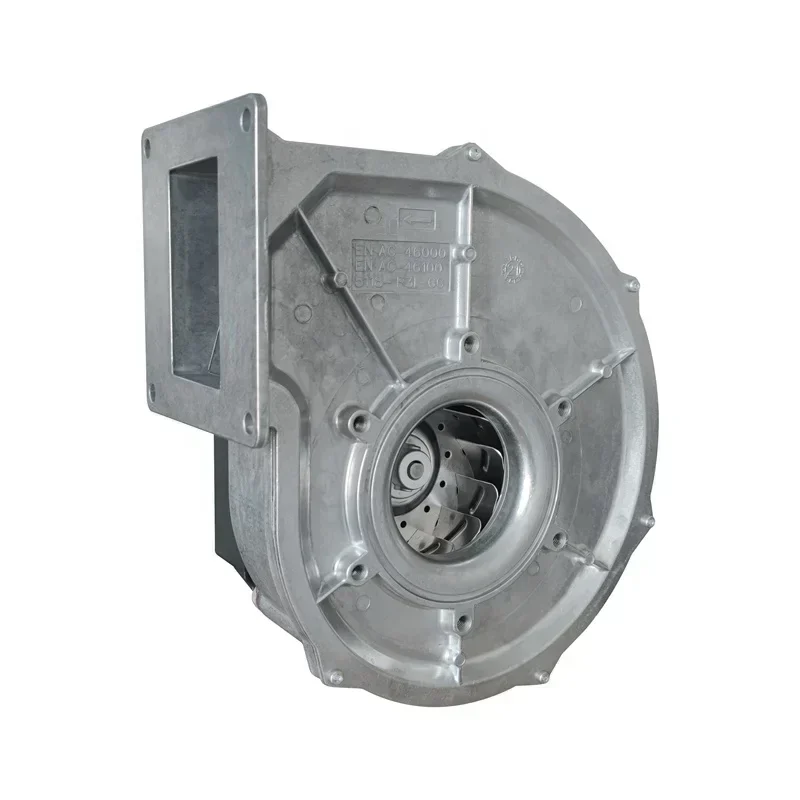

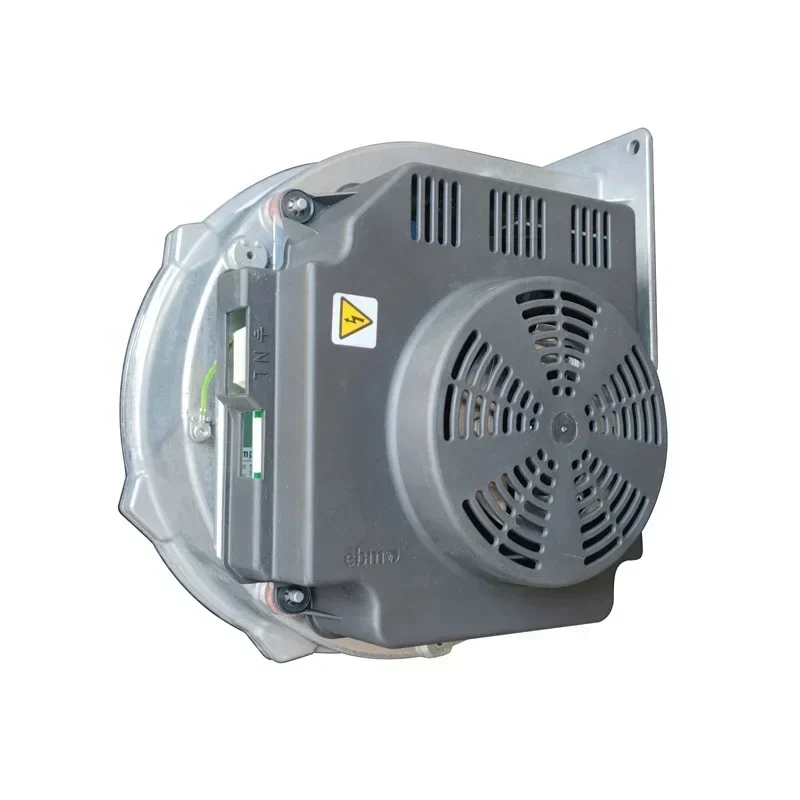

ebmpapst G1G170-AB53-80 230VAC 170mm 360W 1.6A 5830RPM Heating Gas Boilers Condensing Boiler Centrifugal Fan

ebmpapst G1G170-AB53-80 230VAC 170mm 360W 1.6A 5830RPM Heating Gas Boilers Condensing Boiler Centrifugal Fan

Name: ebmpapst G1G170-AB53-80 230VAC 170mm 360W 1.6A 5830RPM Heating Gas Boilers Condensing Boiler Centrifugal Fan
Brand: ebmpapst
SKU: 1600587521146
Availability: InStock
Rating: 5 (4 reviews)

$746.50

SKU: 1600587521146 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst G1G170-AB53-80 is a high-performance centrifugal fan engineered specifically for demanding thermal applications, particularly within condensing gas boiler systems. Manufactured in Germany, this unit represents the pinnacle of combustion air blower technology, ensuring precise air-to-fuel ratios for optimal burner efficiency. The robust construction features an aluminium sheet impeller and a black-coated rotor, designed to withstand the corrosive environments often found in heating technology. With a rotational speed of 5830 RPM and a power consumption of 360 W, it provides the necessary static pressure for modern high-efficiency heat exchangers. This component is critical for the modulation of gas-fired condensing boilers, ensuring reliable ignition and stable combustion across the entire power range. Its high-speed capability and precise control make it a standard choice for OEM boiler manufacturers requiring long-term operational stability and compliance with strict emission standards.

Technical Specifications:
Brand: ebmpapst
Model Number: G1G170-AB53-80
Function: Centrifugal Fan for Condensing Boilers
Nominal Voltage: 230 VAC
Power Input: 360 W
Current Consumption: 1.6 A
Speed: 5830 RPM
Impeller Diameter: 170 mm
Bearing Type: Maintenance-free Ball Bearing
Direction of Rotation: Clockwise (seen on rotor)
Impeller Material: Aluminium sheet
Rotor Surface: Coated in black
Mounting Position: Free Standing
Origin: Germany
Weight: 9.500 kg
Lead Time: Standard OEM availability
Engineering: Original ebmpapst Germany

Key Attributes
Mounting: Free Standing
Voltage: 230(V)
Blade Material: Cast Iron
Electric Current Type: AC
Customized support: OEM
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: G1G170-AB53-80
Place of origin: Germany
Brand name: Ebmpapst
Type: Centrifugal Fan
Nominal voltage: 230(V)
Bearing Type: Ball Bearing
Power consumption: 360(w)
Current: 1.6 (A)
Fan Size: 170 mm
Speed: 5830min
Direction of rotation: Clockwise, seen on rotor
Material of impeller: Aluminium sheet
Surface of rotor: Coated in black

Packaging and Delivery
Packaging Details: Ebmpapst original package
Port of dispatch: Tianjin port
Selling Units: Single item
Single package size: 35X36X37 cm
Single gross weight: 9.500 kg

ebmpapst G1G170-AB53-80 230VAC 170mm 360W 1.6A 5830RPM Heating Gas Boilers Condensing Boiler Centrifugal Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
