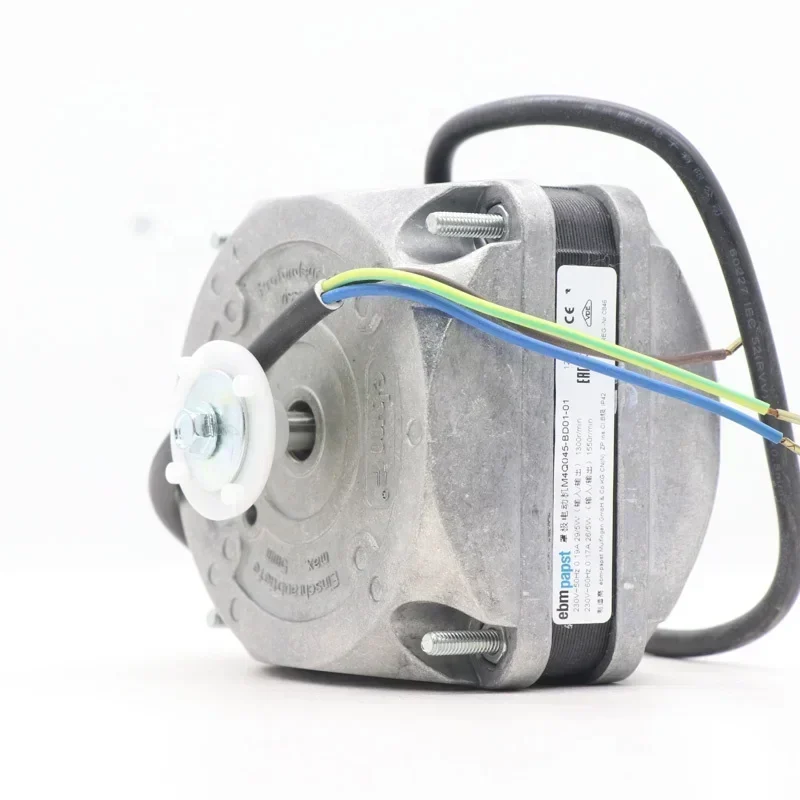

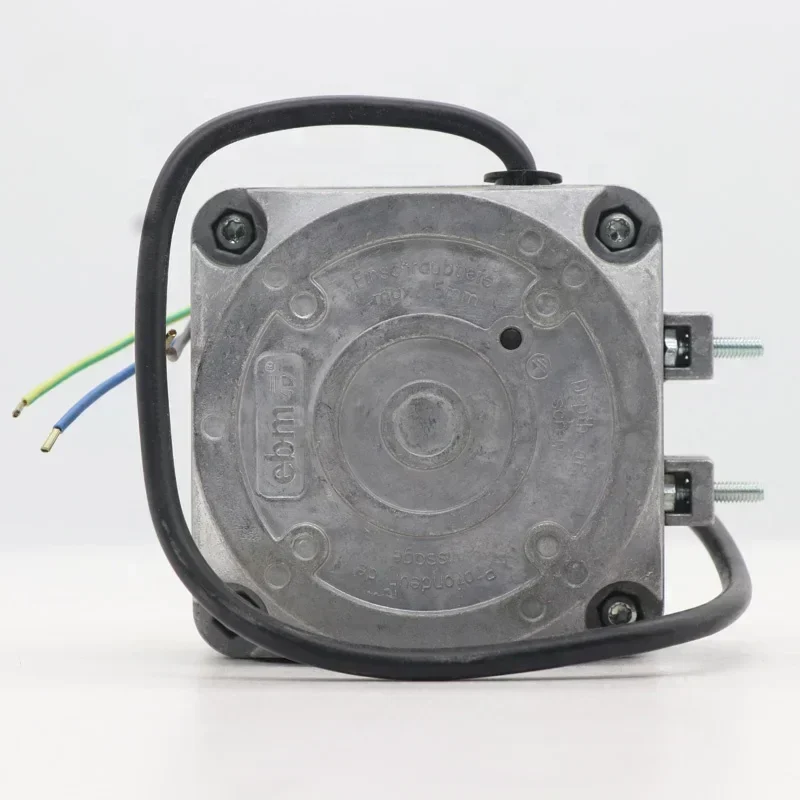

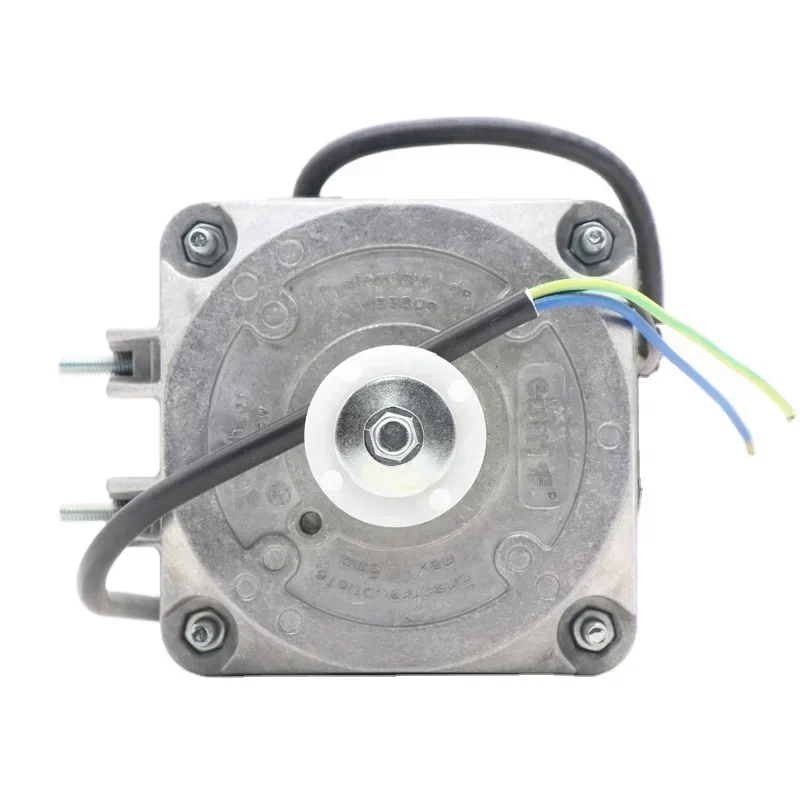

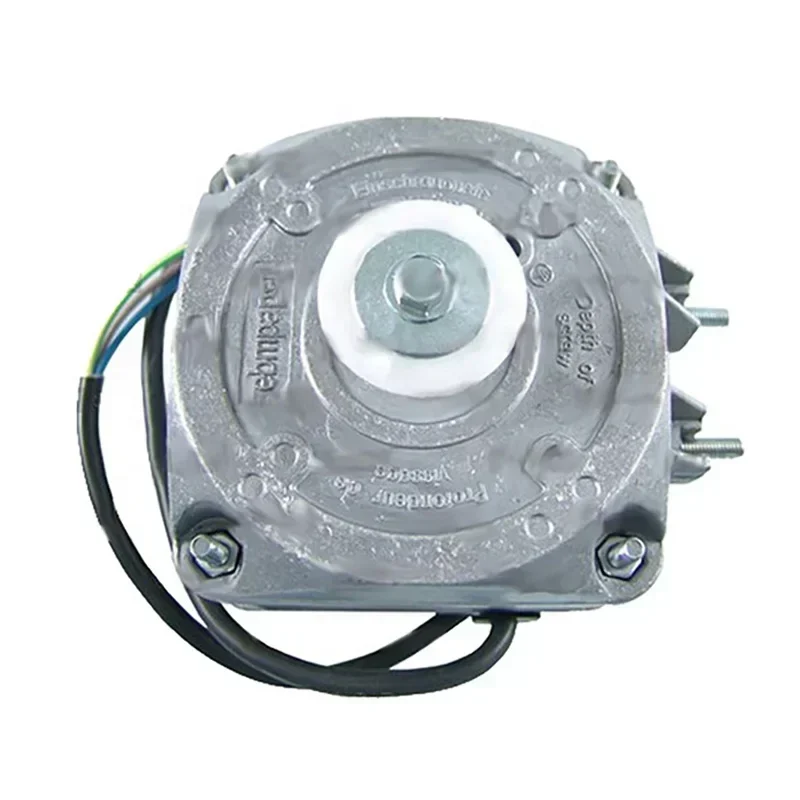

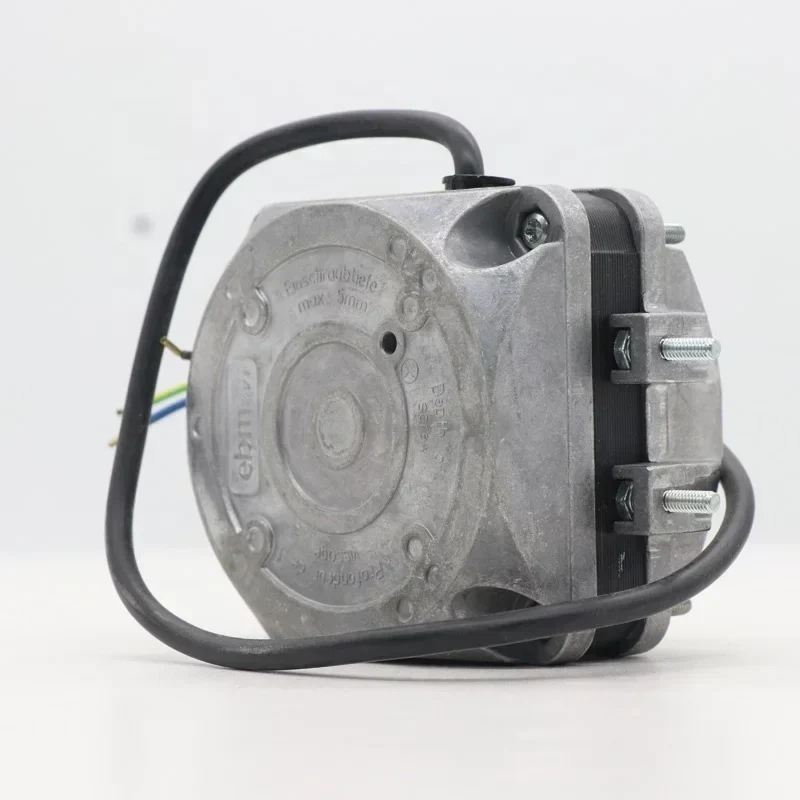

ebmpapst M4Q045-BD01-01/A09 230V AC 0.17A 5W 1550RPM Refrigeration Equipment Supermarket Freezer Condenser Motor Fan

ebmpapst M4Q045-BD01-01/A09 230V AC 0.17A 5W 1550RPM Refrigeration Equipment Supermarket Freezer Condenser Motor Fan

Name: ebmpapst M4Q045-BD01-01/A09 230V AC 0.17A 5W 1550RPM Refrigeration Equipment Supermarket Freezer Condenser Motor Fan
Brand: ebmpapst
SKU: 62553036698
Availability: InStock
Rating: 5 (4 reviews)

$12.10

SKU: 62553036698 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst M4Q045-BD01-01/A09 is a precision-engineered 4-pole shaded pole motor designed specifically for the rigorous demands of commercial refrigeration thermodynamics. Representing Original Engineering from ebmpapst Germany, this Q-motor series utilizes a square design architecture to maximize heat dissipation and mounting versatility within restricted plenum spaces. The unit operates on a single-phase 230V AC supply, delivering a shaft power output of 5W while maintaining high efficiency across a 50/60Hz frequency range. Engineered for continuous duty cycles, the motor features impedance protection to prevent winding burnout during locked-rotor scenarios, ensuring long-term reliability in critical cold chain environments. Technical Compatibility is guaranteed for standard supermarket freezer condensers, evaporator units, and bottle coolers requiring a robust 1300/1550 RPM airflow profile. The sintered oil-impregnated bearing system ensures low-noise operation and extended service intervals, minimizing maintenance downtime. Current Lead Time and availability should be verified for MRO planning.

Technical Specifications
Manufacturer: ebmpapst
Model Number: M4Q045-BD01-01/A09
Component Type: AC Shaded Pole Motor (Q-Motor)
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Phase: 1~
Power Output (Shaft): 5 W
Power Input: 29 W
Nominal Current (50Hz): 0.19 A
Nominal Current (60Hz): 0.17 A
Nominal Speed (50Hz): 1300 RPM
Nominal Speed (60Hz): 1550 RPM
Max Airflow: 137 CFM
Bearing System: Sintered Sleeve (Oil Bearing)
Insulation Class: B
Motor Protection: Impedance Protected
Housing Material: Die-cast Aluminum
Mounting: Free Standing / Standard Q-Motor Bracket
Weight: 0.9 kg
Operating Temperature Range: -30°C to +40°C
Origin: Germany

Industrial Application
This motor is specifically calibrated for heat exchange management in commercial refrigeration systems. It serves as the primary driver for axial fan blades in supermarket display cases, vertical freezers, and under-counter condensation units. The M4Q045-BD01-01/A09 provides the necessary torque to overcome static pressure across condenser coils, facilitating efficient heat rejection and maintaining precise temperature control for perishable goods.

Key Attributes
Voltage: 230(V)
Mounting type: Free Standing
Type: MOTOR
Warranty: 1 Year
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: M4Q045-BD01-01/A09
Power: 29/5(w)
Speed: 1300/1550RPM
Current: 0.19/0.17 A
Air volume: 137CFM
Bearing Type: Oil bearing
Weight: 0.9kg
Type: Axial Flow Fan

Packaging and Delivery
Selling Units: Single item
Single package size: 32X32X25 cm
Single gross weight: 3.000 kg

ebmpapst M4Q045-BD01-01/A09 230V AC 0.17A 5W 1550RPM Refrigeration Equipment Supermarket Freezer Condenser Motor Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
