Name: ebmpapst M4Q045-CF13-A7 230V AC 16W 420mA IP42 1300RPM Refrigeration Equipment Motor Fan M4Q045-CF01-01/A23
Brand: ebmpapst
SKU: 1600524485123
Availability: InStock
Rating: 5 (4 reviews)

$12.28

SKU: 1600524485123 Brand: ebmpapst

Description
Reviews (0)

Description

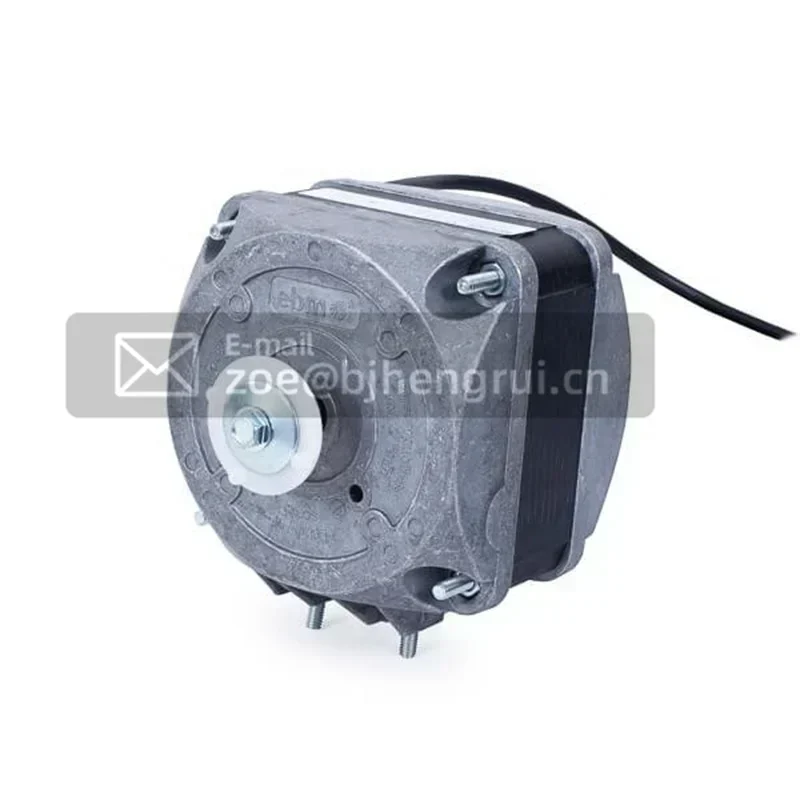

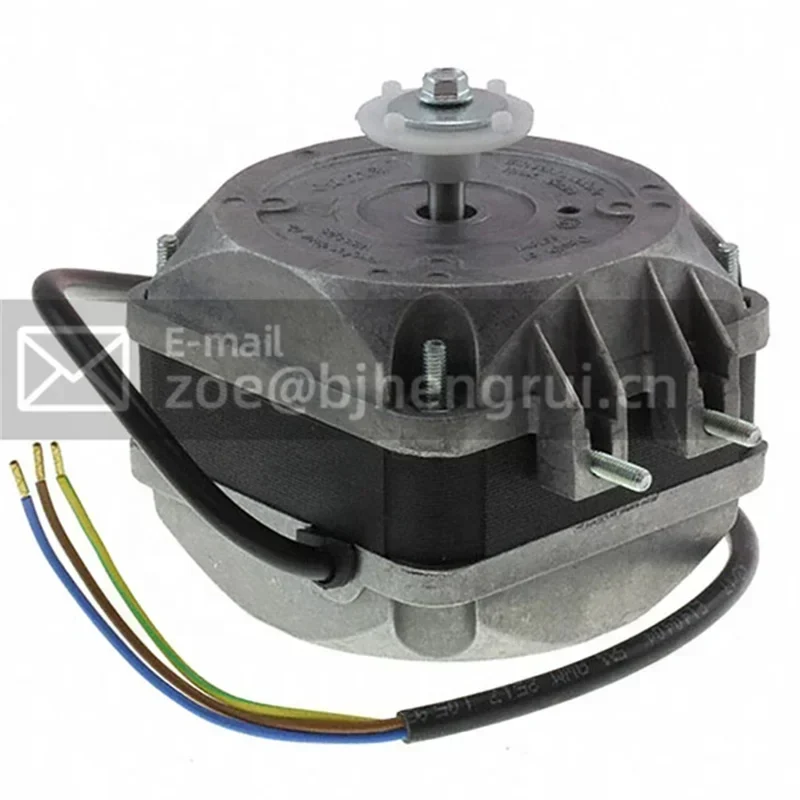

The ebm-papst M4Q045-CF13-A7 is a precision-engineered AC shaded-pole motor designed for high-efficiency thermal management in commercial refrigeration systems. This unit represents Original Engineering from ebm-papst, ensuring robust performance in continuous duty applications. The motor features a square Q-design with a die-cast aluminum housing, providing superior heat dissipation and structural integrity compared to standard stamped steel alternatives. It utilizes a maintenance-free ball bearing system, optimizing longevity and allowing for flexible mounting positions (horizontal or vertical shaft). This specific model delivers a mechanical power output of 16W, making it a critical component for driving axial fan blades in evaporators, condensing units, and cooling display cases. Technical Compatibility is guaranteed for systems requiring a 230V, 50/60Hz drive with specific torque characteristics for air movement.

Technical Specifications:
Manufacturer: ebm-papst
Model Number: M4Q045-CF13-A7
Alternate Reference: M4Q045-CF01-01/A23
Product Type: Square Shaded-Pole Motor (Q-Motor)
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Power Output (P2): 16 W
Power Input (P1): 55 W
Nominal Current: 0.42 A (50Hz) / 0.36 A (60Hz)
Nominal Speed: 1300 RPM (50Hz) / 1550 RPM (60Hz)
Bearing Type: Ball Bearing
Protection Rating: IP42
Insulation Class: B
Duty Cycle: S1 (Continuous Operation)
Housing Material: Die-cast Aluminum
Weight: 1.3 kg
Mounting Interface: Standard Q-Motor Grid (18mm/26mm)
Ambient Temperature Range: -30°C to +40°C
Phase: Single Phase

Industrial Application:
This motor is specifically calibrated for the HVAC&R sector, functioning as the primary driver for heat exchange airflow in supermarket display cabinets, bottle coolers, and under-counter refrigeration units. Its IP42 rating and low-temperature lubricant composition allow it to operate reliably in moisture-prone environments typical of evaporator assemblies. The 16W output provides sufficient torque to drive fan blades against the static pressure of condenser fins, ensuring consistent cooling cycles. Operators should verify current Lead Time availability to maintain critical cold chain infrastructure and minimize downtime.

Key Attributes
Voltage: 230(V)
Mounting type: Free Standing
Type: MOTOR
Warranty: 1 Year
Power Source: Electric
Blade material: Cast Iron
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: M4Q045-CF13-A7
Frequency: 50/60Hz
Power: 55/16(w)
Speed: 1300/1550RPM
Current: 0.42/0.36A
Bearing Type: Ball bearing
Weight: 1.3kg
Type: Axial Flow Fan

Packaging and Delivery
Selling Units: Single item
Single package size: 32X32X25 cm
Single gross weight: 2.500 kg

ebmpapst M4Q045-CF13-A7 230V AC 16W 420mA IP42 1300RPM Refrigeration Equipment Motor Fan M4Q045-CF01-01/A23

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
