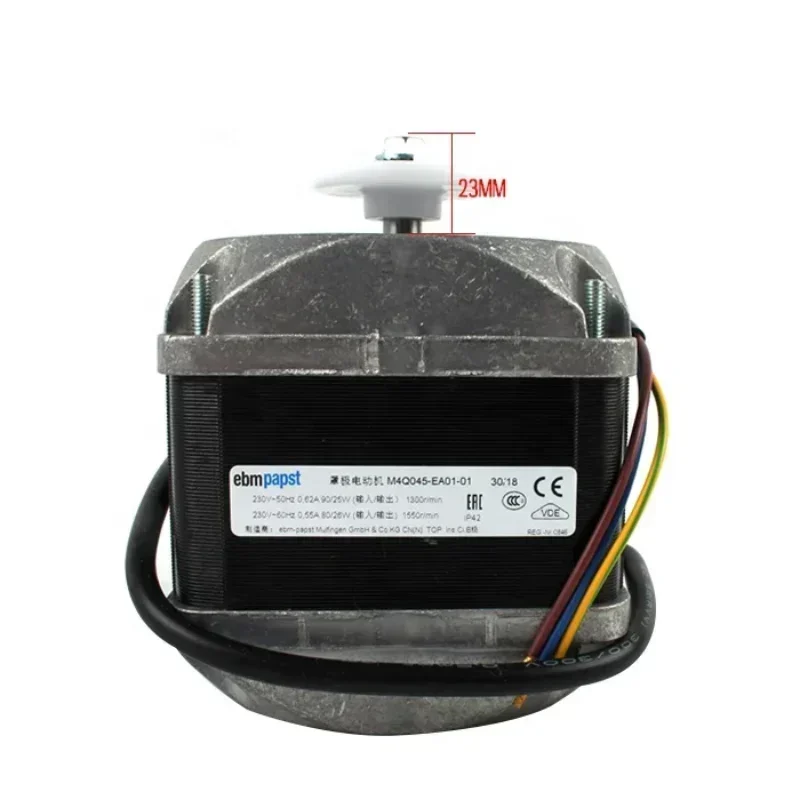

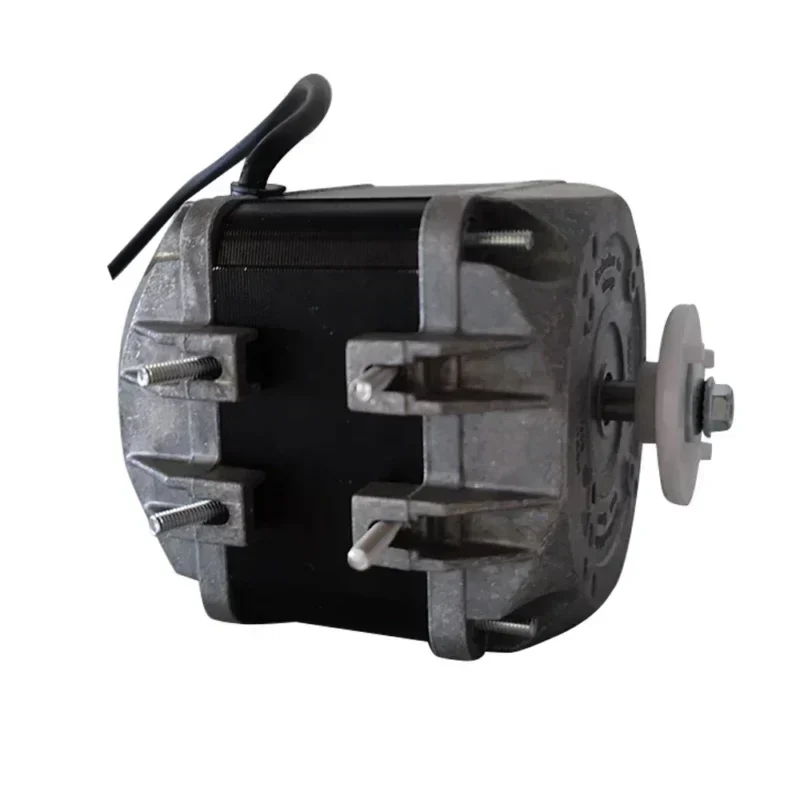

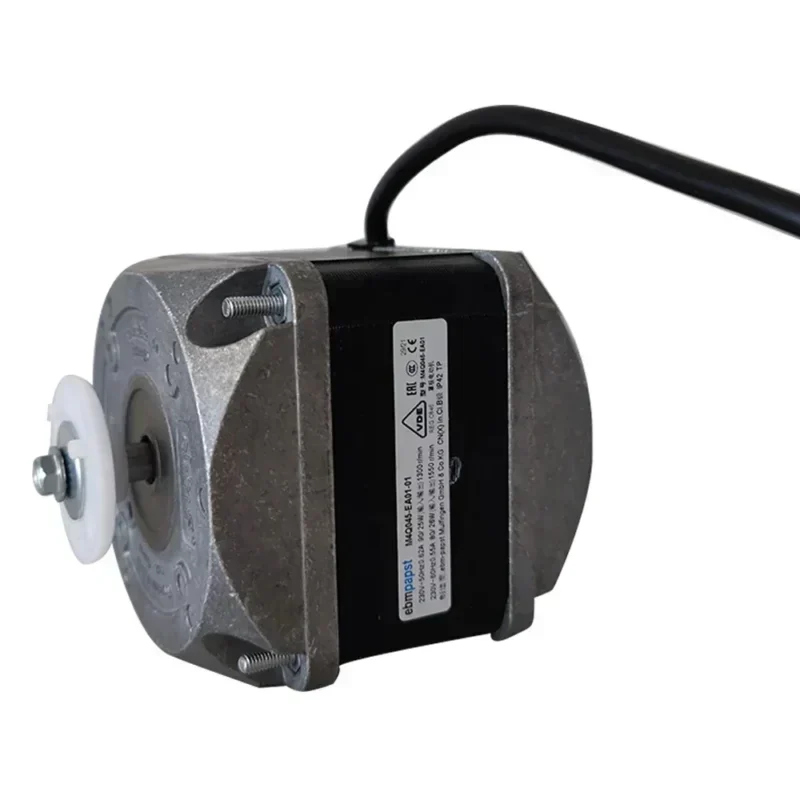

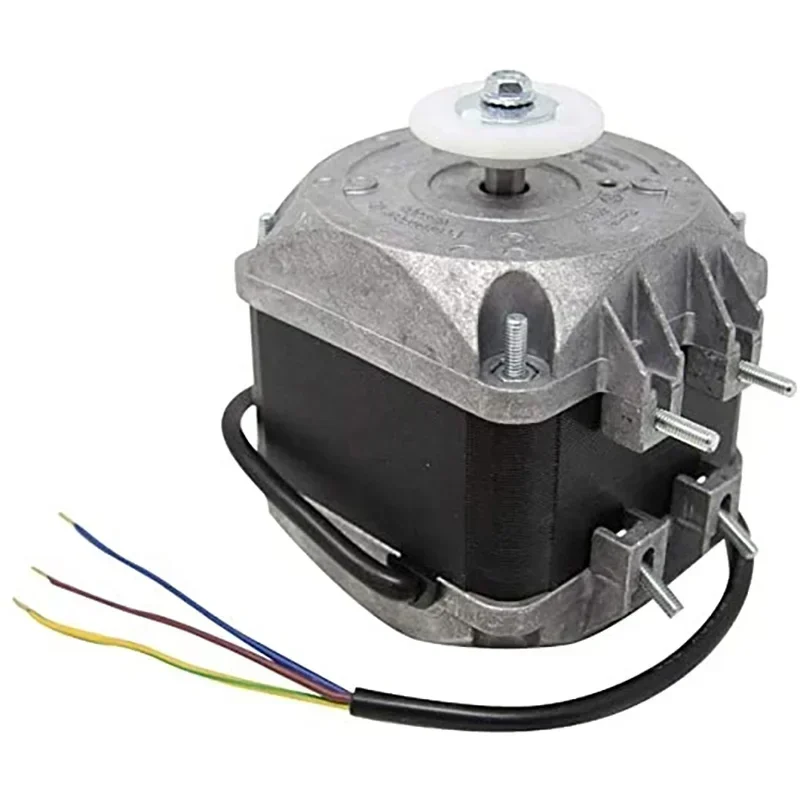

ebmpapst M4Q045-EA01-01 M4Q045-EA01-14 230V AC 26W 0.55A Refrigeration Equipment Freezer Motor Fan M4Q045-EA01-G3

ebmpapst M4Q045-EA01-01 M4Q045-EA01-14 230V AC 26W 0.55A Refrigeration Equipment Freezer Motor Fan M4Q045-EA01-G3

Name: ebmpapst M4Q045-EA01-01 M4Q045-EA01-14 230V AC 26W 0.55A Refrigeration Equipment Freezer Motor Fan M4Q045-EA01-G3
Brand: ebmpapst
SKU: 62553300413
Availability: InStock
Rating: 5 (4 reviews)

$16.20

SKU: 62553300413 Brand: ebmpapst

Description
Reviews (0)

Description

The ebm-papst M4Q045-EA01-01 is a high-performance shaded-pole motor designed specifically for the rigorous demands of commercial refrigeration and HVAC systems. Representing Original Engineering from the renowned Q-motor series, this unit is engineered for continuous operation in evaporators, condensing units, and cooling display cases. The motor features a robust square design with impedance protection, ensuring safety against burnout even in locked-rotor scenarios. Its construction ensures high Technical Compatibility with existing mounting brackets, wall rings, and fan grids found in standard freezer and chiller assemblies.

Technical Specifications:
Manufacturer: ebm-papst
Model Series: M4Q045
Part Numbers: M4Q045-EA01-01 / M4Q045-EA01-14 / M4Q045-EA01-G3
Motor Technology: AC Shaded-Pole (Single Phase)
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Power Output (Pout): 25 W
Power Input (Pin): 90 W
Current Draw: 0.62 A (50 Hz) / 0.55 A (60 Hz)
Nominal Speed: 1300 RPM (50 Hz) / 1550 RPM (60 Hz)
Bearing System: Sintered Bronze Sleeve (Oil Lubricated)
Insulation Class: B
Protection Rating: IP42
Direction of Rotation: Counter-clockwise (viewed from shaft end)
Housing Material: Die-cast Aluminum
Mounting: Standard Foot / Flange (18mm / 26mm spacing)
Net Weight: 1.9 kg
Gross Weight: 2.5 kg
Operating Temperature: -30°C to +40°C

Industrial Application:
This motor is the critical prime mover for airflow management in cold chain infrastructure, specifically within supermarket island freezers, bottle coolers, and walk-in cold rooms. It drives the axial fan blades required to circulate air across heat exchanger coils, facilitating efficient thermal transfer and preventing frost buildup. The M4Q045-EA01-01 is selected for its reliability in low-temperature environments and its ability to maintain consistent RPM under load. Operators should confirm current Lead Time to ensure minimal downtime during maintenance cycles.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Motor
Warranty: 1 Year
Power Source: Electric
Blade material: Cast Iron
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: M4Q045-EA01-01
Voltage: 230V
Power: 90/25W
Frequency: 50~60Hz
Current: 0.62/0.55A
Speed: 1300/1550RPM
Bearing Type: Oil bearing
Weight: 1.9kg
Type: Axial Flow Fan

Packaging and Delivery
Selling Units: Single item
Single package size: 32X32X25 cm
Single gross weight: 2.500 kg

ebmpapst M4Q045-EA01-01 M4Q045-EA01-14 230V AC 26W 0.55A Refrigeration Equipment Freezer Motor Fan M4Q045-EA01-G3

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
