Ebmpapst R1G225-AF11-21 48v 2700rpm 95w Ec Centrifugal Fan for Air Purification

Ebmpapst R1G225-AF11-21 48v 2700rpm 95w Ec Centrifugal Fan for Air Purification

Name: Ebmpapst R1G225-AF11-21 48v 2700rpm 95w Ec Centrifugal Fan for Air Purification
Brand: ebmpapst
SKU: 1601533703679
Availability: InStock
Rating: 5 (4 reviews)

$71.00

SKU: 1601533703679 Brand: ebmpapst

Description
Reviews (0)

Description

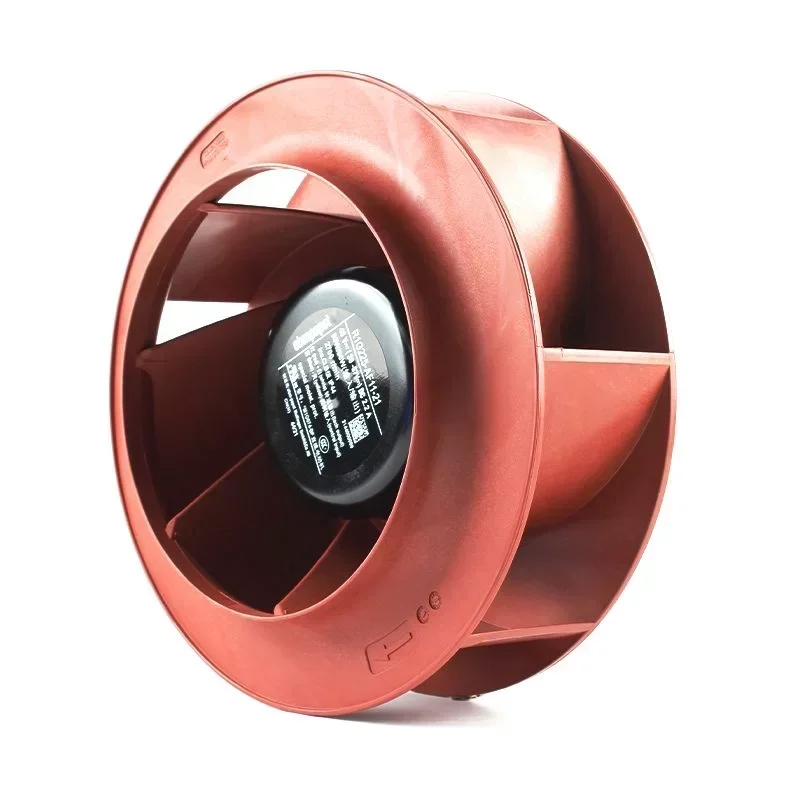

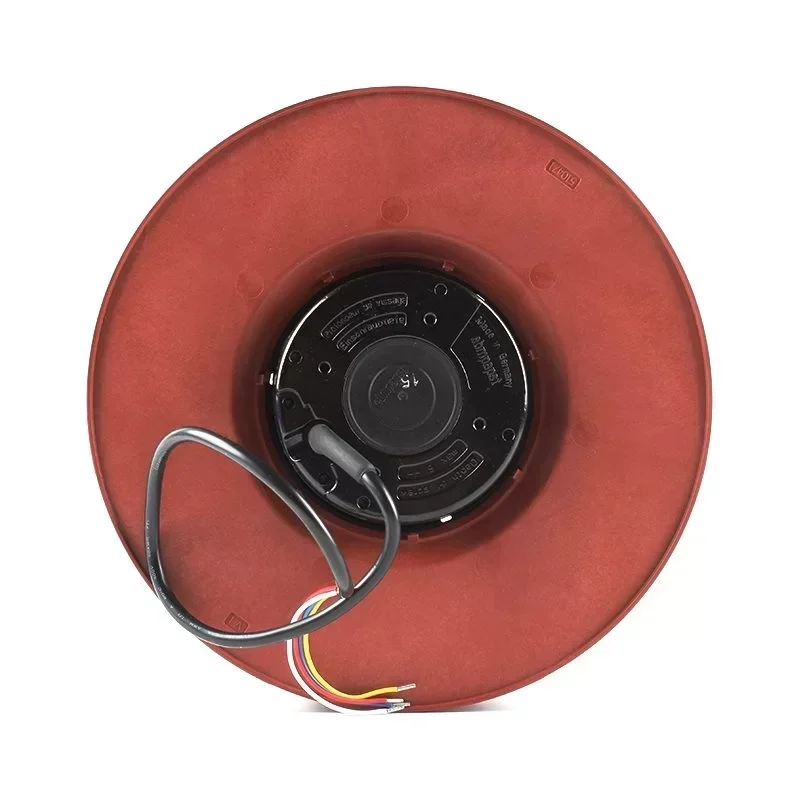

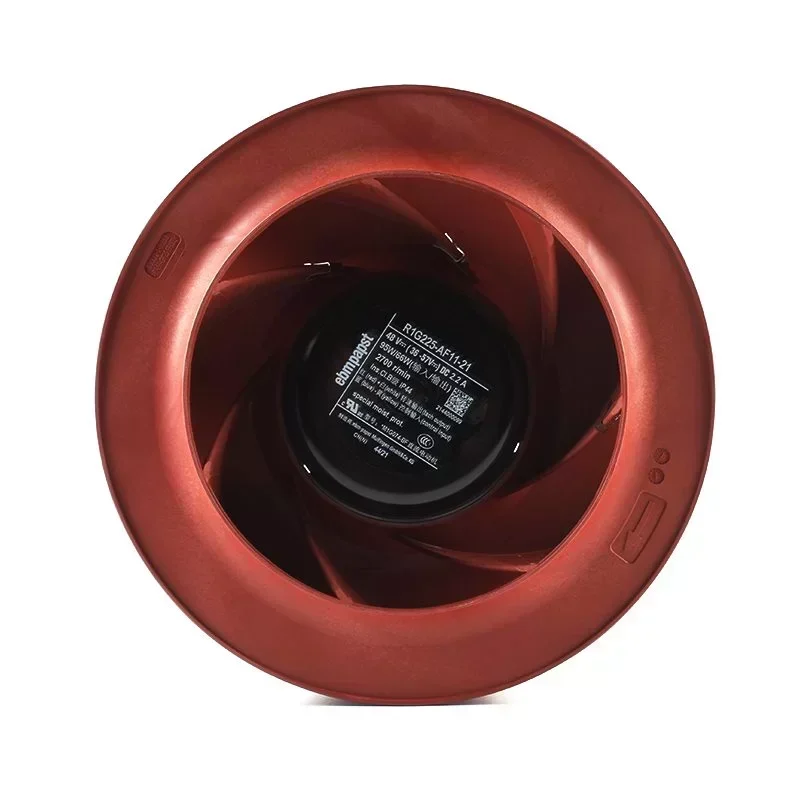

The ebm-papst R1G225-AF11-21 is a high-efficiency EC centrifugal fan engineered for precision air handling in industrial and commercial applications. Utilizing the advanced M1G074-BF GreenTech EC motor, this unit delivers a substantial airflow of 1130 m³/h while maintaining a compact footprint, making it ideal for integration into restricted spaces within air purification units and server cooling modules. The backward-curved impeller geometry is optimized to sustain high pressure, effectively overcoming system impedance caused by dense filtration media. This component features Original Engineering standards, ensuring robust performance with a wide voltage input range and integrated motor protection against reverse polarity and locked rotors. The maintenance-free ball bearing system ensures longevity even under continuous operation. We verify Technical Compatibility for seamless retrofitting and prioritize optimized Lead Time to minimize system downtime.

Technical Specifications:
Manufacturer: ebm-papst
Model Reference: R1G225-AF11-21
Motor Designation: M1G074-BF
Technology: EC (Electronically Commutated) External Rotor
Nominal Voltage: 48 V DC
Voltage Range: 36 V DC to 57 V DC
Power Input: 95 W
Current Draw: 2.2 A
Nominal Speed: 2700 RPM
Max Airflow: 1130 m³/h
Impeller Diameter: 225 mm
Impeller Material: PA Plastic (Glass-fiber reinforced)
Bearing Type: Maintenance-free Ball Bearing
Direction of Rotation: Clockwise (viewed toward rotor)
Min Ambient Temperature: -25 °C
Max Ambient Temperature: +60 °C
Insulation Class: B
Motor Protection: Reverse Polarity / Locked-Rotor
Gross Weight: 2.500 kg
Package Dimensions: 27.5 x 27.5 x 19 cm

Industrial Application:
This specific EC fan is critical for high-performance Air Purification Systems requiring variable speed control and high static pressure. The 48V DC architecture allows for direct integration into telecom cooling cabinets and battery-backup ventilation systems where mains power may be unreliable or DC bus architecture is standard. Its high-pressure curve specifically addresses the pressure drop inherent in multi-stage HEPA and activated carbon filtration stacks, ensuring consistent air exchange rates without thermal overload.

Key Attributes
Voltage: 48 V
Material: Aluminum Alloy
Blade Material: Plastic
Customized support: OEM, ODM
Warranty: 1 Year
After-sales Service Provided: Online support
Place of origin: Germany
Type: R1G225-AF11-21
Motor: M1G074-BF
Voltage: 48v
Speed: 2700rpm
Power input: 95w
Current draw: 2.2A
Air volume (m3 /h): 1130m³/h
Warranty: 1 year
Min. ambient temperature: -25℃
Max. ambient temperature: 60℃

Packaging and Delivery
Selling Units: Single item
Single package size: 27.5X27.5X19 cm
Single gross weight: 2.500 kg

Ebmpapst R1G225-AF11-21 48v 2700rpm 95w Ec Centrifugal Fan for Air Purification

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
