ebmpapst R2E140-AS77-37/A01 100W 0.45A 230V AC Injection Moulding Machine Turbine Centrifugal Fan

ebmpapst R2E140-AS77-37/A01 100W 0.45A 230V AC Injection Moulding Machine Turbine Centrifugal Fan

Name: ebmpapst R2E140-AS77-37/A01 100W 0.45A 230V AC Injection Moulding Machine Turbine Centrifugal Fan
Brand: ebmpapst
SKU: 62269718687
Availability: InStock
Rating: 5 (4 reviews)

$35.40

SKU: 62269718687 Brand: ebmpapst

Description
Reviews (0)

Description

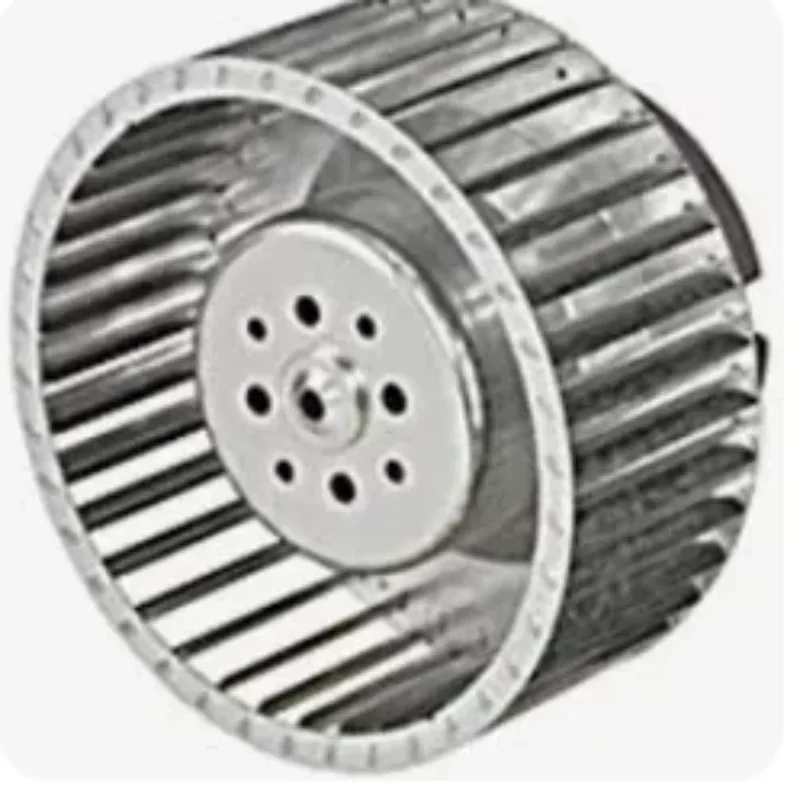

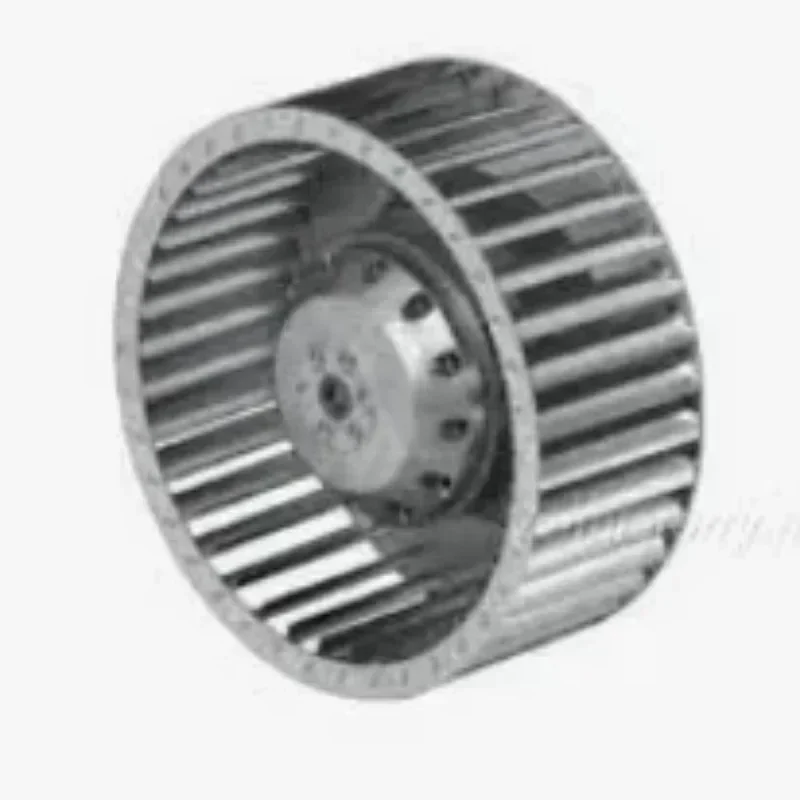

The ebmpapst R2E140-AS77-37/A01 is a high-efficiency centrifugal fan engineered for precision thermal management in industrial applications. Manufactured in Germany, this unit represents the pinnacle of original engineering, offering a robust solution for cooling requirements in injection moulding machinery and complex automation systems. The fan features a 140 mm diameter impeller with cast iron blades, providing superior structural integrity and resistance to wear in harsh environments. Operating at a nominal voltage of 230 VAC (50/60 Hz), the motor delivers a power output of 100W with a current draw of 0.45A, achieving a rotational speed of 1500 RPM. The integration of high-grade ball bearings ensures a long service life and maintenance-free operation under continuous duty cycles. This model is critical for maintaining optimal operating temperatures in hydraulic units and electronic enclosures, where heat dissipation is vital for system reliability. Lead time for this original component is optimized for global supply chains.

Technical Specifications:
Brand: ebmpapst
Model Number: R2E140-AS77-37/A01
Origin: Germany
Type: Centrifugal Fan
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Power Consumption: 100W
Current: 0.45A
Speed: 1500 RPM
Bearing Type: Ball Bearing
Blade Material: Cast Iron
Motor Capacitor: 2uF
Phase: 1
Weight: 2.000 kg
Dimensions: 24 x 24 x 22 cm
Mounting: Free Standing

Key Attributes
Mounting: Free Standing
Voltage: 230v
Blade Material: Cast Iron
Customized support: OEM, ODM
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: R2E140-AS77-37/A01
Place of origin: Germany
Brand name: Ebmpapst
Product name: R2E140-AS77-37/A01
Nominal voltage: 230V
Bearing Type: Ball Bearing
Power consumption: 100W
Speed: 1500 RPM
Current: 0.45 (A)
Frequency: 50~60Hz
Phase: 1
Motor capacitor: 2uF

Packaging and Delivery
Selling Units: Single item
Single package size: 24X24X22 cm
Single gross weight: 2.000 kg

ebmpapst R2E140-AS77-37/A01 100W 0.45A 230V AC Injection Moulding Machine Turbine Centrifugal Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
