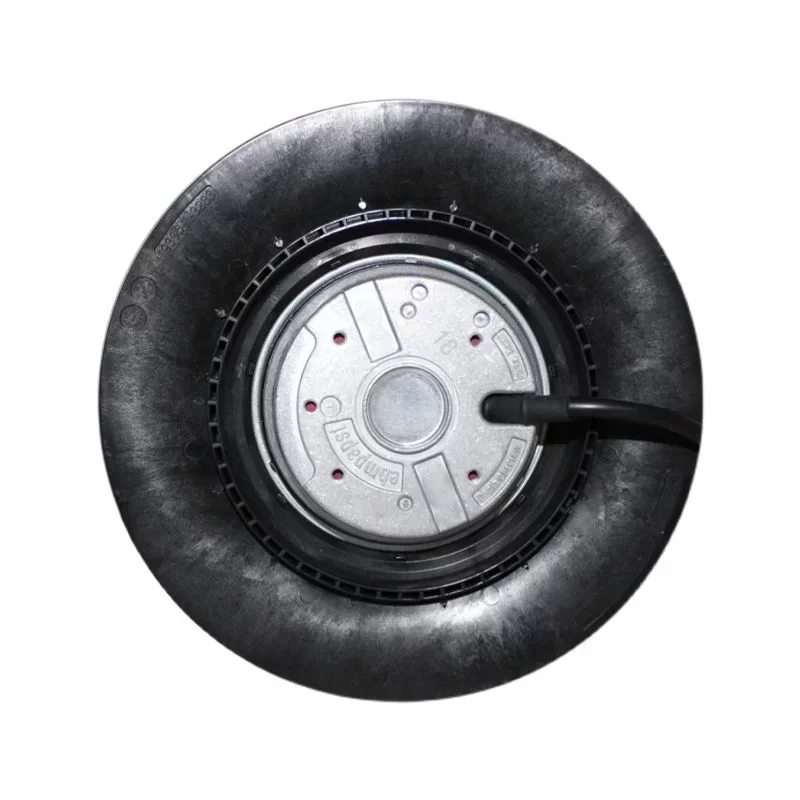

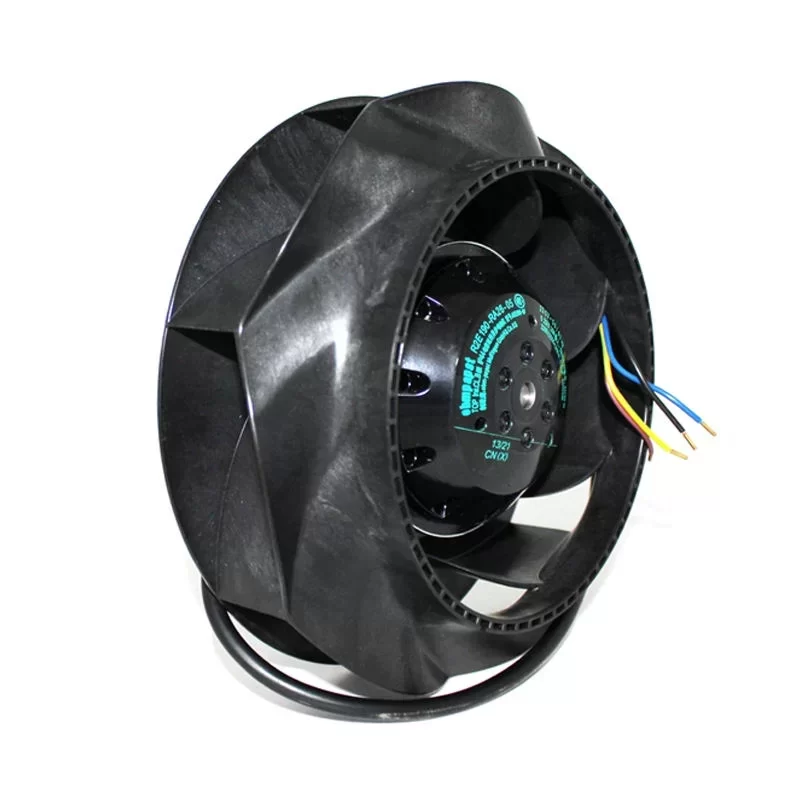

EBMPAPST R2E190-RA26-05 230V 2500rpm 65W Centrifugal Fan

EBMPAPST R2E190-RA26-05 230V 2500rpm 65W Centrifugal Fan

Name: EBMPAPST R2E190-RA26-05 230V 2500rpm 65W Centrifugal Fan
Brand: ebmpapst
SKU: 1601665220380
Availability: InStock
Rating: 5 (4 reviews)

$49.00

SKU: 1601665220380 Brand: ebmpapst

Description
Reviews (0)

Description

The Ebmpapst R2E190-RA26-05 represents a pinnacle of German engineering in the field of centrifugal air movement. This backward-curved radial fan is powered by the M2E068-BF motor, optimized for high-efficiency operation in heat exchangers and industrial cooling systems. With a maximum airflow of 590 m³/h and a rotational speed of 2500 RPM, it provides consistent thermal regulation under significant static pressure.

Technical Parameters:
Brand: Ebmpapst
Model Number: R2E190-RA26-05
Motor: M2E068-BF
Voltage: 230 VAC
Frequency: 60 Hz
Power Consumption: 65 W
Current Draw: 0.29 A
Starting Current: 0.37 A
Airflow: 590 m³/h
Speed: 2500 RPM
Bearing Type: Ball Bearing
Blade Material: Aluminum Alloy
Operating Temperature Range: -25 °C to 75 °C
Weight: 2.5 kg
Origin: Germany

Industrial Application:
The R2E190-RA26-05 is critical for applications requiring reliable heat dissipation in confined spaces. It is extensively used in HVAC heat recovery units, server room ventilation, and power electronics cooling. The aluminum alloy construction and precision ball bearings ensure a long service life even when operating at the upper limit of its 75 °C temperature rating. This component is a direct replacement part for original engineering specifications, ensuring minimal lead time for system maintenance and repairs.

Key Attributes
Voltage: 230 V
Blade Material: Aluminum Alloy
Speed: 2500
Type: Backward Curved Blade Radial Fan
Customized support: OEM, ODM
After-sales Service Provided: Online support
Warranty: 1 Year
Place of origin: Germany
Brand name: Ebmpapst
Model number: R2E190-RA26-05
Type: R2E190-RA26-05
Motor: M2E068-BF
Frequency: 60hz
Speed: 2500rpm
Power consumption: 65w
Current draw: 0.29A
Starting current: 0.37A
Min. ambient temperature: -25℃
Max. ambient temperature: 75℃
Warranty: 1 year

Packaging and Delivery
Selling Units: Single item
Single package size: 27X21X20.5 cm
Single gross weight: 2.500 kg

EBMPAPST R2E190-RA26-05 230V 2500rpm 65W Centrifugal Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
