Name: ebmpapst R2E220-AA40-05 230V Free Standing Mount Plastic Blade 220mm Centrifugal Fan with
Brand: ebmpapst
SKU: 62377056578
Availability: InStock
Rating: 5 (4 reviews)

$100.00

SKU: 62377056578 Brand: ebmpapst

Description
Reviews (0)

Description

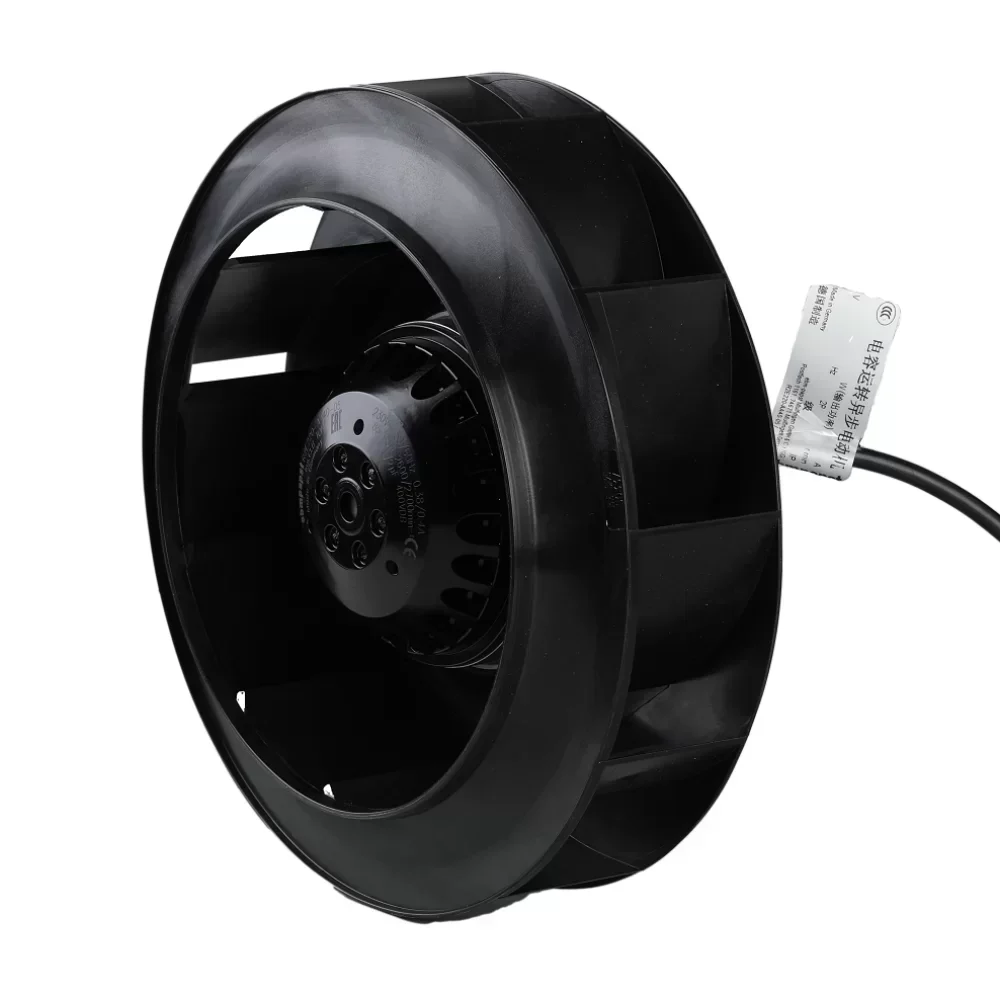

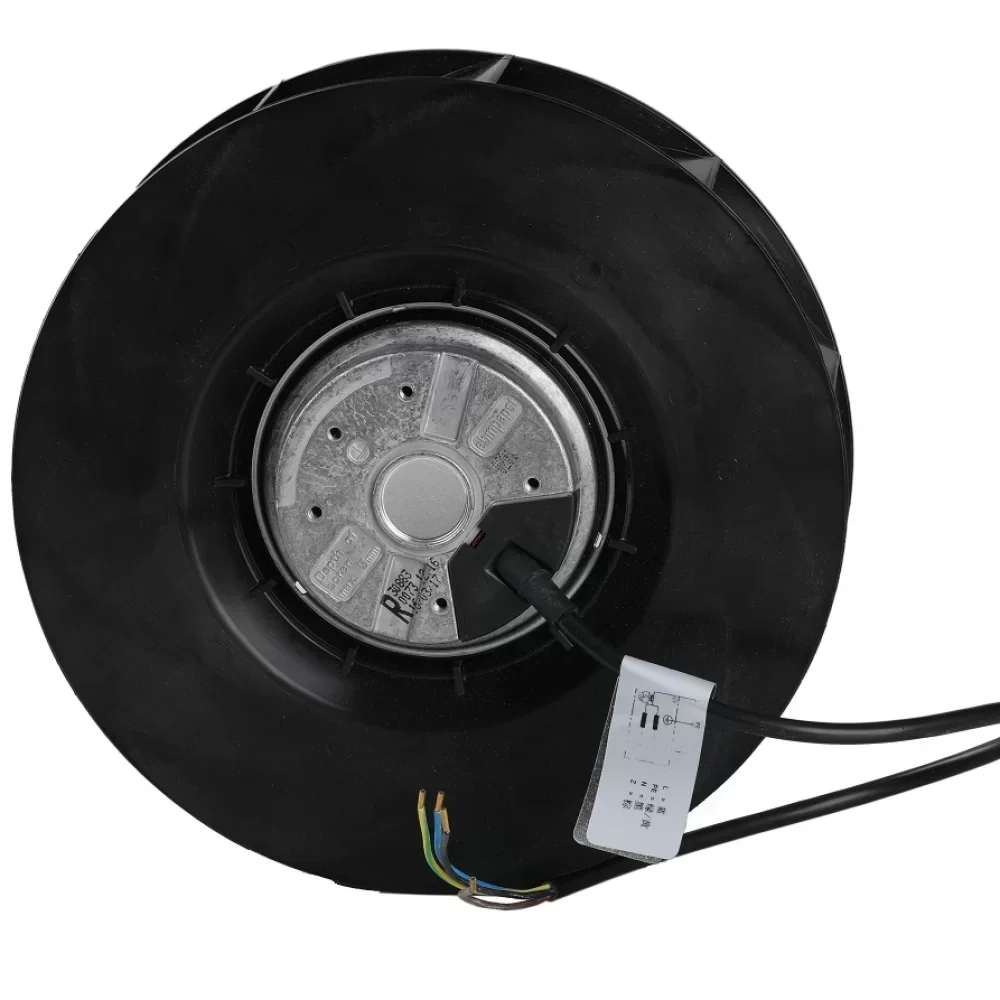

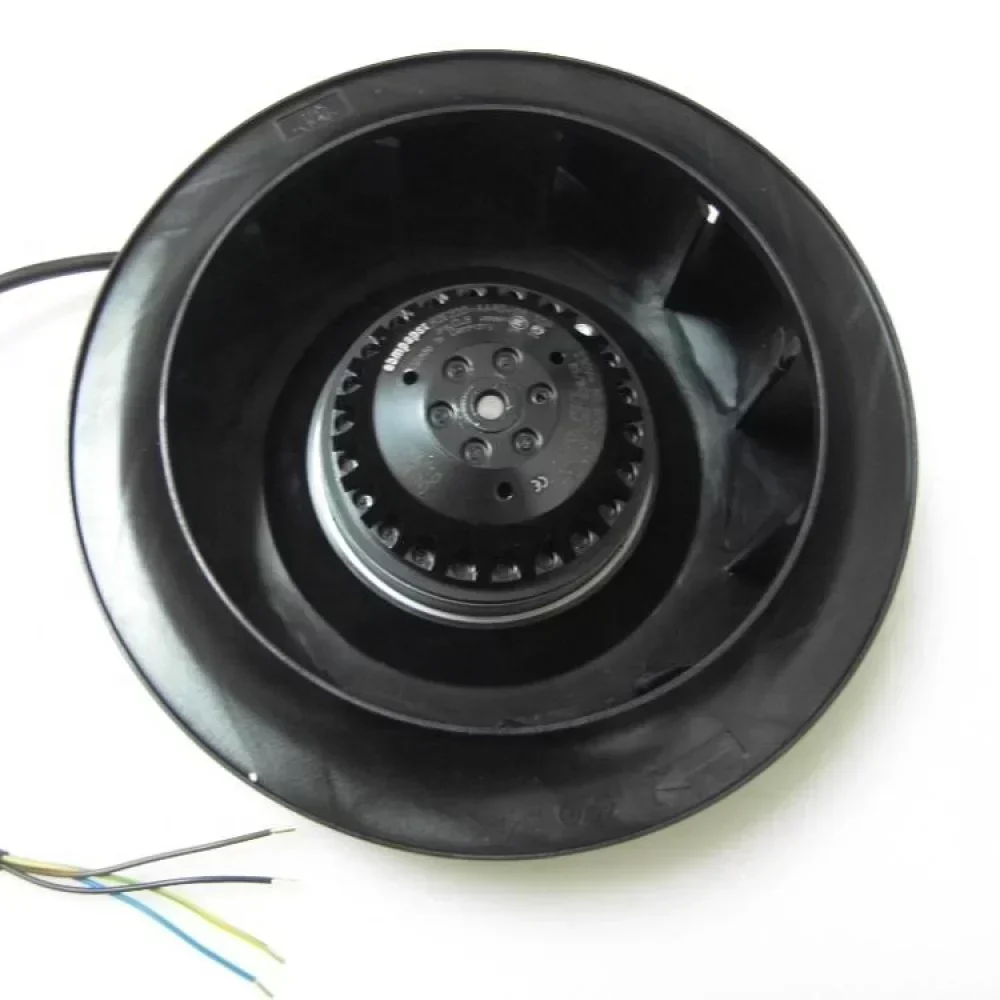

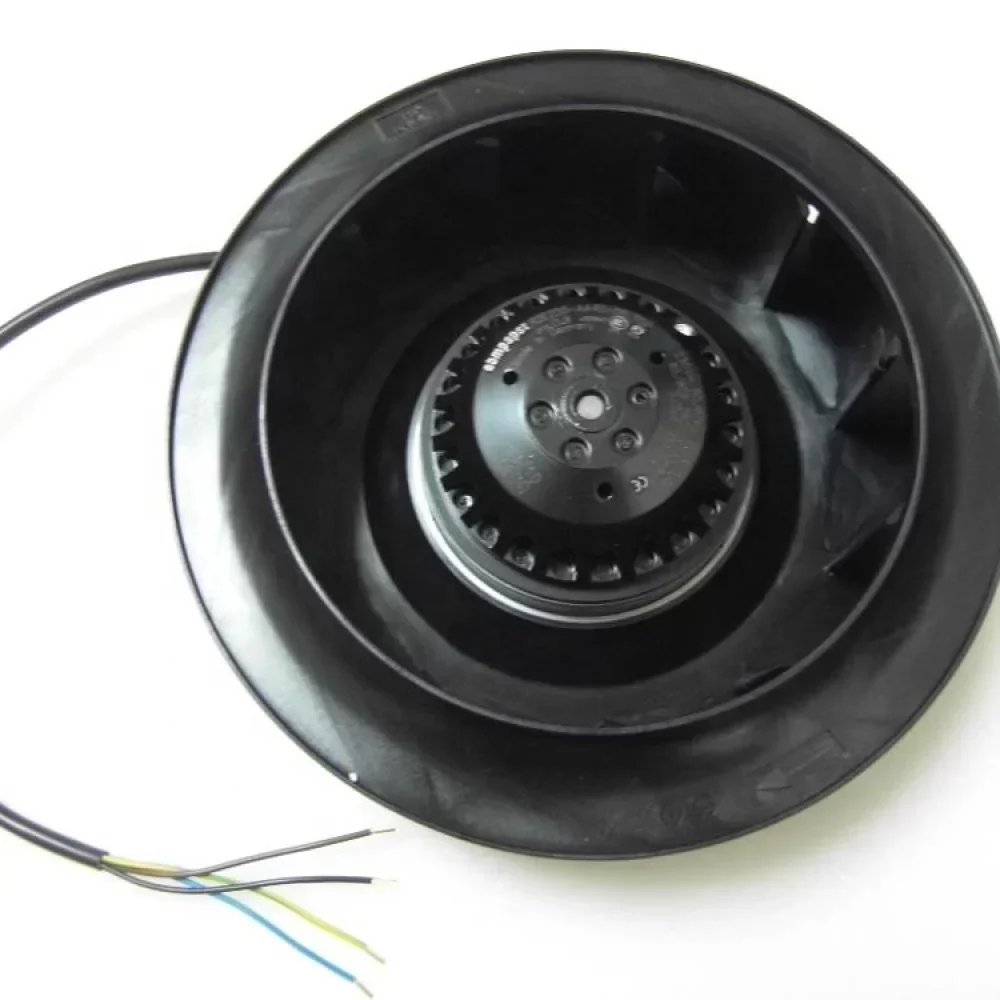

The ebmpapst R2E220-AA40-05 is a high-performance, single-inlet centrifugal fan featuring a backward-curved motorized impeller. This unit integrates the M2E068-BF single-phase AC external rotor motor directly into the impeller hub, a hallmark of original engineering that optimizes cooling efficiency while minimizing installation depth. The impeller is precision-molded from fiberglass-reinforced polyamide (PA6), offering superior chemical resistance and reduced rotational inertia compared to metallic alternatives. Designed for continuous operation, the motor utilizes maintenance-free ball bearings and includes an internally wired thermal overload protector to prevent failure under stall conditions. This specific configuration is engineered for applications requiring high static pressure development in restricted spaces. We verify technical compatibility for seamless integration into existing ventilation architectures and prioritize supply chain management to minimize lead time for critical spares.

Manufacturer: ebm-papst
Model Number: R2E220-AA40-05
Motor Type: M2E068-BF (AC External Rotor)
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Phase: 1~
Nominal Speed: 2600 RPM (50Hz) / 2750 RPM (60Hz)
Power Consumption: 85 W
Current Draw: 0.38 A
Max Air Flow: 850 m³/h
Impeller Diameter: 220 mm
Impeller Material: PA Plastic 6 (Fiberglass-reinforced)
Capacitor Requirement: 3 µF / 400 VDB
Insulation Class: B
Motor Protection: Thermal Overload Protector (TOP)
Degree of Protection: IP44
Ambient Temperature Range: -25°C to +60°C
Bearing System: Ball Bearings
Mounting Position: Any
Weight: 1.3 kg
Certifications: CE, CCC, GS

Industrial Application Profile:
This motorized impeller is specifically calibrated for use in precision cooling units for telecommunications base stations and electronic cabinet cooling where high back-pressure resistance is required. The backward-curved blade geometry ensures the motor does not overload if the system runs with zero static pressure (free air), making it a fail-safe solution for variable air volume (VAV) systems and heat exchangers requiring consistent airflow against dense filter media.

Mounting: Free Standing
Voltage: 230V
Blade Material: Plastic
Warranty: 1 Year
After-sales Service Provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Product name: Ebmpapst centrifugal fan
Motor: M2E068-BF
Color: Black
Size: 220 mm
Weight: 1.3 kg
Bearing: Ball bearing
Frequency: 50Hz/60Hz
Air Flow: 850m3/h
Impeller Type: PA plastic 6, fibreglass-reinforced
Certification: Ce/CCC/GS
Selling Units: Single item
Single package size: 22X22X7.1 cm
Single gross weight: 5.000 kg

ebmpapst R2E220-AA40-05 230V Free Standing Mount Plastic Blade 220mm Centrifugal Fan with

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
