ebmpapst R3G500-8317081581 500mm 400V EC 4.4A 2850W 1900RPM IP55 EC Plug Fan AHU Centrifugal Fan

ebmpapst R3G500-8317081581 500mm 400V EC 4.4A 2850W 1900RPM IP55 EC Plug Fan AHU Centrifugal Fan

Name: ebmpapst R3G500-8317081581 500mm 400V EC 4.4A 2850W 1900RPM IP55 EC Plug Fan AHU Centrifugal Fan
Brand: ebmpapst
SKU: 1600727902354
Availability: InStock
Rating: 5 (4 reviews)

$639.00

SKU: 1600727902354 Brand: ebmpapst

Description
Reviews (0)

Description

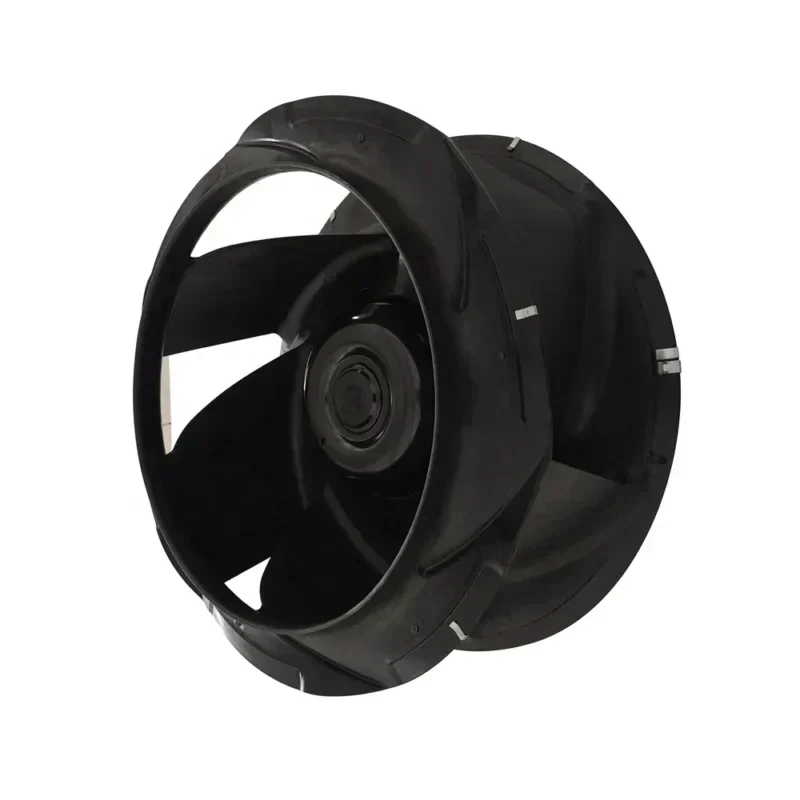

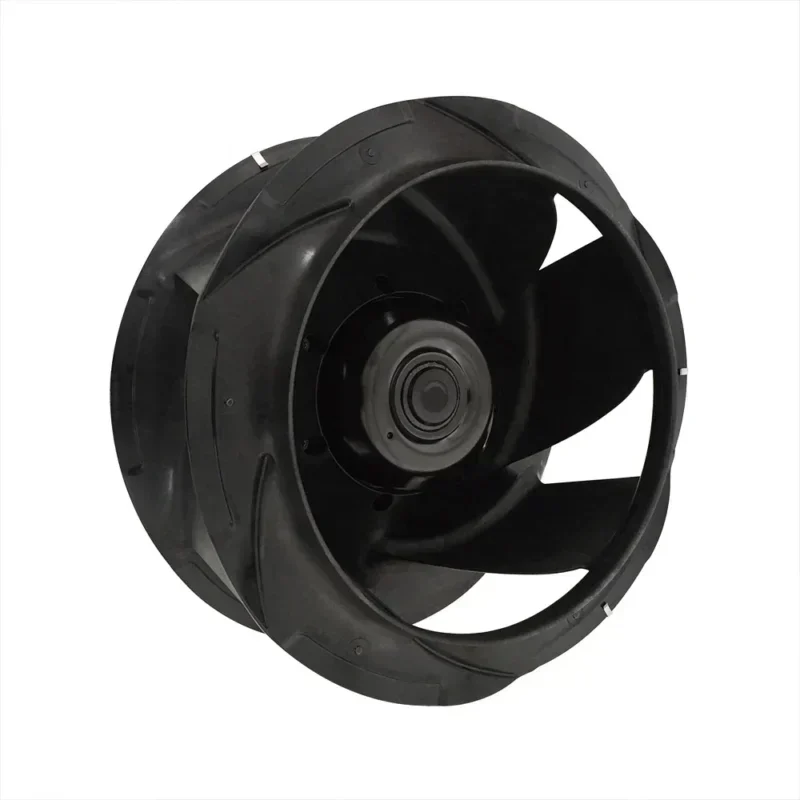

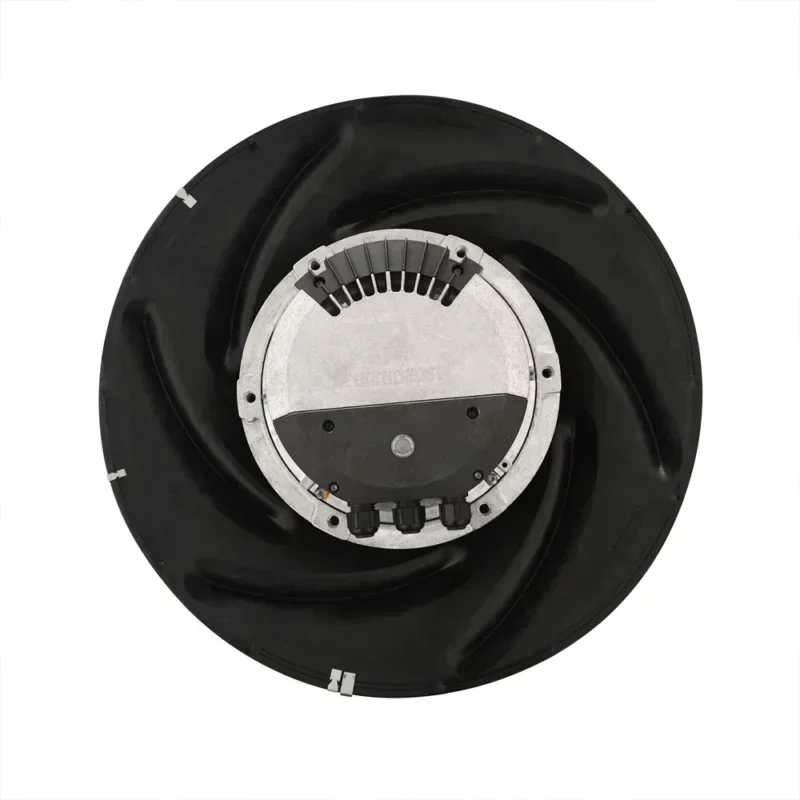

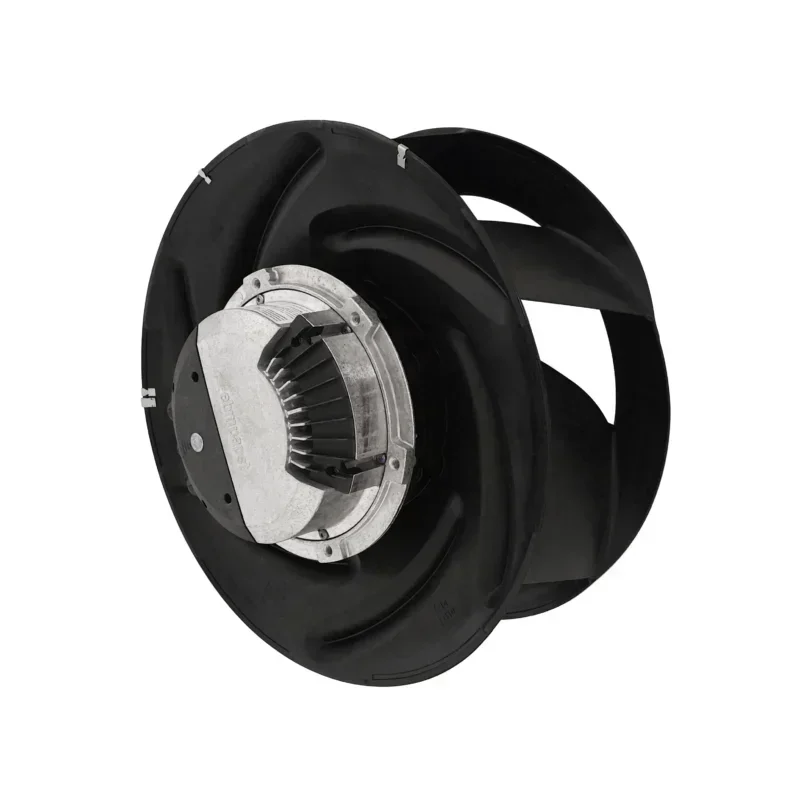

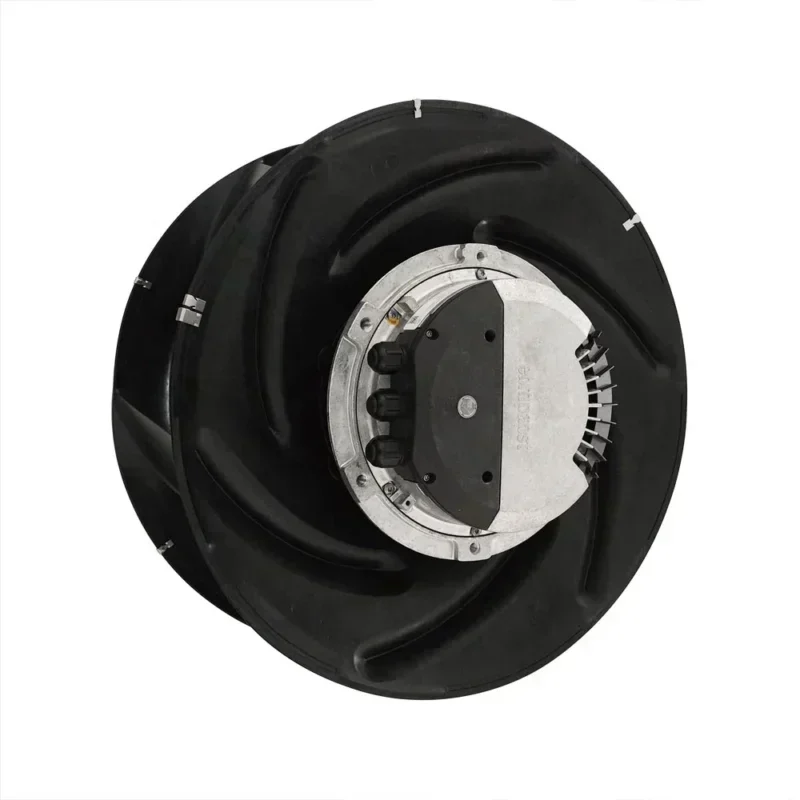

The ebmpapst R3G500-8317081581 is a high-performance RadiCal EC centrifugal fan engineered for mission-critical industrial ventilation and thermal management. Utilizing Original Engineering from Germany, this 500mm unit integrates a 2.85kW GreenTech EC motor to deliver superior aerodynamic efficiency and precise control. The backward-curved impeller design is optimized for high-pressure applications while maintaining low noise emissions.

Technical Specifications:
Manufacturer: ebmpapst
Model Number: R3G500-8317081581
Impeller Diameter: 500 mm
Motor Type: EC (Electronically Commutated)
Nominal Voltage: 400 VAC
Phase: 3-Phase
Frequency: 50/60 Hz
Power Input: 2850 W
Current Consumption: 4.4 A
Rotational Speed: 1900 RPM
Ingress Protection: IP55
Insulation Class: F
Blade Material: Stainless Steel
Housing Material: Aluminum
Bearing Type: Maintenance-free Ball Bearings
Control Interface: 0-10 VDC / PWM / Modbus RTU
Operating Temperature Range: -25 °C to +60 °C
Technical Compatibility: Optimized for AHU and Precision Cooling Systems
Weight: 68.0 kg
Lead Time: Inquire for current logistics schedule

Industrial Application:
This unit is specifically designed for Air Handling Units (AHU) and large-scale data center cooling cabinets. The R3G500-8317081581 solves the challenge of high energy consumption in 24/7 HVAC operations by providing infinitely variable speed control, allowing the system to match airflow exactly to thermal load. Its stainless steel blade construction and IP55 rating ensure durability in environments prone to moisture or particulate ingress, making it the standard for high-reliability industrial infrastructure.

Key Attributes
Mounting: Free Standing
Voltage: 400V
Blade Material: Stainless Steel
Customized support: OEM
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: R3G500-8317081581
Place of origin: Germany
Brand name: Ebmpapst
Product name: Centrifugal fan
Voltage: 400V
Frequency: 50/60 HZ
Current: 4.4A
Power: 2.85KW
Bearing Type: Ball Bearing
Size: 500mm
IP rating: IP55
Housing Material: Aluminum
Motor bearing: Ball bearing

Packaging and Delivery
Selling Units: Single item
Single package size: 72X73X65 cm
Single gross weight: 68.000 kg

ebmpapst R3G500-8317081581 500mm 400V EC 4.4A 2850W 1900RPM IP55 EC Plug Fan AHU Centrifugal Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
