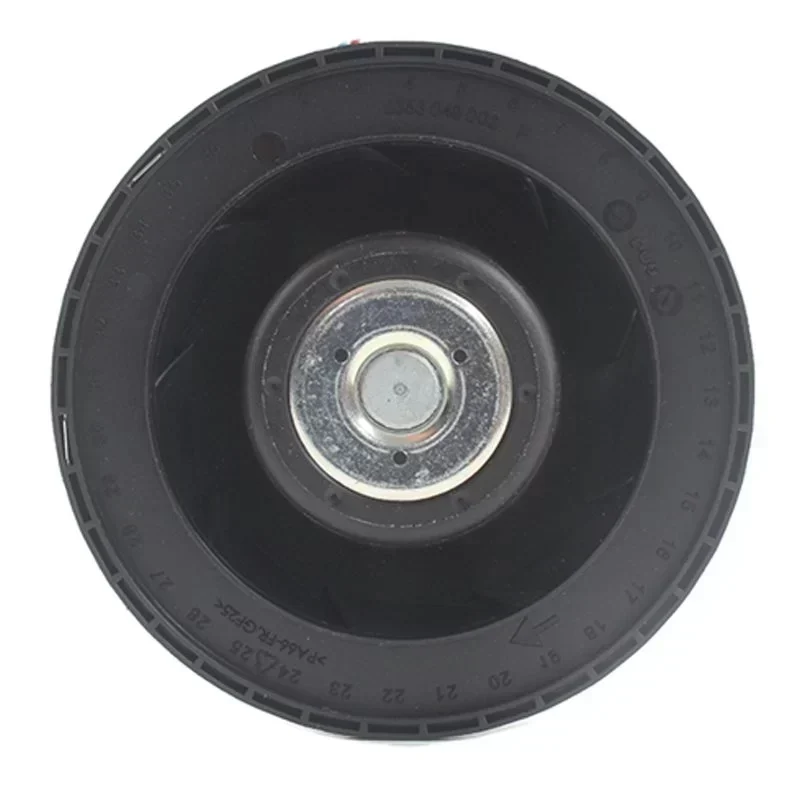

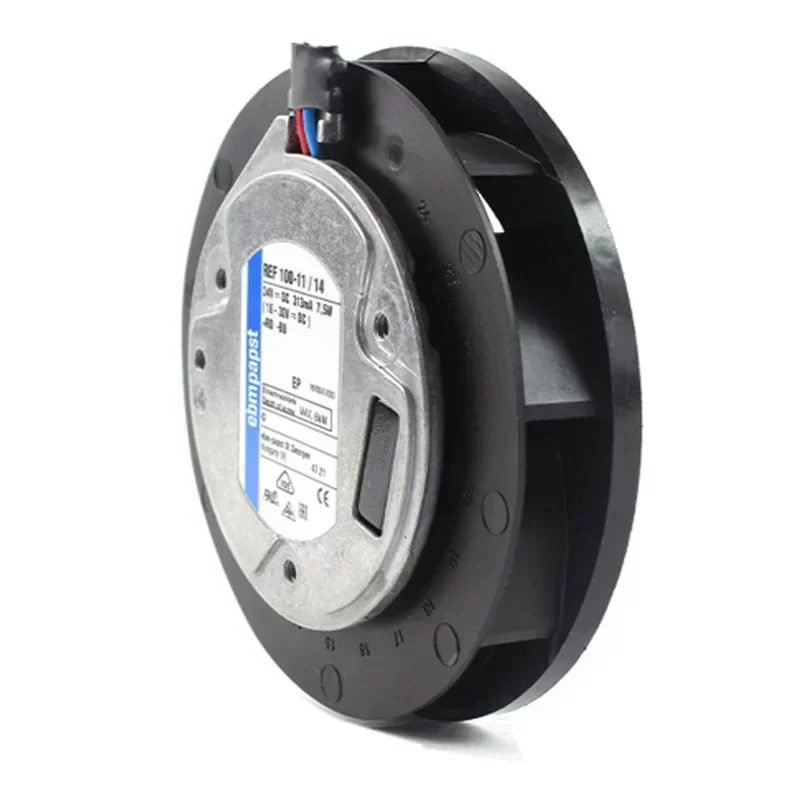

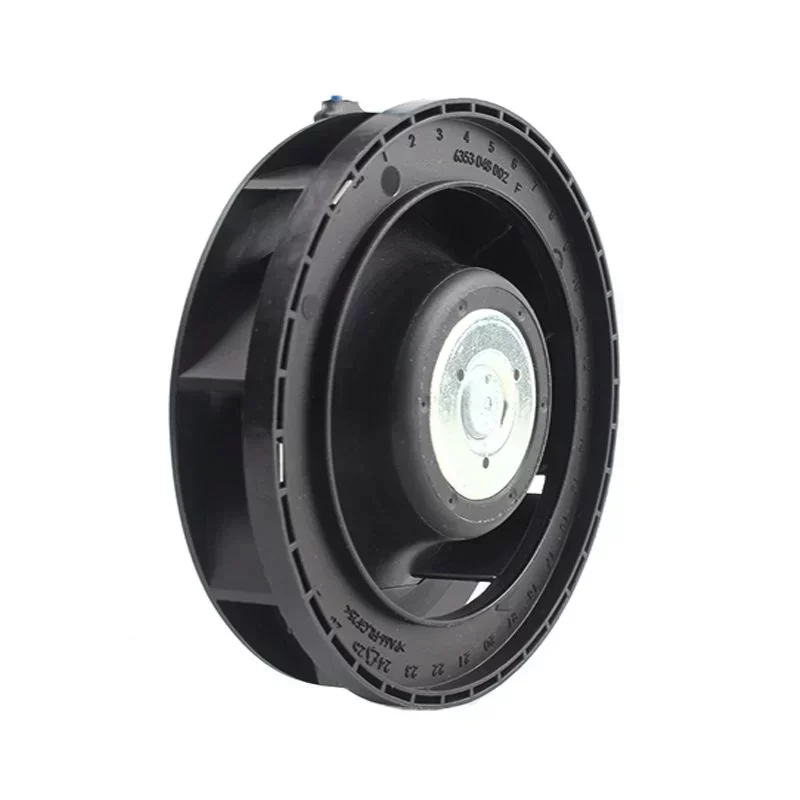

Ebmpapst REF100-11/14 100mm 24V 7.5W Industrial Metal Fan

Ebmpapst REF100-11/14 100mm 24V 7.5W Industrial Metal Fan

Name: Ebmpapst REF100-11/14 100mm 24V 7.5W Industrial Metal Fan
Brand: ebmpapst
SKU: 1601216007480
Availability: InStock
Rating: 5 (4 reviews)

$78.00

SKU: 1601216007480 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst REF100-11/14 is a precision-engineered DC Centrifugal Fan designed for Air Purification and Thermal Management. This Radial Blower offers robust performance in critical automation and HVAC environments.

REF100-11/14 Key Features

Industrial Grade: Constructed with a durable metal housing and glass-fiber reinforced plastic impeller for extended operational life.
High Performance: Delivers high static pressure and airflow efficiency with a power consumption of 7.5W.
Connectivity: Features standard flying lead termination for seamless integration into DC power circuits.
Reliability: Equipped with maintenance-free ball bearings ensuring a high L10 life expectancy under continuous operation.

Technical Specifications for REF100-11/14

Comprehensive engineering data for verification:

Part Number	REF100-11/14
Manufacturer	ebmpapst
Product Type	Centrifugal Fan / Radial Blower
Nominal Voltage	24 VDC
Voltage Range	12 – 28 VDC
Power Consumption	7.5 W
Current Draw	0.31 A (Approx.)
Impeller Diameter	100 mm
Bearing System	Ball Bearing
Motor Type	Brushless DC Motor (BLDC)
Rotational Speed	4800 RPM (Nominal)
Airflow Direction	Radial / Centrifugal
Operating Temperature	-20°C to +70°C
Housing Material	Die-Cast Metal / Galvanized Steel
Impeller Material	PA Plastic (Glass-fiber reinforced)
Electrical Connection	2-Wire Leads (AWG 24)
Motor Protection	Locked-rotor protection / Reverse Polarity
Noise Level	52 dBA
Weight	0.45 kg
Country of Origin	Germany

Industrial Applications

Frequently deployed in Medical Air Filtration, Electronics Cabinet Cooling, and Compact Ventilation Systems. This unit is critical for controlling thermal buildup in high-density enclosures.

Installation & Quality Assurance

This REF100-11/14 is a genuine spare part. Please refer to the official ebmpapst manual for wiring diagrams and firmware configuration.

Key Attributes
Mounting: Free Standing
Voltage: 24V
Blade Material: Plastic
Electric Current Type: DC
Customized support: OEM, ODM
Warranty: 1 Year
After-sales Service Provided: Online support
Model number: REF100-11/14
Place of origin: Germany
Brand name: Ebmpapst
Size: 100mm
Voltage: 24V
Power: 7.5W
Speed: 5400RPM
Air Flow: 86m³/h

Packaging and Delivery
Selling Units: Single item
Single package size: 10.4X10.4X2.5 cm
Single gross weight: 0.160 kg

Ebmpapst REF100-11/14 100mm 24V 7.5W Industrial Metal Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
