ebmpapst S4E350-AP06-30/A06 230V AC 0.58A 0.83A 130W 190W 1400/1590RPM Cold Storage Refrigeration Axial Fan

ebmpapst S4E350-AP06-30/A06 230V AC 0.58A 0.83A 130W 190W 1400/1590RPM Cold Storage Refrigeration Axial Fan

Name: ebmpapst S4E350-AP06-30/A06 230V AC 0.58A 0.83A 130W 190W 1400/1590RPM Cold Storage Refrigeration Axial Fan
Brand: ebmpapst
SKU: 62035351217
Availability: InStock
Rating: 5 (4 reviews)

$83.90

SKU: 62035351217 Brand: ebmpapst

Description
Reviews (0)

Description

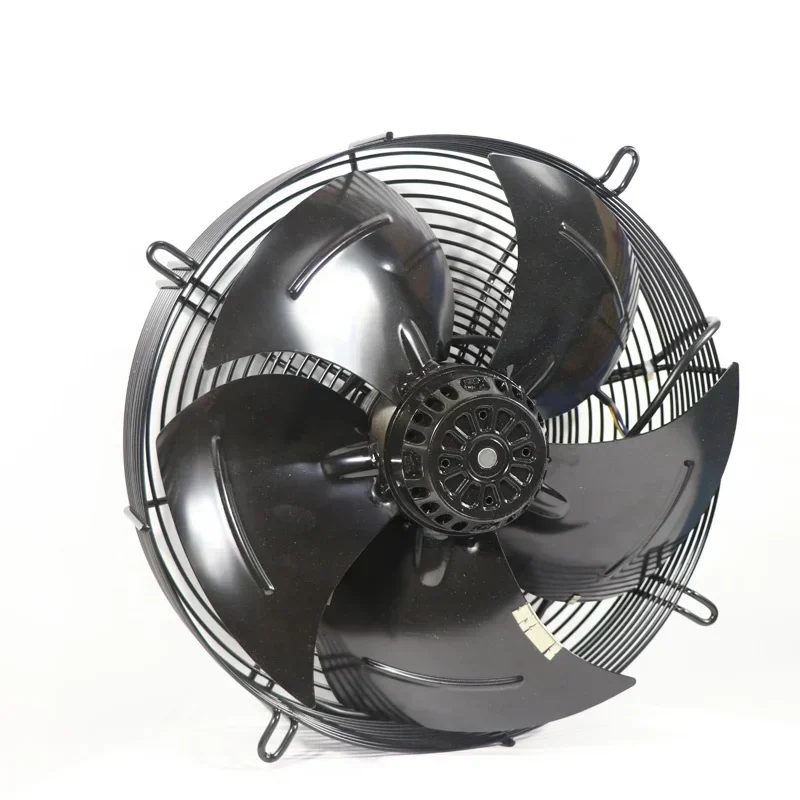

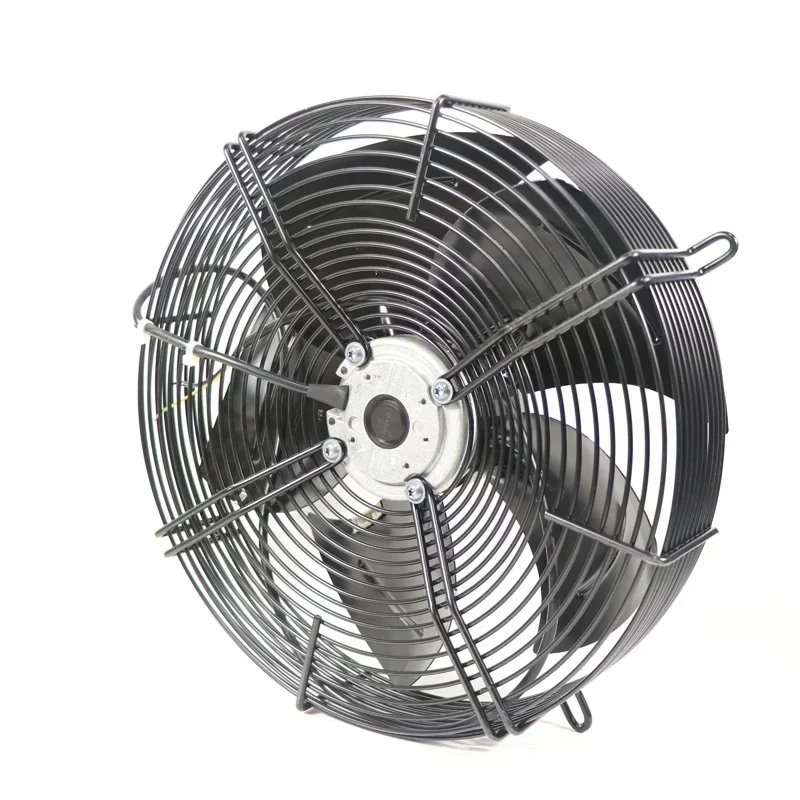

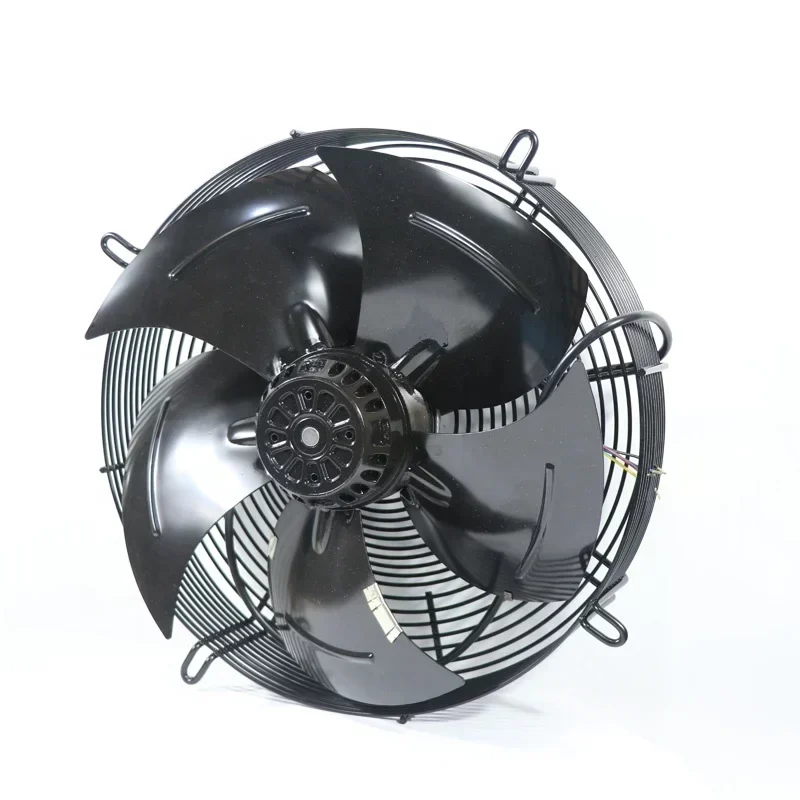

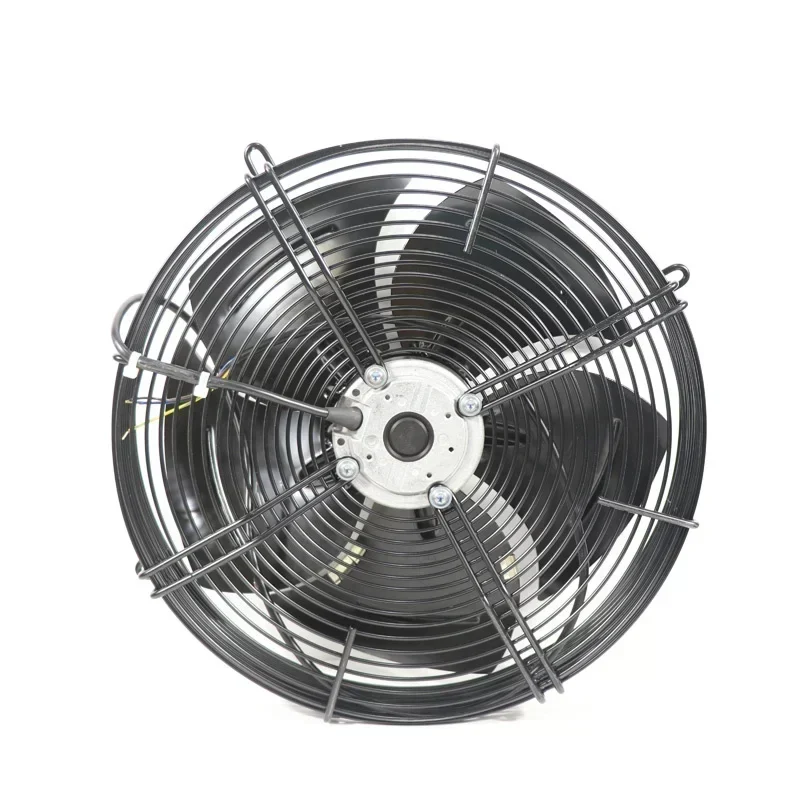

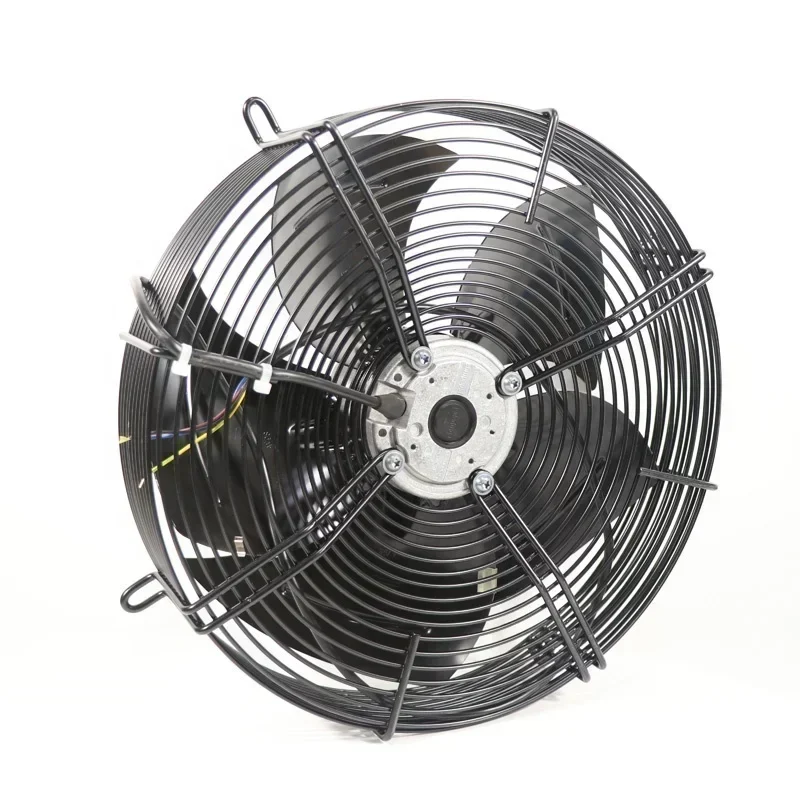

The ebm-papst S4E350-AP06-30/A06 is a precision-engineered 350mm AC axial fan designed for high-performance thermal management in commercial refrigeration and industrial ventilation systems. Utilizing ebm-papst’s renowned external rotor motor technology, this 4-pole single-phase unit integrates the motor directly into the impeller hub, resulting in a compact depth profile ideal for space-restricted condenser and evaporator housings. The unit features a 5-blade impeller optimized for aerodynamic efficiency, delivering consistent airflow with reduced acoustic signatures. Built to withstand rigorous industrial environments, the motor is equipped with maintenance-free ball bearings, Class F insulation, and IP44 ingress protection, ensuring operational stability across a wide temperature range of -25°C to +65°C.

Technical Specifications:
Manufacturer: ebm-papst
Model Reference: S4E350-AP06-30/A06
Product Type: AC Axial Fan (1~)
Motor Technology: External Rotor Asynchronous Motor
Nominal Voltage: 230 V AC
Frequency: 50 / 60 Hz
Impeller Diameter: 350 mm
Speed (50 Hz): 1400 RPM
Speed (60 Hz): 1590 RPM
Power Consumption (50 Hz): 130 W
Power Consumption (60 Hz): 190 W
Current Draw (50 Hz): 0.58 A
Current Draw (60 Hz): 0.83 A
Number of Blades: 5
Blade Material: Coated Sheet Steel
Insulation Class: F (155°C)
Protection Rating: IP44
Motor Protection: Thermal Overload Protector (TOP) wired internally
Bearing System: Ball Bearings
Capacitor: Required (External or Integrated)
Mounting Type: Free Standing / Panel Mount
Net Weight: 5.0 kg

Industrial Application:
This fan is specifically calibrated for cold storage refrigeration units, heat exchangers, and condenser banks where reliable heat dissipation is critical. The S4E350-AP06-30/A06 provides the necessary static pressure to overcome resistance in finned coils while maintaining energy efficiency. Its robust design ensures longevity in continuous duty cycles found in supermarkets, food processing plants, and HVAC machinery repair scenarios.

Procurement & Compatibility:
Ensure Technical Compatibility by verifying the 350mm impeller diameter and 4-pole motor curve against your existing system requirements. We supply Original Engineering components to guarantee fit, form, and function, preserving the lifecycle value of your capital equipment. Contact our team for current Lead Time and bulk shipping configurations.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Warranty: 1 Year
Blade material: Stainless Steel
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpaspt
Model number: S4E350-AP06-30/A06
Nominal voltage: 230V
Power consumption: 130 W
Speed: 1400RPM
Current: 0.58(A)
Frequency: 50~60Hz
Weight: 5kg
Number of blades: 5
Type of protection: IP44
Insulation class: "F"
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Core Components: Motor, PLC, Bearing, Engine

Packaging and Delivery
Selling Units: Single item
Single package size: 47X47X40 cm
Single gross weight: 70.000 kg

ebmpapst S4E350-AP06-30/A06 230V AC 0.58A 0.83A 130W 190W 1400/1590RPM Cold Storage Refrigeration Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
