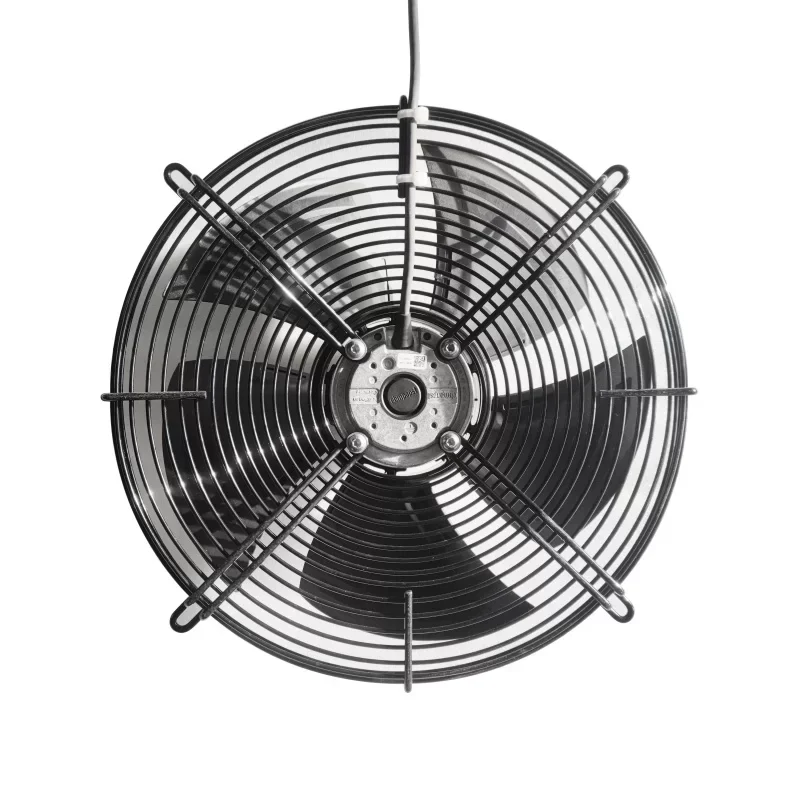

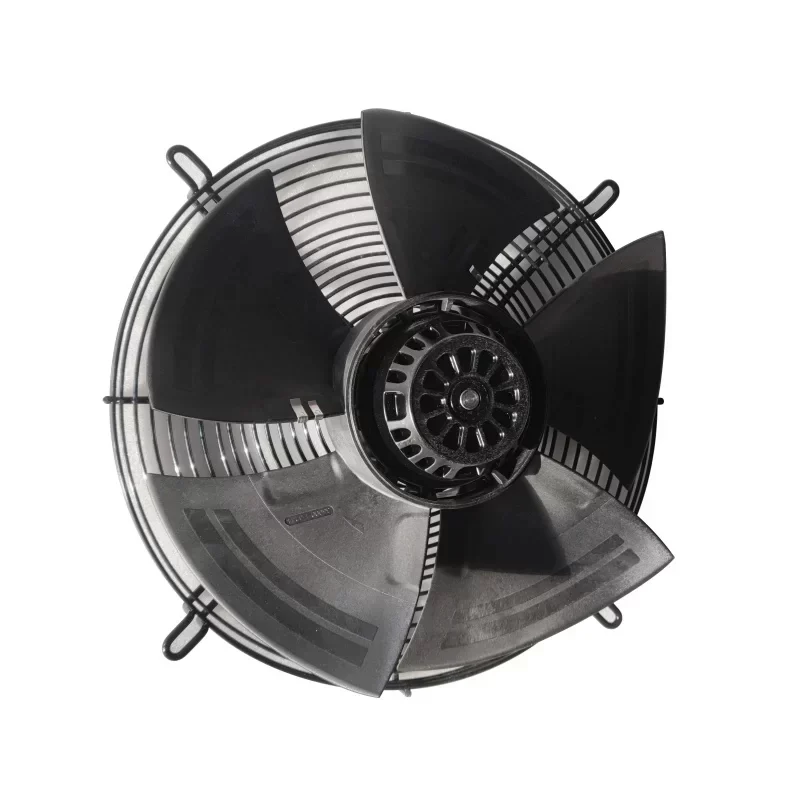

ebmpapst S4E350-BN02-02/F01 230V AC 350mm Axial Fan 165W 2160m³/h

ebmpapst S4E350-BN02-02/F01 230V AC 350mm Axial Fan 165W 2160m³/h

Name: ebmpapst S4E350-BN02-02/F01 230V AC 350mm Axial Fan 165W 2160m³/h
Brand: ebmpapst
SKU: 1600415250316
Availability: InStock
Rating: 5 (4 reviews)

$113.20

SKU: 1600415250316 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst S4E350-BN02-02/F01 represents Original Engineering in high-performance thermal management. This 350mm axial fan is engineered for continuous operation in demanding industrial environments where Technical Compatibility with existing HVAC and refrigeration systems is critical. The unit features a 4-pole single-phase AC motor integrated with a robust ball bearing system to ensure extended lifecycle value and minimal Lead Time for maintenance cycles.

Technical Specifications:
Manufacturer: ebmpapst
Model Number: S4E350-BN02-02/F01
Origin: Germany
Fan Type: Axial Flow Fan
Motor Type: M4E074-DF
Nominal Voltage: 230 VAC
Frequency: 50/60 Hz
Power Consumption: 165 W
Current Draw: 0.73 A
Speed: 2800 RPM
Air Flow: 2160 m³/h
Blade Diameter: 350 mm
Number of Blades: 5
Blade Material: Stainless Steel
Bearing Type: Maintenance-free Ball Bearing
Insulation Class: F
Protection Class: IP44
Direction of Rotation: Counter-clockwise viewed toward rotor
Mounting Position: Shaft horizontal or rotor on bottom
Condensate Discharge Holes: Rotor side
Operating Temperature Range: -25 °C to +60 °C
Required Capacitor: 5 µF / 400 VDB
Weight: 4.5 kg
Certifications: CE, VDE, EAC

Industrial Application:
The S4E350-BN02-02/F01 is specifically designed for condenser cooling in commercial refrigeration units and heat pumps. Its high static pressure capability and optimized blade geometry solve the problem of heat accumulation in compact heat exchangers, ensuring stable refrigerant pressure and system efficiency even under high ambient thermal loads.

Key Attributes
Voltage: 230V
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Stainless Steel
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: S4E350-BN02-02/F01
Voltage: 230VAC
Size: 350mm
Power: 165W
Current: 0.73A
Speed: 2800RPM
Air flow: 2160m3/h
Bearing type: Ball Bearing
Type: Axial Flow Fan
Applicable Industries: Other

Packaging and Delivery
Selling Units: Single item

ebmpapst S4E350-BN02-02/F01 230V AC 350mm Axial Fan 165W 2160m³/h

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
