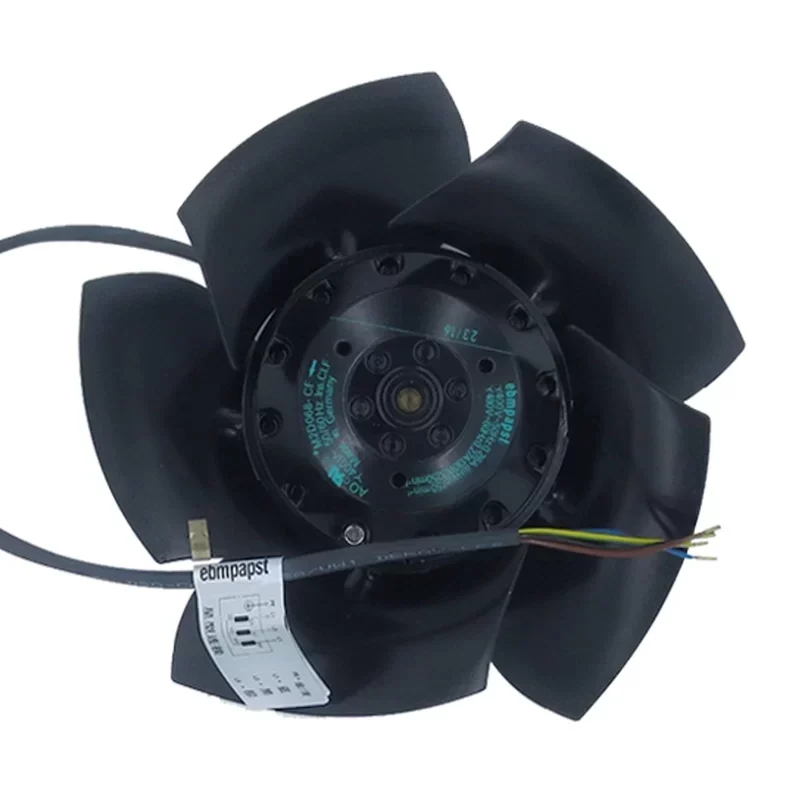

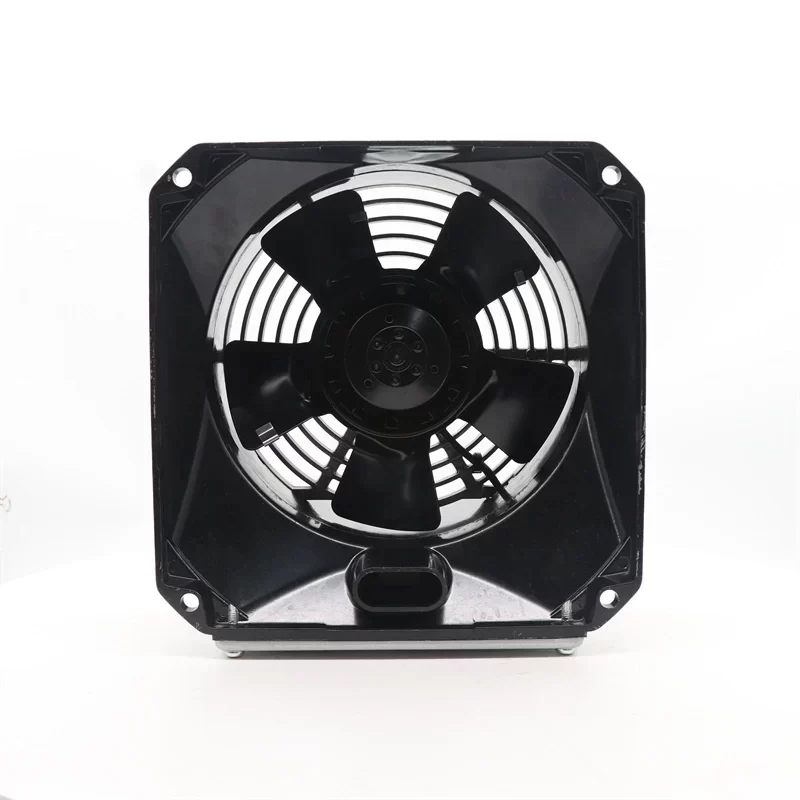

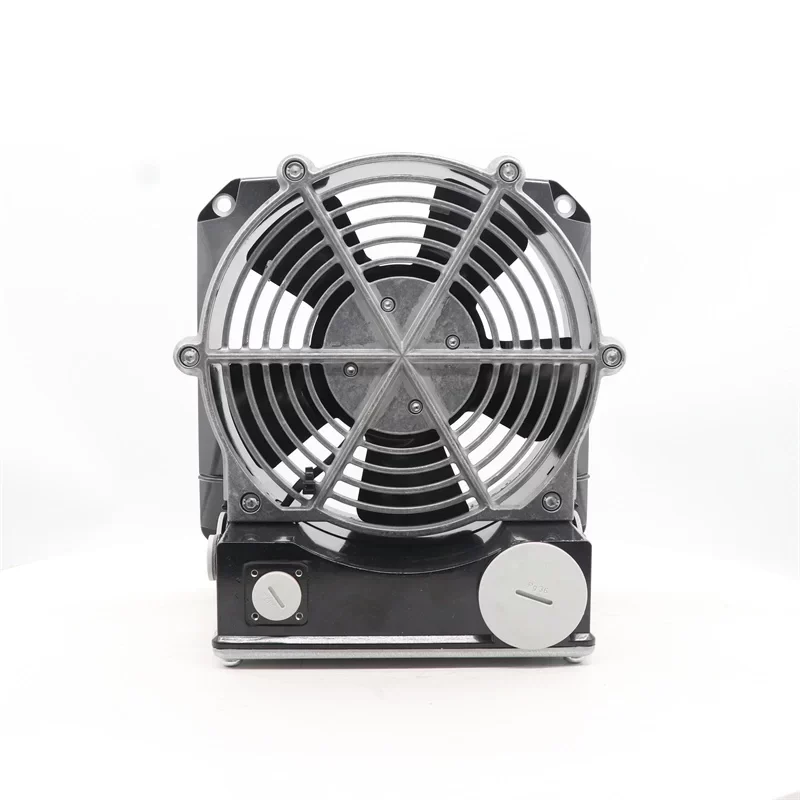

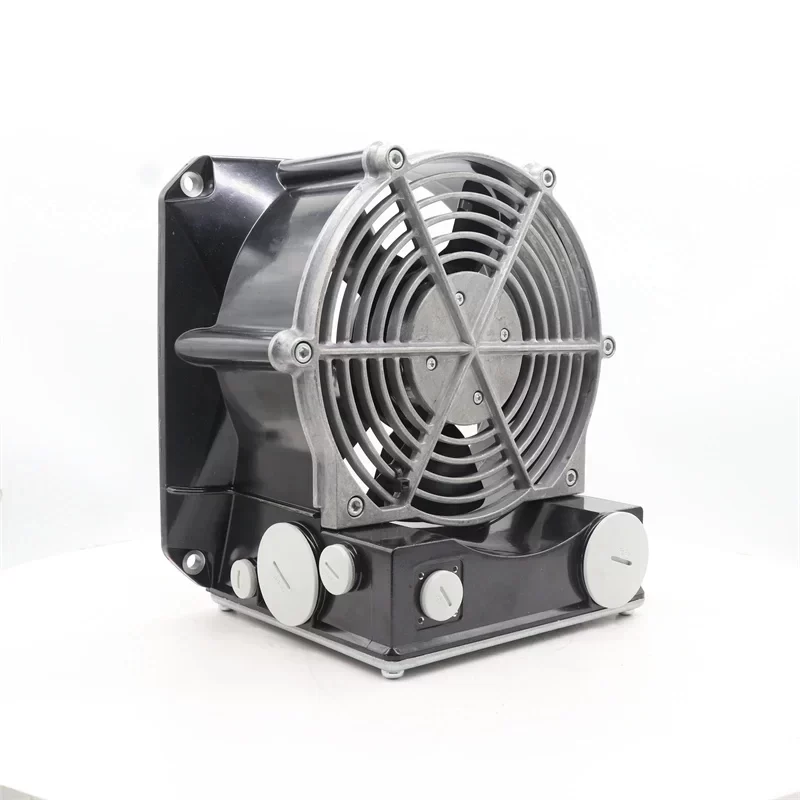

ebmpapst W2D210-EA10-20 400V 210mm Axial Cooling Fan for Siemens

ebmpapst W2D210-EA10-20 400V 210mm Axial Cooling Fan for Siemens

Name: ebmpapst W2D210-EA10-20 400V 210mm Axial Cooling Fan for Siemens
Brand: ebmpapst
SKU: 62331005206
Availability: InStock
Rating: 5 (4 reviews)

$1,045.00

SKU: 62331005206 Brand: ebmpapst

Description
Reviews (0)

Description

The ebmpapst W2D210-EA10-20 is a high-performance industrial axial fan engineered specifically for the thermal management of Siemens 1PH713 Series Spindle Servo Motors. This unit utilizes an external rotor motor design to provide compact dimensions and superior cooling efficiency in demanding CNC and automation environments. By maintaining optimal operating temperatures, this fan ensures the precision and longevity of high-speed spindle systems.

Technical Specifications:
Brand: ebmpapst
Model Number: W2D210-EA10-20
Motor Structure: 3-phase external rotor motor
Nominal Voltage: 400 VAC
Frequency: 50 / 60 Hz
Speed: 2850 / 3000 RPM
Power Consumption: 185 / 205 W
Current Draw: 0.51 / 0.66 A
Size: 210 mm
Blade Material: Sheet steel, painted black
Housing Material: Die-cast aluminum
Bearing Type: Maintenance-free ball bearings
Direction of Rotation: Clockwise, viewed toward rotor
Number of Blades: 7
Degree of Protection: IP44
Insulation Class: F
Mounting Position: Any
Condensation Drainage Holes: On rotor side
Approval: CE, EAC, VDE
Weight: 2.7 kg
Operating Temperature Range: -25 °C to +70 °C

Industrial Application and Technical Compatibility:
The W2D210-EA10-20 is critical for maintaining the operational integrity of Siemens 1PH713 spindle motors. In high-duty cycle machining operations, heat dissipation is vital to prevent thermal expansion of the spindle and ensure machining precision. This fan provides the necessary static pressure to overcome the internal resistance of the motor housing. Utilizing Original Engineering components ensures exact mechanical fitment and electrical synchronization with the drive system. Replacing worn cooling units with this specific model minimizes unplanned downtime and extends the lifecycle of the servo system. Global Lead Time is optimized for MRO requirements to ensure rapid restoration of production capacity.

Key Attributes
Voltage: 400v
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Sheet steel, painted black
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: W2D210-EA10-20
Type: Axial Fan
Nominal voltage: 400V
Bearing Type: Ball Bearing
Size: 210mm
Frequency: 50/60hz
Current: 0.51/0.66A
Power: 185/205W
Speed: 2850/3000RPM

Packaging and Delivery
Selling Units: Single item

ebmpapst W2D210-EA10-20 400V 210mm Axial Cooling Fan for Siemens

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
