ebmpapst W2E200-HH38-01 Electric AC Axial Compact Stainless Steel Blade Fan

ebmpapst W2E200-HH38-01 Electric AC Axial Compact Stainless Steel Blade Fan

Name: ebmpapst W2E200-HH38-01 Electric AC Axial Compact Stainless Steel Blade Fan
Brand: ebmpapst
SKU: 1600262806215
Availability: InStock
Rating: 5 (4 reviews)

$129.00

SKU: 1600262806215 Brand: ebmpapst

Description
Reviews (0)

Description

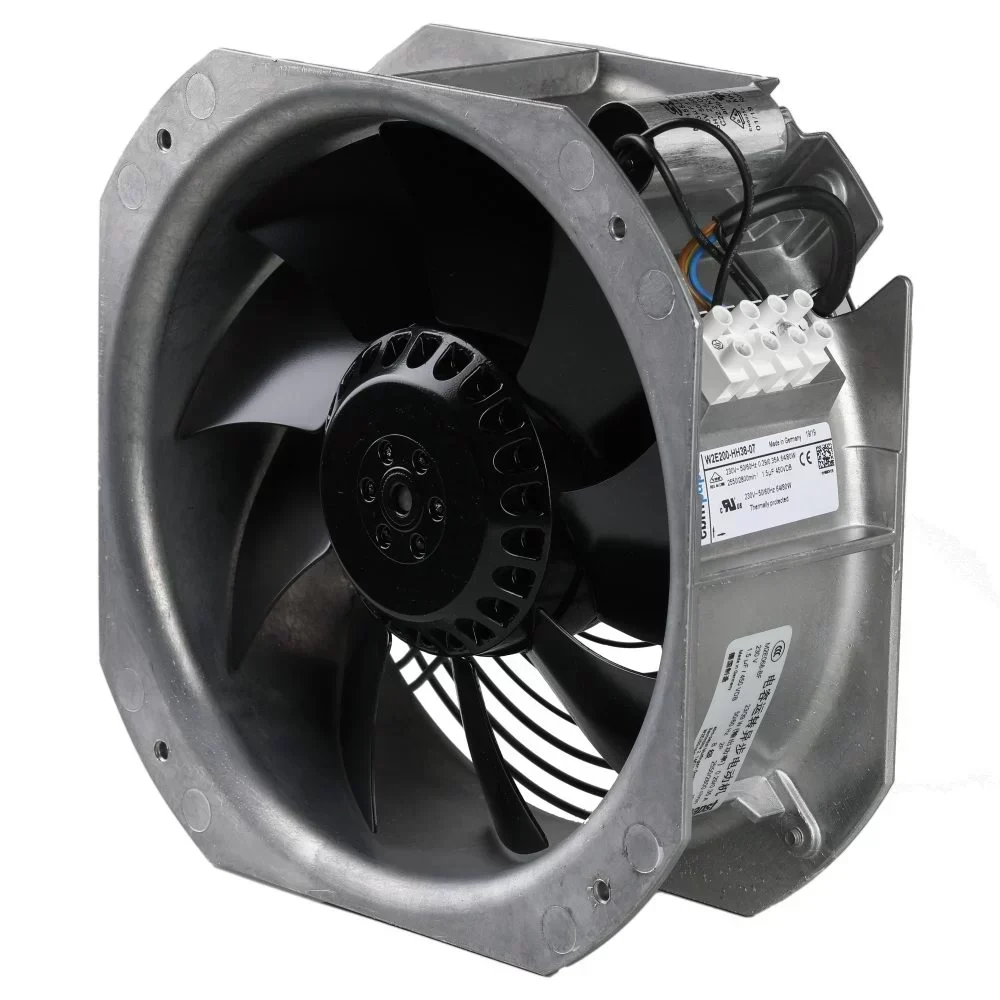

The ebmpapst W2E200-HH38-01 is a high-performance AC axial compact fan engineered for rigorous thermal management in industrial environments. Utilizing the robust M2E068-BF external rotor motor, this unit delivers Original Engineering reliability with a compact 80mm depth profile. The 7-blade impeller design, constructed from durable stainless steel, ensures aerodynamic efficiency and reduced noise emissions while maintaining high air throughput. Designed for continuous operation, the maintenance-free ball bearing system extends service life across a wide temperature range, superior to sleeve bearing alternatives. This specific model ensures Technical Compatibility with existing 230V systems requiring consistent airflow of up to 880 m³/h. Optimized for minimal Lead Time in replacement scenarios, the die-cast aluminum housing provides structural rigidity and effective heat dissipation for the motor itself.

TECHNICAL SPECIFICATIONS:
Manufacturer: ebmpapst
Model Number: W2E200-HH38-01
Motor Designation: M2E068-BF
Product Type: AC Axial Compact Fan
Nominal Voltage: 230 V
Frequency: 50 / 60 Hz
Air Flow: 880 m³/h (Free Air)
Rotational Speed: 2550 RPM (50 Hz) / 2800 RPM (60 Hz)
Power Consumption: 64 W (50 Hz) / 80 W (60 Hz)
Nominal Current: 0.29 A (50 Hz) / 0.35 A (60 Hz)
Starting Current: 0.55 A
Impeller Diameter: 200 mm
Housing Material: Die-cast Aluminum
Impeller Material: Stainless Steel
Bearing Type: Ball Bearing
Motor Protection: Thermal Overload Protector (TOP)
Insulation Class: B
Degree of Protection: IP44
Capacitor: 1.5 µF / 400 VDB
Acoustic Noise: 60 dB(A)
Operating Temperature Range: -25°C to +60°C
Weight: 2.1 kg
Dimensions: 225 x 225 x 80 mm
Mounting: Free Standing / Flange Mount
Certifications: CCC, GS, CE, VDE
Origin: Germany

INDUSTRIAL APPLICATION:
This unit is specifically engineered for forced convection cooling in high-density control cabinets and server rack enclosures where vertical space is restricted. The W2E200-HH38-01 is critical for dissipating heat from Variable Frequency Drives (VFDs), power inverters, and welding machines, preventing thermal throttling in automated production lines. Its robust metal construction and IP44 rating make it suitable for installation in machinery exposed to moderate dust and vibration, ensuring system longevity and operational stability.

Voltage: 230V
Speed: 2550-2800
Mounting type: Free Standing
Type: Ac axial fan
Warranty: 1 Year
Power Source: Electric
Blade material: Stainless Steel
Bearing type: Ball Bearing
After-sales service provided: Online support
Place of origin: Germany
Brand name: Epmpapst
Model number: W2E200-HH38-01
Product name: Ebmpapst AC axial compact fan
Motor: M2E068-BF
Application: General industry
Size: 200 mm
Current: Starting current 0.55A
Weight: 2.1 kg
Air flow: 880m3/h
Frequency: 50HZ/60HZ
Certifications: Ccc/GS
Selling Units: Single item
Single package size: 22.5X8X22.5 cm
Single gross weight: 2.100 kg

ebmpapst W2E200-HH38-01 Electric AC Axial Compact Stainless Steel Blade Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
