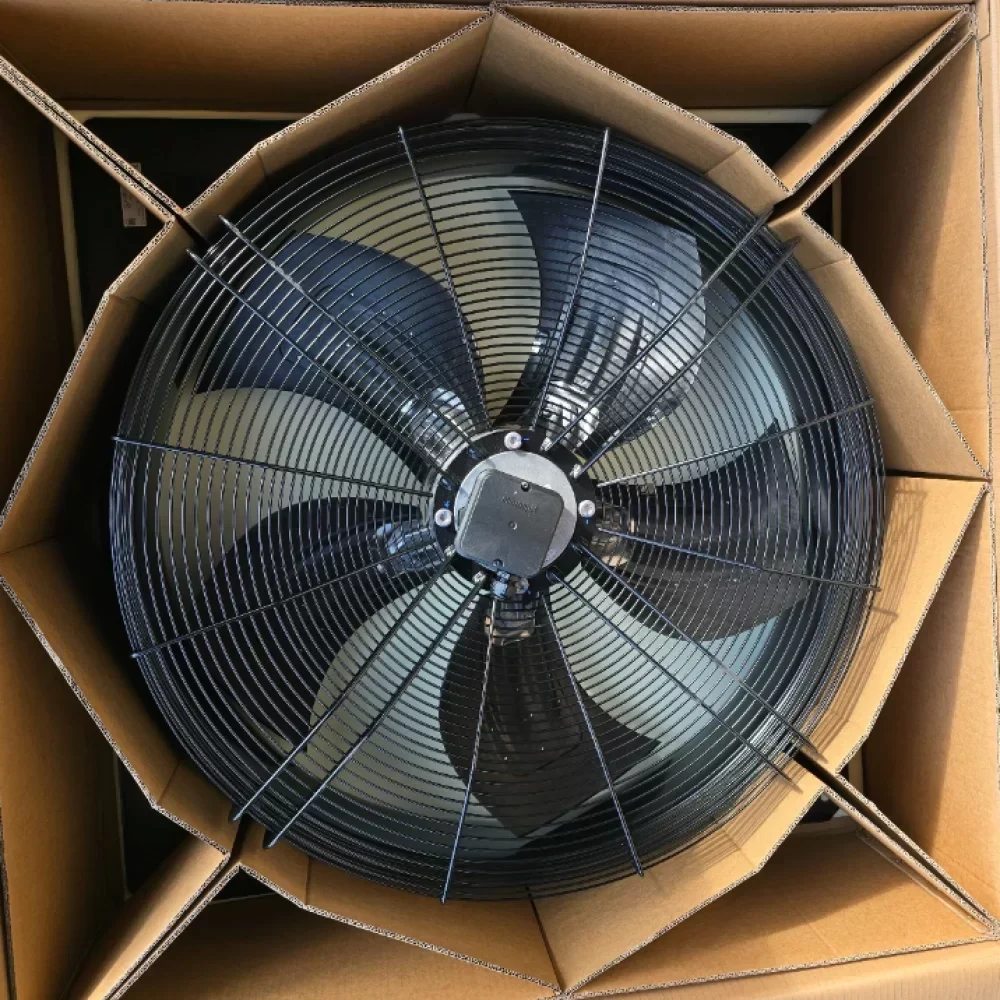

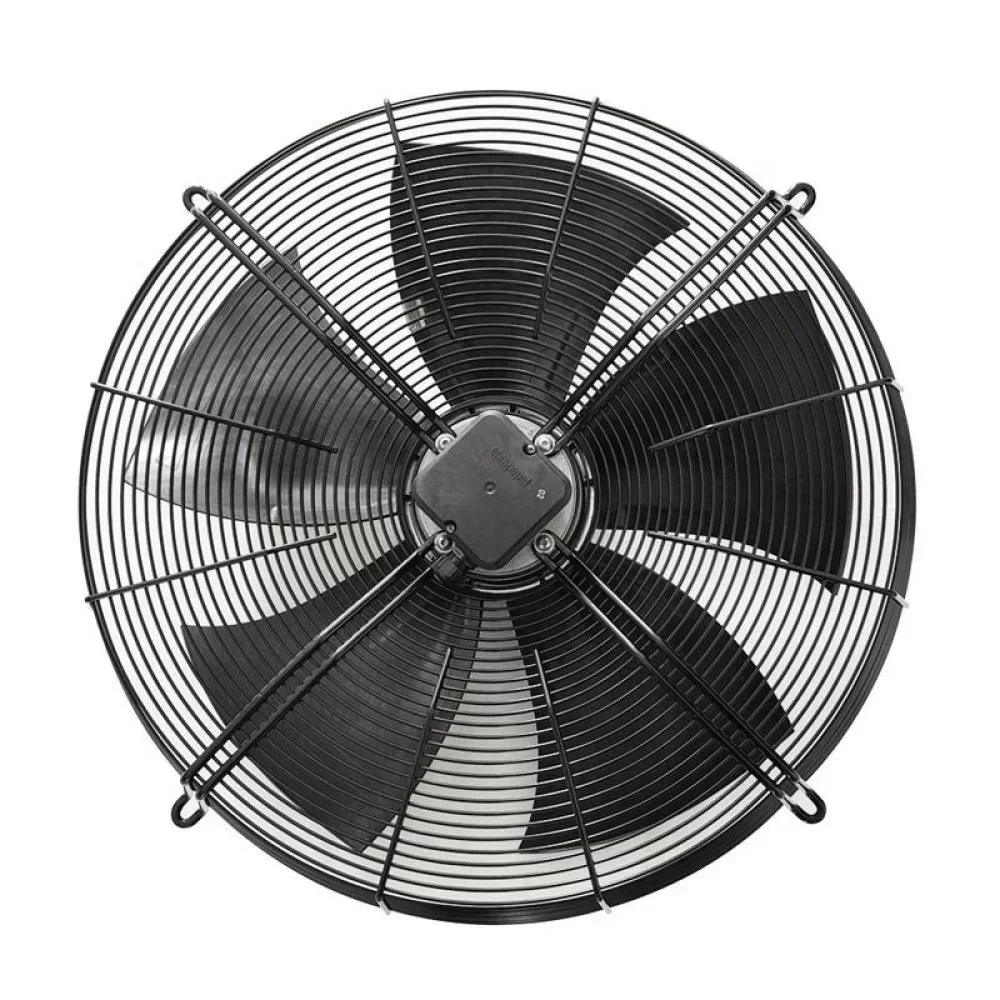

ebmpapst W6D800 8317078523 VWA0800B7SNZ AC Axial Fan 800MM 400V 1430W 870RPM PP Plastic 800MM Axial Fan

$375.90

SKU: 1601599678833 Brand:

Description

For EBMPAPST W6D800 8317078523 VWA0800B7SNZ AC Axial Cooling Fan 800MM 400V 1430W 870RPM PP Plastic 800MM Axial Cooling Fan

Voltage: 400 V
Material: Plastic
Speed: 870RPM
Mounting type: Wall Fan
Type: Axial flow fan
Warranty: 1 Year
Blade Diameter: 800mm
Power Source: Electric
Blade material: Plastic
Bearing type: Ball Bearing
After-sales service provided: Online support
Place of origin: Germany
Brand name: Ebmpapst
Model number: W6D800 8317078523, VWA0800B7SNZ, 8317078523
Motor: M6D138-HF
Weight: 39.4 kg
Size: 800MM
Blade material: PP plastic
Fan housing material: Sheet steel, galvanized and coated with black plastic (RAL 9005)
Number of blades: 5
Airflow direction: V
Insulation class: F
Direction of rotation: Clockwise, viewed toward rotor
Selling Units: Single item
Single package size: 105X105X48 cm
Single gross weight: 59.000 kg

ebmpapst W6D800 8317078523 VWA0800B7SNZ AC Axial Fan 800MM 400V 1430W 870RPM PP Plastic 800MM Axial Fan

ebmpapst W6D800 8317078523 VWA0800B7SNZ AC Axial Fan 800MM 400V 1430W 870RPM PP Plastic 800MM Axial Fan

ebmpapst W6D800 8317078523 VWA0800B7SNZ AC Axial Fan 800MM 400V 1430W 870RPM PP Plastic 800MM Axial Fan

Reviews

There are no reviews yet.

Be the first to review “ebmpapst W6D800 8317078523 VWA0800B7SNZ AC Axial Fan 800MM 400V 1430W 870RPM PP Plastic 800MM Axial Fan”

Your email address will not be published. Required fields are marked *

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
