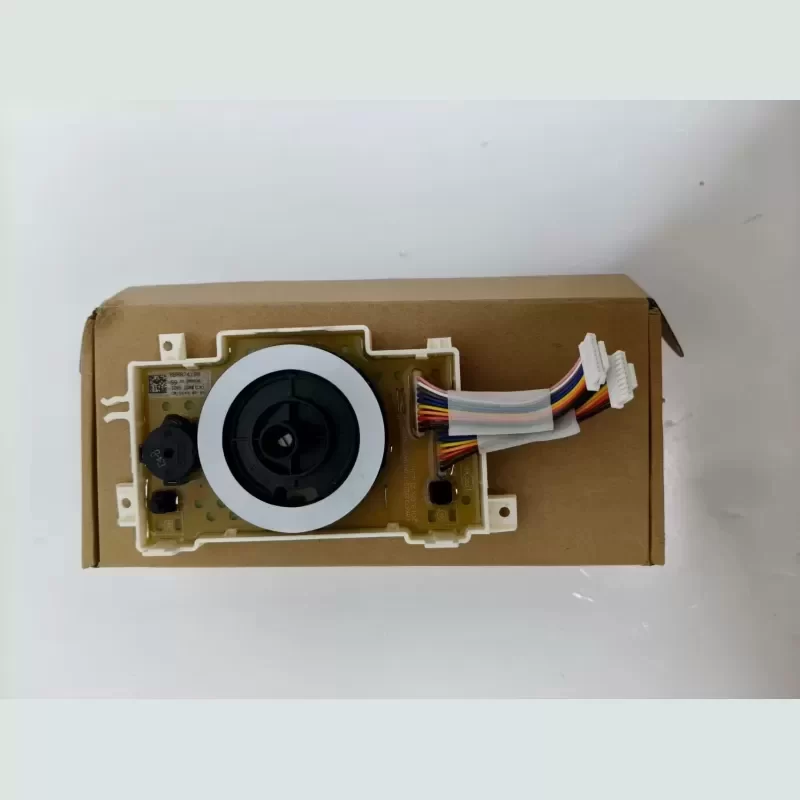

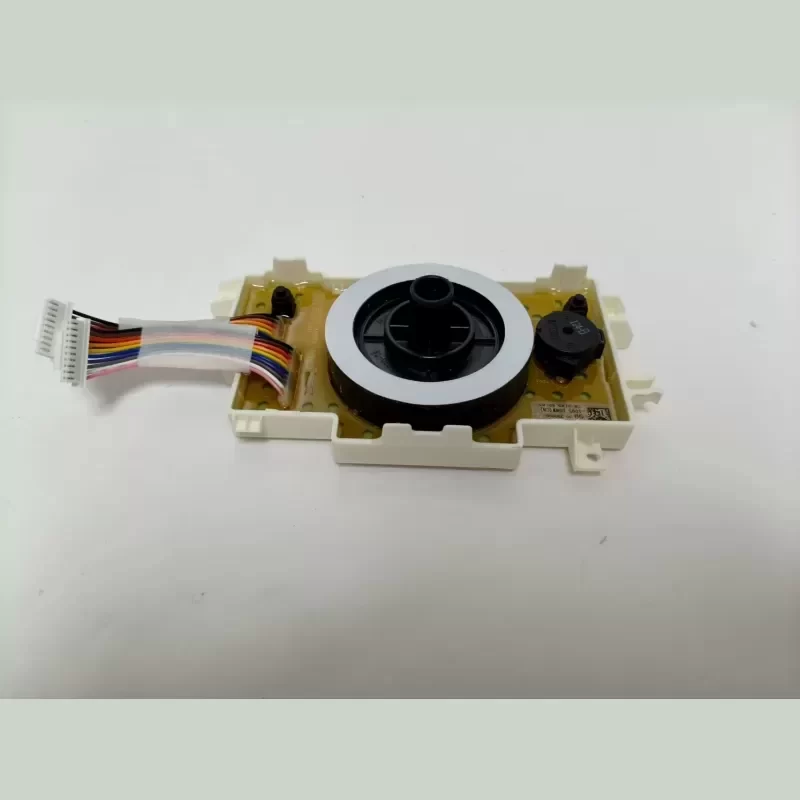

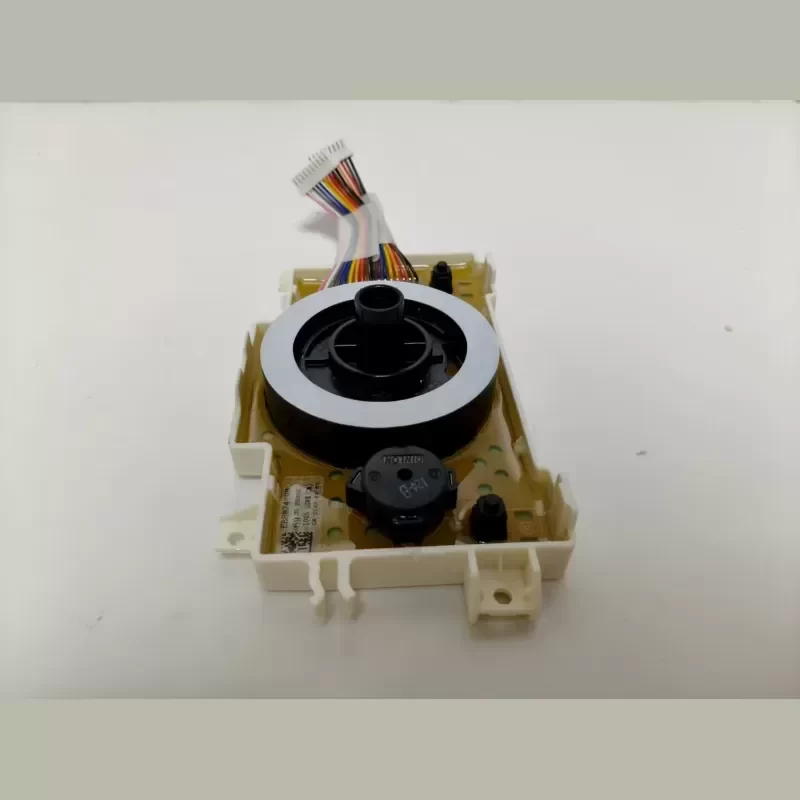

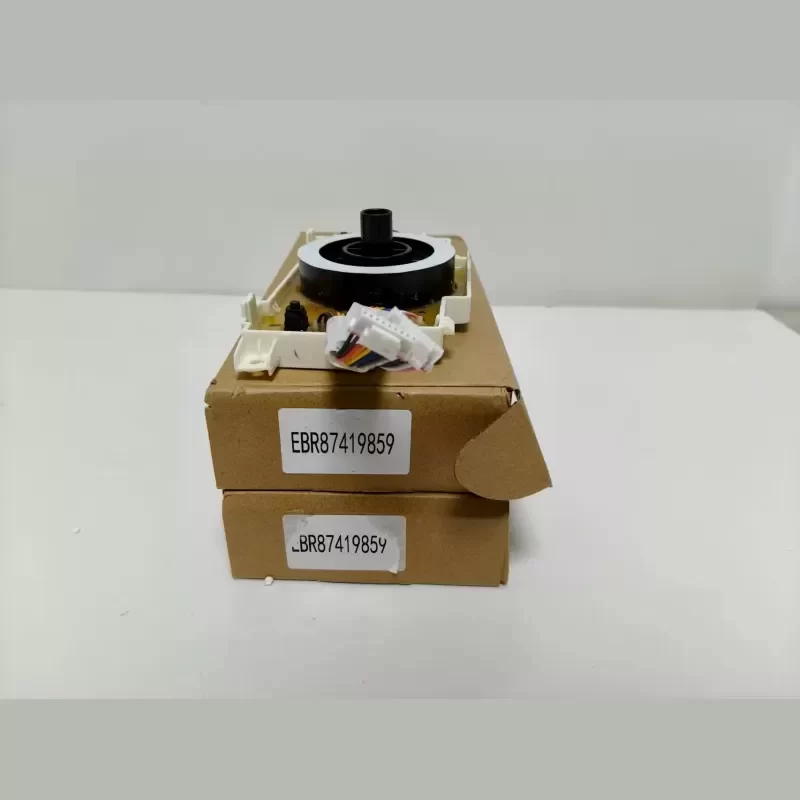

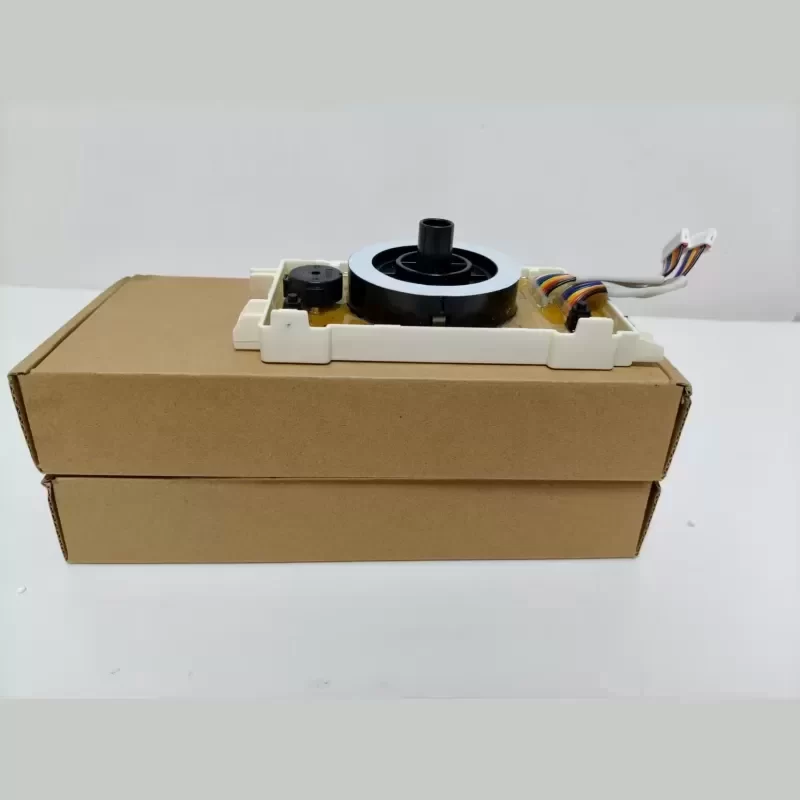

EBR874198 Electric Washing Machine Control Board Panel

Description

The Enfirar EBR874198 is a precision-engineered Main Control Board Assembly (PCBA) designed for the rigorous operational demands of electric washing machine logic systems. This motherboard functions as the central processing unit, executing complex wash algorithms, managing motor torque modulation, and controlling peripheral components such as drain pumps, inlet valves, and door interlocks. Constructed on a high-grade FR-4 substrate with 1 oz copper thickness, the board ensures optimal thermal dissipation and signal integrity during high-current switching operations. The assembly is engineered to withstand the high-vibration and high-humidity environment typical of laundry appliances, featuring robust component soldering and layout optimization to prevent electromechanical failure.

Technical Specifications:
Model Number: EBR874198
Brand Name: Enfirar
Component Type: Motherboard PCBA / Main Control Unit
Functional Application: Electric Washing Machine Logic Control
Substrate Material: FR-4
Copper Thickness: 1 oz
Memory: 2 GB (Integrated Buffer/Logic)
Dimensions: 260 mm x 120 mm x 50 mm
Net Weight: 0.3 kg
Gross Weight: 1.0 kg
Packaging: Reinforced Carton Box
Condition: New
MOQ: 1 Piece

Industrial Application:
This control module is critical for resolving system-level failures such as non-responsive wash cycles, error code displays indicating main logic faults, or intermittent power distribution issues. It is designed to replace damaged OEM units where relay contacts may have fused or microcontroller logic has degraded due to power surges or age. The unit ensures seamless integration with existing wire harnesses, maintaining Original Engineering specifications for cycle timing and load management.

Logistics and Support:
Lead Time: Optimized for rapid deployment to minimize equipment downtime.
Technical Compatibility: Verified for specific electric washing machine chassis; consult service manual for exact pinout verification.
After-sales Service: Comprehensive online technical support provided for installation and troubleshooting.

Key Attributes
Type: Motherboard pcba
Functional Application: Electric Washing Machine
RAM: 2 GB
Model Number: EBR874198
Place of Origin: Zhejiang, China
Brand Name: Enfirar
Copper Thickness: 1 oz
Supplier Type: Control Board Panel
Operating System: Android 8.0
Application: 1
Product name: Electric Washing Machine Control Board
Model: EBR874198
Application: HVAC
MOQ: 1PC
Package: Carton box
Weight: 0.3kg
Size: 26*12*5cm
Condition: New
After-sales service provided: Online support

Packaging and Delivery
Selling Units: Single item
Single package size: 26X12X5 cm
Single gross weight: 1.000 kg
