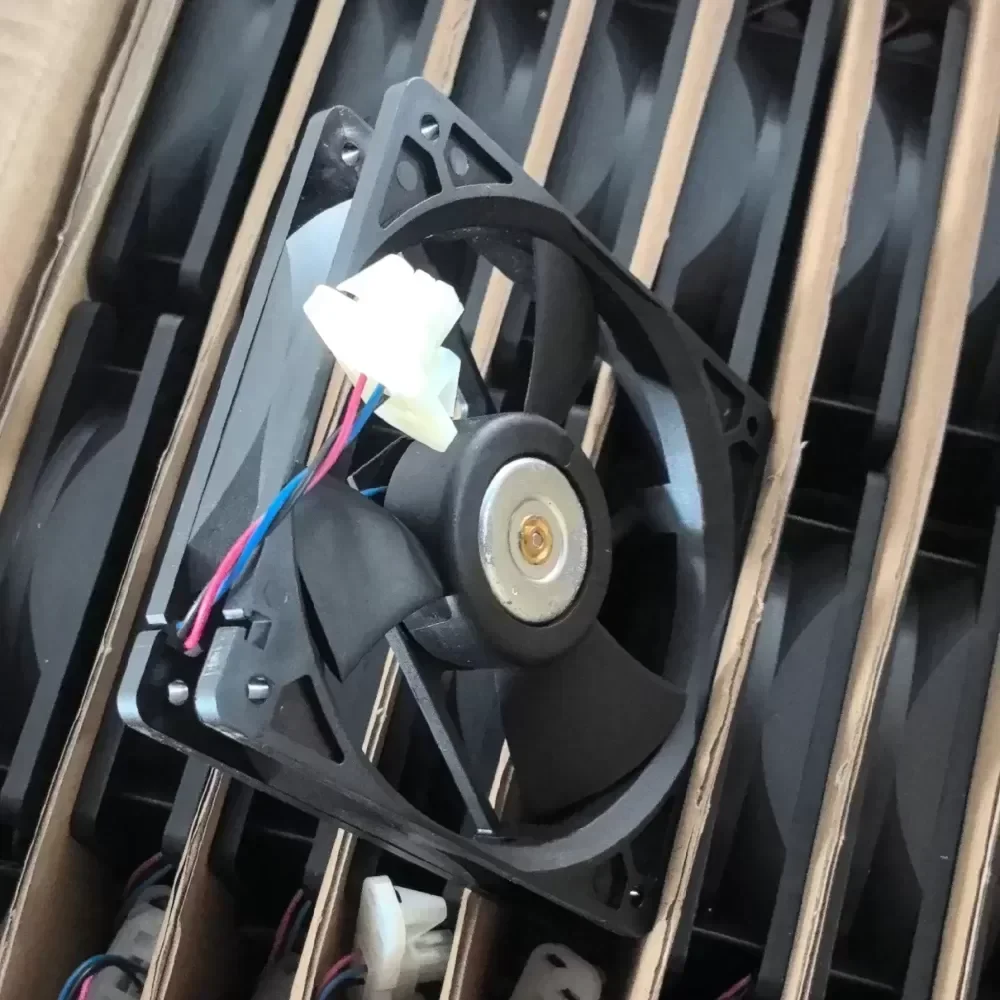

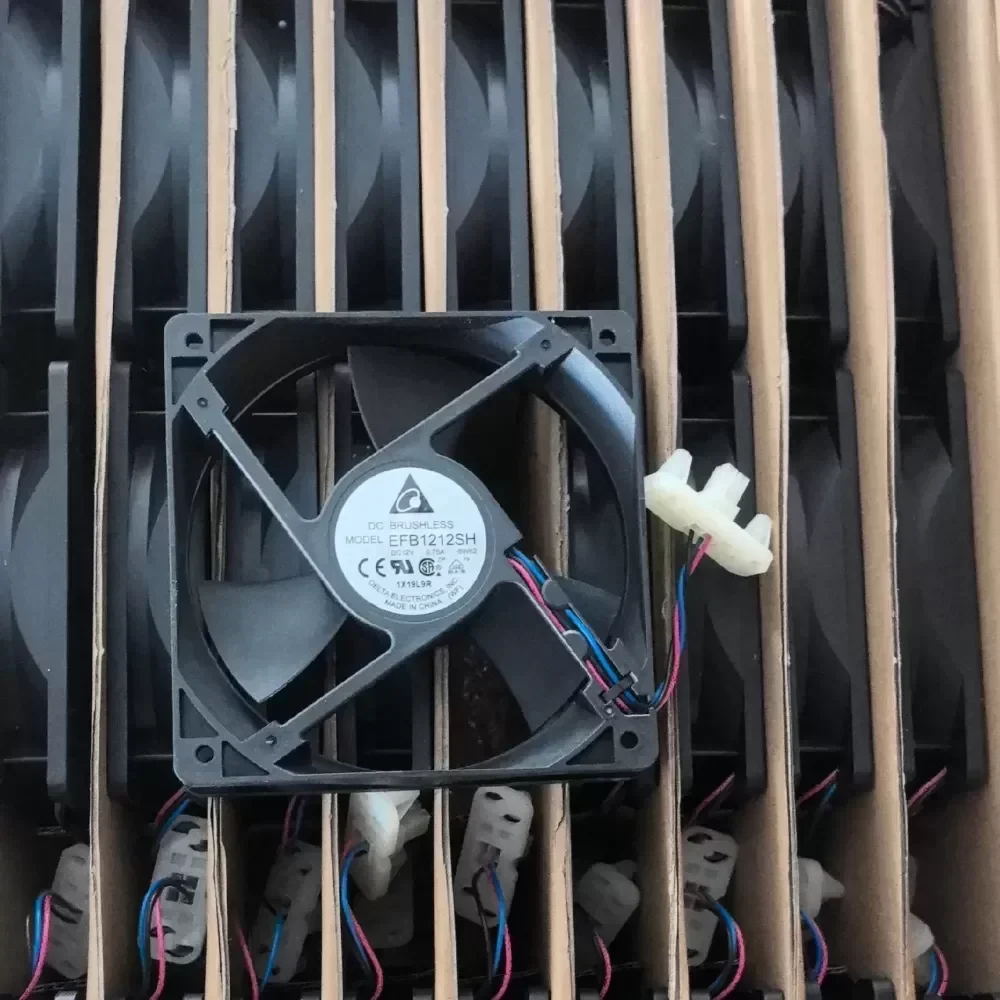

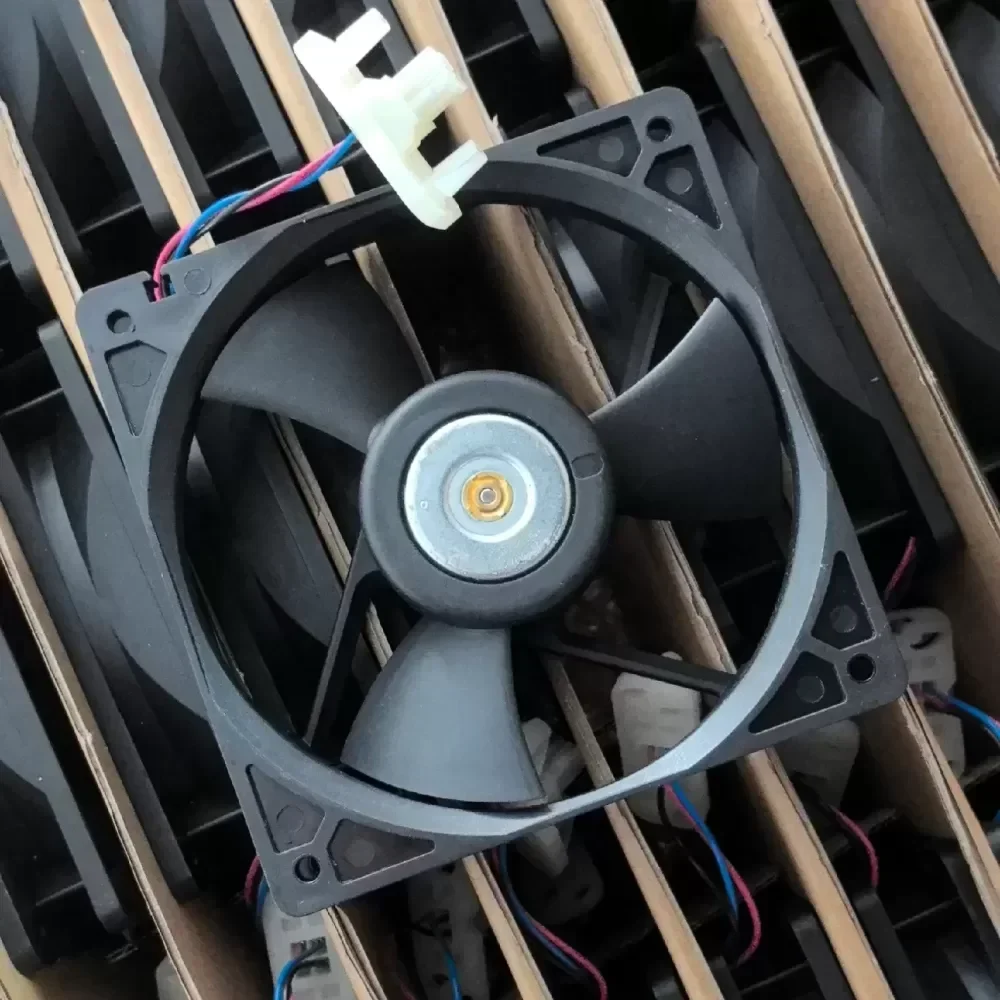

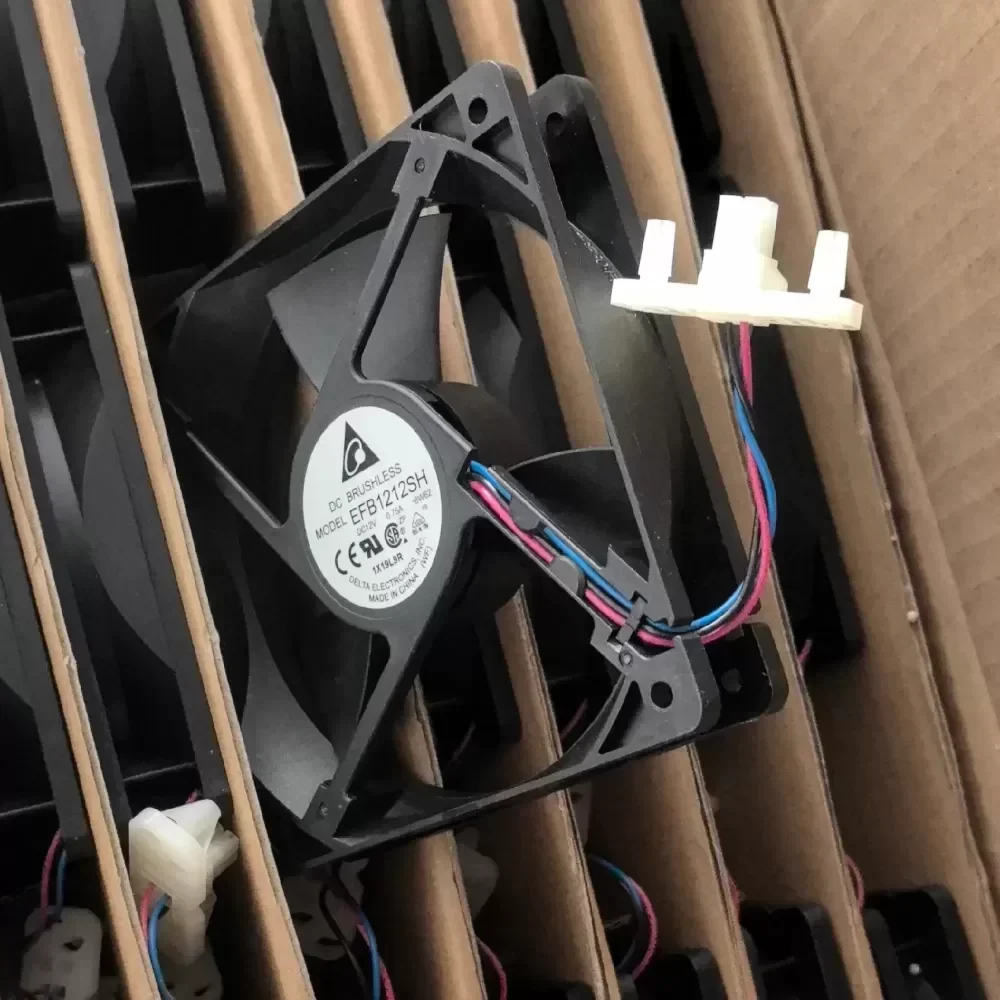

EFB1212SH Delta 12V 0.75A 12CM fan

Name: EFB1212SH Delta 12V 0.75A 12CM fan
Brand: Delta
SKU: 877730147907
Availability: InStock
Rating: 5 (4 reviews)

$5.14

SKU: 877730147907 Brand: Delta

Description
Reviews (0)

Description

Delta Electronics EFB1212SH High-Performance DC Axial Fan. This unit represents Original Engineering from Delta’s EFB series, designed specifically for high-impedance thermal management applications. The EFB1212SH utilizes a robust Dual Ball Bearing system, ensuring extended lifecycle value and operational stability under continuous load. This specific configuration features a 3-wire interface providing tachometer signal output for precise RPM monitoring and system feedback integration. The fan is optimized for scenarios requiring a balance of high airflow and significant static pressure.

Technical Specifications:
Manufacturer: Delta Electronics
Model: EFB1212SH
Component Type: DC Brushless Axial Fan
Frame Dimensions: 120 mm x 120 mm x 25.4 mm
Bearing Type: Dual Ball Bearing
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 VDC to 13.8 VDC
Rated Current: 0.75 A
Input Power: 9.00 W
Rotational Speed: 3400 RPM
Maximum Airflow: 102.59 CFM (2.90 m³/min)
Maximum Static Pressure: 7.65 mmH2O (0.301 IN H2O)
Acoustic Noise: 46.5 dB-A
Termination: 3-Wire Leads with Tachometer Sensor
Housing Material: Thermoplastic PBT (UL 94V-0)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Weight: 250 g

Industrial Application:
The EFB1212SH is engineered for high-static pressure environments where airflow is restricted by dense componentry. It is the optimal solution for 2U/4U rackmount server chassis, telecommunications power supply units, and industrial automation control cabinets. The high RPM and static pressure capabilities ensure effective heat dissipation through heatsinks and dense filter media, maintaining Technical Compatibility with rigorous industrial cooling standards. Immediate availability reduces Lead Time for critical maintenance and system builds.

EFB1212SH Delta 12V 0.75A 12CM fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
