F12038Z40D024-SM100 DC 24V 1.0A Axial Fan

F12038Z40D024-SM100 DC 24V 1.0A Axial Fan

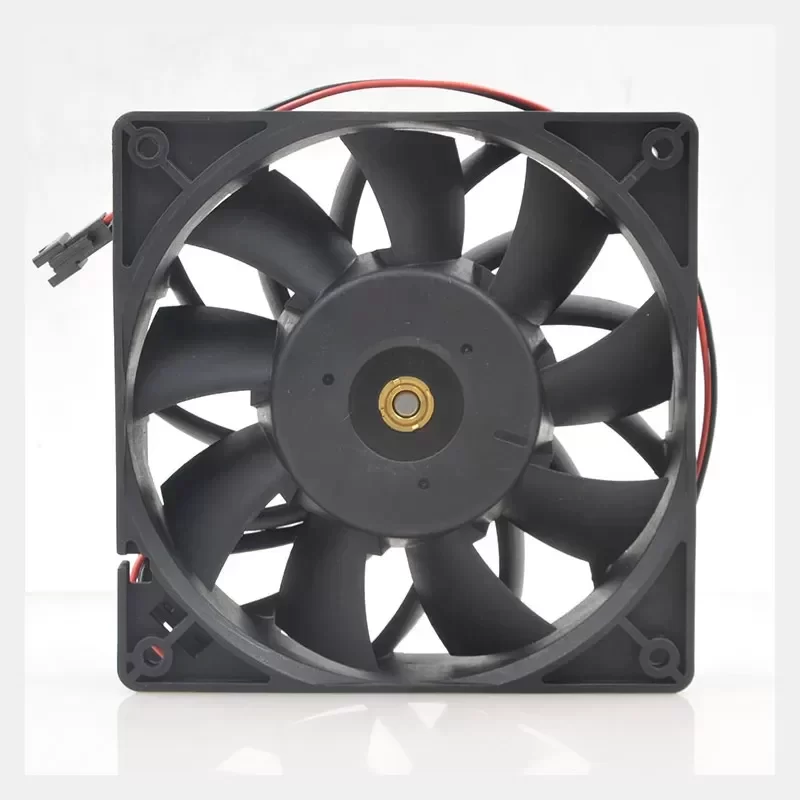

Name: F12038Z40D024-SM100 DC 24V 1.0A Axial Fan
SKU: 1601199337612
Availability: InStock
Rating: 5 (4 reviews)

$8.99

SKU: 1601199337612

Description
Reviews (0)

Description

The F12038Z40D024-SM100 is a high-performance DC axial brushless fan designed for rigorous thermal management in high-impedance industrial environments. Engineered with a 120mm x 120mm x 38mm form factor, this unit utilizes a robust double ball bearing system to sustain high rotational speeds of 5000 RPM, delivering a substantial airflow of 212.57 CFM. The 38mm frame depth allows for a high-torque motor stator and steep blade pitch, resulting in a static pressure of 0.844 In-H2O, making it superior to standard 25mm fans for pushing air through dense heatsinks or filter arrays. Constructed with reinforced PBT plastic, the unit offers excellent electrical insulation and resistance to environmental stress.

Technical Specifications:
Model Number: F12038Z40D024-SM100
Fan Type: DC Brushless Axial Fan
Nominal Voltage: 24V DC
Rated Current: 1.0 A
Power Consumption: 24.0 W
Rotational Speed: 5000 RPM ±10%
Maximum Airflow: 212.57 CFM
Static Pressure: 0.844 In-H2O
Acoustic Noise: 61 dBA

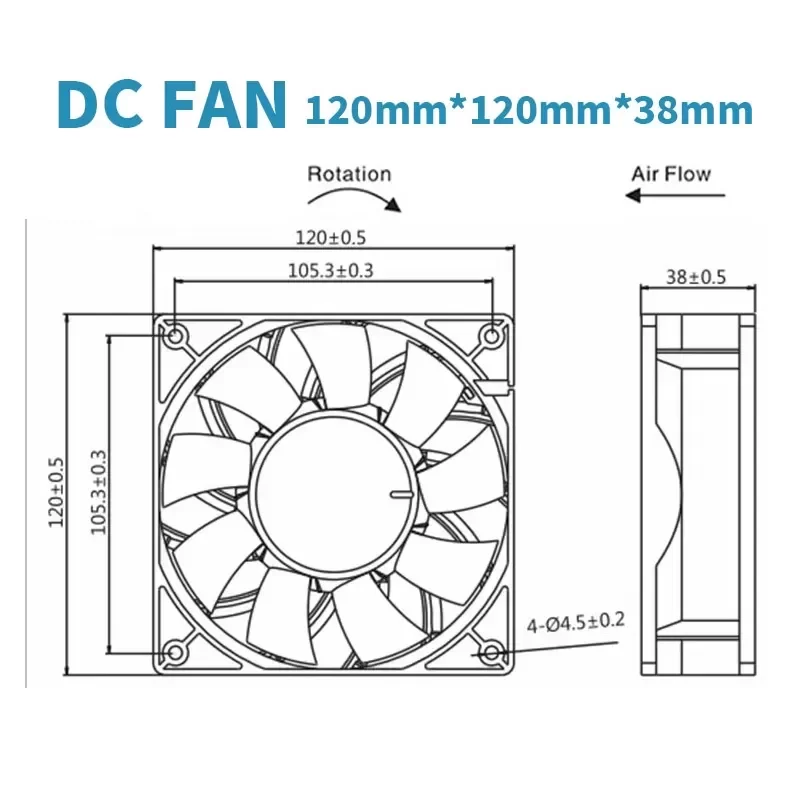

Dimensions: 120mm x 120mm x 38mm
Bearing System: Double Ball Bearing
Frame Material: Reinforced Plastic (PBT UL94V-0)
Blade Material: Reinforced Plastic (PBT)
Operating Temperature: -10°C to +70°C
Net Weight: 0.464 kg

Industrial Application:
This unit is specifically calibrated for forced convection cooling in Variable Frequency Drives (VFDs), solar inverters, and high-density server racks where back-pressure is significant. The high static pressure capability ensures effective heat dissipation across densely packed IGBT modules and fin stacks, preventing thermal throttling in continuous-duty manufacturing and energy sectors.

Procurement Data:
Ensuring Technical Compatibility with existing ventilation architectures is critical for system longevity. We provide Original Engineering specifications to guarantee fit and function for critical repairs. Contact our logistics team for current Lead Time and bulk volume availability.

Key Attributes
Voltage: 24V
Blade material: Plastic
After-sales service provided: Online support
Place of origin: Guangdong, China
Model number: F12038Z40D024-SM100
Fan type: DC Axial Brushless Fan
Electricity: 1.0A
Size: 120x120x38mm
Noise: 61dBA
Speed: 5000RPM±10%
Static pressure: 0.844In-H2O
Air Flow: 212.57CFM
Fan bearing: Double ball bearing
Frame Material: Plastic (black)
Type: Axial Flow Fan
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Printing Shops, Construction works , Energy & Mining, Advertising Company
Core Components: Motor, Bearing

Packaging and Delivery
Selling Units: Single item
Single package size: 13X13X5 cm
Single gross weight: 0.464 kg

F12038Z40D024-SM100 DC 24V 1.0A Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
