F2E-260B-230 Linkwell Axial Fan

Name: F2E-260B-230 Linkwell Axial Fan
SKU: 904015841377
Availability: InStock
Rating: 5 (4 reviews)

$33.43

SKU: 904015841377

Description
Reviews (0)

Description

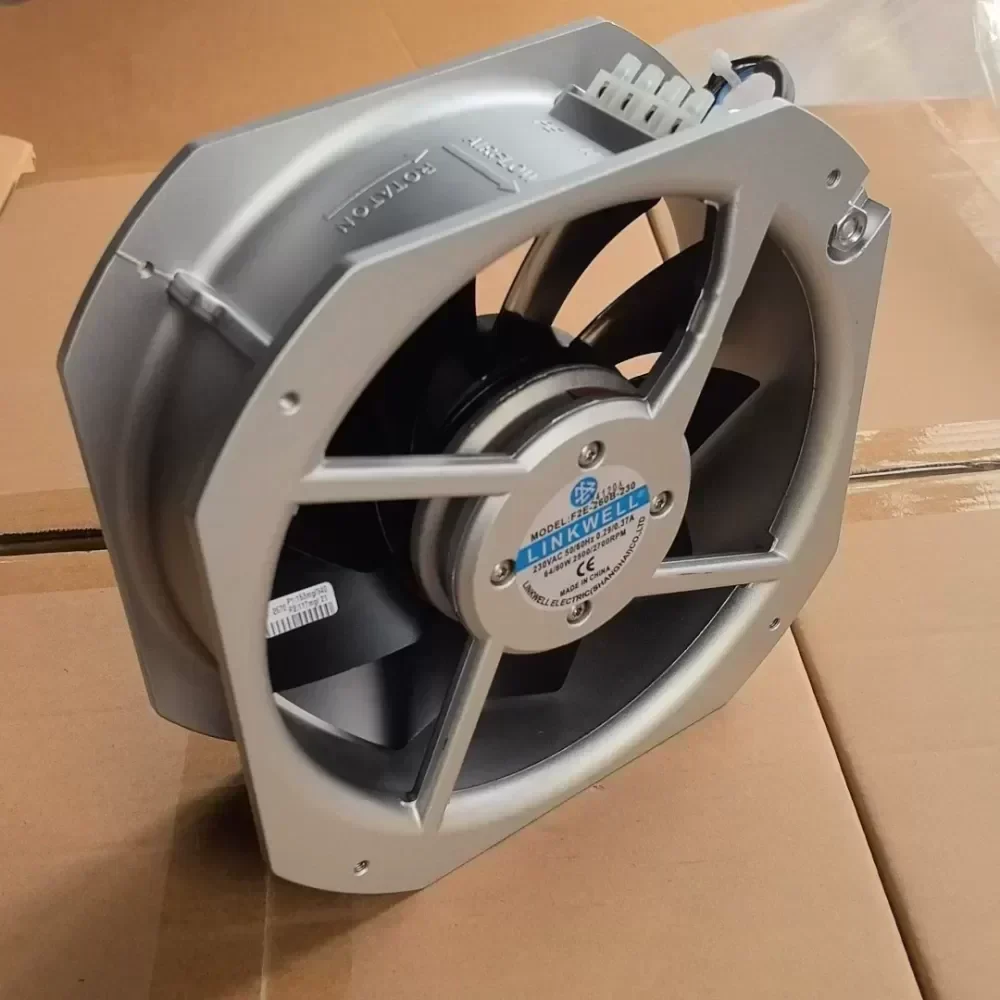

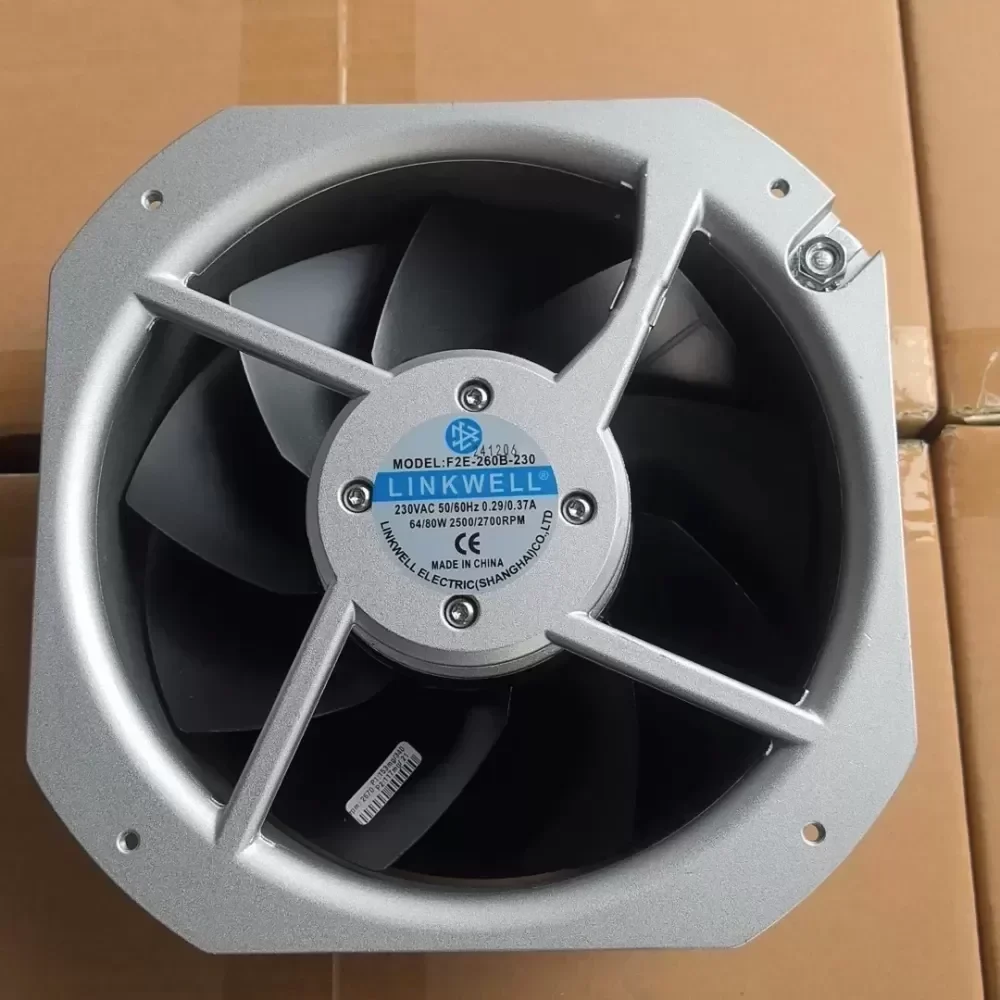

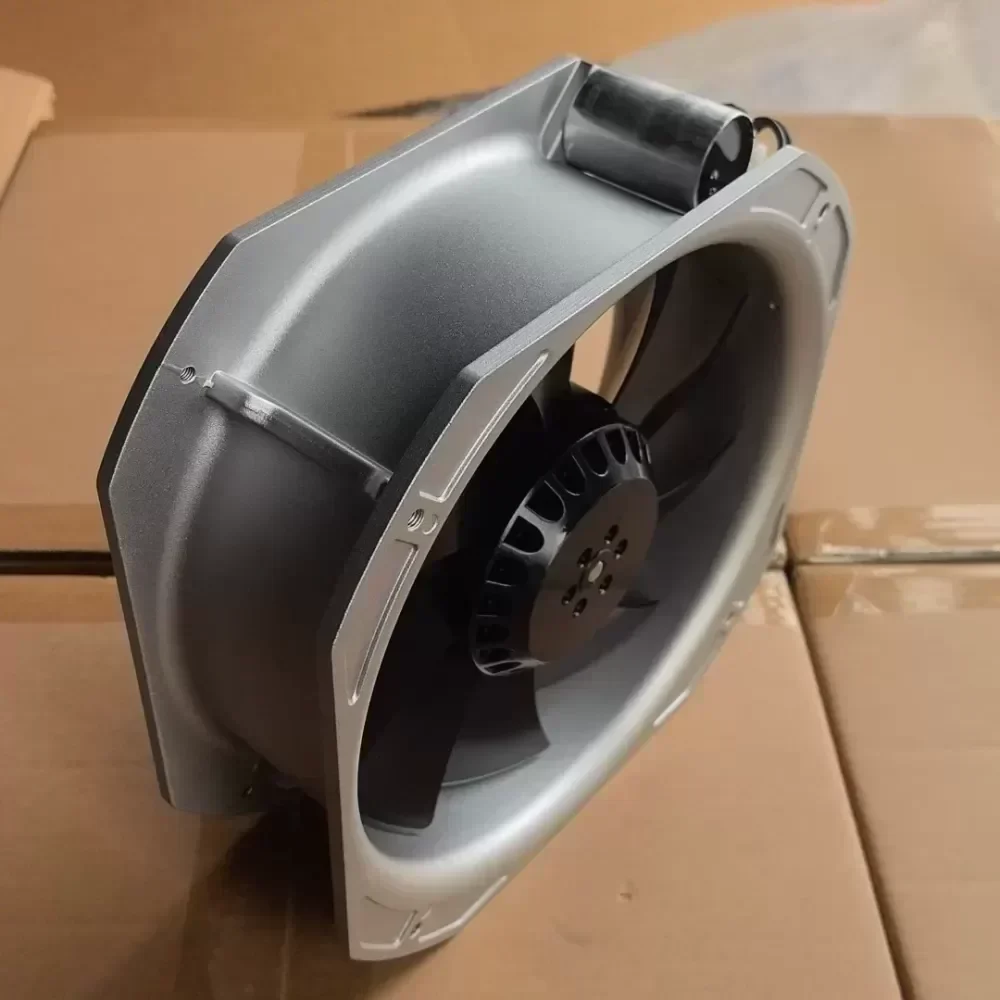

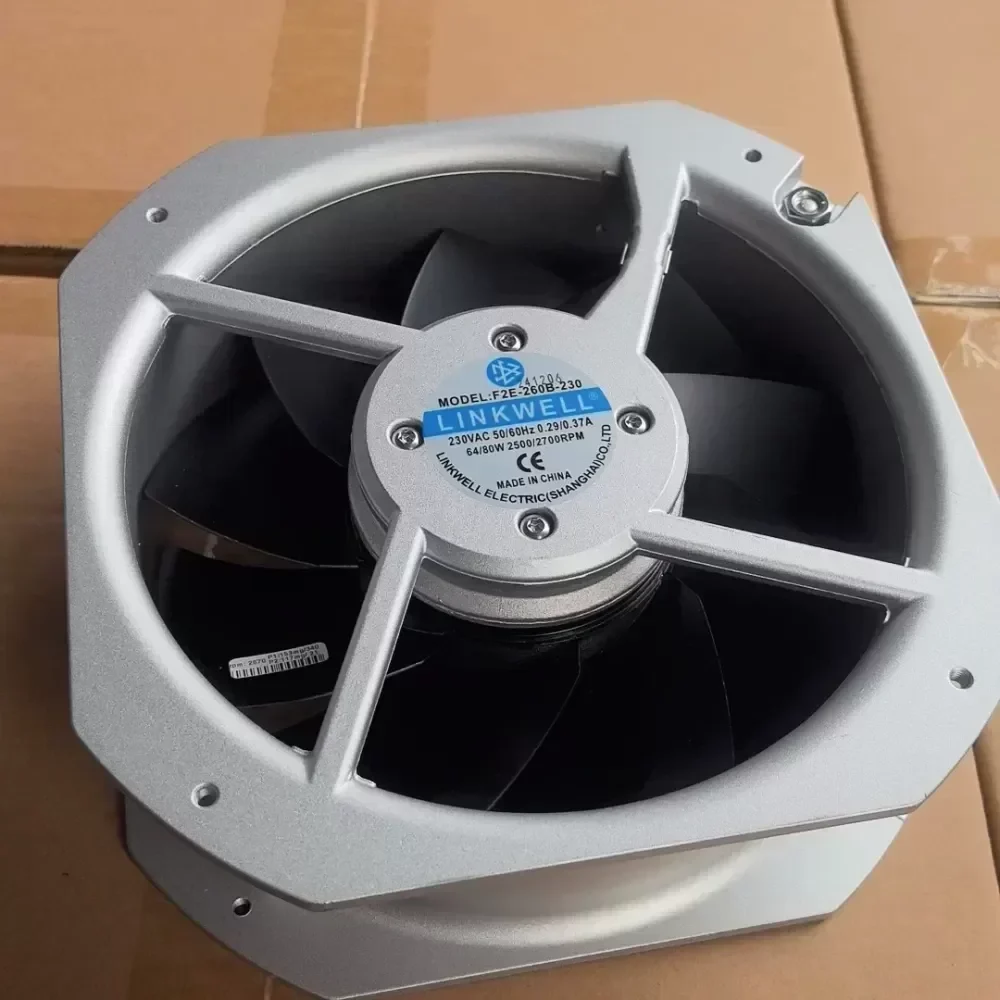

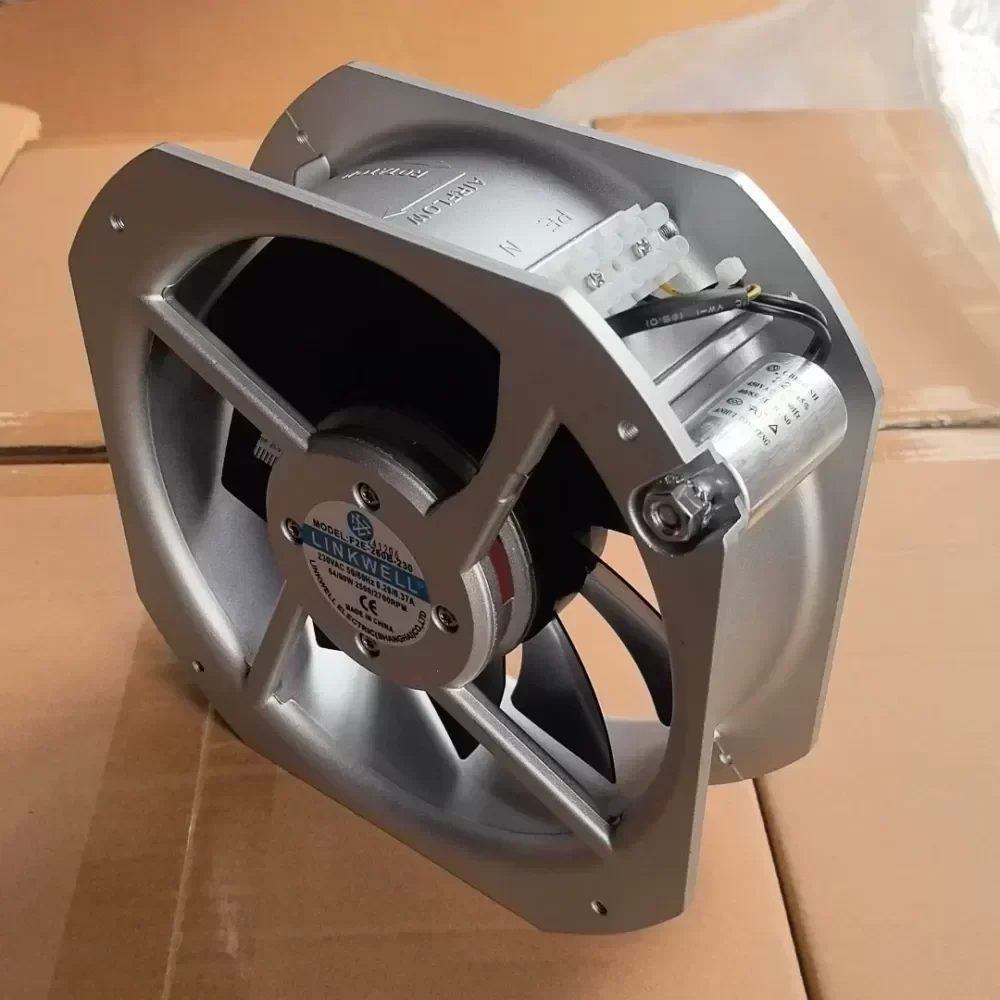

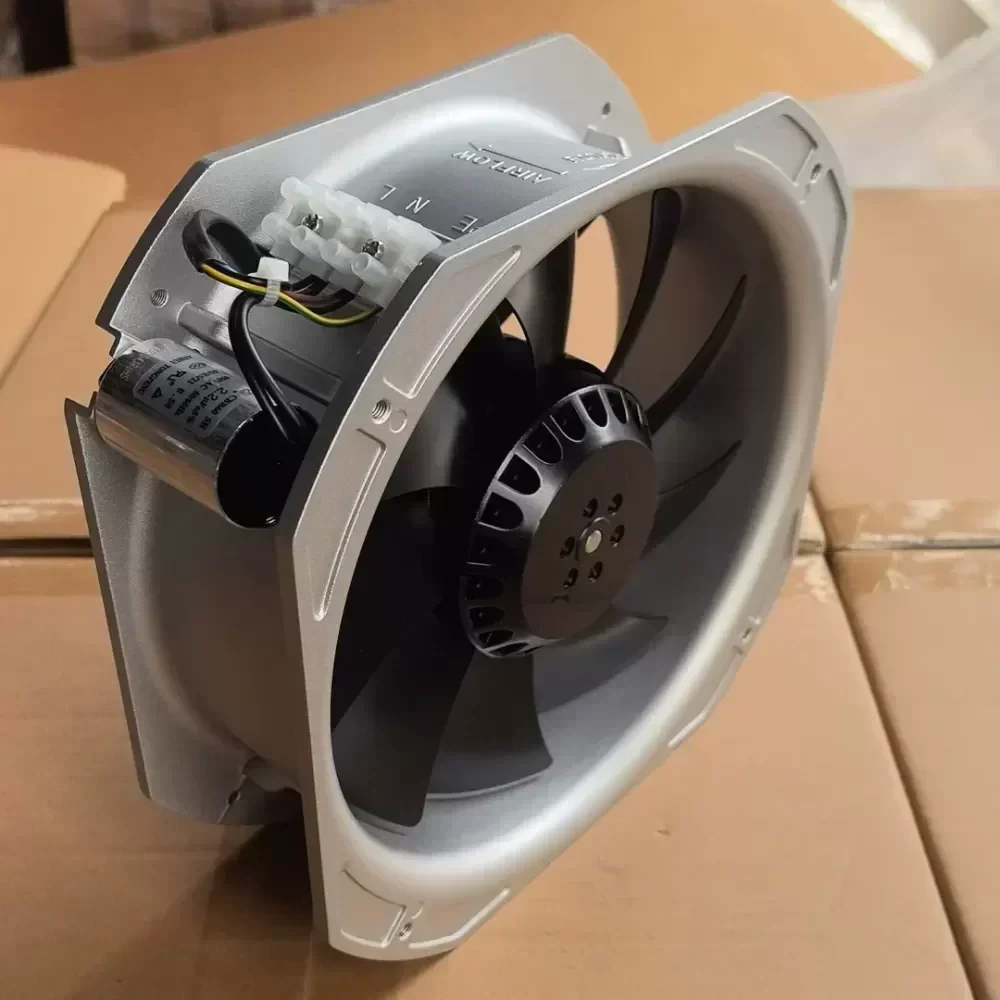

The Linkwell F2E-260B-230 is a heavy-duty industrial axial fan engineered for high-static pressure environments requiring robust thermal management. Designed with Original Engineering standards, this unit features a full die-cast aluminum housing and metal impeller, specifically calibrated for longevity in harsh operational climates where plastic components fail. The F2E-260B-230 ensures Technical Compatibility with standard 225mm cutouts, providing immediate exhaust solutions for high-density server racks, variable frequency drive (VFD) cabinets, and power distribution units. Its dual ball bearing architecture supports continuous duty cycles at elevated temperatures, ensuring consistent airflow performance under variable electrical loads.

TECHNICAL SPECIFICATIONS:
Manufacturer: Linkwell Electric
Model Reference: F2E-260B-230
Component Type: AC Axial Cooling Fan
Dimensions: 225mm x 225mm x 80mm
Rated Voltage: 220/230 V AC
Frequency: 50/60 Hz
Input Power: 64 W (50Hz) / 80 W (60Hz)
Rated Current: 0.28 A / 0.35 A
Rotational Speed: 2500 RPM / 2700 RPM
Max Airflow: 1050 m³/h (approx. 618 CFM)
Static Pressure: 165 Pa
Noise Level: 70 dB(A)
Housing Material: Die-Cast Aluminum with Black Electrophoresis
Impeller Construction: Sheet Steel (Metal)
Bearing Type: Maintenance-Free Dual Ball Bearing
Operating Temperature Range: -30°C to +75°C
Insulation Resistance: > 500MΩ
Dielectric Strength: 1500V AC/1min
Protection Class: IP54
Mounting: Flange Mount
Weight: 2.2 kg

INDUSTRIAL APPLICATION:
This unit is specifically optimized for heat dissipation in enclosed electrical cabinets housing high-load thyristors and transformers. The all-metal construction allows for installation in environments with ambient temperatures exceeding 60°C, such as steel manufacturing control rooms or injection molding facility panels, where standard thermoplastic fans would suffer structural deformation. Contact us for current Lead Time and bulk integration support.

F2E-260B-230 Linkwell Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
