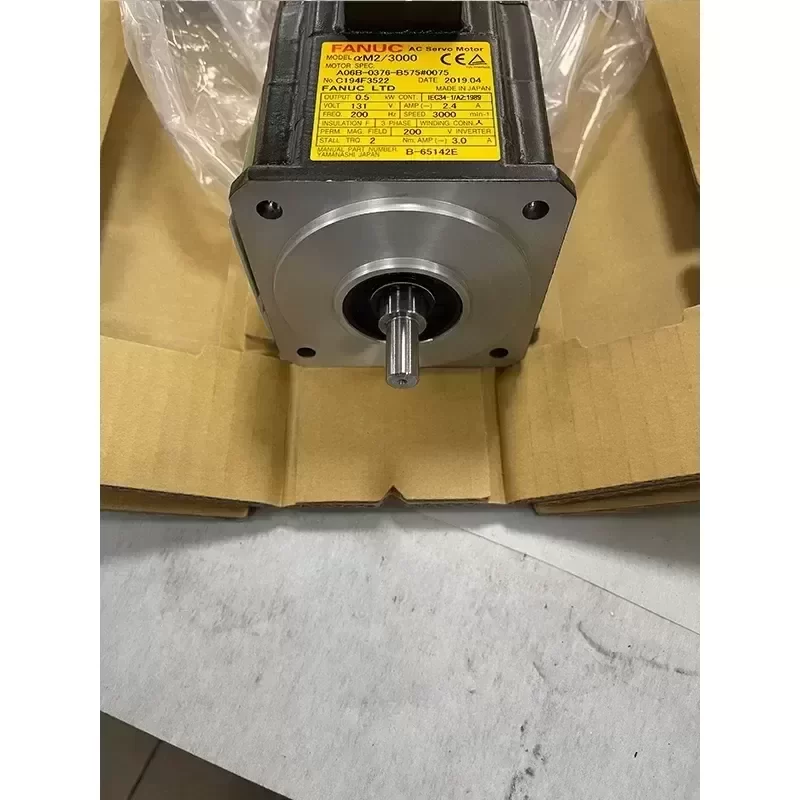

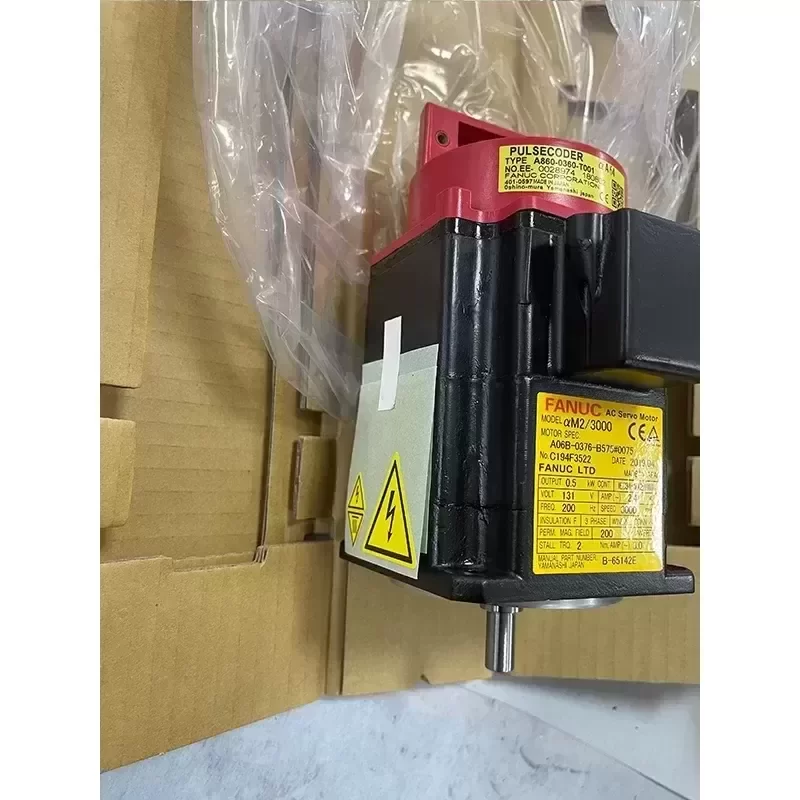

FANUC A06B-0376-B575#0075 AC Servo Motor

Description

The FANUC A06B-0376-B575#0075 is a precision AC Servo Motor from the Alpha M series, specifically identified as the model alpha M2.5/3000. This unit is engineered for high-dynamic industrial applications requiring exact positioning and superior speed stability. This motor exemplifies Original Engineering standards, featuring a high-resolution absolute pulse coder that provides immediate position detection upon system startup, effectively eliminating the need for reference return cycles. The B575 suffix explicitly denotes a configuration featuring a tapered shaft and an integrated 24VDC holding brake, a critical safety feature for vertical axis integration where load retention is mandatory during power decoupling. Technical Compatibility is strictly maintained with FANUC Alpha Series Servo Amplifier Modules (SVM), ensuring seamless feedback communication and optimal loop gain performance. The motor utilizes a rare-earth permanent magnet rotor design to minimize heat generation while maximizing torque density within a compact footprint. Encased in a robust housing, it offers resistance to coolant splash and particulate ingress, ensuring longevity in harsh machining environments. We prioritize supply chain efficiency to offer a short Lead Time for this critical component.

Technical Specifications:
Manufacturer: FANUC
Model Number: A06B-0376-B575#0075
Series: Alpha M Series (alpha M2.5/3000)
Rated Output Power: 0.5 kW
Rated Torque (Continuous): 2.4 Nm
Stall Torque: 2.9 Nm
Rated Speed: 3000 RPM
Maximum Speed: 4000 RPM

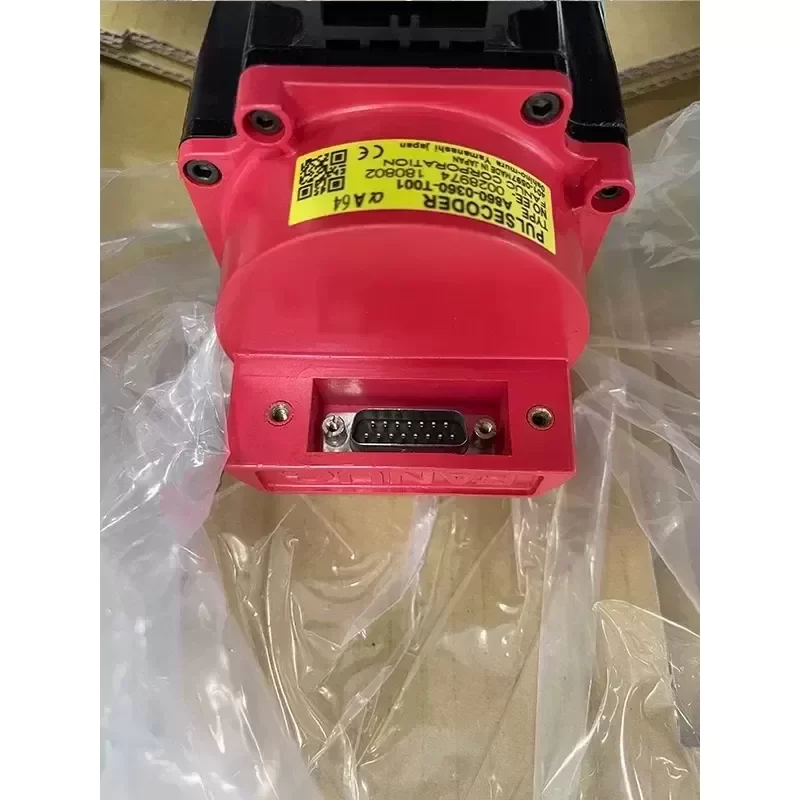

Encoder System: Absolute Pulse Coder
Shaft Configuration: Tapered Shaft
Holding Brake: Integrated (24VDC)
Input Voltage Class: 200V AC
Rated Current: 3.2 A
Flange Dimensions: 90 mm x 90 mm
Shaft Diameter: Ø 16 mm (Tapered)
Protection Rating: IP65
Cooling Method: TENV (Totally Enclosed Non-Ventilated)
Insulation Class: Class F
Ambient Temperature Range: 0 to 40 °C
Weight: 4.5 kg
Country of Origin: Japan

Industrial Application:
This servo motor is specifically deployed in the vertical Z-axis drive systems of compact CNC drilling and tapping centers and robotic arm articulation points. The integrated holding brake prevents the spindle head or robotic manipulator from dropping due to gravity during emergency stops or power failures, protecting both the tooling and the workpiece from damage. Its high-response absolute encoder ensures synchronization accuracy required for rigid tapping operations and complex interpolation paths.

Key Attributes
Place of Origin: Japan
Model Number: A06B-0376-B575#0075
Brand Name: FANUC
Product name: A06B-0376-B575#0075
Condition: Original new
Warranty: 12 Months
Stock: Available
Shipping terms: All terms are accepted
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Delivery Time: 3-5 Days
Package: Carton packing
MOQ: 1 Piece

Packaging and Delivery
Selling Units: Single item
