Description

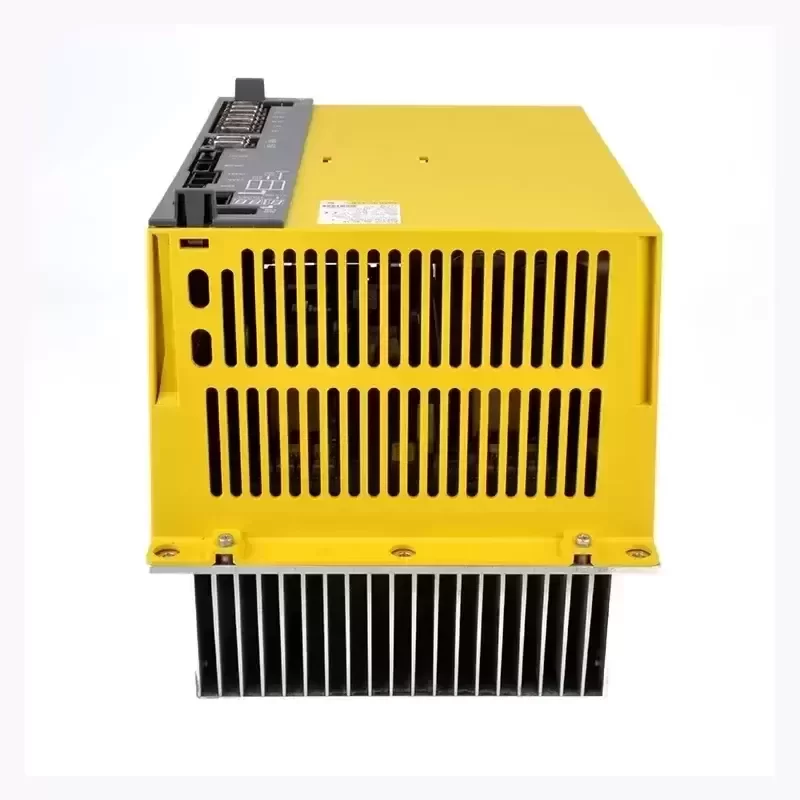

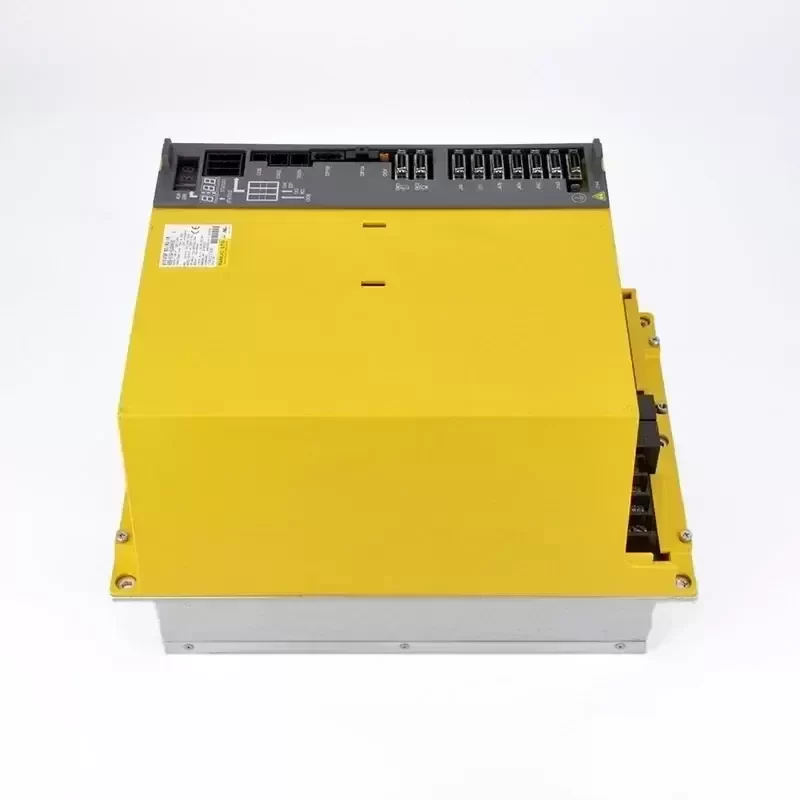

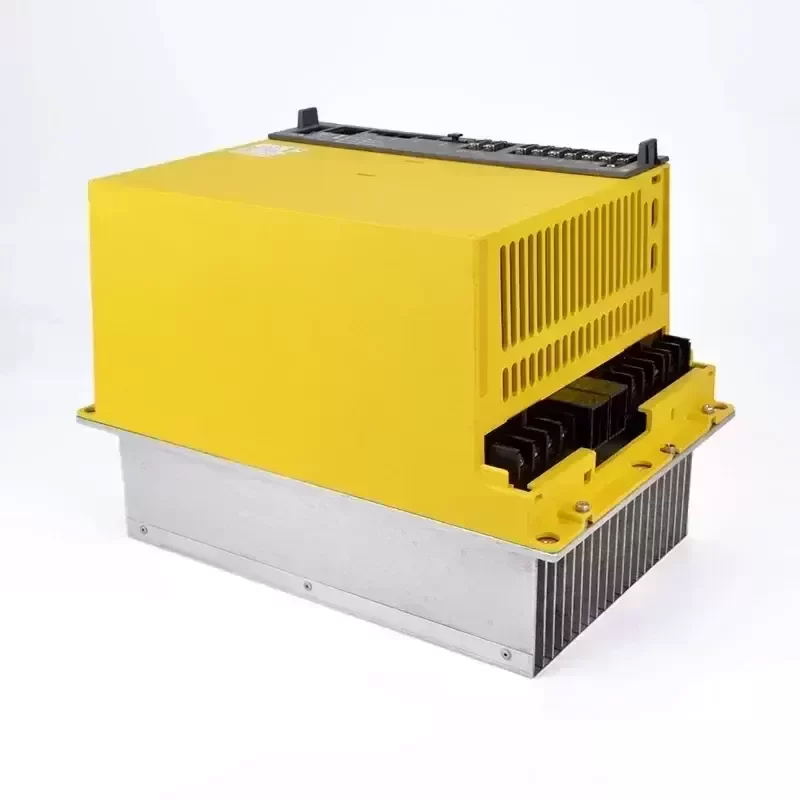

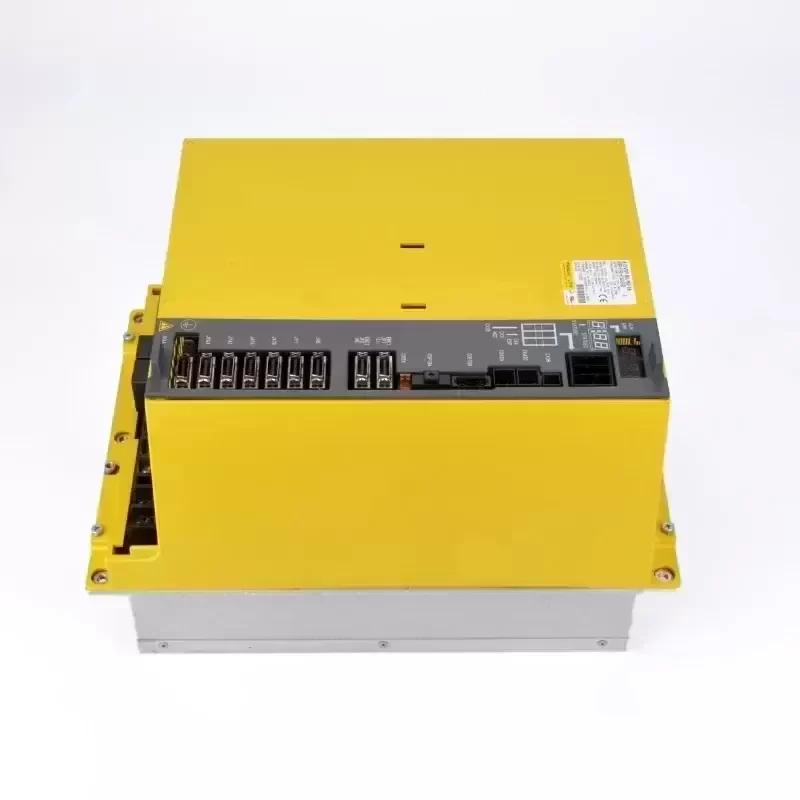

The FANUC A06B-6164-H244#H580 is a high-density Beta iSVSP Combined Servo and Spindle Amplifier Module, engineered specifically for compact, high-efficiency CNC automation systems. This unit represents a sophisticated integration of multi-axis control, combining servo drive functionality with spindle amplification in a single chassis. By utilizing the FANUC Serial Servo Bus (FSSB), this drive ensures ultra-fast, interference-free optical communication between the CNC controller and the motor systems, essential for high-precision machining tasks. The unit features a robust aluminum and steel construction designed to withstand the thermal and vibrational stresses of industrial environments.

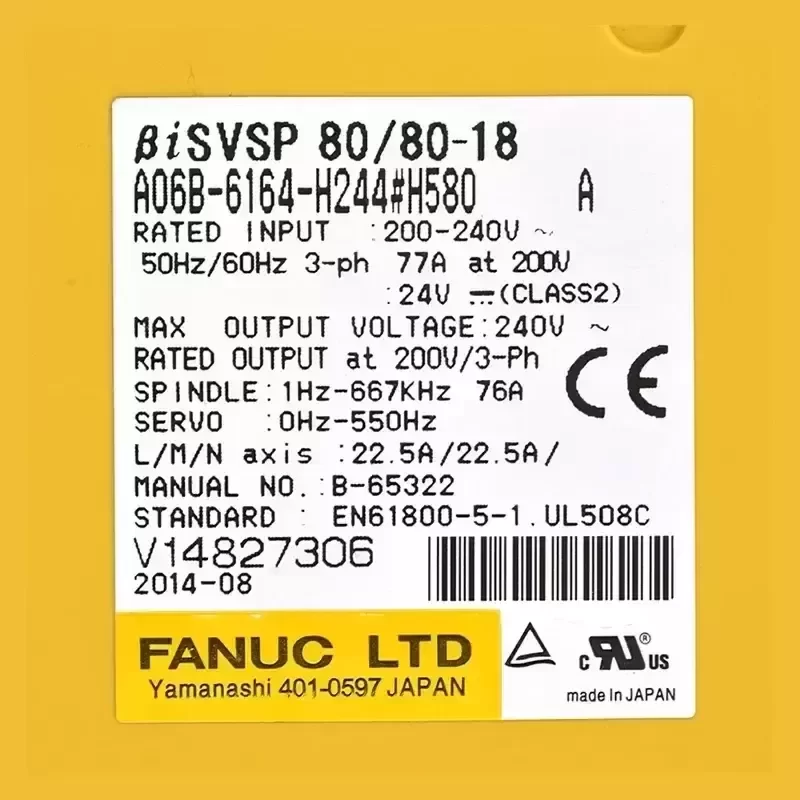

Technical Specifications:
Manufacturer: FANUC
Country of Origin: Japan
Model Number: A06B-6164-H244#H580
Series: Beta iSVSP (Integrated Servo/Spindle)
Module Type: All-in-One Amplifier Unit
Control Interface: FSSB (Optical Fiber)
Input Voltage: 200-240V AC, 3-Phase
Axis Configuration: Multi-Axis (Servo Axes + Spindle Axis)
Power Regeneration: Power Supply Injection capable
Cooling Method: Internal Forced Air with Rear Heat Sink
Ambient Operating Temperature: 0°C to 55°C
Humidity Tolerance: 95% RH or less (non-condensing)
Enclosure Material: Aluminum / Steel Chassis
Mounting Type: Panel Mount (Vertical)
Shipping Weight: 25.0 kg
Shipping Dimensions: 50 x 50 x 50 cm
Condition: Original New
Industrial Application:
This integrated amplifier is the core power control unit for compact Vertical Machining Centers (VMC) and high-speed drilling/tapping centers. It is specifically designed to drive Beta i series servo motors for axis feed and Beta i series spindle motors simultaneously. The A06B-6164-H244#H580 is critical for applications requiring synchronized motion control, such as rigid tapping and complex 3D contouring, where the latency between spindle load and axis movement must be minimized. Its consolidated architecture significantly reduces cabinet wiring and footprint compared to modular separation systems.
Procurement & Compatibility:
Sourcing Original Engineering ensures full Technical Compatibility with FANUC Series 0i-Model D/F and Series 30i/31i/32i CNC systems, preventing communication errors common with generic replacements. We maintain a streamlined inventory to offer a Lead Time of 1-2 days, ensuring rapid restoration of production lines.
Key Attributes
Application: Power Station, Building, Industrial Equipment, Electronic Equipment, Electric Power Transmission, Cnc Machine, Automation
Material: Steel, Aluminum
Motor Type: Servo
Place of Origin: Japan
Model Number: A06B-6164-H244#H580
Brand Name: FANUC
Product name: A06B-6164-H244#H580
Condition: Original new
Warranty: 12 Months
Stock: Available
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Package: Carton packing
MOQ: 1 Piece
Packaging and Delivery
Selling Units: Single item
Single package size: 50X50X50 cm
Single gross weight: 25.000 kg
