Description

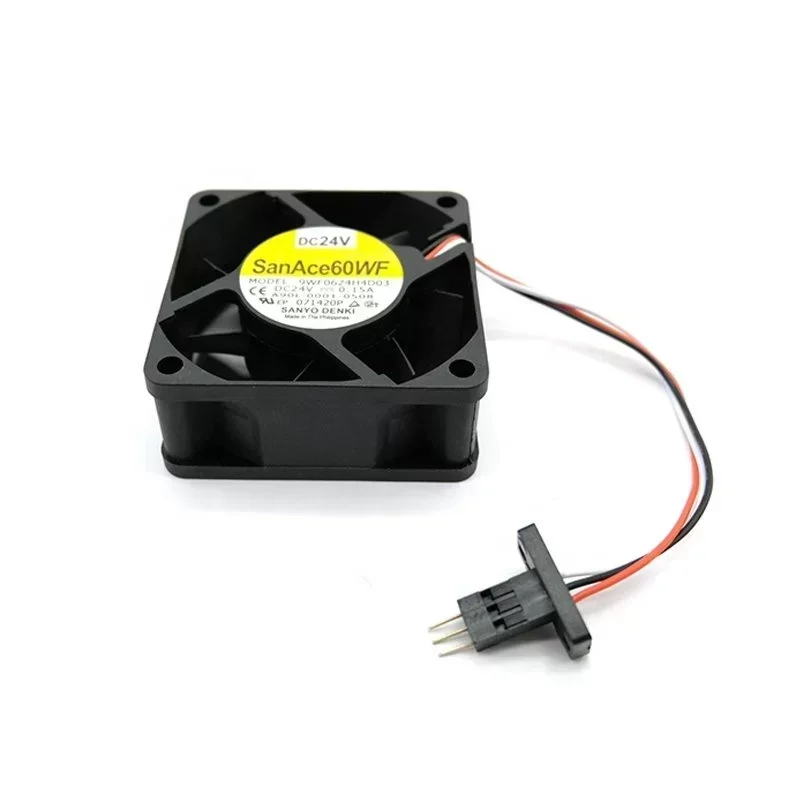

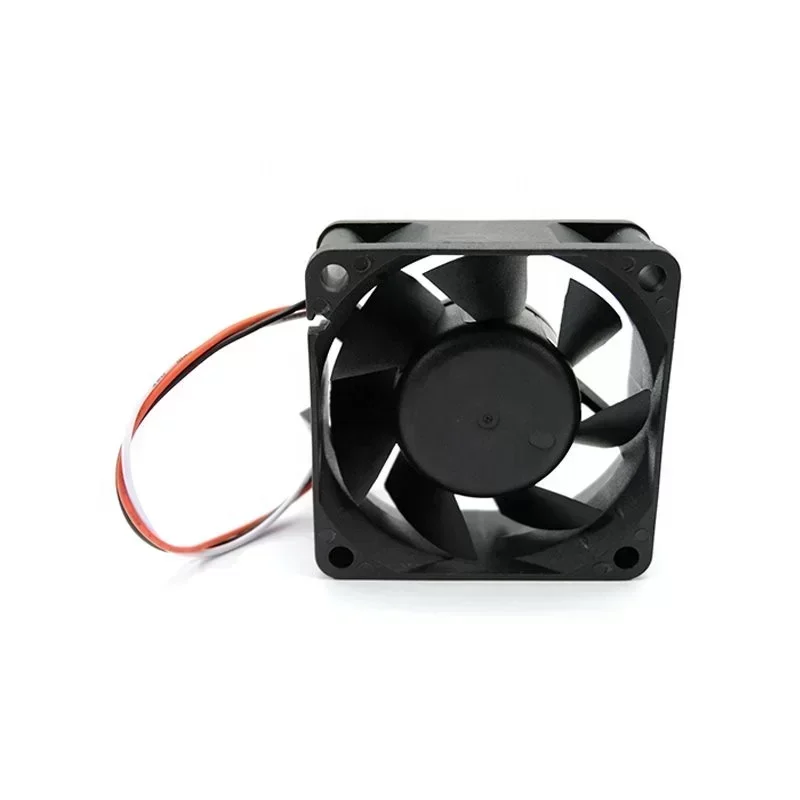

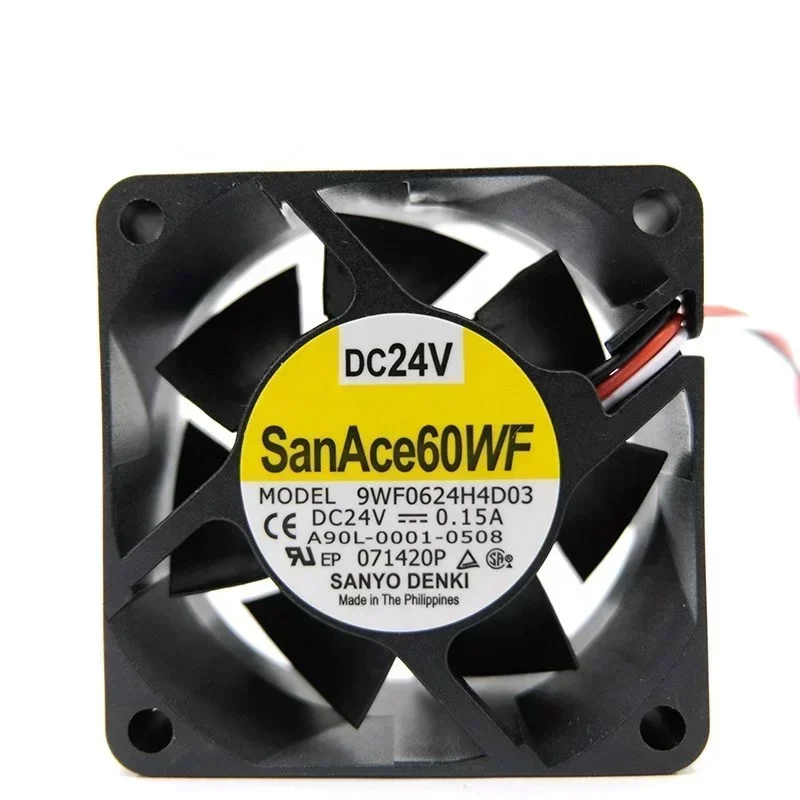

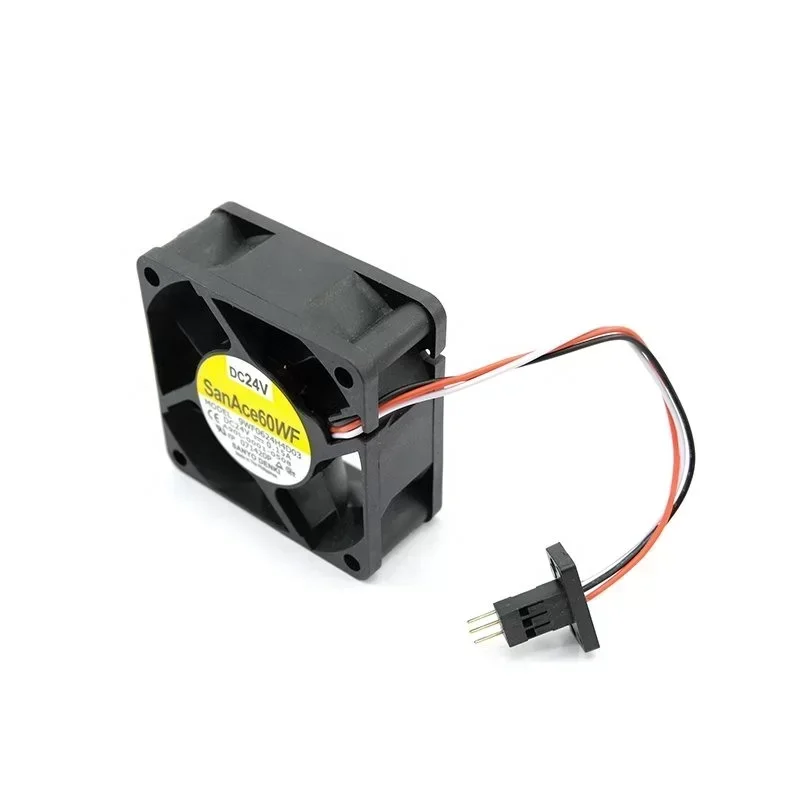

The Fanuc A90L-0001-0508 is a specialized industrial axial cooling fan engineered by Sanyo Denki (San Ace 60W series) specifically for Fanuc Alpha i and Beta i series Servo Amplifier Modules. Identified by the manufacturer model 9WF0624H4D03, this component is critical for the thermal management of high-performance CNC drive systems. Unlike standard IT cooling solutions, this unit features a robust ‘Oil Proof’ design (indicated by the ‘WF’ series code), making it impervious to the oil mist and conductive dust common in machining environments. The fan integrates a tachometer pulse sensor that interfaces directly with the amplifier logic to monitor RPM; if rotation drops below the threshold, the CNC triggers an alarm to prevent catastrophic overheating of the IGBT modules. This unit ensures Original Engineering performance standards are met, maintaining the necessary static pressure to force air through dense heatsink fins.
Technical Specifications:
OEM Part Number: A90L-0001-0508
Manufacturer Model: 9WF0624H4D03 (San Ace 60W)
Component Type: Oil Proof DC Axial Fan
Input Voltage: 24V DC
Operating Voltage Range: 20.4V – 27.6V DC
Frame Dimensions: 60mm x 60mm x 25mm
Rated Current: 0.15 A
Rated Power: 3.6 W
Rotational Speed: 7600 min-1
Max Airflow: 0.88 m³/min (31.1 CFM)
Max Static Pressure: 108 Pa
Acoustic Noise: 44 dB(A)
Ingress Protection: IP55 (Dust and Water Jet Protected)
Bearing System: Dual Ball Bearing
Material: Flame-retardant Plastic (UL94 V-0)
Operating Temperature: -20°C to +70°C
Life Expectancy: 40,000 hours (at 60°C)
Termination: 3-Wire Lead with Fanuc Proprietary Connector
Sensor Output: Pulse Sensor (Tachometer)
Weight: 110 g
Industrial Application:
This cooling fan is the designated replacement for the internal heatsink cooling of Fanuc Servo Amplifiers (SVM) and Spindle Amplifiers (SPM). It is deployed to dissipate thermal loads generated during high-frequency switching of power electronics. Utilizing this specific model ensures Technical Compatibility with the drive’s diagnostic system, preventing false ‘Fan Stop’ alarms. We provide this critical spare part with a minimized Lead Time to reduce unscheduled downtime in automotive and aerospace manufacturing lines.
Key Attributes
Place of Origin: China
Brand Name: Fanuc
Model Number: A90L-0001-0508
Application: ForFanucAmplifier
Description: Coolingfan
Product Name: Fanuc fan
Condition: New
Warranty: 12 Months
Stock: Available
Shipping terms: All terms are accepted
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Delivery Time: 3-5 Days
Package: Carton packing
MOQ: 1 Piece
Packaging and Delivery
Selling Units: Single item
