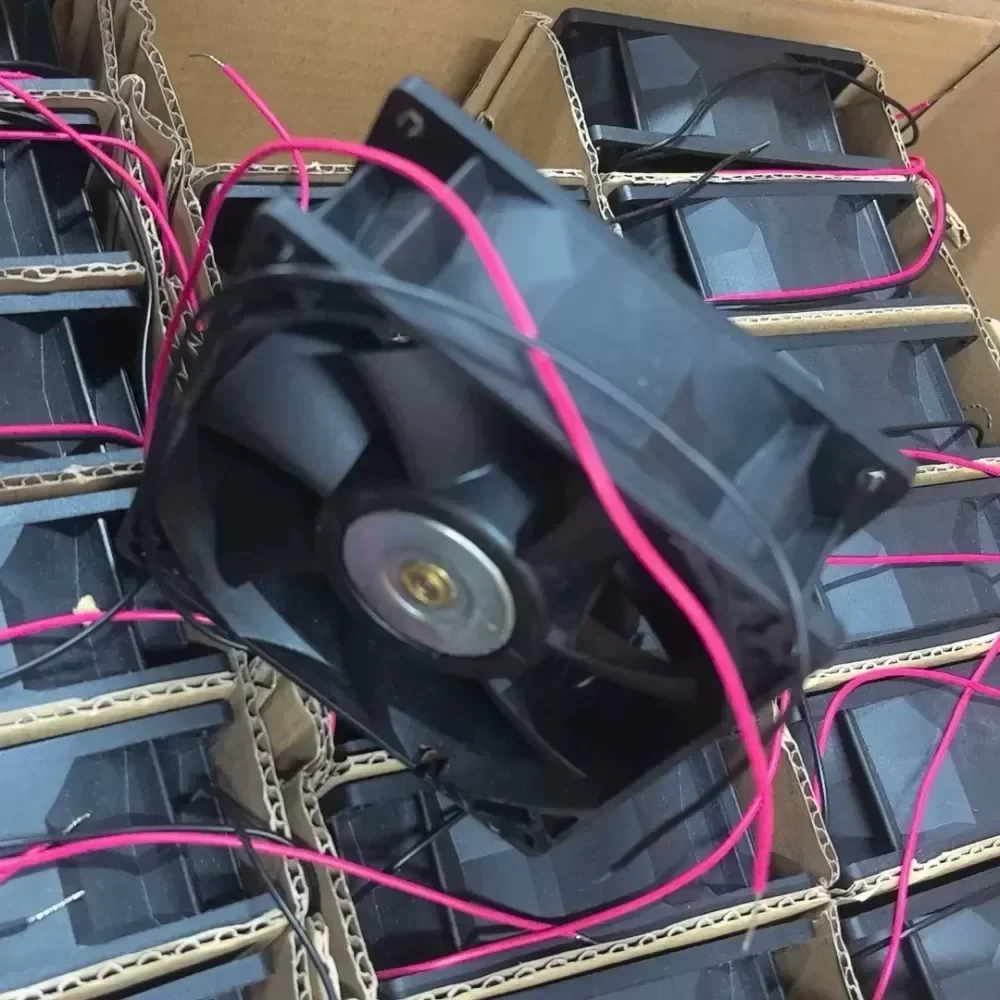

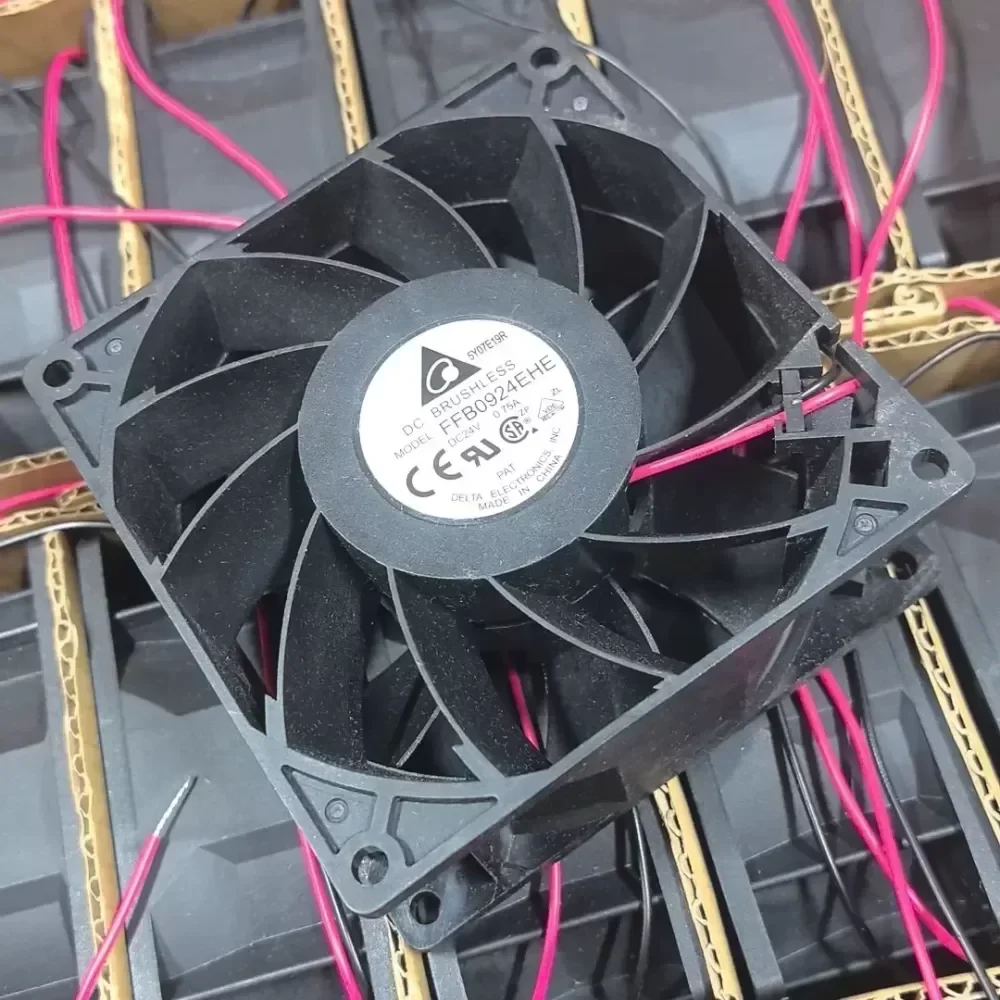

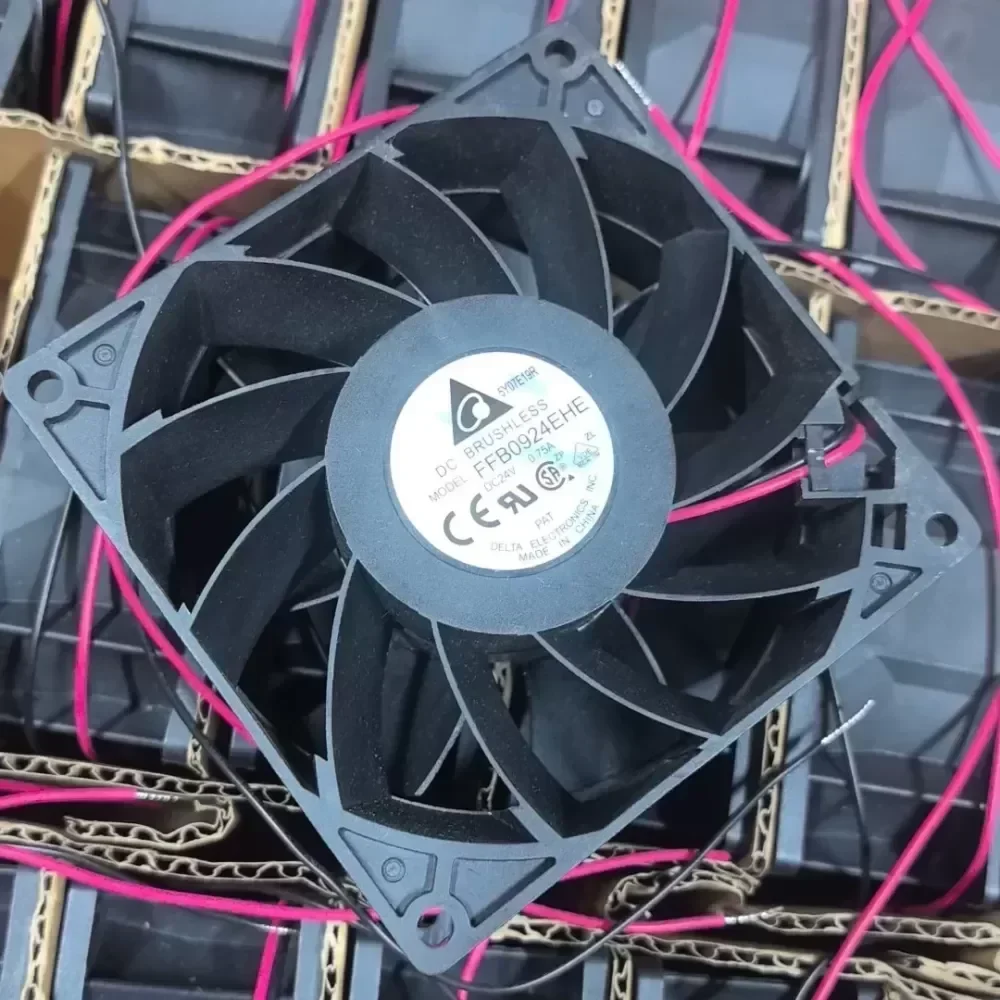

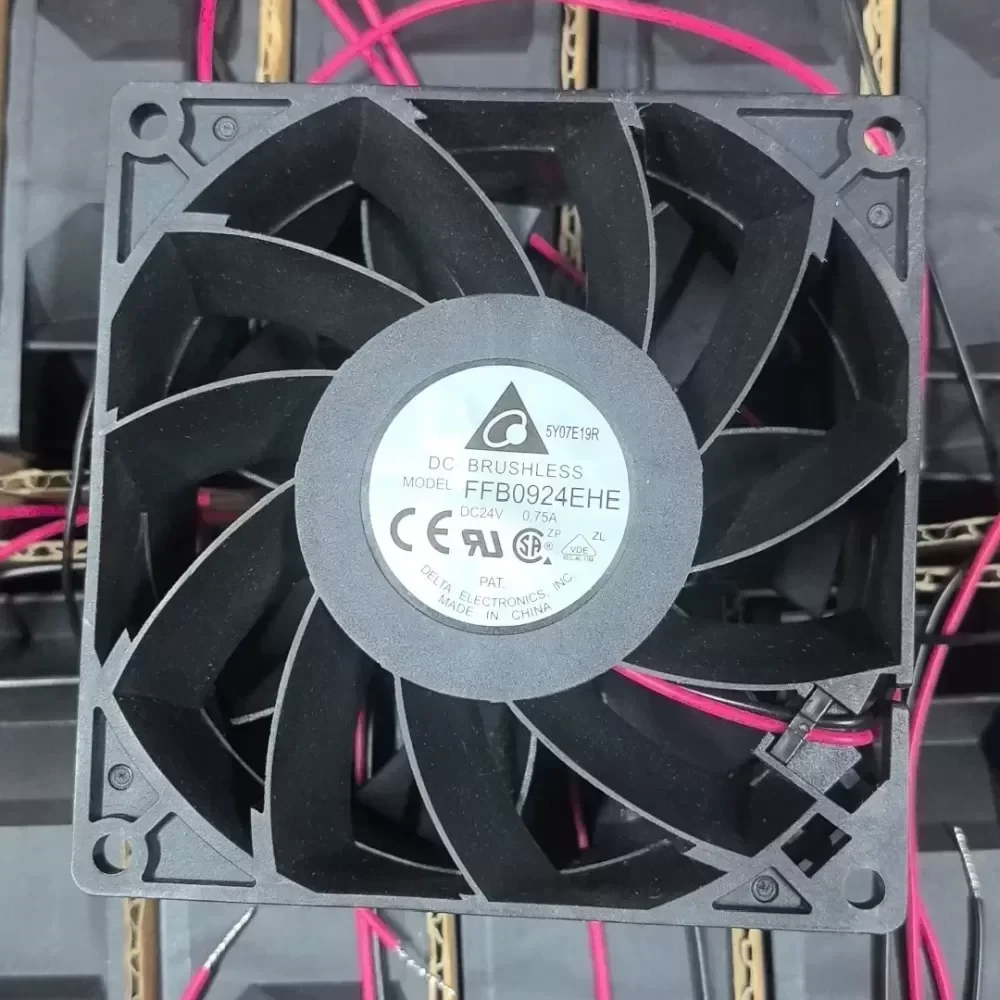

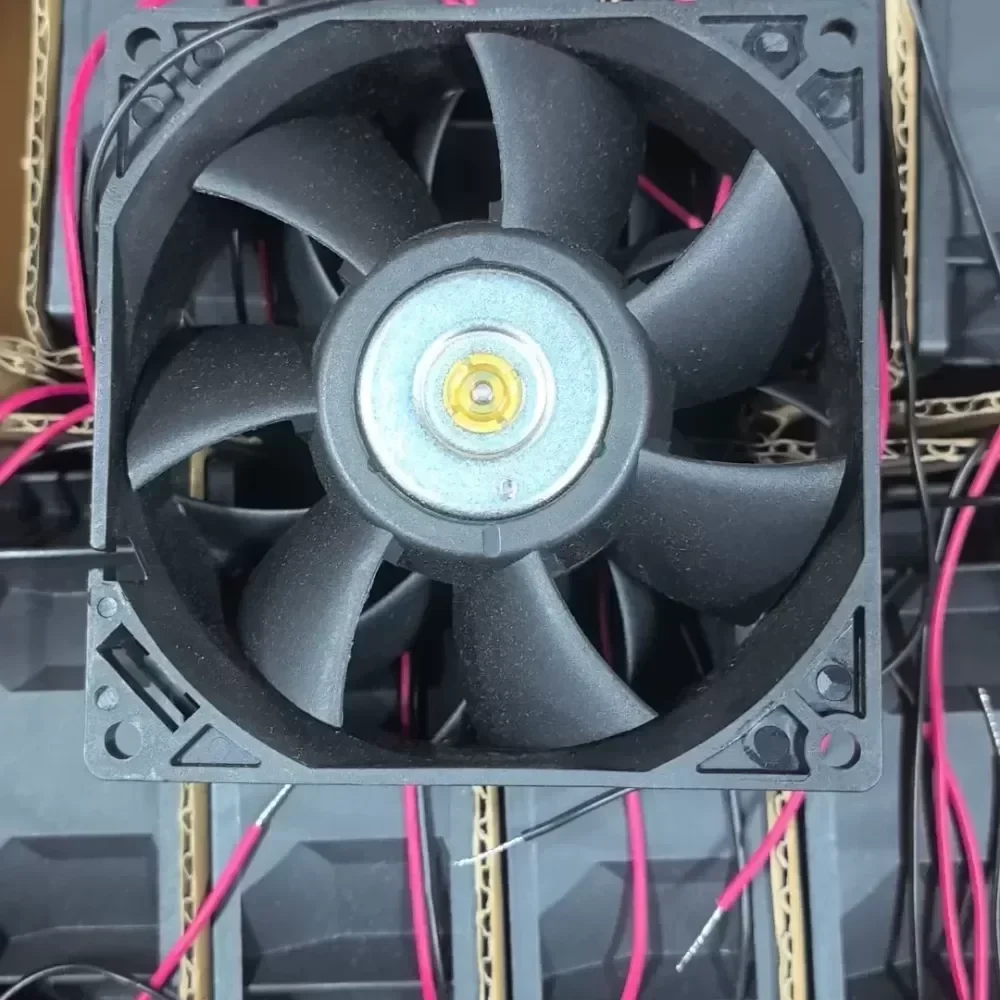

FFB0924EHE Delta DC brushless fan

Name: FFB0924EHE Delta DC brushless fan
Brand: Delta
SKU: 900199748093
Availability: InStock
Rating: 5 (4 reviews)

$5.71

SKU: 900199748093 Brand: Delta

Description
Reviews (0)

Description

The Delta Electronics FFB0924EHE is a high-performance industrial DC axial fan belonging to the FFB Series, specifically engineered for high-impedance air flow requirements. This unit features Original Engineering designed to concentrate airflow and maximize static pressure, making it the standard thermal solution for dense electronic packaging where resistance to airflow is a critical factor. The fan utilizes a dual ball bearing system to ensure long-term reliability and Technical Compatibility with continuous-duty industrial machinery.

TECHNICAL SPECIFICATIONS:
Manufacturer: Delta Electronics
Model Number: FFB0924EHE
Series: FFB (Focused Flow)
Frame Dimensions: 92 mm x 92 mm x 38 mm
Bearing Type: Dual Ball Bearing
Nominal Voltage: 24V DC
Operating Voltage Range: 14.0V – 27.6V
Current Rating: 0.75 A
Power Consumption: 18.00 W
Rated Speed: 4800 RPM
Maximum Airflow: 110.18 CFM (3.12 m³/min)
Static Pressure: 16.90 mmH₂O (0.665 inH₂O)
Noise Level: 55.0 dB-A
Housing Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Termination: 2-Wire / 3-Wire Leads (Configuration Dependent)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 Hours at 40°C
Weight: 198 g

INDUSTRIAL APPLICATION:
This model is specifically optimized for forced-air cooling in high-power inverters, variable frequency drives (VFDs), and server power supply units where components are densely packed. The high static pressure capability allows the FFB0924EHE to push air effectively through restrictive heat sinks and filters, preventing thermal throttling in critical automation equipment. Contact us to confirm current Lead Time and specific connector configurations.

FFB0924EHE Delta DC brushless fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
