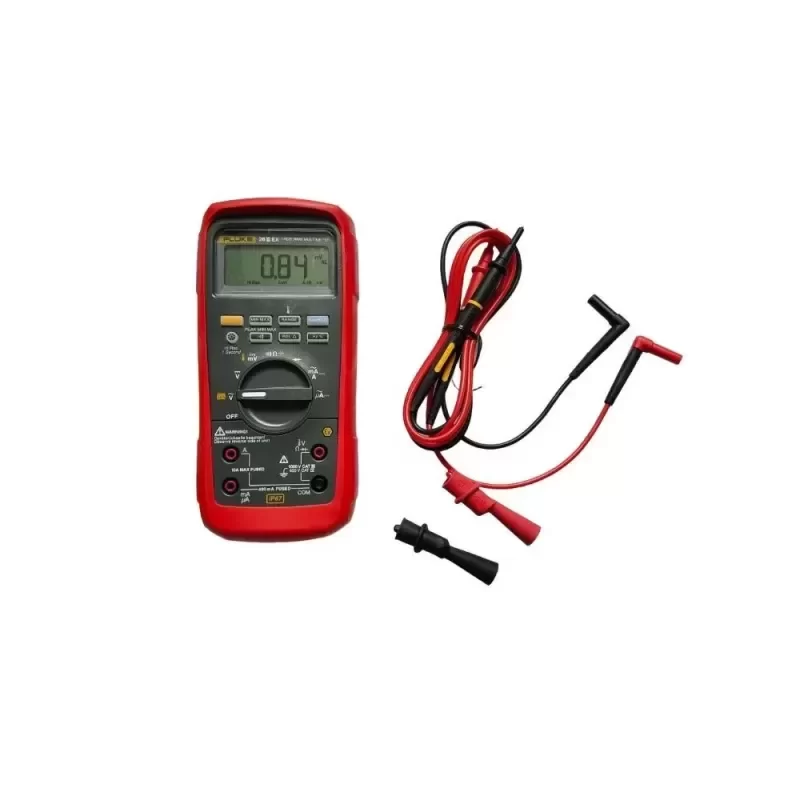

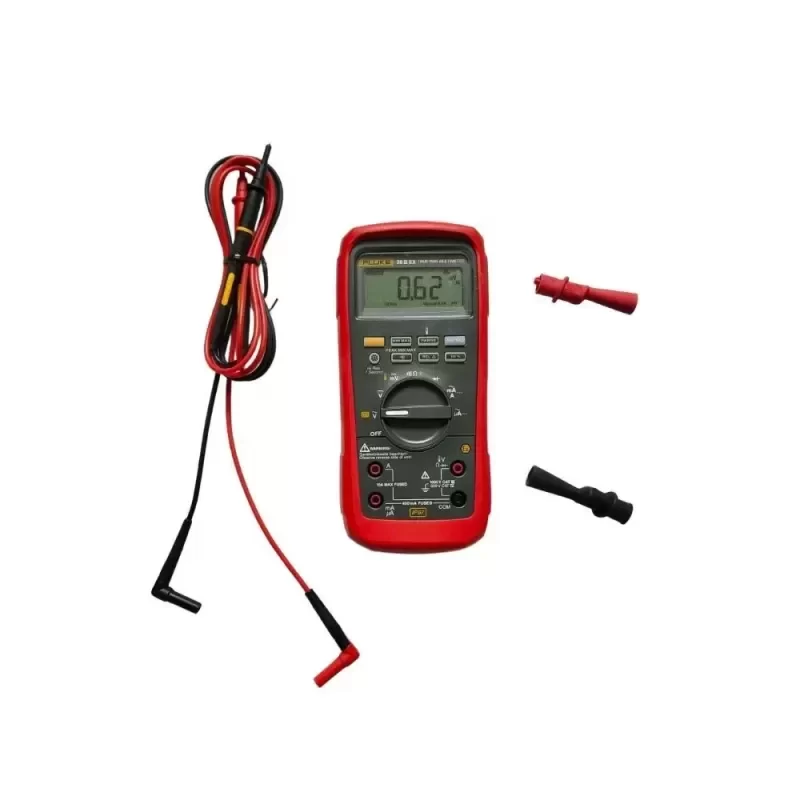

Fluke 28II EX Intrinsically Safe Digital Multimeter with True-rms Technology

Description

The Fluke 28 II EX is a high-performance intrinsically safe digital multimeter engineered for precision diagnostics in hazardous environments. This unit incorporates Original Engineering to provide True-rms AC voltage and current for accurate measurements on non-linear signals. It ensures full Technical Compatibility with ATEX, IECEx, and MSHA certifications, making it the global standard for testing in Zone 1, Zone 2, Zone 21, or Zone 22 areas. The device features a completely sealed IP67 rated housing, capable of withstanding drops up to 3 meters and operating in extreme temperature ranges.

Technical Specifications:
Manufacturer: Fluke
Model Number: 28 II EX
Measurement Type: True-rms
DC Voltage Range: 0.1 mV to 1000 V
DC Voltage Accuracy: ±0.05% + 1
AC Voltage Range: 0.1 mV to 1000 V
DC Current Range: 0.1 µA to 10 A
AC Current Range: 0.1 µA to 10 A
Resistance Range: 0.1 Ω to 50 MΩ
Capacitance Range: 10 nF to 9999 µF
Frequency Range: 0.5 Hz to 199.99 kHz
Temperature Range: -200.0 °C to 1090.0 °C
Display Digits: 4-1/2 digit mode (20,000 counts)
Ingress Protection: IP67 Waterproof and Dustproof
Safety Rating: CAT IV 600 V, CAT III 1000 V
Intrinsically Safe Certifications: ATEX II 2 G Ex ia IIC T4 Gb, I M1 Ex ia I Ma, IECEx Ex ia IIC T4 Gb
Operating Temperature: -25 °C to +55 °C
Storage Temperature: -40 °C to +60 °C
Humidity: 0% to 95% (0 °C to 35 °C)
Battery Type: Three AAA batteries
Battery Life: 400 hours typical
Weight: 0.698 kg
Dimensions: 24.0 cm x 10.0 cm x 7.0 cm
Material: High-impact overmolded industrial plastic
Low Battery Indicator: Yes

Industrial Application:
The Fluke 28 II EX is specifically designed for maintenance and troubleshooting in petroleum refineries, chemical processing plants, and grain elevators where explosive atmospheres are a constant risk. Its ruggedized construction and intrinsic safety ratings allow technicians to perform critical electrical inspections and system logic testing directly within hazardous zones without the need for a hot work permit. Please contact our sales department for current Lead Time and bulk procurement logistics.

Key Attributes
Measuring Current Range: 10A
Measuring Voltage Range: 0.1mV to 1000V AC/DC
Parameters Measured: AC Voltage, DC Current
Place of Origin: China
Model Number: 28 II EX
Brand Name: Fluke
Dimensions: 24 cm x 10 cm x 7 cm
Feature: Waterproof
Low Battery Indicator: Yes
Material: Plastic
Max. AC Current: 10A
Max. AC Voltage: 1000 V
Max. DC Current: 10A
Max. DC Voltage: 1000 V
Measuring Capacitance Range: 1nF to 9999ΩF
Measuring Inductance Range: 1nF to 9999ΩF
Measuring Resistance Range: 0.1Ω to 50MΩ
Operating Temperature: -25~55
Voltage Range: 0.1mV to 1000V AC/DC
Voltage Accuracy: ±0.05%
Current Range: 0.1uA to 10A AC/DC
Resistance Range: 0.1Ω to 50MΩ
Capacitance Range: 1nF to 9999ΩF
Frequency Range: 0.5Hz to 199.99kHz
Temperature Range: -200 to 1090°C

Packaging and Delivery
Selling Units: Single item
Single package size: 30X21X15 cm
Single gross weight: 2.000 kg
