FP-108Cx-S1-B commmonwealth 220V industrial fan

FP-108Cx-S1-B commmonwealth 220V industrial fan

Name: FP-108Cx-S1-B commmonwealth 220V industrial fan
Brand: Commonwealth
SKU: 919094809096
Availability: InStock
Rating: 5 (4 reviews)

$15.00

SKU: 919094809096 Brand: Commonwealth

Description
Reviews (0)

Description

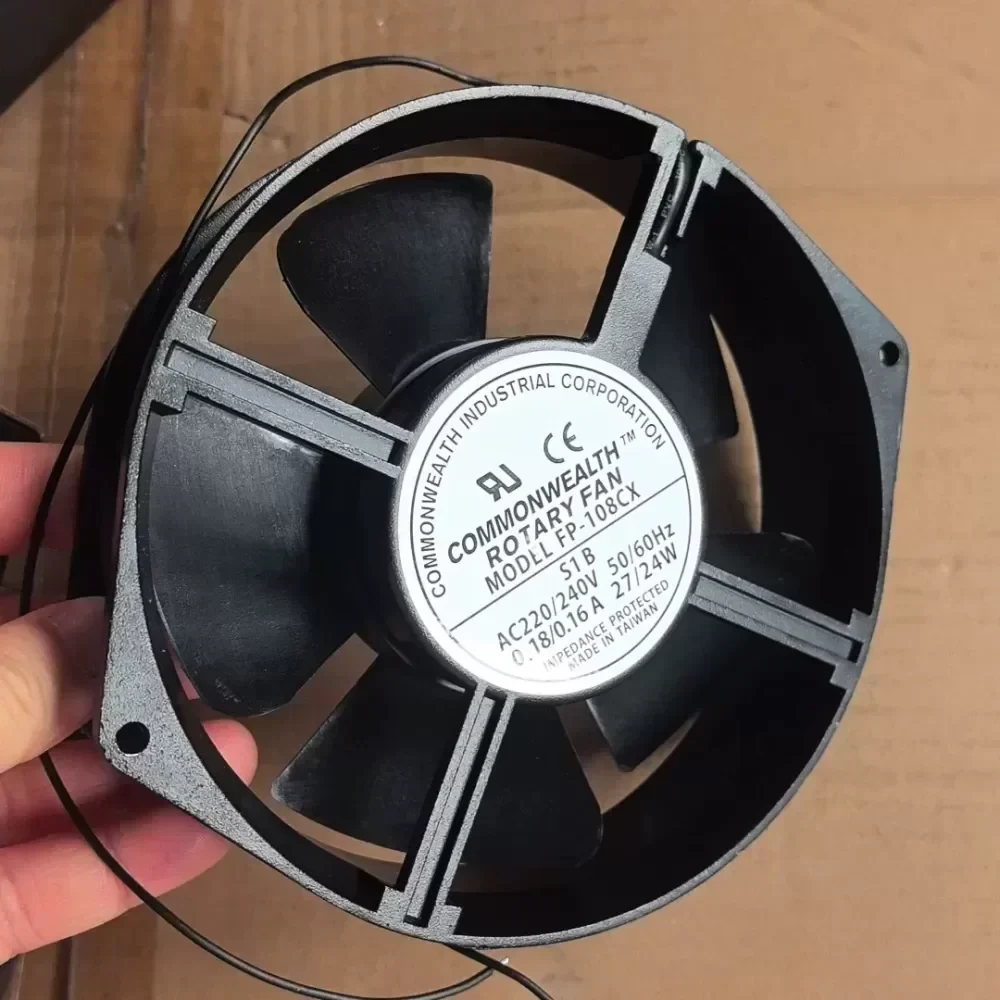

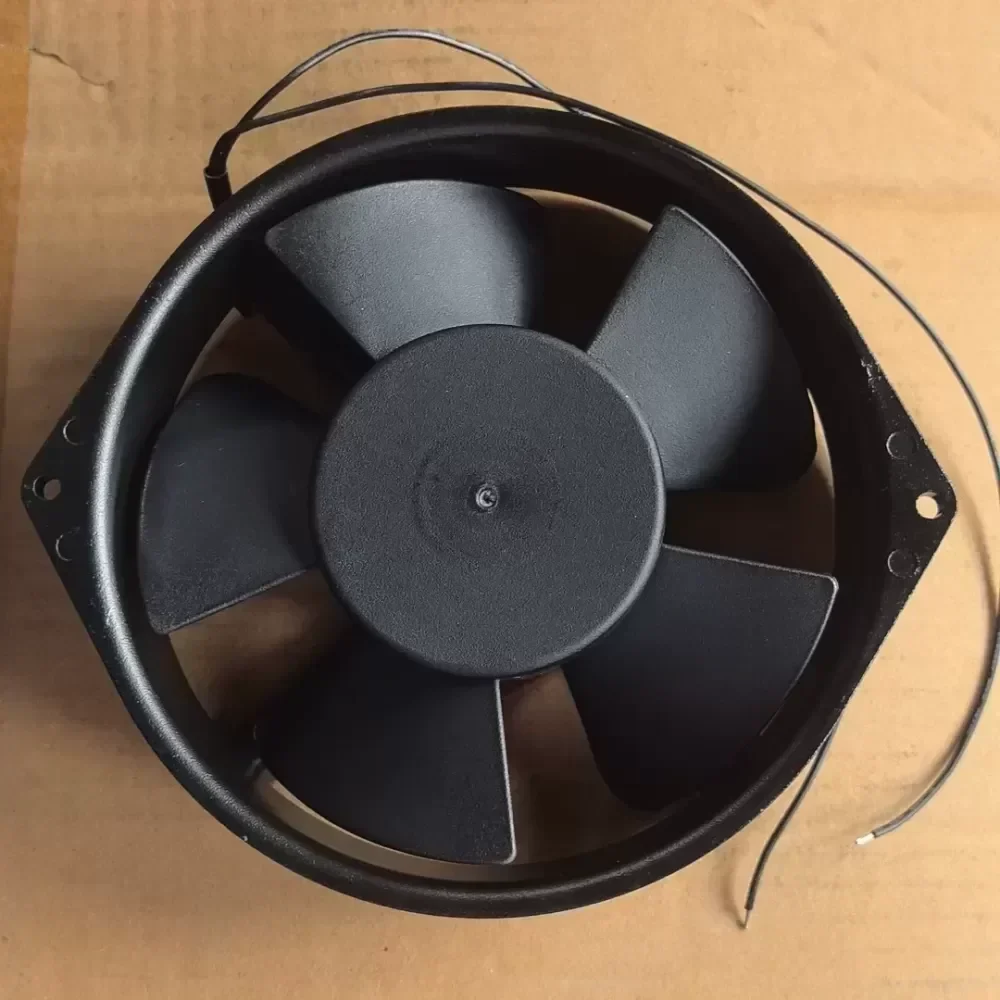

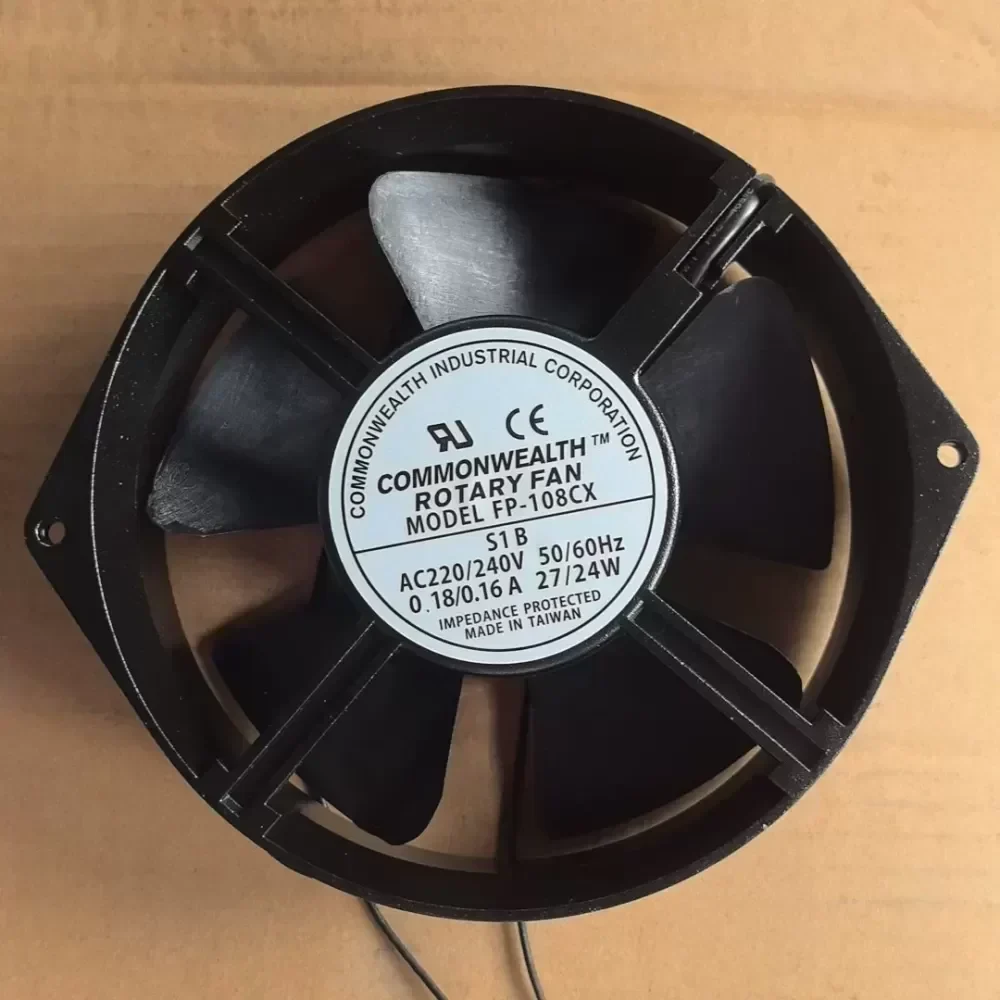

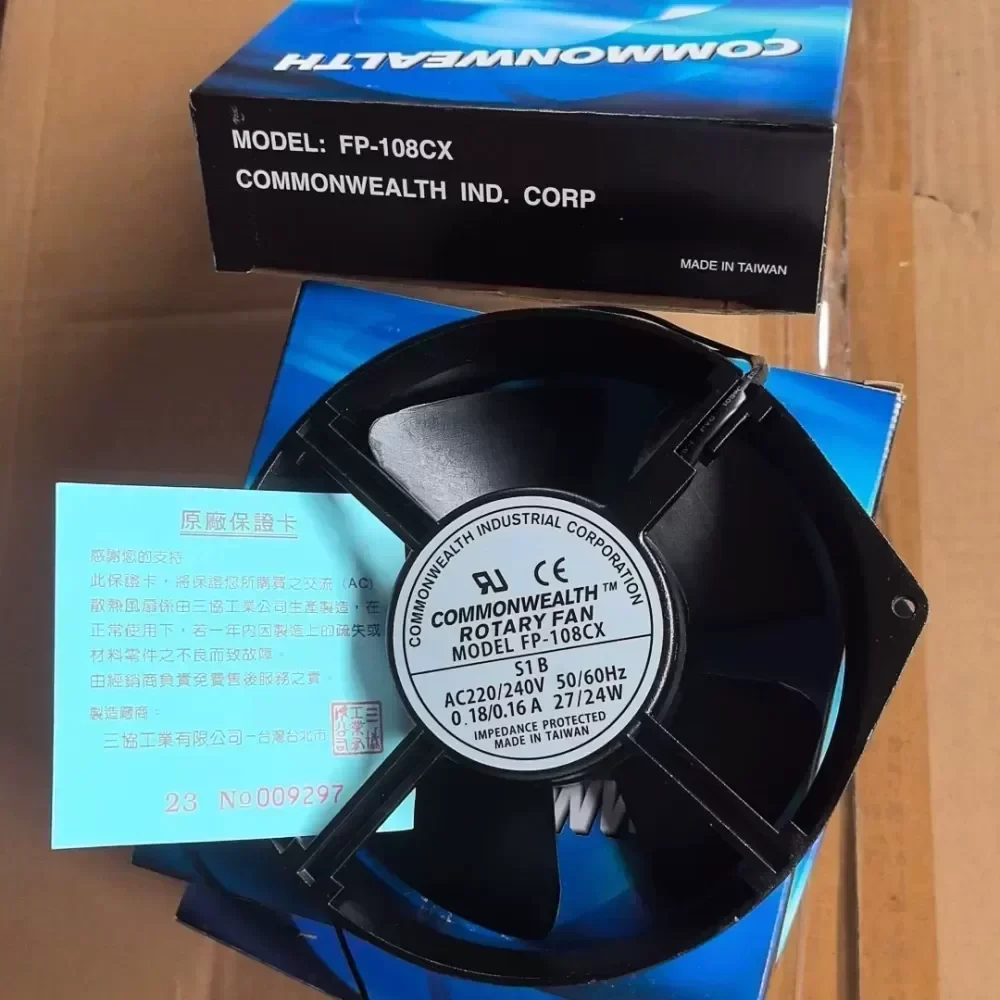

The Commonwealth FP-108CX-S1-B is a heavy-duty AC axial fan manufactured by Commonwealth Industrial Corp (CIC), specifically engineered for high-static pressure applications in industrial thermal management. This unit represents Original Engineering quality, featuring a robust die-cast aluminum housing designed to withstand harsh operating environments and continuous duty cycles. Operating at 220/240V AC, the fan delivers high-volume airflow essential for preventing thermal saturation in densely populated electronic enclosures. The model ensures Technical Compatibility with standard 172mm oval/round cutouts, facilitating immediate integration into existing ventilation systems. With a power rating of 27W and 0.18A current draw, it provides a balanced ratio of cooling efficiency to energy consumption. This component is critical for maintenance schedules requiring reliable Lead Time planning and extended mean time between failures (MTBF).

Manufacturer: Commonwealth Industrial Corp (CIC)
Model Number: FP-108CX-S1-B
Product Type: AC Axial Cooling Fan
Input Voltage: 220/240 V AC
Frequency: 50/60 Hz
Current: 0.18 A
Power Input: 27 W
Dimensions: 172mm (L) x 150mm (W) x 38mm (H)
Bearing System: Dual Ball Bearing
Rotational Speed: 2900 RPM (±10%)
Maximum Airflow: 210 CFM (approx. 5.9 m³/min)
Static Pressure: 0.55 Inch-H2O
Noise Level: 53 dB(A)
Frame Material: Die-Cast Aluminum Alloy (Black Paint)
Impeller Material: PBT Thermoplastic (UL94V-0)
Termination: 2-Pin Terminal / Lead Wire
Operating Temperature: -20°C to +80°C
Insulation Class: Class B
Dielectric Strength: 1500V AC for 1 Minute
Weight: 850 g
Certifications: UL, CSA, TUV, CE

Industrial Application:
This high-performance fan is specifically deployed in scenarios requiring rapid heat dissipation from enclosed power electronics, such as Variable Frequency Drive (VFD) cabinets, CNC machine control panels, and server rack chassis. Its aluminum construction and high-torque motor make it the optimal solution for mitigating thermal throttling in 24/7 automated production lines where plastic-framed fans fail due to heat stress or vibration.

FP-108Cx-S1-B commmonwealth 220V industrial fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
