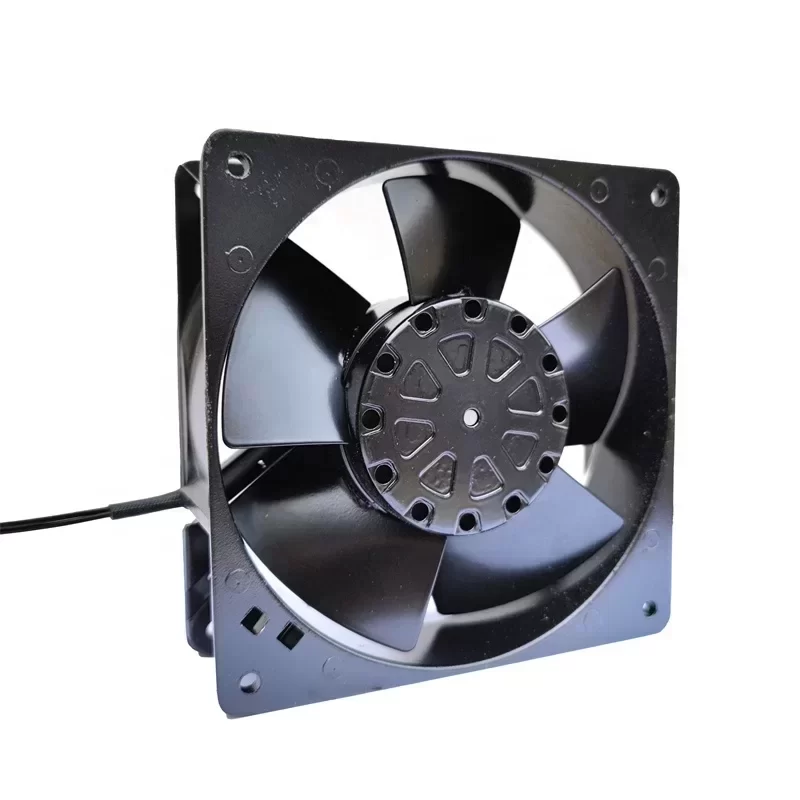

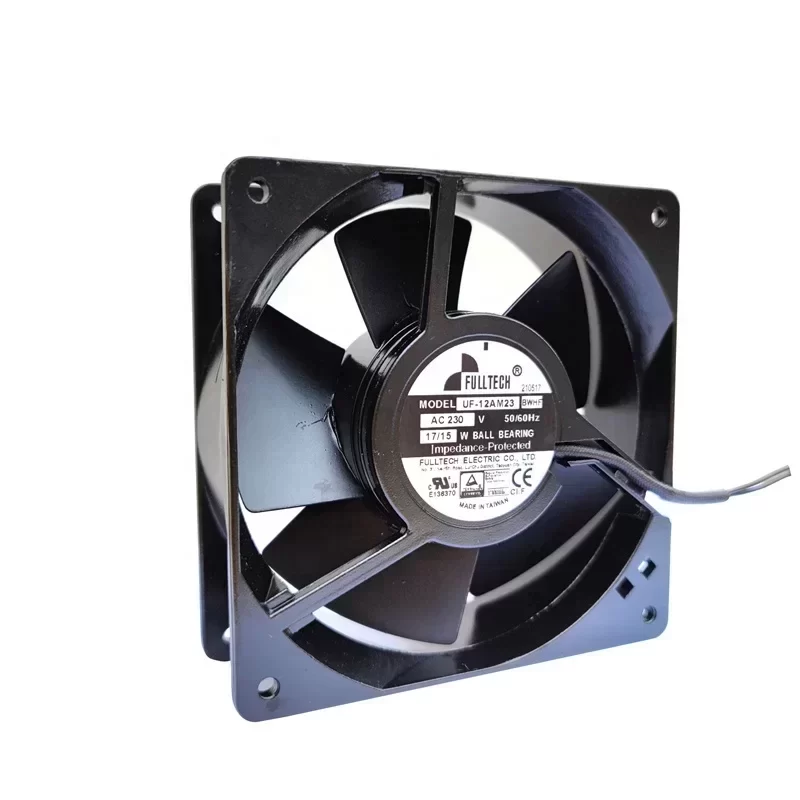

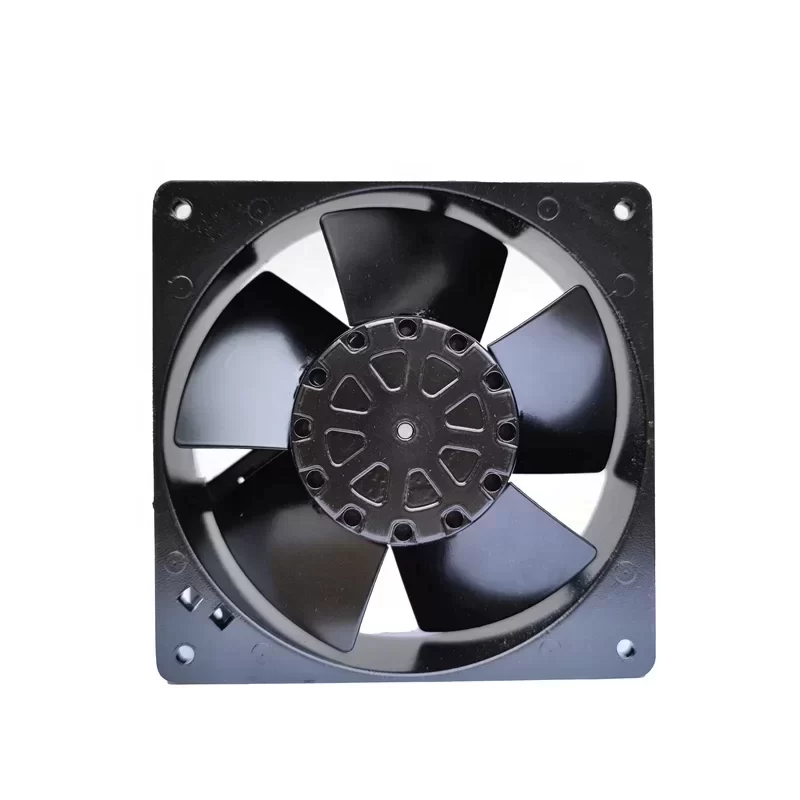

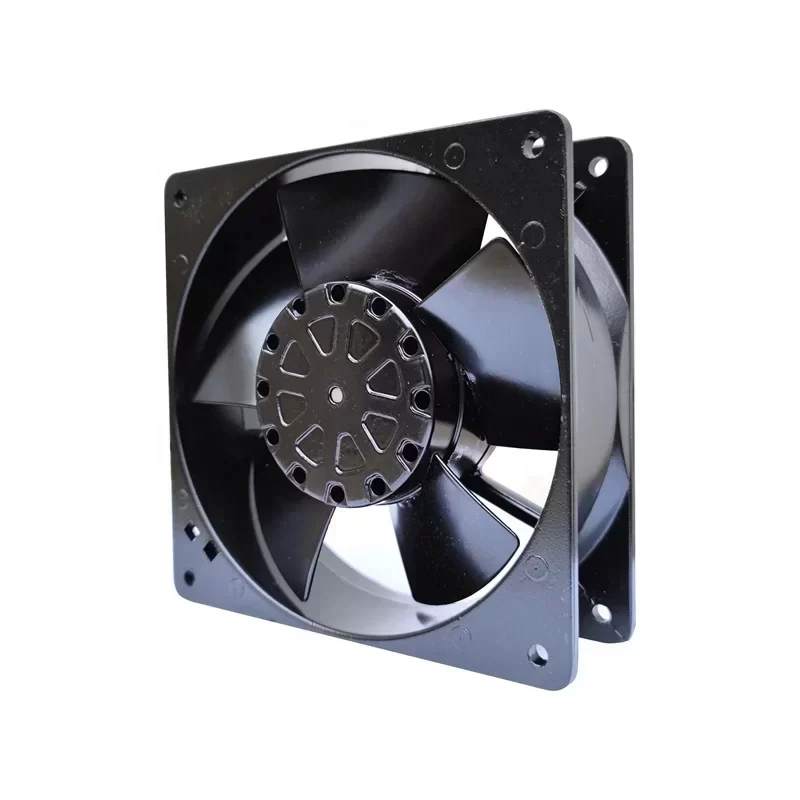

Fulltech UF-12AM23 120x120x38mm 230V AC Cabinet Fan

Fulltech UF-12AM23 120x120x38mm 230V AC Cabinet Fan

Name: Fulltech UF-12AM23 120x120x38mm 230V AC Cabinet Fan
Brand: Fulltech
SKU: 1600441936503
Availability: InStock
Rating: 5 (4 reviews)

$21.00

SKU: 1600441936503 Brand: Fulltech

Description
Reviews (0)

Description

The Fulltech UF-12AM23 is a high-performance industrial AC axial fan engineered for continuous thermal regulation in demanding B2B environments. Manufactured by Fulltech Electric in Taiwan, this 120mm x 120mm x 38mm unit utilizes a robust die-cast aluminum frame and a precision dual ball bearing system to ensure maximum operational reliability and extended lifecycle value. It is optimized for high-density cabinet cooling where Original Engineering specifications demand consistent airflow and thermal stability under high static pressure conditions.

Technical Specifications:
Manufacturer: Fulltech Electric Co., Ltd.
Model Number: UF-12AM23
Frame Dimensions: 120 x 120 x 38 mm
Frame Material: Die-cast Aluminum Alloy
Impeller Material: Thermoplastic PBT (UL94V-0)
Bearing System: Dual Ball Bearing
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Input Power: 17/15 W
Rated Current: 0.12/0.11 A
Rotational Speed: 2700/3100 RPM
Airflow Capacity: 89/103 CFM
Static Pressure: 0.23/0.25 Inch-H2O
Noise Level: 42/47 dBA
Termination: Terminal Insert Type
Motor Type: Shaded Pole Motor
Protection: Impedance Protected
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +80°C
Dielectric Strength: 1500V AC for 1 minute
Insulation Resistance: 100M Ohm at 500V DC
Weight: 530g
Certifications: UL, CUL, TUV, CE, RoHS
Origin: Taiwan

Industrial Application Scenario:
The UF-12AM23 is specifically deployed in industrial automation cabinets, CNC machinery, and telecommunication racks where heat dissipation is critical to system uptime. Its high static pressure capability allows it to effectively move air through dense internal components and protective filter media, solving the problem of localized hotspots in enclosed environments. The terminal insert design facilitates rapid integration and maintenance, significantly reducing Lead Time during system assembly or field replacement. This fan ensures Technical Compatibility with legacy 230V cooling architectures while maintaining modern industrial efficiency standards.

Key Attributes
Mounting: Free Standing
Voltage: 230V
Blade material: Plastic
After-sales Service Provided: Online support
Warranty: 1 Year
Customized support: OEM
Place of origin: Taiwan, China
Brand name: FULLTECH
Product name: UF-12AM23
Voltage: 230V
Specifications: 120*120*38MM
Frequency: 50/60HZ
Power: 17W
Current: 0.12A
Speed: 2700/3100RPM
Air Volume: 89/103CFM
Termination: 2 Wires
Noise: 42dBA

Packaging and Delivery
Selling Units: Single item

Fulltech UF-12AM23 120x120x38mm 230V AC Cabinet Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
