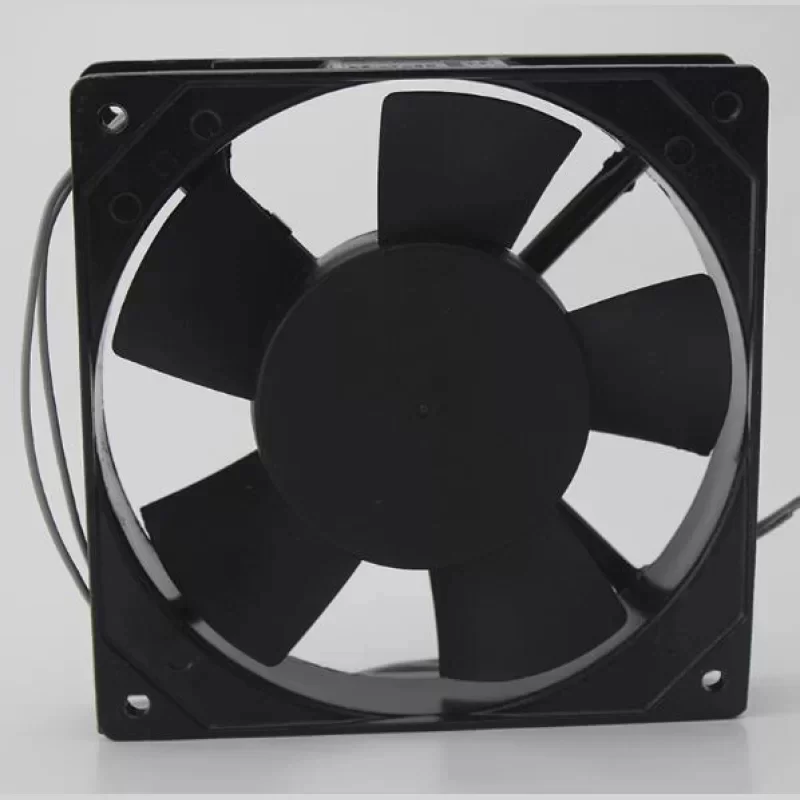

Fulltech UF-12B23BTH 12cm 12025 230V AC Axial Fan

Name: Fulltech UF-12B23BTH 12cm 12025 230V AC Axial Fan
Brand: Fulltech
SKU: 62306710212
Availability: InStock
Rating: 5 (4 reviews)

$14.50

SKU: 62306710212 Brand: Fulltech

Description
Reviews (0)

Description

The Fulltech UF-12B23BTH is a high-performance industrial axial cooling fan engineered for critical thermal management in high-density electronic environments. This model features Original Engineering standards, ensuring seamless Technical Compatibility with standard 120mm ventilation cutouts in control cabinets and server racks. The dual ball bearing system is designed for continuous 24/7 operation, providing a significantly extended lifecycle compared to sleeve bearing alternatives. Its metal blade construction ensures structural integrity under high-velocity rotation and resistance to environmental degradation in industrial settings.

Technical Specifications:
Manufacturer: Fulltech Electric Co., Ltd.
Model Number: UF-12B23BTH
Frame Dimensions: 120 x 120 x 25 mm
Input Voltage: 230V AC
Operating Frequency: 50/60 Hz
Power Input: 16W at 50Hz / 14W at 60Hz
Rated Current: 0.08A at 50Hz / 0.07A at 60Hz
Rotational Speed: 2400 RPM at 50Hz / 2900 RPM at 60Hz
Airflow Volume: 62 CFM at 50Hz / 75 CFM at 60Hz
Static Pressure: 0.13 Inch-H2O at 50Hz / 0.22 Inch-H2O at 60Hz
Bearing Type: Precision Dual Ball Bearing
Blade Material: High-Strength Metal
Housing Material: Die-cast Aluminum Alloy
Motor Architecture: Shaded Pole Induction Motor
Insulation Resistance: 100M Ohm min. at 500V DC
Dielectric Strength: 1500V AC for 60 seconds
Operating Temperature Range: -10°C to +70°C
Storage Temperature Range: -40°C to +80°C
Weight: 0.33 kg
Safety Compliance: UL, CUL, TUV, CE, RoHS

Industrial Application:
The UF-12B23BTH is specifically optimized for radiation cooling in enclosed control cabinets and CNC machine tool panels. Its high static pressure capability allows it to maintain efficient airflow even when drawing through dense particulate filters. This makes it an essential component for preventing thermal throttling in PLC systems and power supplies. For procurement planning, please contact our sales department regarding current Lead Time and bulk integration support.

Key Attributes
Voltage: 230 (V)
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Metal
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China Taiwan
Brand name: Fulltech
Model number: UF-12B23BTH
Type: Axial Fan
Nominal voltage: 230V
Bearing Type: Ball Bearing
Power consumption: 16/14w(w)
Current: 0.08/0.07(A)
Air flow: 62/75CFM
Speed: 2400/2900rpm
Weight: 0.33kg

Packaging and Delivery
Selling Units: Single item

Fulltech UF-12B23BTH 12cm 12025 230V AC Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
