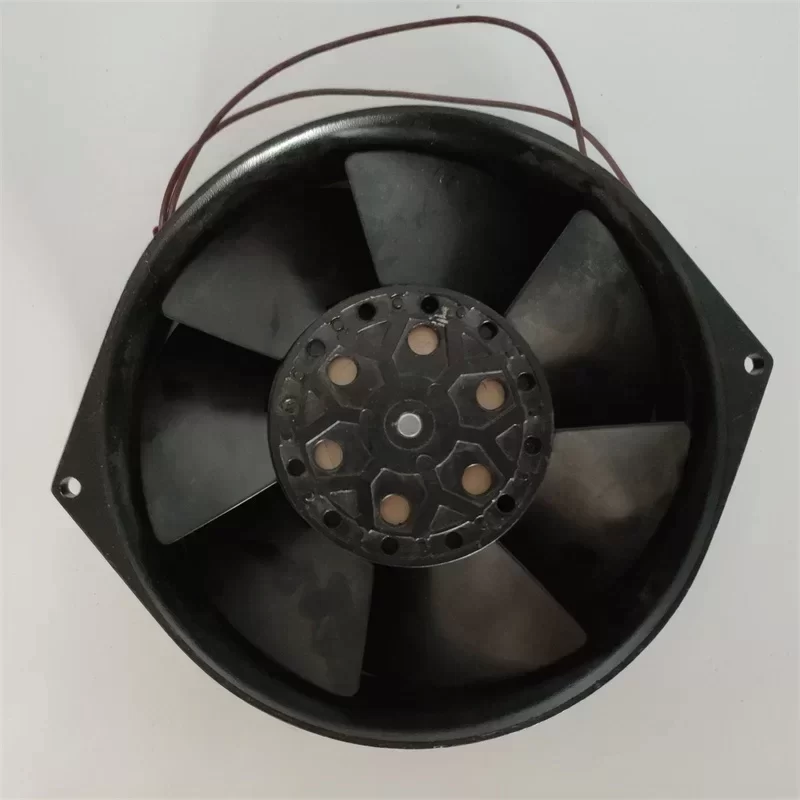

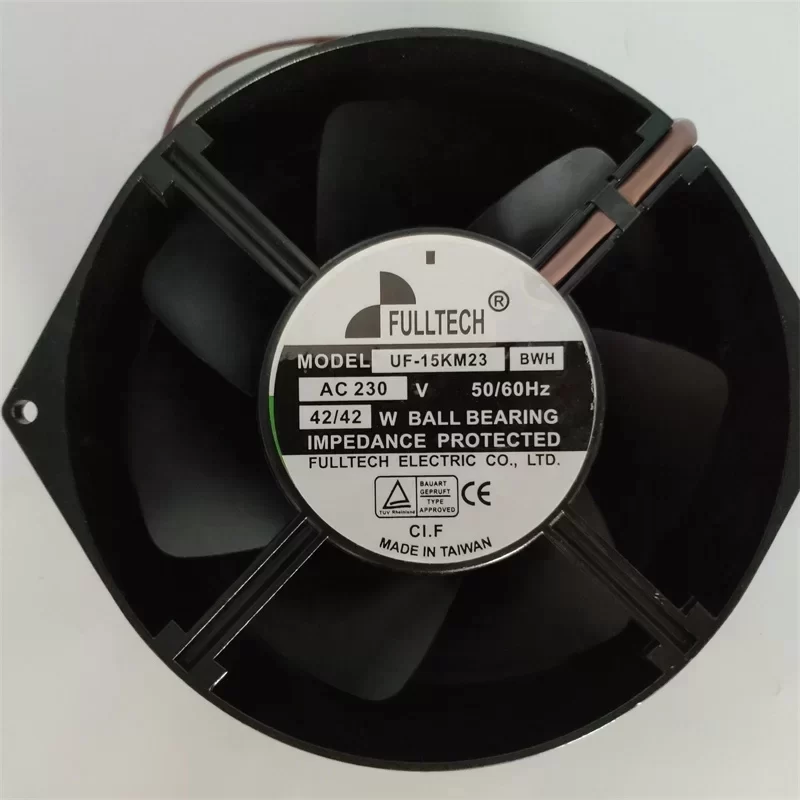

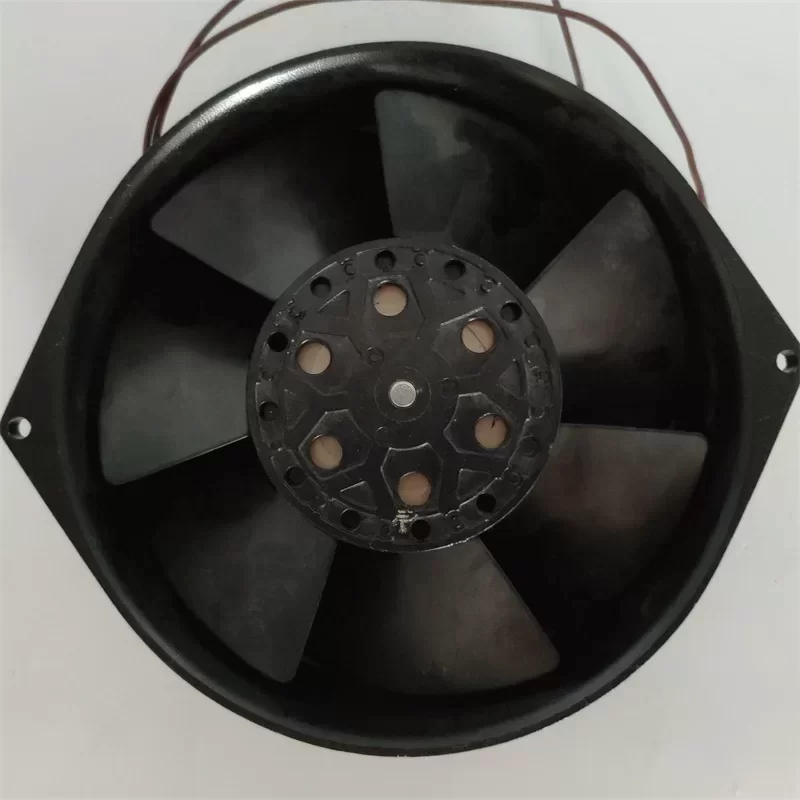

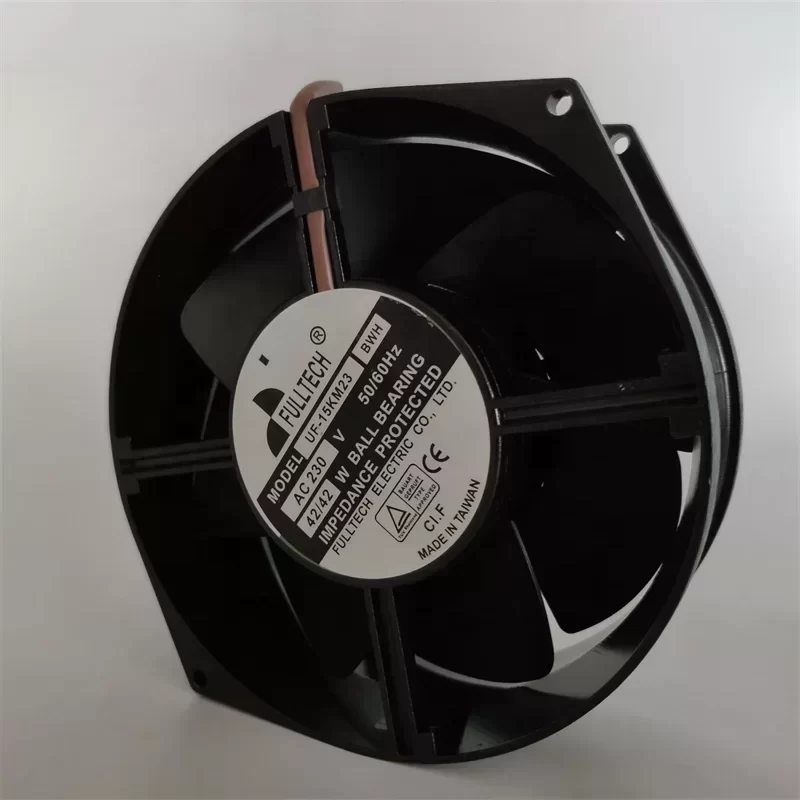

FULLTECH UF-15KM23BWH 230V AC 17cm Cabinet Axial Fan

FULLTECH UF-15KM23BWH 230V AC 17cm Cabinet Axial Fan

Name: FULLTECH UF-15KM23BWH 230V AC 17cm Cabinet Axial Fan
Brand: Fulltech
SKU: 1600618131908
Availability: InStock
Rating: 5 (4 reviews)

$35.00

SKU: 1600618131908 Brand: Fulltech

Description
Reviews (0)

Description

The FULLTECH UF-15KM23BWH is a high-performance industrial axial fan engineered for thermal management in high-density electronic enclosures and control cabinets. This 172mm x 150mm x 55mm unit utilizes a dual ball bearing system to ensure extended operational life and reliability in continuous duty cycles. It serves as a direct technical equivalent to the W2S130-AA03-01, maintaining strict Technical Compatibility for drop-in replacement in existing system architectures.

Technical Specifications:
Manufacturer: FULLTECH
Model Number: UF-15KM23BWH
Frame Size: 172mm x 150mm x 55mm
Voltage: 230V AC
Frequency: 50/60 Hz
Input Power: 42W
Rated Current: 0.25A
Rotational Speed: 2800 RPM
Airflow Capacity: 230 CFM
Static Pressure: 0.62 Inch-H2O
Bearing Type: Dual Ball Bearing
Housing Material: Aluminum Die-Cast
Impeller Material: Thermoplastic PBT (UL 94V-0)
Insulation Class: Class B
Motor Protection: Impedance Protected
Operating Temperature: -20°C to +70°C
Weight: 0.95 kg
Certifications: UL, CE, TUV, RoHS
Mounting: Free Standing
Place of Origin: Taiwan

Industrial Application:
This axial fan is specifically designed for heat dissipation in CNC machinery, server racks, and power supply cabinets where high static pressure is required to overcome airflow resistance. The Original Engineering of the UF-15KM23BWH ensures stable performance under fluctuating thermal loads, reducing downtime caused by component overheating. Optimized for global B2B procurement, this model offers reliable Lead Time and verified Technical Compatibility for critical infrastructure maintenance.

Key Attributes
Mounting: Free Standing
Voltage: 230V
Blade material: Plastic
After-sales Service Provided: Online support
Warranty: 1 Year
Customized support: OEM
Place of origin: Taiwan, China
Brand name: FULLTECH
Product name: UF-15KM23BWH
Current: 0.25A
Voltage: 230V
Specifications: 172*150*55MM
Port: Tianjin port
Power: 42W
Air flow: 195 cfm
Speed: 2800 rpm

Packaging and Delivery
Selling Units: Single item

FULLTECH UF-15KM23BWH 230V AC 17cm Cabinet Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
