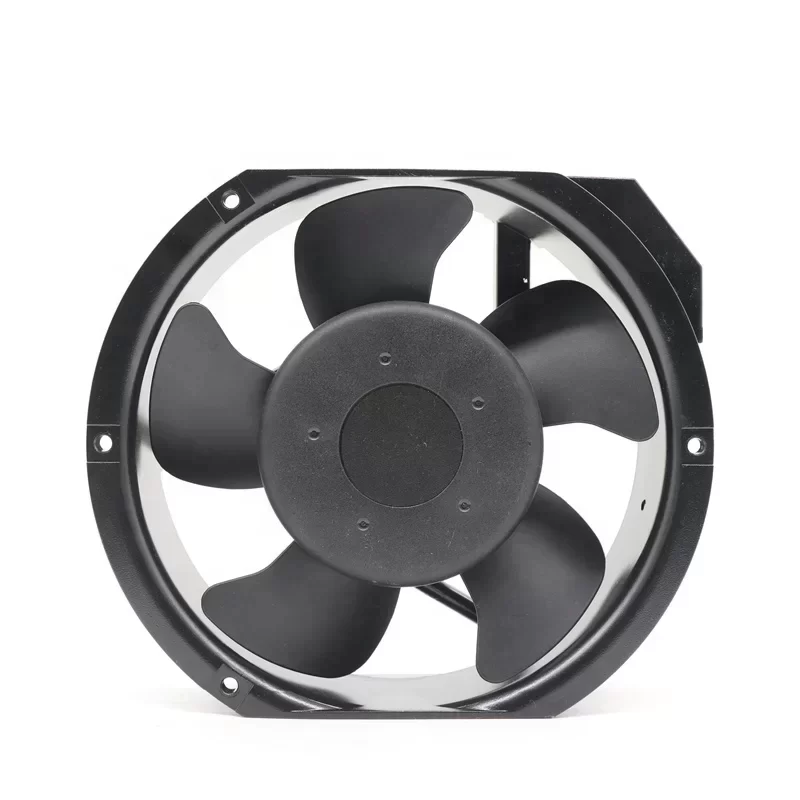

Name: Fulltech UF-15P23BWH 230V AC UPS Cabinet Power Supply Fan
Brand: Fulltech
SKU: 1600359613980
Availability: InStock
Rating: 5 (4 reviews)

$22.62

SKU: 1600359613980 Brand: Fulltech

Description
Reviews (0)

Description

The Fulltech UF-15P23BWH is a high-performance industrial AC axial fan engineered for rigorous thermal management in high-impedance environments. Utilizing Original Engineering from Taiwan, this 172x172x50mm unit features a robust die-cast aluminum frame and a cast iron impeller for maximum structural integrity and heat dissipation. Technical Compatibility is ensured for standard 17250 mounting configurations in UPS systems and power distribution cabinets.

Technical Specifications:
Manufacturer: Fulltech Electric Co., Ltd.
Model Number: UF-15P23BWH
Fan Type: AC Axial Cooling Fan
Frame Size: 172 x 172 x 50 mm
Frame Material: Die-Cast Aluminum
Impeller Material: Cast Iron
Bearing System: Dual Ball Bearing
Nominal Voltage: 230V AC
Frequency: 50/60 Hz
Input Power 50Hz: 35W
Input Power 60Hz: 30W
Rated Current 50Hz: 0.23A
Rated Current 60Hz: 0.18A
Rotational Speed 50Hz: 2750 RPM
Rotational Speed 60Hz: 3100 RPM
Airflow Volume 50Hz: 170 CFM
Airflow Volume 60Hz: 195 CFM
Acoustic Noise 50Hz: 50 dBA
Acoustic Noise 60Hz: 55 dBA
Termination: 2 Wire Leads
Insulation Resistance: 100M Ohm min. at 500V DC
Dielectric Strength: 1500V AC for 1 minute
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +80°C
Safety Certifications: UL, CUL, TUV, CE
Weight: 1.0 kg
Lead Time: Standard Industrial Fulfillment

Industrial Application:
This unit is specifically designed for Uninterruptible Power Supply (UPS) control cabinets and large-scale power supply cooling. The high-torque motor and metal blade assembly allow the UF-15P23BWH to maintain consistent airflow against the high static pressure typically found in densely packed electronic enclosures, preventing component degradation and ensuring system uptime in critical infrastructure.

Key Attributes
Voltage: 230 (V)
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Cast Iron
Bearing type: Ball Bearing
Customized support: OEM, ODM
After-sales service provided: Online support
Place of origin: Taiwan, China
Brand name: Fulltech
Model number: UF-15P23BWH
Type: Axial Fan
Size: 172*172*50mm
Nominal voltage: 230V
Bearing Type: Ball Bearing
Power consumption: 35/30W
Current: 0.23/0.18A
Speed: 2750/3100 RPM
Airflow: 170/195CFM
Noise: 50/55dBA
Termination: 2 Wire Leads

Packaging and Delivery
Selling Units: Single item
Single package size: 35X35X16 cm
Single gross weight: 4.000 kg

Fulltech UF-15P23BWH 230V AC UPS Cabinet Power Supply Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
