FULLTECH UF-17PC23BTH 230V AC Cabinet CPU Axial Fan

FULLTECH UF-17PC23BTH 230V AC Cabinet CPU Axial Fan

Name: FULLTECH UF-17PC23BTH 230V AC Cabinet CPU Axial Fan
Brand: Fulltech
SKU: 1600620324016
Availability: InStock
Rating: 5 (4 reviews)

$30.00

SKU: 1600620324016 Brand: Fulltech

Description
Reviews (0)

Description

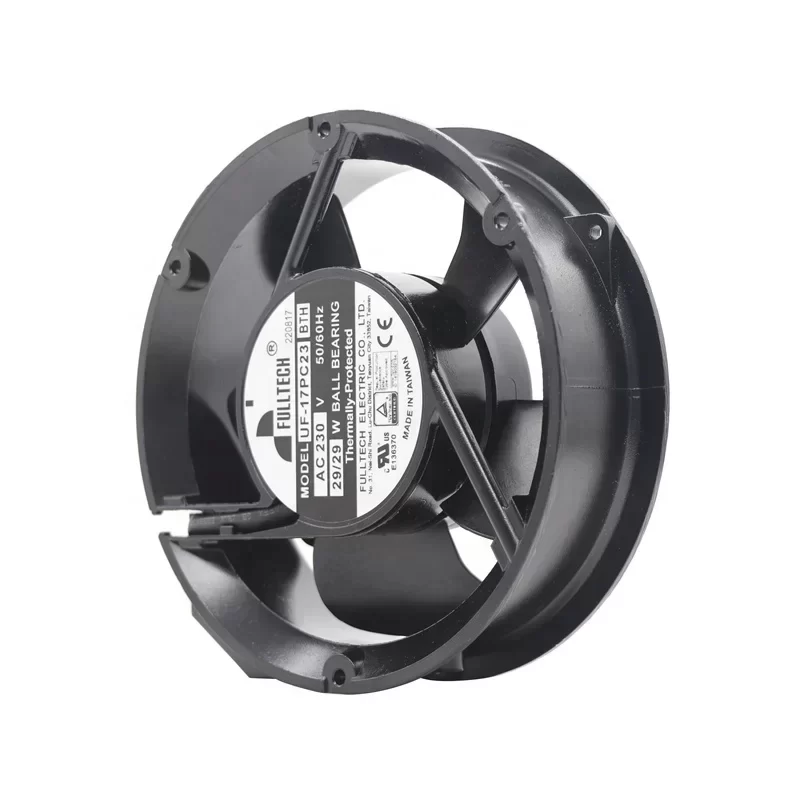

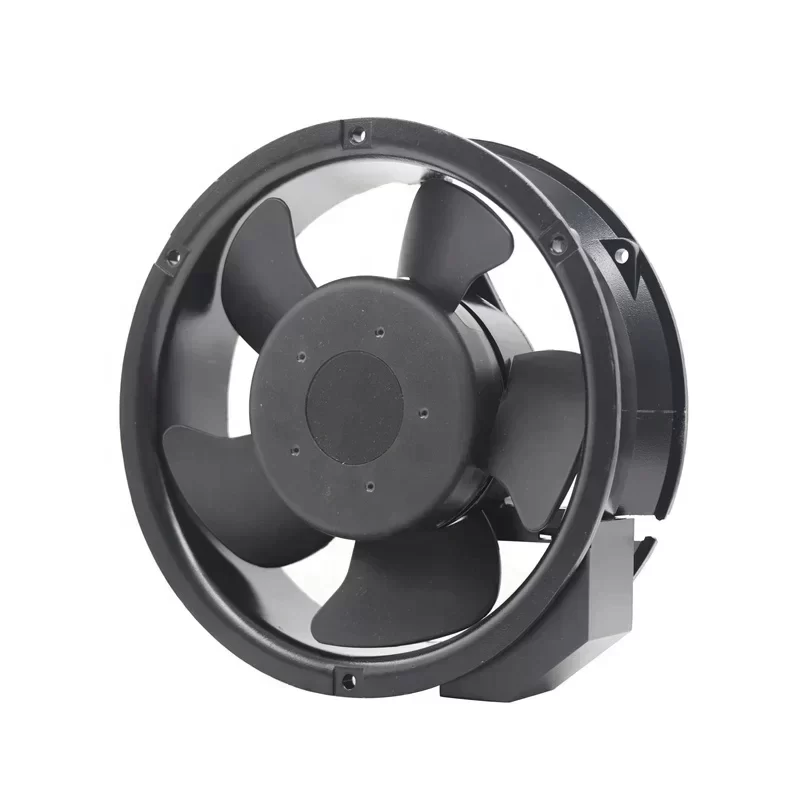

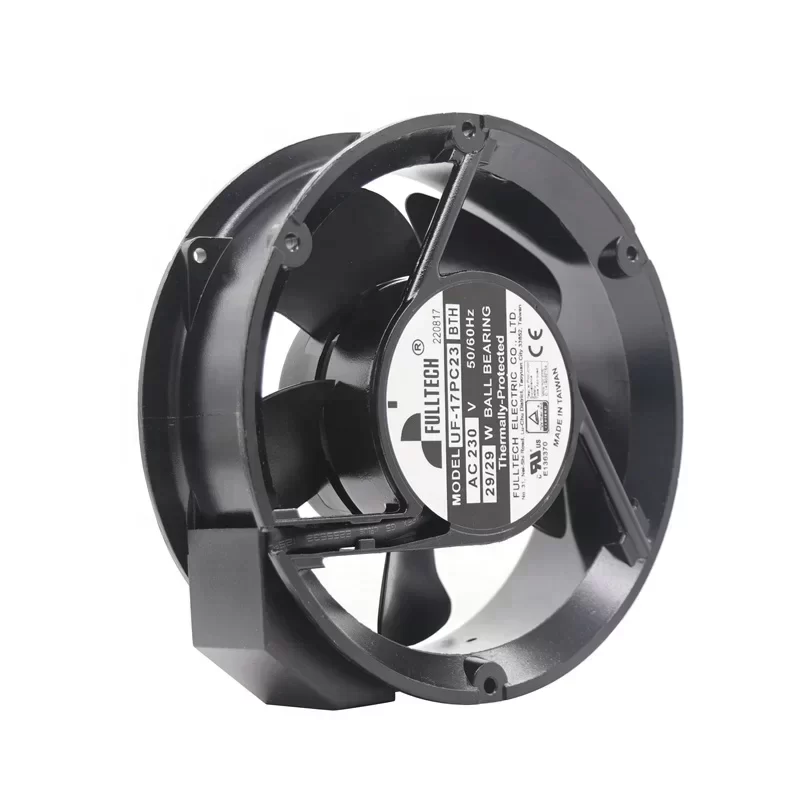

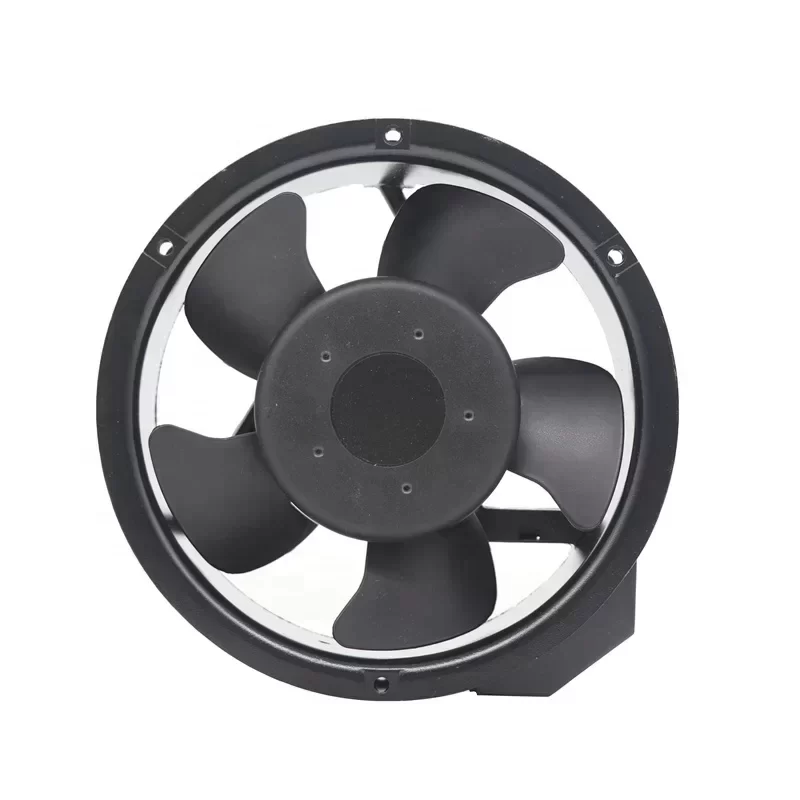

The Fulltech UF-17PC23BTH is a professional-grade axial cooling fan engineered for high-density thermal management in industrial and commercial applications. This 172mm round cabinet fan utilizes a robust metal blade assembly and a high-precision dual ball bearing system to ensure continuous operation and extended service life. Operating at 230 VAC, the unit delivers a consistent airflow of 40 CFM at a rotational speed of 2700 RPM, making it an essential component for heat dissipation in electrical enclosures, server racks, and CNC machinery. Its original engineering focus provides a balance between high static pressure and acoustic efficiency, maintaining noise levels between 49 and 53 dB. This model is a reliable solution for MRO (Maintenance, Repair, and Operations) requirements where lead time and component durability are critical factors.

Technical Specifications:
Brand: Fulltech
Model Number: UF-17PC23BTH
Product Type: Axial Cooling Fan
Nominal Voltage: 230 VAC
Power Consumption: 29 W
Rated Current: 0.23 – 0.18 A
Air Flow: 40 CFM
Rotational Speed: 2700 RPM
Bearing Type: Ball Bearing
Blade Material: Metal
Frame Size: 172 x 51 mm
Noise Level: 49 – 53 dB
Weight: 0.9 kg
Mounting Configuration: Free Standing / Round Cabinet
Warranty: 1 Year

Key Attributes
Voltage: 230 (V)
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Metal
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China
Brand name: Fulltech
Model number: UF-17PC23BTH
Type: Axial Fan
Nominal voltage: 230V
Bearing Type: Ball Bearing
Power consumption: 29W
Current: 0.23/0.18A
Air flow: 40CFM
Speed: 2700RPM
Size: 172*51mm
Weight: 0.9kg
Noise: 49/53dB

Packaging and Delivery
Selling Units: Single item
Single package size: 28X28X15 cm
Single gross weight: 2.500 kg

FULLTECH UF-17PC23BTH 230V AC Cabinet CPU Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
