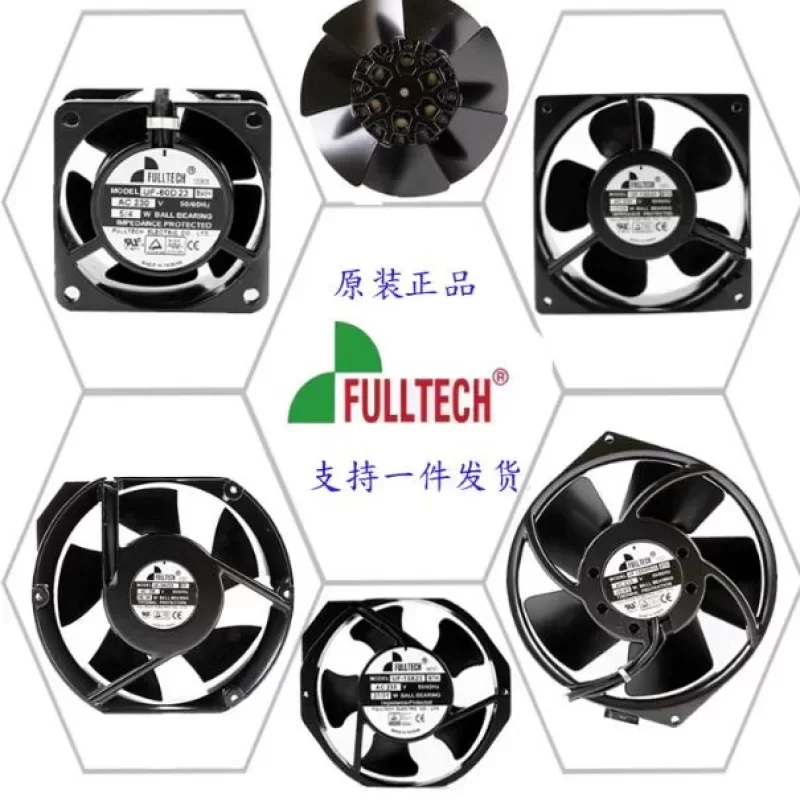

Fulltech UF-20JC23BTH BWH 230V AC Cabinet Cooling Fan

Name: Fulltech UF-20JC23BTH BWH 230V AC Cabinet Cooling Fan
Brand: Fulltech
SKU: 62307502297
Availability: InStock
Rating: 5 (4 reviews)

$74.00

SKU: 62307502297 Brand: Fulltech

Description
Reviews (0)

Description

The Fulltech UF-20JC23BTH/BWH represents Original Engineering in high-capacity AC axial fan technology, specifically engineered for the rigorous thermal management requirements of EV charging piles and industrial electric cabinets. This unit utilizes a robust die-cast aluminum frame and precision-balanced metal impellers to ensure structural integrity and vibration-free performance under continuous high-speed operation. The dual ball bearing system provides an extended service life and facilitates multi-axis mounting configurations. Technical Compatibility is guaranteed for 230V AC systems requiring high static pressure to overcome internal resistance in densely packed electronic enclosures.

Technical Specifications:
Brand: Fulltech
Model Number: UF-20JC23BTH/BWH
Fan Type: AC Axial Fan
Nominal Voltage: 230V AC
Frequency: 50 / 60 Hz
Power Consumption: 70 / 98 W
Rated Current: 0.32 / 0.45 A
Rotational Speed: 2800 / 3200 RPM
Air Flow Rate: 600 / 680 CFM
Air Flow Metric: 17.0 / 19.3 m³/min
Static Pressure: 20.3 / 19.8 mmH2O
Noise Level: 67 / 71 dB(A)
Bearing Type: Dual Ball Bearing
Blade Material: Metal (Aluminum Alloy)
Frame Material: Die-cast Aluminum
Weight: 2.4 kg
Insulation Class: Class F
Safety Protection: Thermally Protected
Operating Temperature Range: -20°C to +70°C
Mounting Type: Free Standing / Flange Mount
Certification: CE, TUV, UL Recognized

Industrial Application:
In the context of EV charging infrastructure, the UF-20JC23BTH/BWH addresses the critical requirement for rapid heat extraction from power conversion modules. High-power charging piles generate significant thermal loads that can degrade sensitive electronic components; this fan’s 680 CFM capacity ensures stable operating temperatures, preventing thermal throttling and system downtime. For procurement planning and project scheduling, Lead Time is optimized for industrial maintenance and OEM integration cycles.

Key Attributes
Voltage: 230 (V)
Mounting type: Free Standing
Type: Axial Cooling Fan
Warranty: 1 Year
Power Source: Electric
Blade material: Metal
Bearing type: Ball Bearing
Customized support: OEM
After-sales service provided: Online support
Place of origin: China Taiwan
Brand name: Fulltech
Model number: UF-20JC23BTH/BWH
Type: Axial Fan
Nominal voltage: 230 V
Power consumption: 70 / 98 W
Current: 0.32 / 0.45 A
Air flow: 600 / 680 CFM
Speed: 2800 / 3200 RPM
Maximum Air Flow: 17.0 / 19.3 m3/min.
Maximum Pressure: 20.3 / 19.8 mmH2O
Noise: 67 / 71 dB
Weight: 2.4 kg

Packaging and Delivery
Selling Units: Single item

Fulltech UF-20JC23BTH BWH 230V AC Cabinet Cooling Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
