Fulltech UF-92B23BWH/BTH 92X92X25mm 230V AC Axial Fan

Fulltech UF-92B23BWH/BTH 92X92X25mm 230V AC Axial Fan

Name: Fulltech UF-92B23BWH/BTH 92X92X25mm 230V AC Axial Fan
Brand: Fulltech
SKU: 62211069748
Availability: InStock
Rating: 5 (4 reviews)

$12.90

SKU: 62211069748 Brand: Fulltech

Description
Reviews (0)

Description

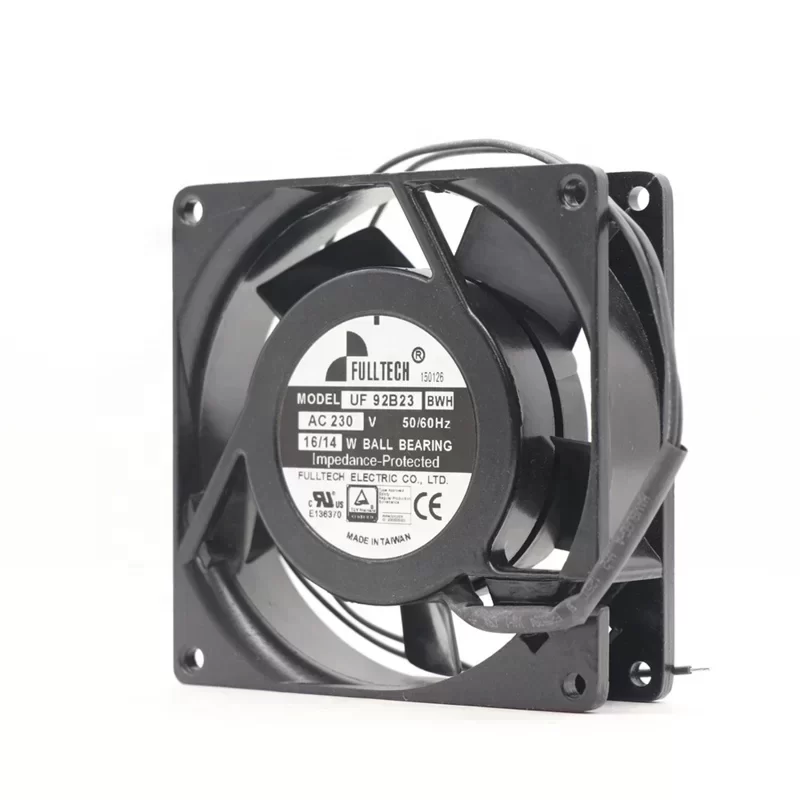

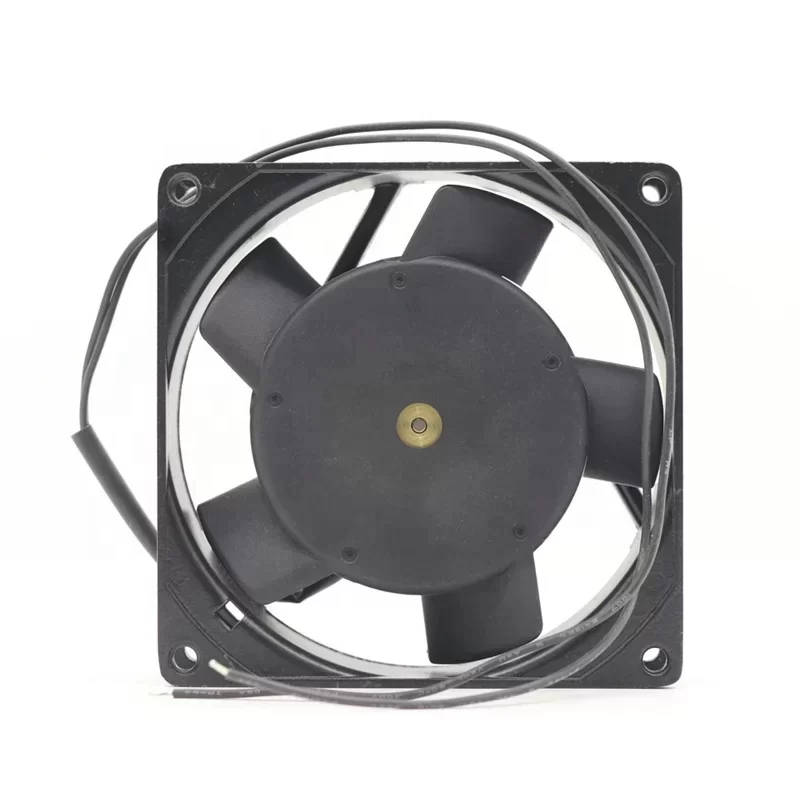

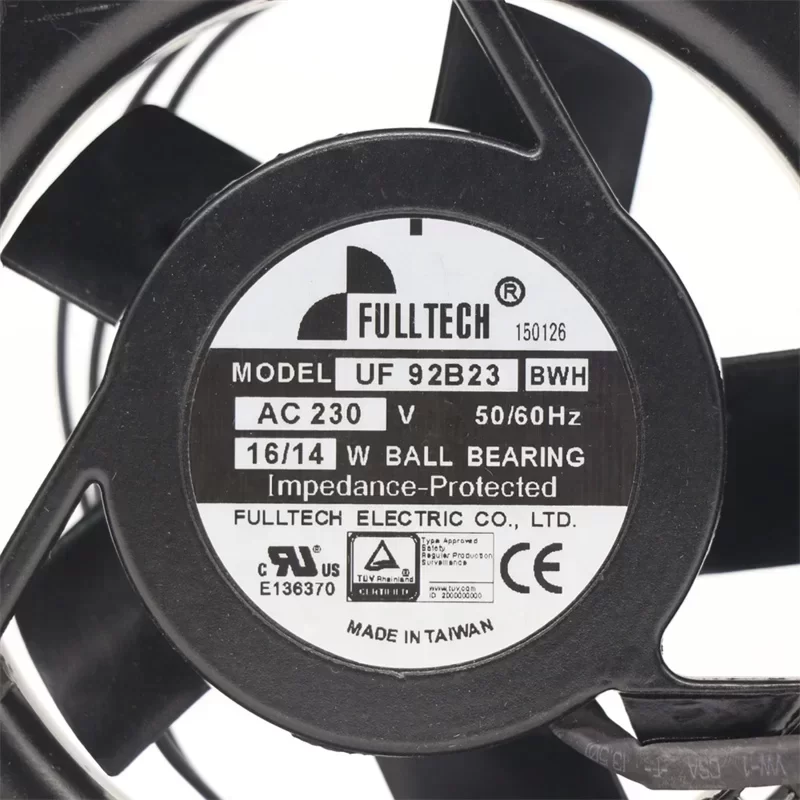

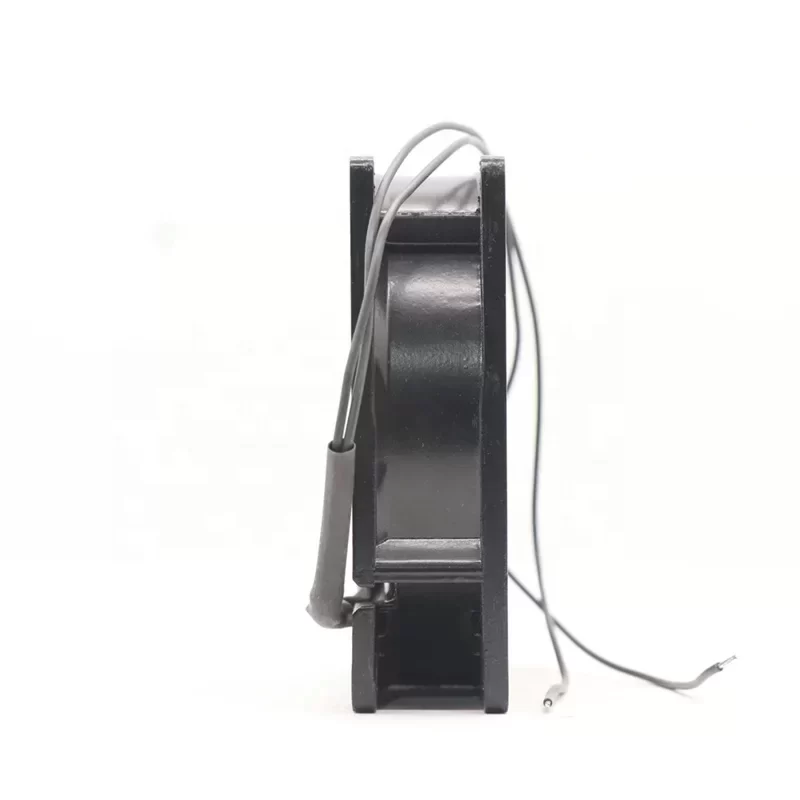

The Fulltech UF-92B23BWH is a high-performance axial cooling fan engineered for demanding industrial environments requiring reliable thermal regulation. Manufactured in Taiwan by Fulltech Electric Co., this 92 x 92 x 25 mm unit is designed for seamless integration into cabinet chassis, server racks, and power distribution panels. The fan operates on a 230 VAC supply, drawing a nominal current of 0.08A, making it an efficient solution for heat dissipation in global industrial power systems.

Equipped with a precision dual ball bearing system, the UF-92B23BWH ensures extended service life and stable operation across a wide temperature range compared to standard sleeve bearing alternatives. The aerodynamic plastic blades are optimized to deliver a consistent airflow of 33 to 40 CFM, depending on the operating frequency (50/60 Hz), while maintaining a controlled noise profile of 32 to 36 dBA. This model is a critical component for preventing thermal throttling in sensitive electronic assemblies and ensuring the longevity of internal hardware.

Technical Specifications:
Brand: Fulltech
Model Number: UF-92B23BWH
Dimensions: 92 x 92 x 25 mm
Input Voltage: 220 – 240 VAC
Frequency: 50/60 Hz
Rated Power: 14 / 16 W
Rated Current: 0.08 A
Rotational Speed: 2500 / 3000 RPM
Airflow Capacity: 33 / 40 CFM
Bearing Type: Dual Ball Bearing
Noise Level: 32 / 36 dBA
Frame Material: Aluminum Die-Cast
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C to +70 °C
Weight: 0.28 kg
Origin: Taiwan

Applications:
The Fulltech UF-92B23BWH is widely utilized in CNC machinery, industrial automation cabinets, telecommunications infrastructure, and medical equipment. Its robust construction and high-speed performance make it suitable for continuous duty cycles in environments where equipment reliability is paramount. This original engineering component ensures optimal lead time and compatibility for maintenance, repair, and overhaul (MRO) operations.

Key Attributes
Mounting: Free Standing
Voltage: 230V
Blade material: Plastic
After-sales Service Provided: Online support
Warranty: 1 Year
Customized support: OEM
Place of origin: Taiwan, China
Brand name: FULLTECH
Product name: UF-92B23BWH
Current: 0.08A
Voltage: 230V
Specifications: 92*92*25MM
Power: 16W
Speed: 2500/3000 rpm
Air flow: 33/40CFM
Frequency: 50/60Hz
Bearing type: Ball bearing
Noise: 32/36dBA

Packaging and Delivery
Selling Units: Single item
Single package size: 21X21X12 cm
Single gross weight: 1.000 kg

Fulltech UF-92B23BWH/BTH 92X92X25mm 230V AC Axial Fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
